User Manual for CAME-TV Argo 3-Axis Handheld Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the CAME-TV Argo 3-Axis Handheld Gimbal Stabilizer
- Product category: Gimbal Stabilizers CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Gimbal Stabilizers
 |
User manual for the CAME-TV Argo 3-Axis Handheld Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

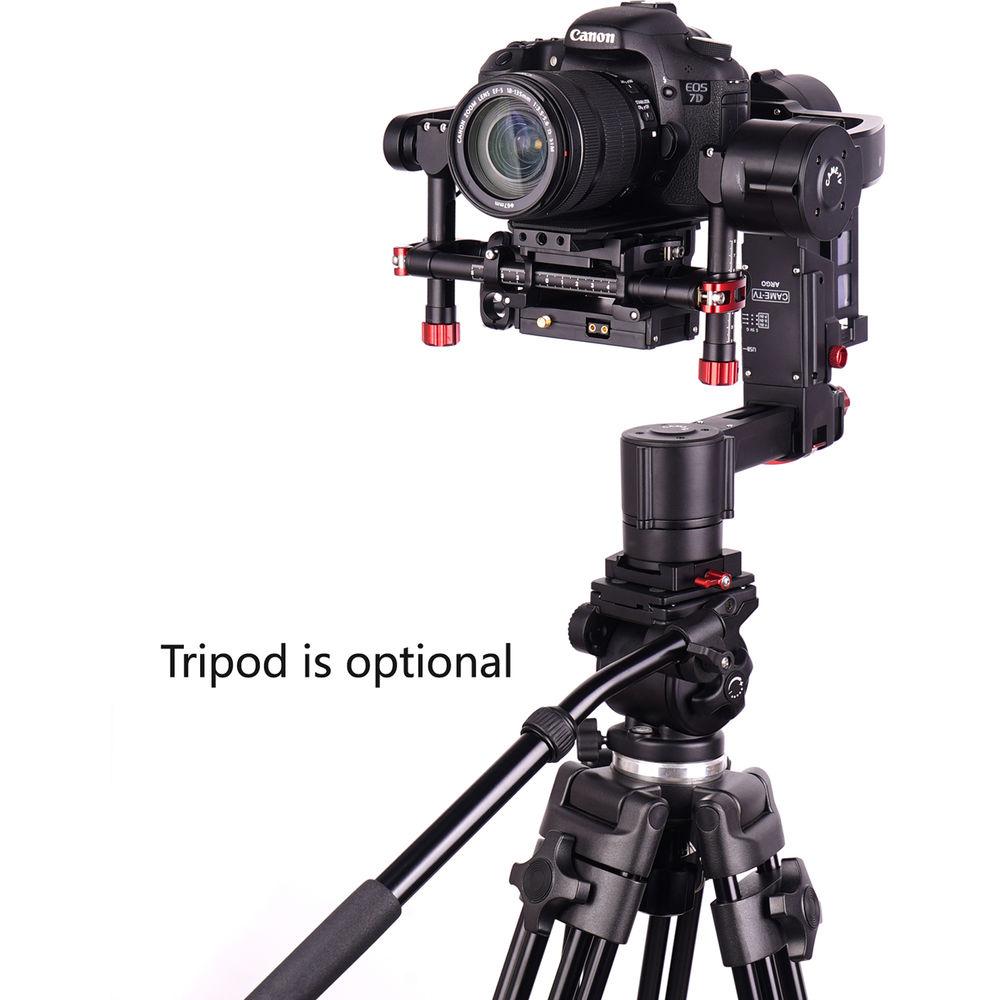

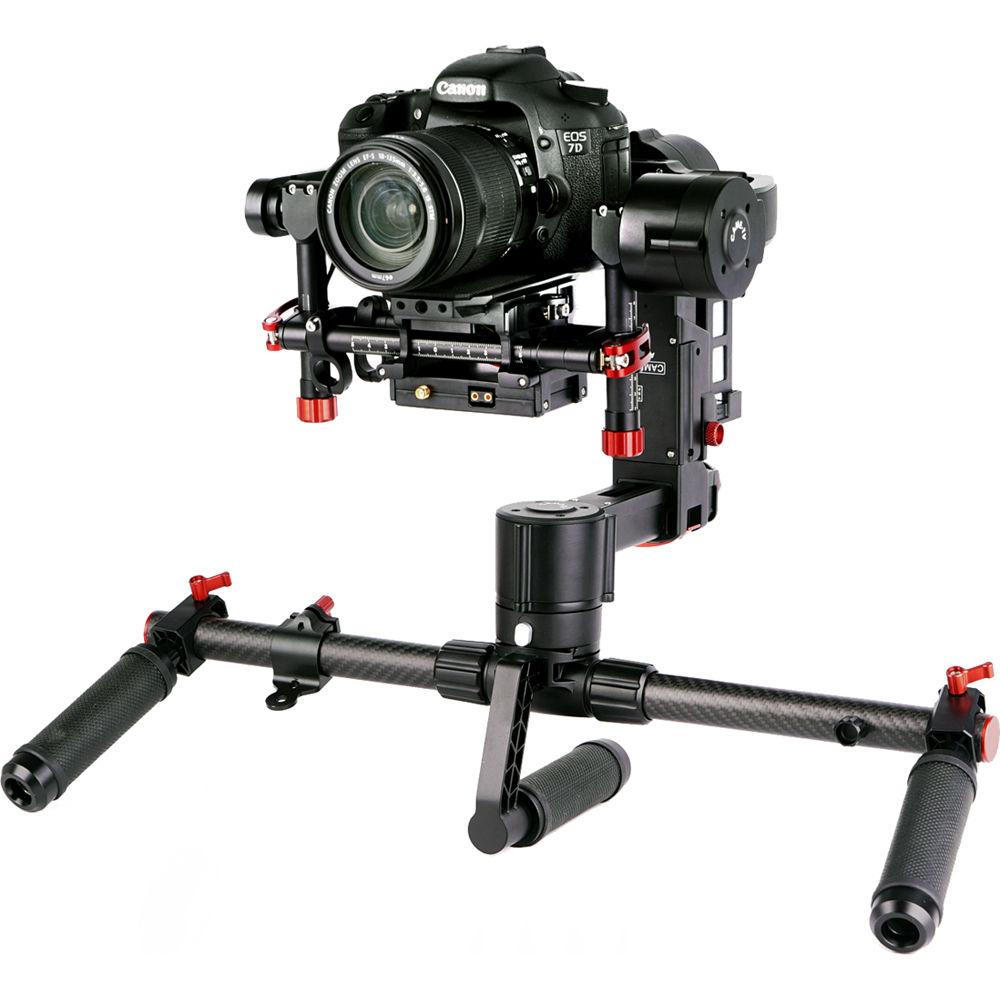

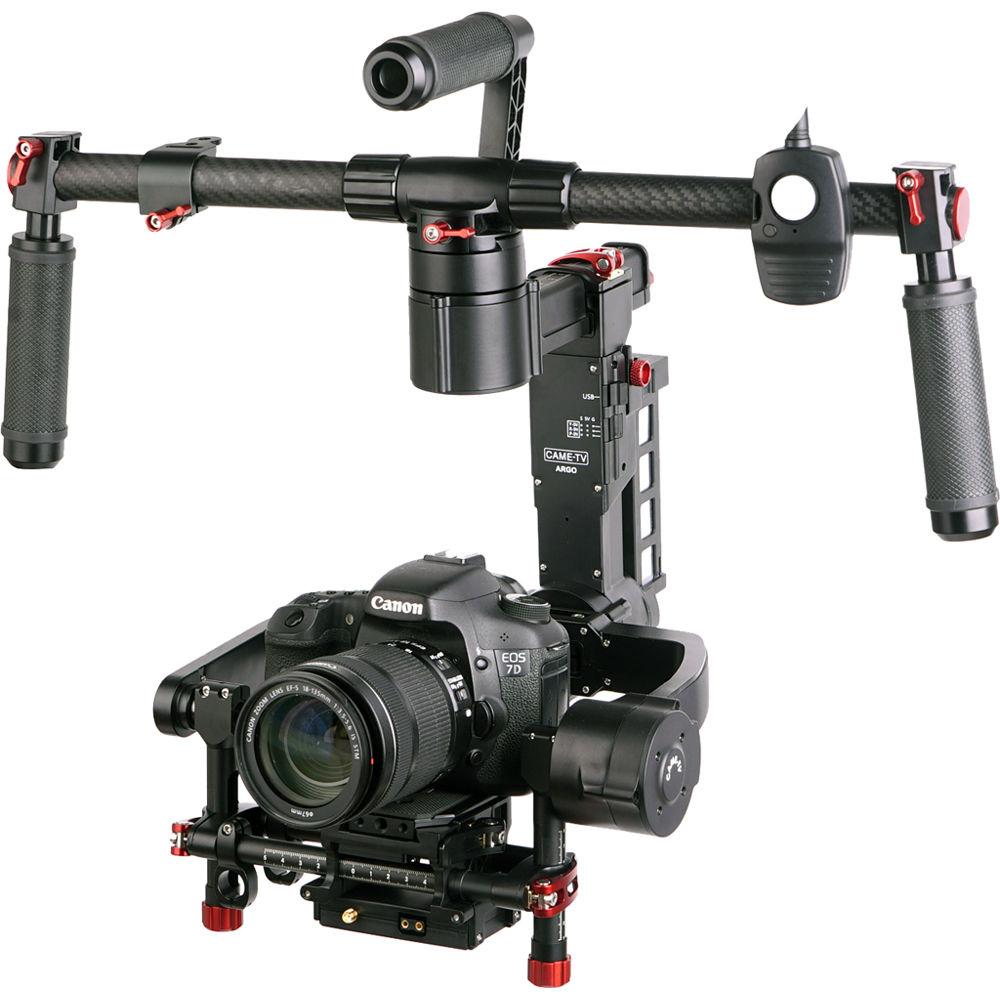

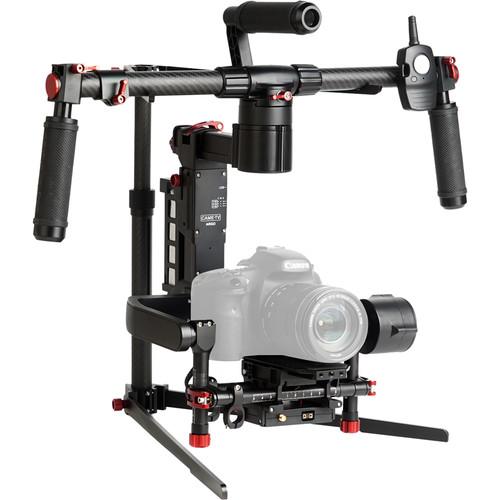

Product description Featuring tool-less adjustment and a 32-bit Alexmos board, the CAME-TV Argo is a motorized 3-axis handheld gimbal that lets you capture smooth and precise free-floating stabilized camera shots. The gimbal supports loads up to 6.6 lb, making it most suitable for DSLR and mirrorless camera setups, and sports a modular design that allows the gimbal unit to be attached to an included top handle bar assembly for two-handed operation, or to other support devices such as a jib, slider, or drone using a supplied adapter plate. Both handles on the top bar attach via thumbscrews for quick position and angle adjustment, with a center handle useful for low angle shooting or simply carrying the stabilizer between shots.

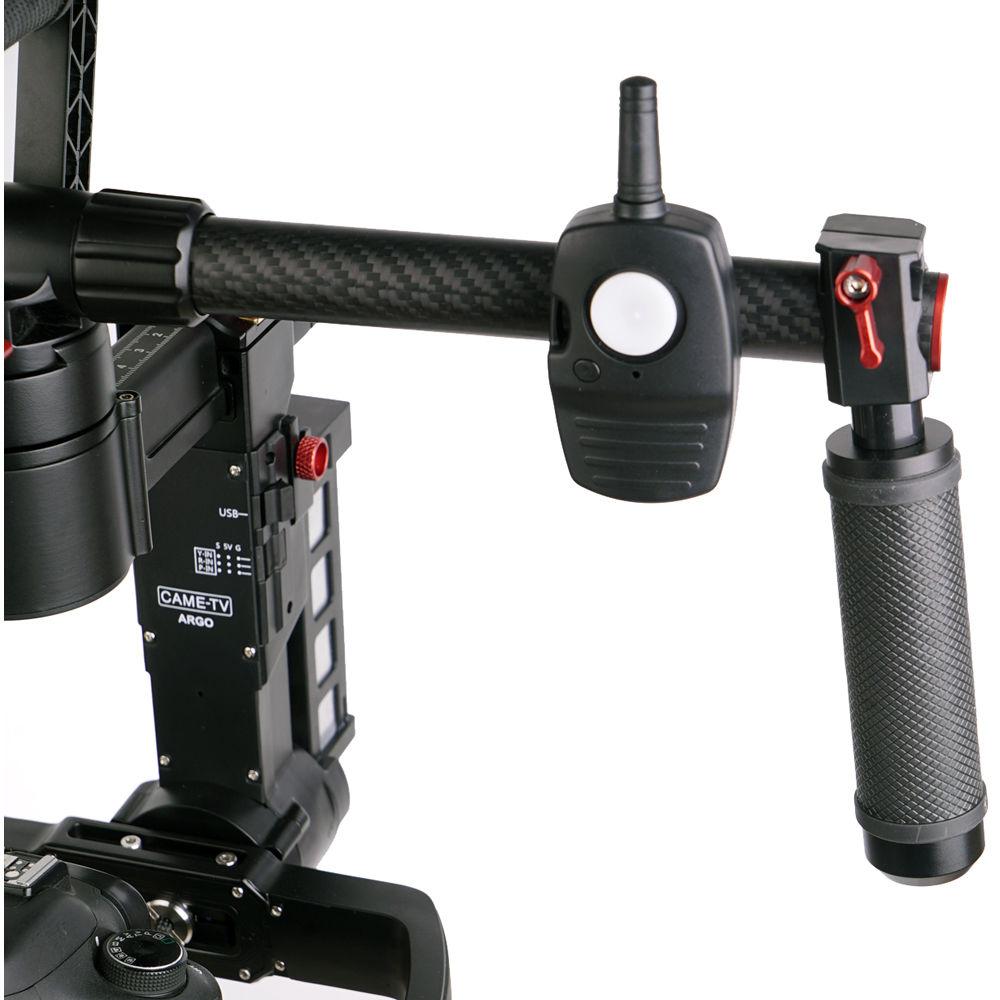

Gimbal operating mode selection and pan/tilt angle adjustments is performed using a wireless joystick remote. The remote can be mounted directly to the handle bar and placed near one of the handles for thumb control of the joystick, or used detached from the stabilizer by a second operator. As with sled-and-vest-style stabilizers, motorized gimbal systems require balancing. Argo uses a quick release camera plate and index markings for its tool-less position adjustment, making it easier to find optimal balance point and to recall settings for different camera and lens combinations.

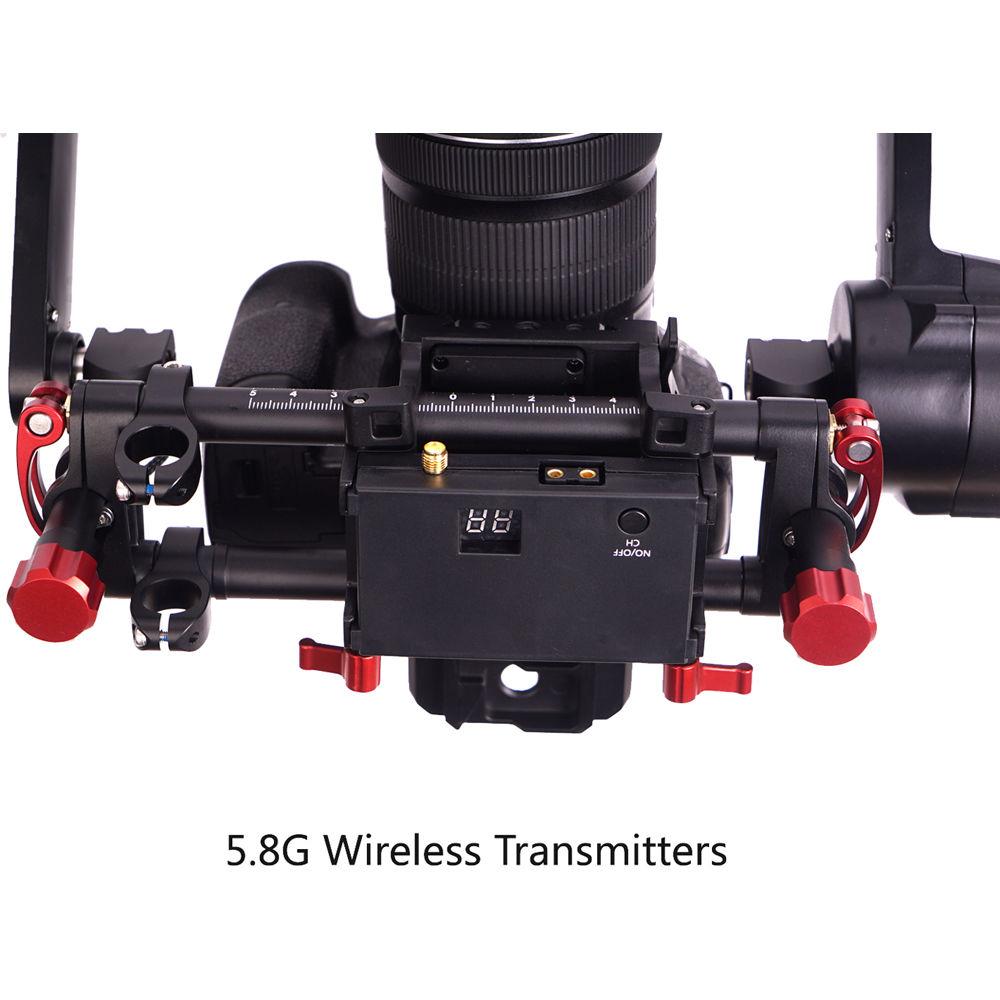

A quick release LiPo battery attaches to the gimbal to provide up to 15 hours of power. Beneath the camera baseplate is a 5.8 GHz wireless video transmitter with micro-HDMI input to take the output from your camera and send it to a wireless monitor. Also located beneath the baseplate is a 12V D-tap output to power an optional accessory from the gimbal battery, such as a wireless follow focus motor, which can be mounted using an included single 15mm rod clamp and 3.9" long rod. - Features
-
- Supports loads up to 6.6 lb
- Pre-calibrated 32-bit Alexmos board
- All motors equipped with encoders for increased accuracy and smoothness, while also benefiting battery life
- Tool-less adjustment/balancing

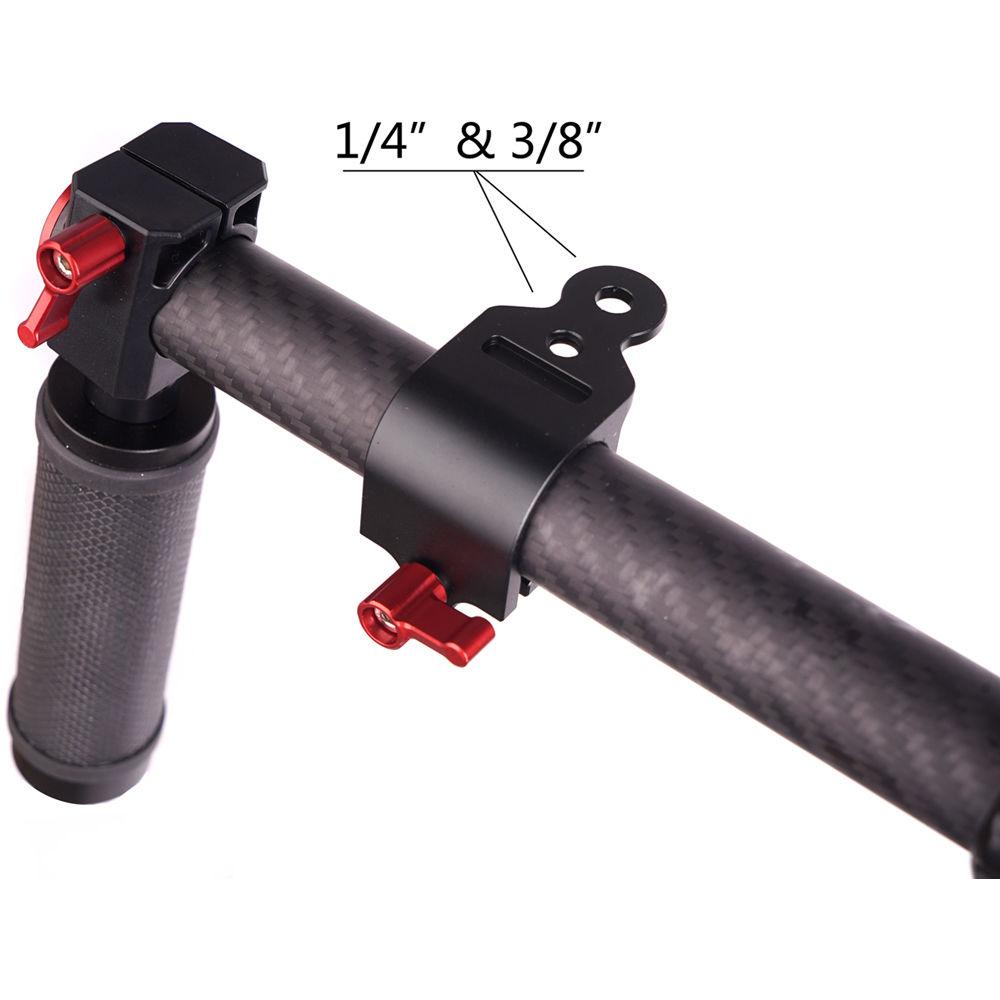

- Handle bar with removable and adjustable handles
- Center top handle for low-angle shooting
- Operating Modes: Follow Mode, Tilt Follow/Pan Lock Mode, All Lock Mode
- Wireless joystick remote for gimbal control and switching between operating modes

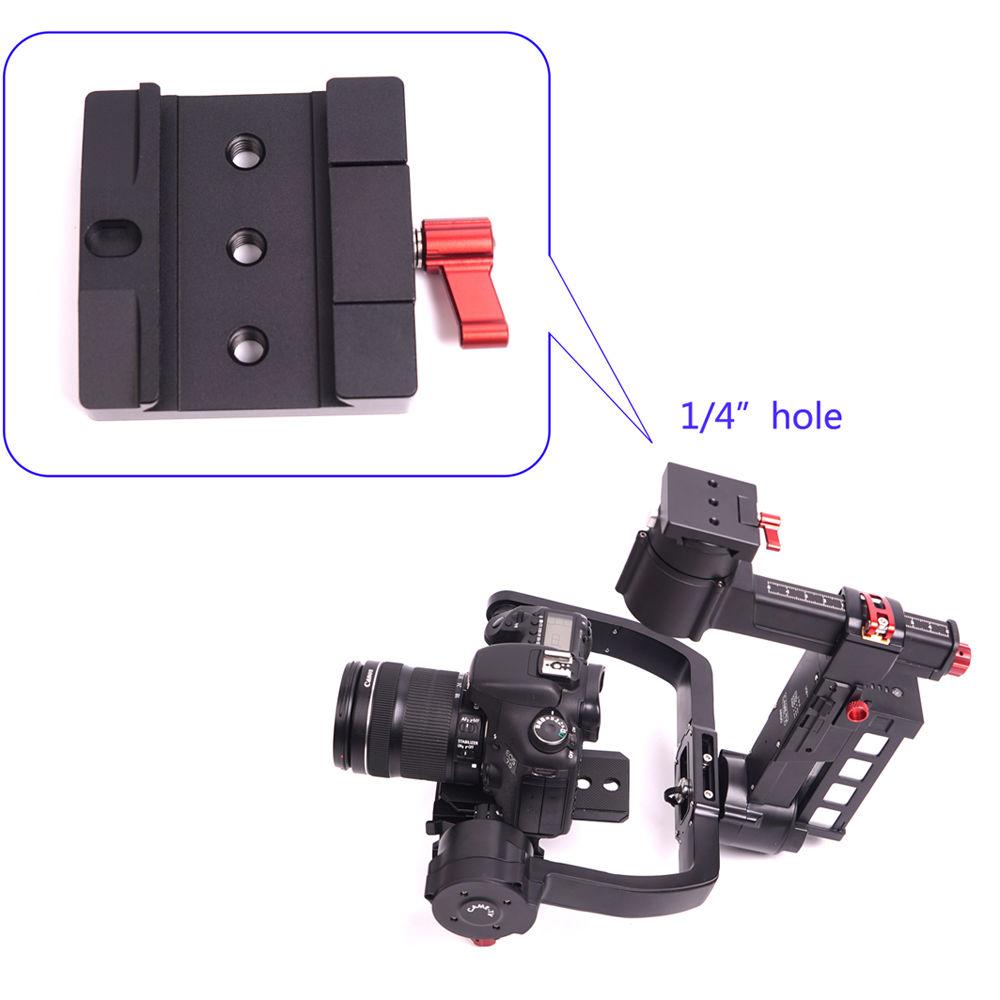

- Handle bar removable to attach gimbal unit to jib, slider, drone, or other support device using an included adapter plate

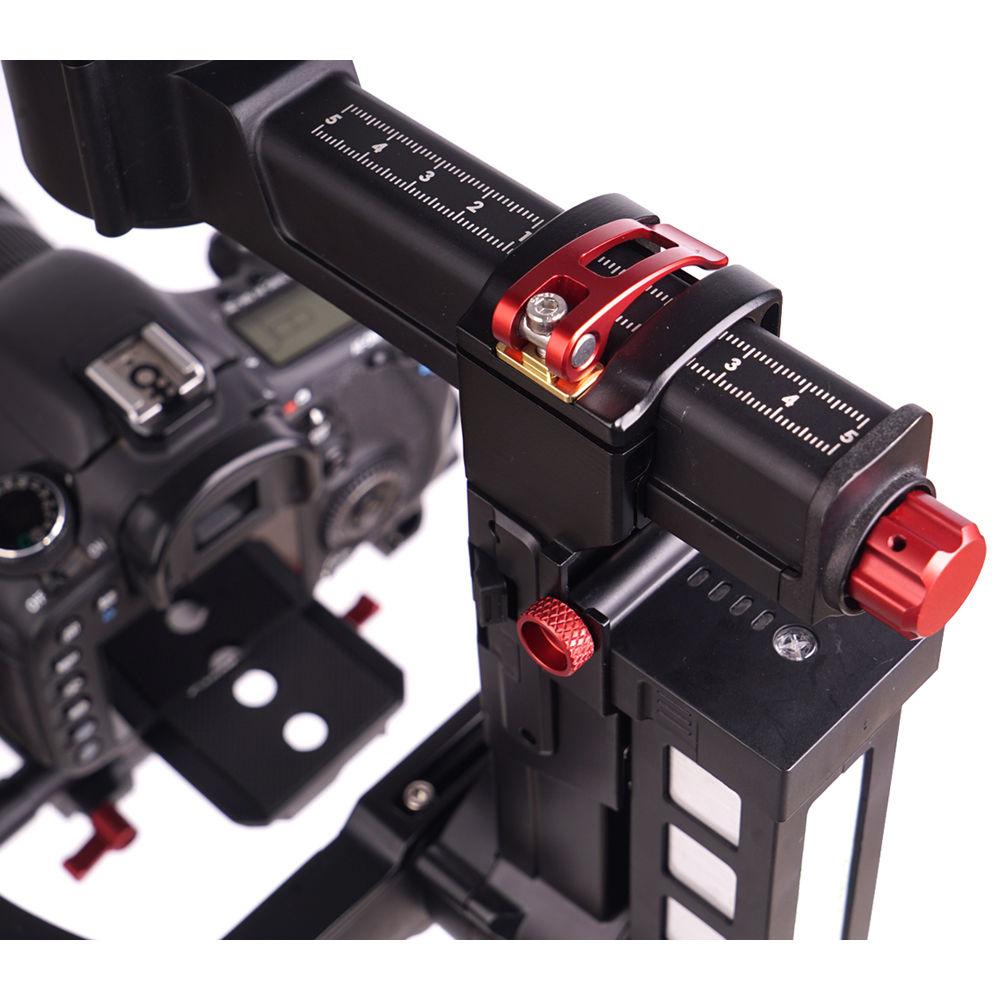

- Quick release camera plate and index markings for balancing
- 12V D-Tap power output to power optional accessory
- 5.8 GHz wireless video transmitter with micro-HDMI input
- USB port and RC connector
- 15mm rod clamp and 3.9" rod for attaching optional wireless follow focus gear drive motor or other accessory
- Foldable carbon fiber tuning stand

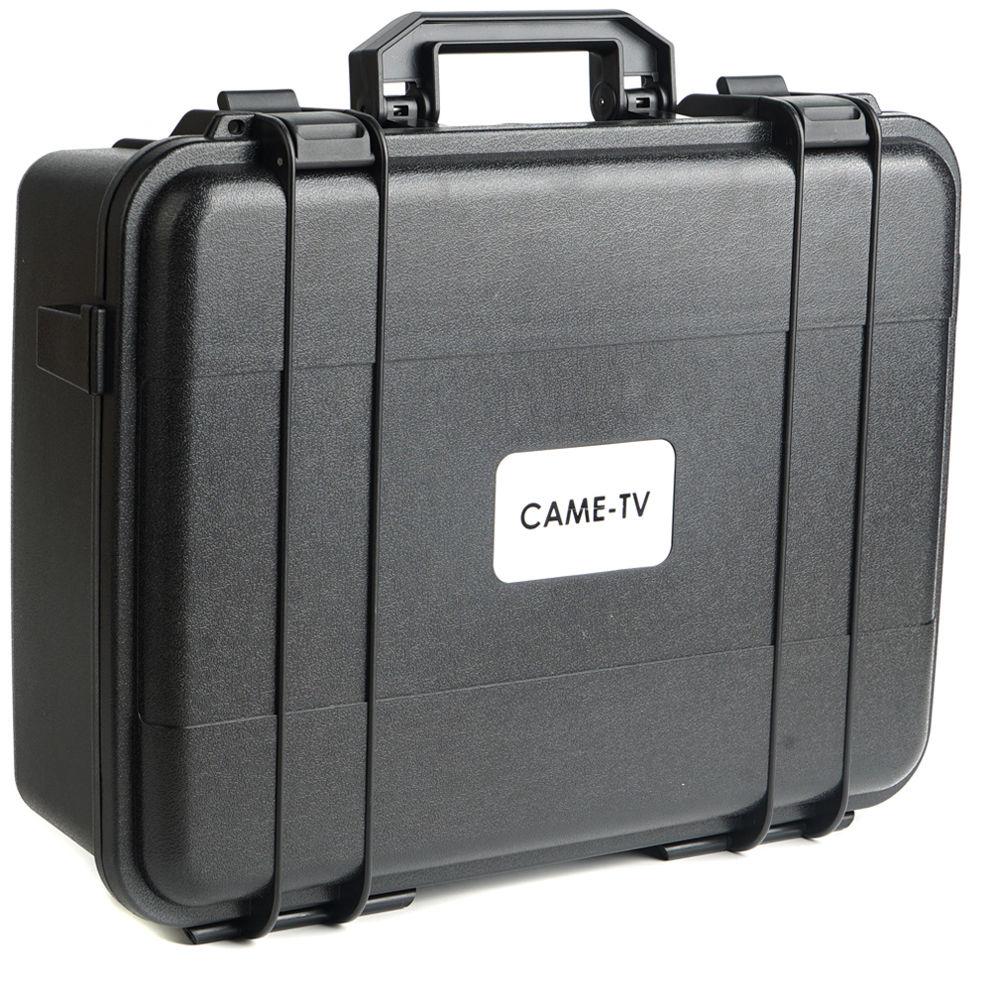

- Hard case
UPC: 602668719616 In the Box CAME-TV Argo 3-Axis Handheld Gimbal Stabilizer Handle Bar Assembly 2 x Handles Adapter Plate Wireless Remote LiPo Battery Battery Charger & Cable Plug Converter Quick Release Plate 15mm Rod Clamp 15mm Rod (3.9") 5.8 GHz Transmitter Antenna Lens Support 4-Pin Cable Micro-HDMI to Mini HDMI Cable Micro-HDMI Female to Mini-HDMI Male Adapter Carbon Fiber Stand Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Argo 3-Axis Handheld Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV CAME-ARGO Specs | | | Number of Axes | 3-Axis | | Rotation Range | Yaw (Pan): 360
