Product description

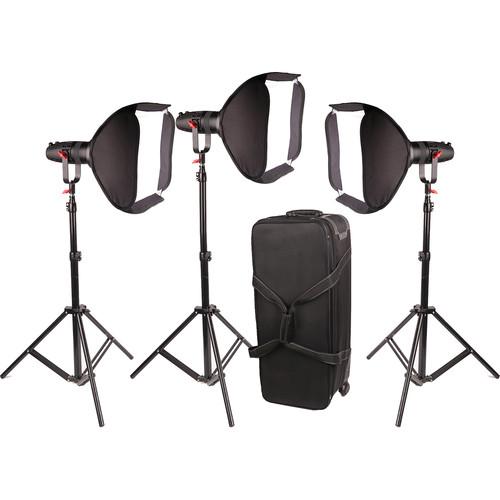

The Boltzen 30W Fresnel Fanless Focusable LED Tungsten Package from CAME-TV includes the Boltzen 30W Fresnel Focusable LED Tungsten 3-Light Kit, Foldable Quick Set-Up Softbox with Bowens Speedring, three Light Stands, and a small Bowens Mount Ring Adapter.
  • Boltzen 30W Fresnel Fanless Focusable LED Tungsten 3-Light Kit The Boltzen 30W Fresnel Fanless Focusable LED Tungsten 3-Light Kit from Came-TV includes three 30W Boltzen Lights, three removable barndoors, three yokes, three power adapters, three 5.9' D-Tap cables, three soft filters, three milky-white filters, and one hard carrying case.Each light fixture includes an adjustable Fresnel lens to help focus the light and provide a longer throw distance. When used without the lens, the light becomes a wider flood and the included barndoors help to control the spill. This allows you to go from a tight spot to a wide flood all in one continuous light.Designed for use on set, the light incorporates a fanless design for eliminating noise and is enclosed inside a housing that is designed to dissipate heat during continuous use. The light can be powered from an AC source (with included power adapter), NP series battery (sold separately), or a V-mount battery (sold separately) via the included V-mount adapter cable.

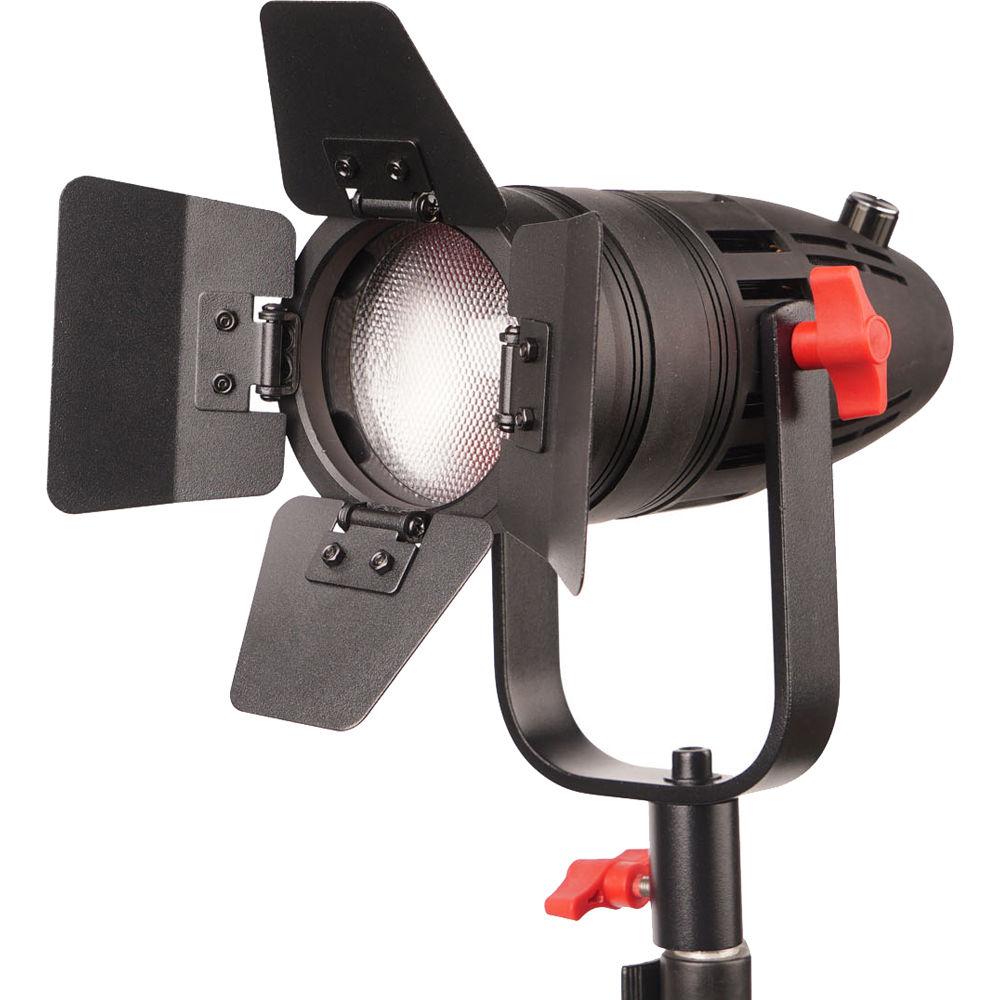

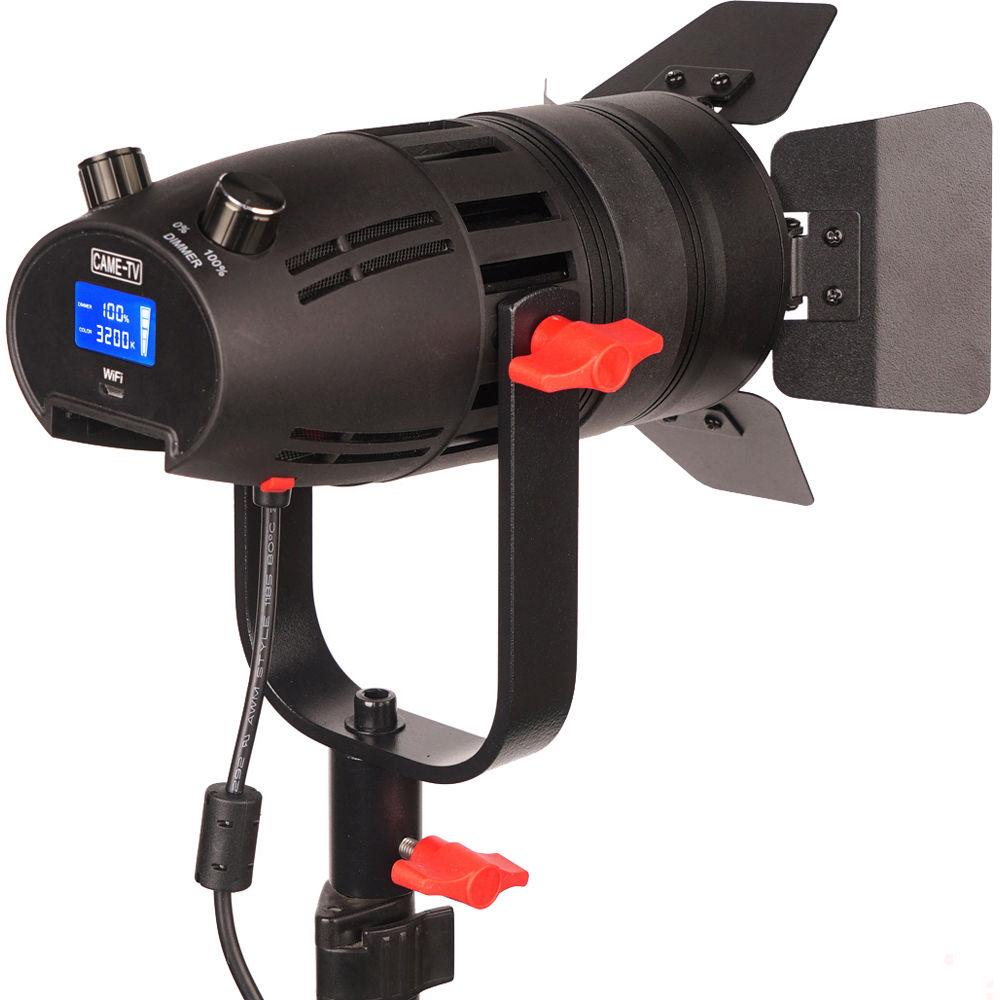

    30W Fresnel Tungsten Light

    • High CRI (Ra98)
    • Color temperature of 3200K
    • One LED COB (Chip On Board)
    • Fanless design for quiet operation
    • Barndoors for easily adjusting the lighting direction
    • Includes an AC power adapter

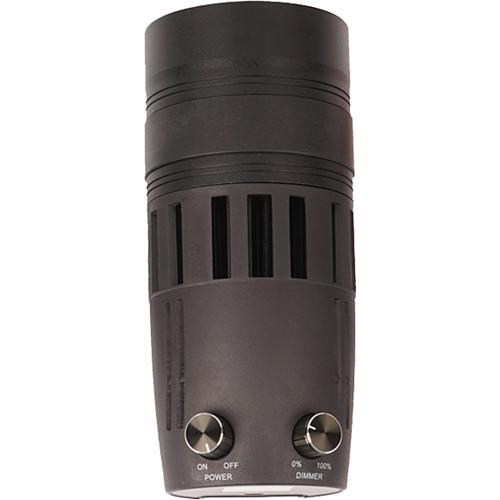

    • Dimming Knob for stepless brightness adjustment

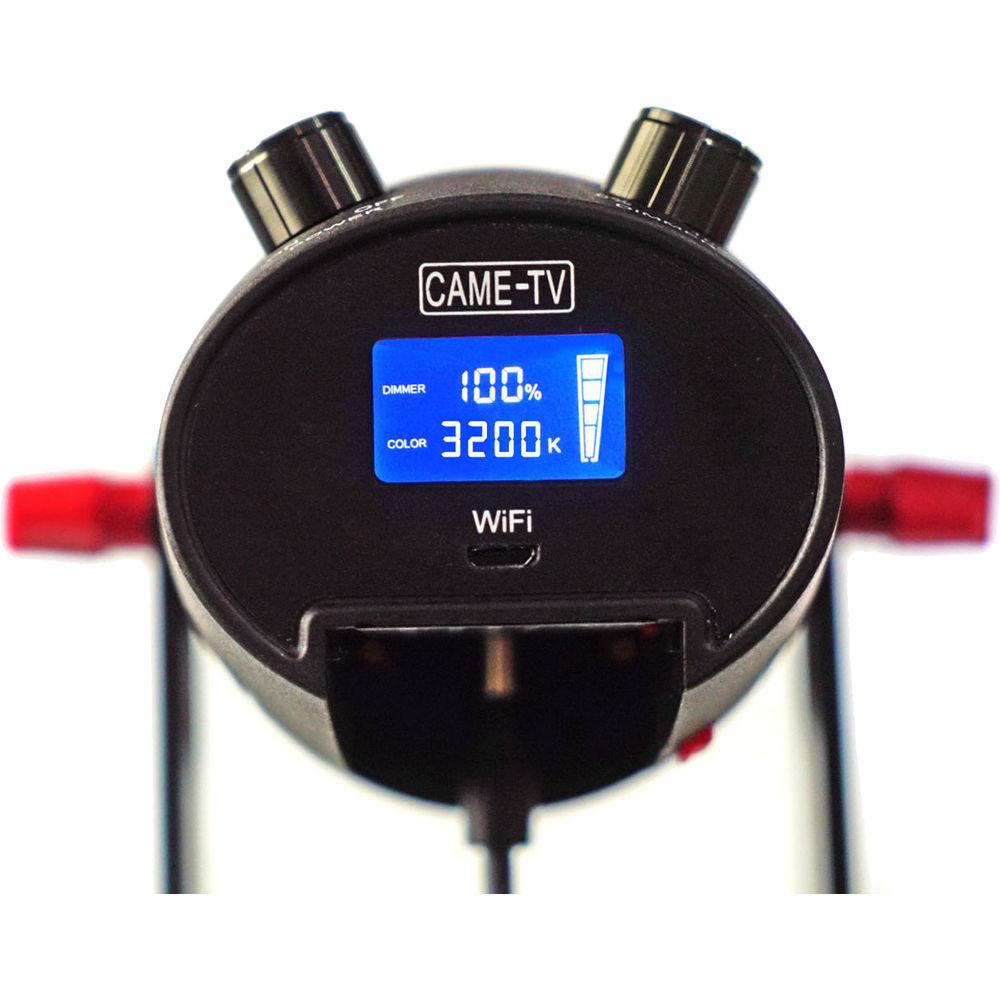

    • LCD display screen

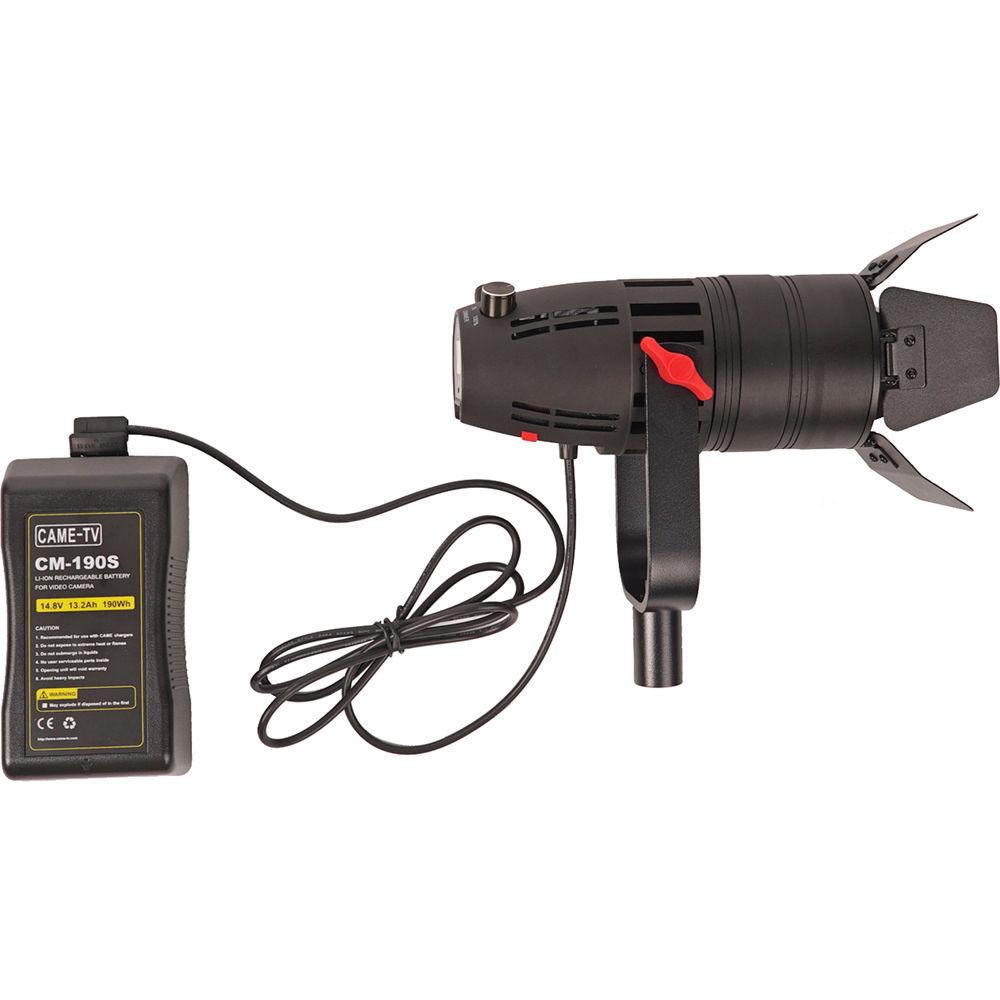

    • Can be powered via an NP series battery or a V-mount battery (sold separately)
    • Filter set includes soft and milky-white filters for creating a specific lighting look
    • Supports Wi-Fi functionality via an optional Wi-Fi dongle
    • Power on/off switch
    UPC: 602668721510
  • Foldable Quick Setup Softbox with Bowens Speed Ring (15.8 x 15.8") Recommended for Came-TV lights such as the Boltzen 30W and 55W LED fixtures, the 15.8 x 15.8" Foldable Quick Setup Softbox with Bowens Speed Ring is a light modifier created to produce a soft, flattering quality of light. The softbox has a reflective interior to maximize output and removable front and inner diffusers to offer light softening options, as well as a twist-and-fold design that sets up and breaks down in seconds. The softbox includes a Bowens speed ring for mounting to Came-TV lights and a zippered case for storage and transport. UPC: 602668721336
  • Max Work 2.4m Air-Cushioned Light Stand (7.9', Black) Offered as a spare or replacement light stand for CAME-TV kits, the black Max Work 2.4m Air-Cushioned Light Stand from CAME-TV has a maximum height of 7.9'. The stand features three sections and a reversible stud with a 1/4"-20 mounting stud on one end, and 3/8"-16 on the opposite end. For versatility, the stud may be locked in a vertical or horizontal position. The large knobs are easy to grasp and simplify the raising or lowering of your mounted light. UPC: 603629358424

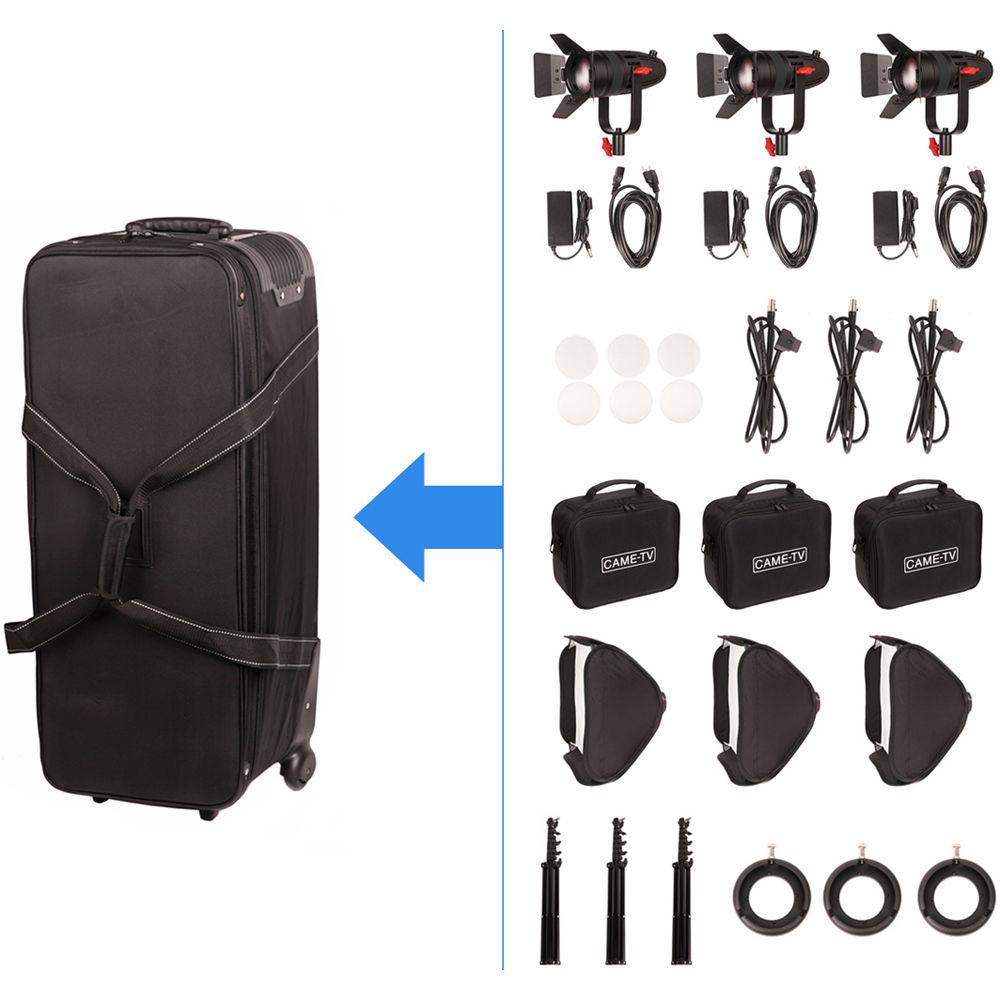

In the Box Bundle Items Boltzen 30W Fresnel Fanless Focusable LED Tungsten 3-Light Kit aaazecaqbcuqasdvcedutybcv
  • 3 x 30W Boltzen Tungsten Lights

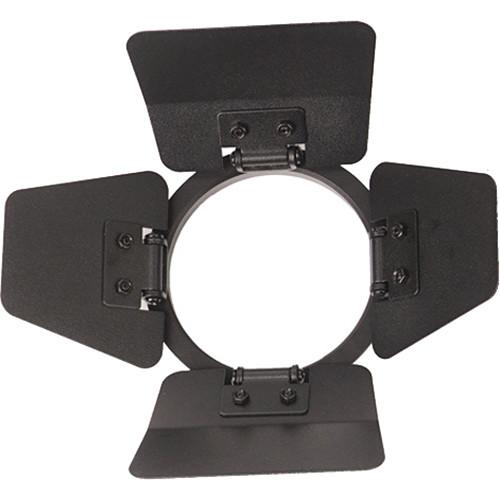

  • 3 x Removable Barndoors

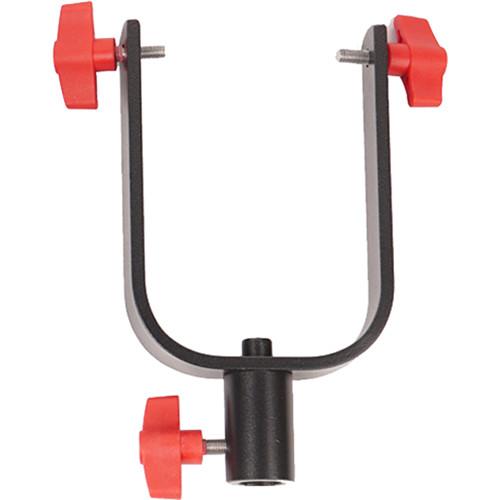

  • 3 x Yokes

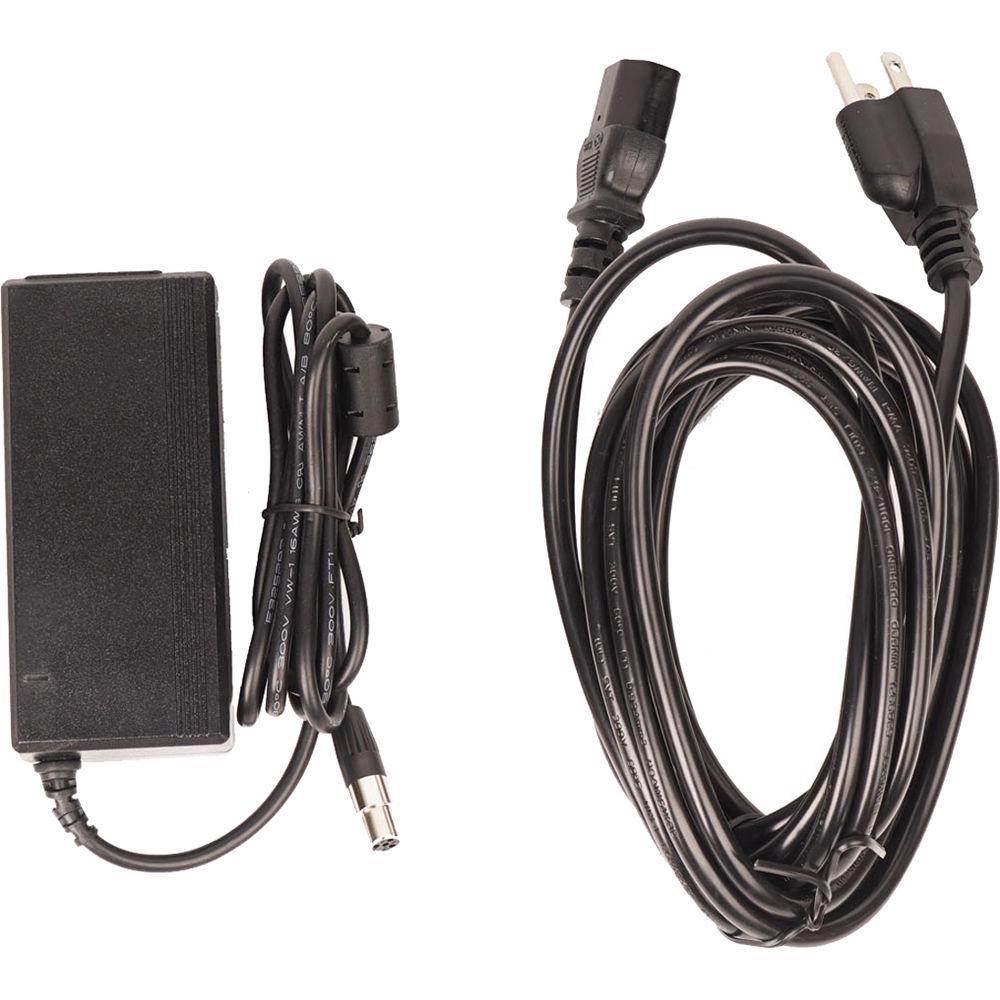

  • 3 x AC Power Adapters
  • 3 x 5.9' D-Tap Cables
  • 3 x Soft Filters
  • 3 x Milky-White Filters
  • Hard Carrying Case
  • Limited 1-Year Warranty
Foldable Quick Setup Softbox with Bowens Speed Ring (15.8 x 15.8")
  • Front Diffuser
  • Inner Diffuser
  • Bowens Speed Ring
  • Case
  • Limited 1-Year Warranty
3 x Max Work 2.4m Air-Cushioned Light Stand (7.9', Black)
  • Limited 1-Year Warranty

Also Includes

  • Bowens Mount Ring Adapter (Small)
  • Wheeled Bag
Table of Contents




Upload User Manual

Have you got an user manual for the CAME-TV Boltzen 30W Fresnel Fanless Focusable LED Tungsten Package in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Boltzen 30W Fresnel Fanless Focusable LED Tungsten 3-Light Kit
    Power 30 W
    Color Range 3200K
    CRI Ra98
    Operating Voltage 100 to 240 VAC
    DC Voltage 7.4 to 14.8 V (power adapter)
    Dimming 0 to 100% via knob
    Cable 5.9' (1.8 m) D-Tap
    Mount Not specified by the manufacturer
    Dimensions Each Light: 7.87 x 3.50 x 3.5" (20 x 8.9 x 8.9 cm)
    Weight Not specified by the manufacturer
    Box Dimensions (LxWxH) 18.2 x 16.2 x 7.0"
  • Foldable Quick Setup Softbox with Bowens Speed Ring (15.8 x 15.8")
    Shape Square
    Interior Silver
    Requires Speed Ring Yes, Included
    Removable Front Face Yes
    Removable Interior Baffle Yes
    Rectangular Dimensions W: 15.8 x H: 15.8" / W: 40.0 x H: 40.0 cm
    Box Dimensions (LxWxH) 12.992 x 6.142 x 1.1"
  • Max Work 2.4m Air-Cushioned Light Stand (7.9', Black)
    Mounting Options 1/4"-20 Male Thread
    3/8"-16 Male Thread
    5/8" Stud
    Maximum Working Height 7.9' / 2.4 m
    Collapsed Height 37.4" / 95 cm
    Air Cushioned No
    Detachable Base No
    Leveling Leg No
    Reverse Legs No
    Finish Black
    Box Dimensions (LxWxH) 29.3 x 4.1 x 3.8"
