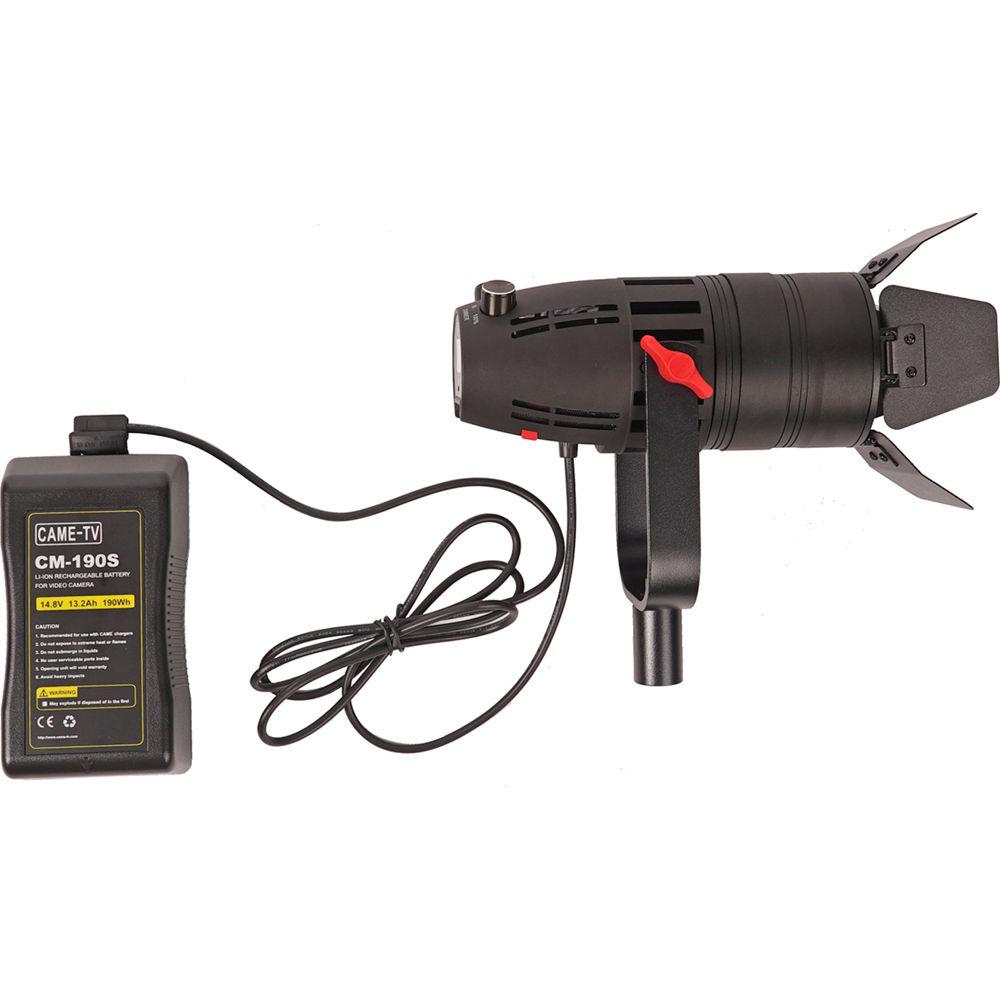

User Manual for CAME-TV Boltzen B-30 Fresnel 30W Focusable LED Daylight Fixture Click to enlarge the picture
Contents of the user manual for the CAME-TV Boltzen B-30 Fresnel 30W Focusable
- Product category: LED Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV LED Lights
 |
User manual for the CAME-TV Boltzen B-30 Fresnel 30W Focusable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

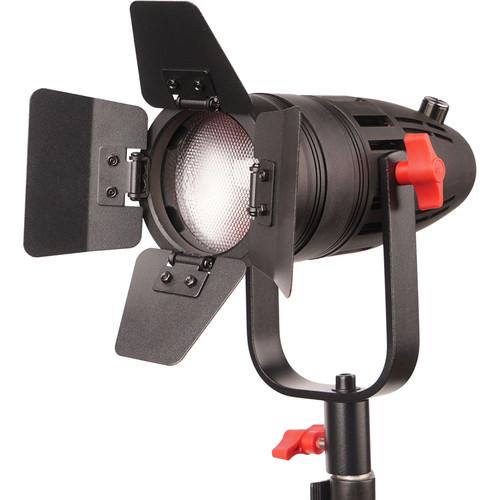

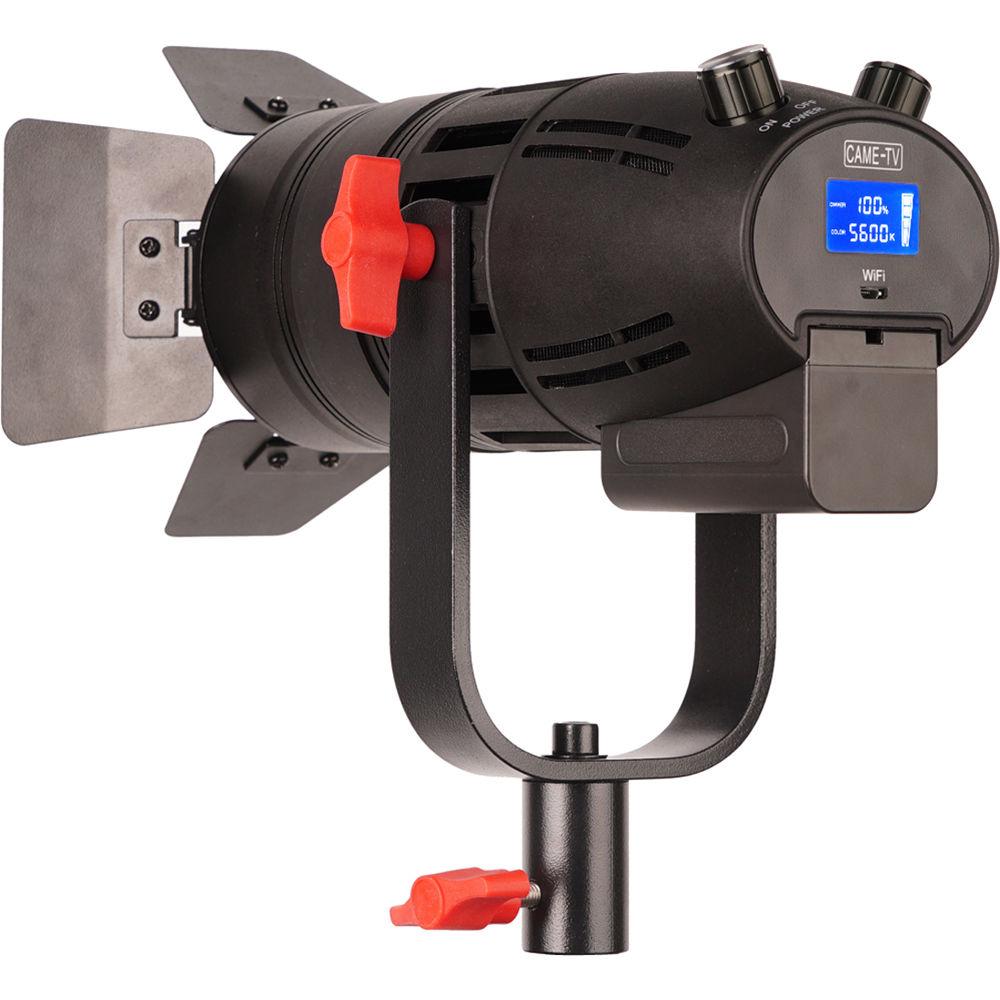

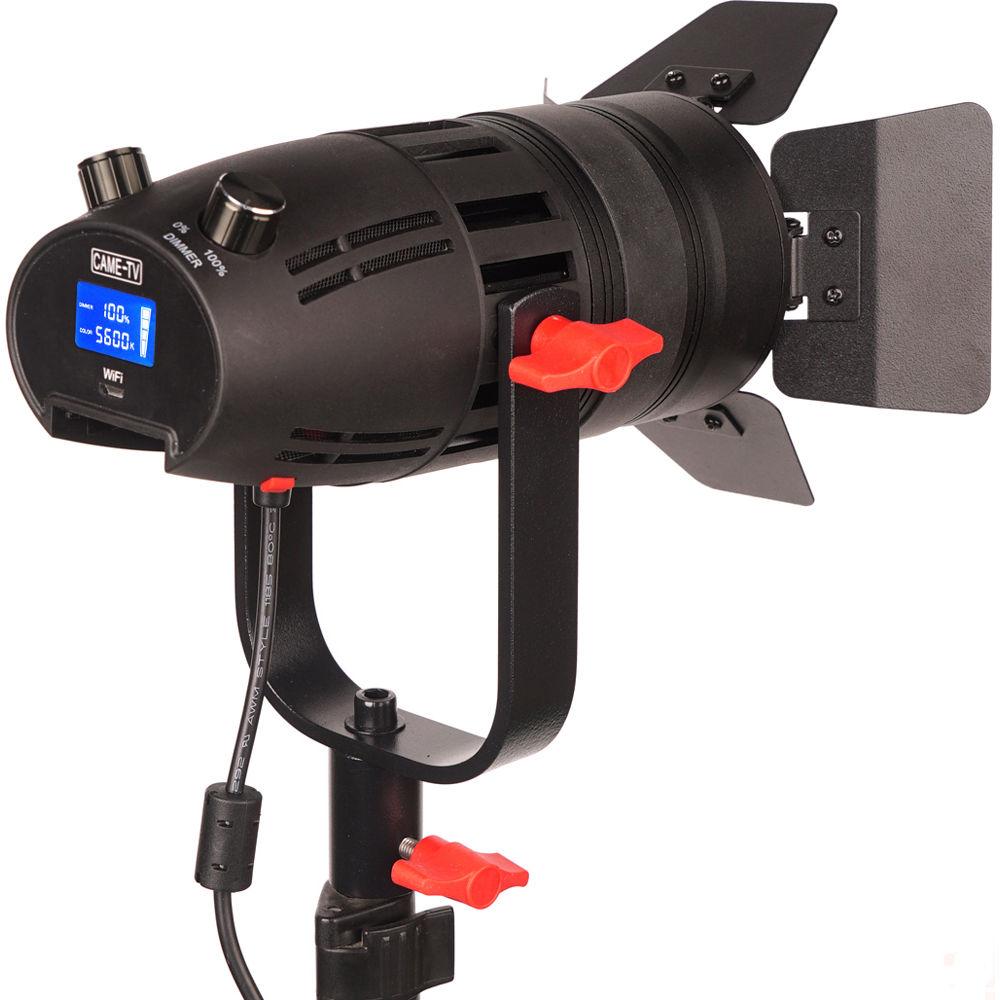

Product description The Boltzen B-30 Fresnel 30W Focusable LED Daylight Fixture from Came-TV is a versatile light source with a 5600K daylight-balanced COB (chip-on-board) LED with a high CRI of 96 for faithful color rendition. The light is adjustable from spot to wide beam to accommodate different effects and vary coverage. The included 4-way barndoors further help shape your beam to light the areas that you want to and keep light from areas that you don't. The fanless design means that the B-30 runs dead quiet, removing worries about audio on set.Versatility extends to the B30's power source. It comes with a multi-voltage power supply that allows you to use the light worldwide but it also runs on separately purchased Sony-type NP-F750 or 960 batteries as well as D-tap-equipped batteries for situations where AC mains power is not readily available. The B30 comes a Soft, Orange CTO and Milky-White filter set and a carry bag with shoulder strap for storage and transit. - Benefits
-
- High CRI: 96
- Color temperature 5600K
- There is 1 LED COB (chip-on-board)
- Fanless for quiet operation

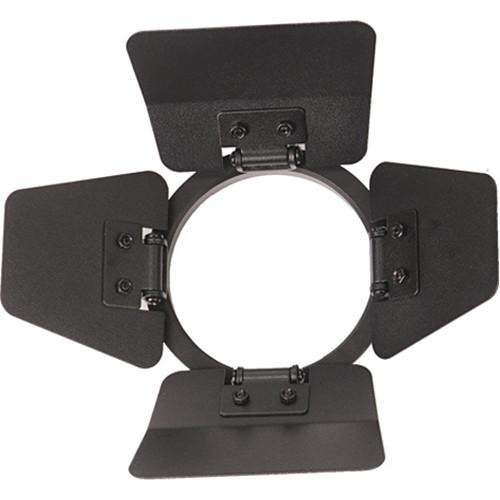

- Barndoors can easily adjust the lighting direction

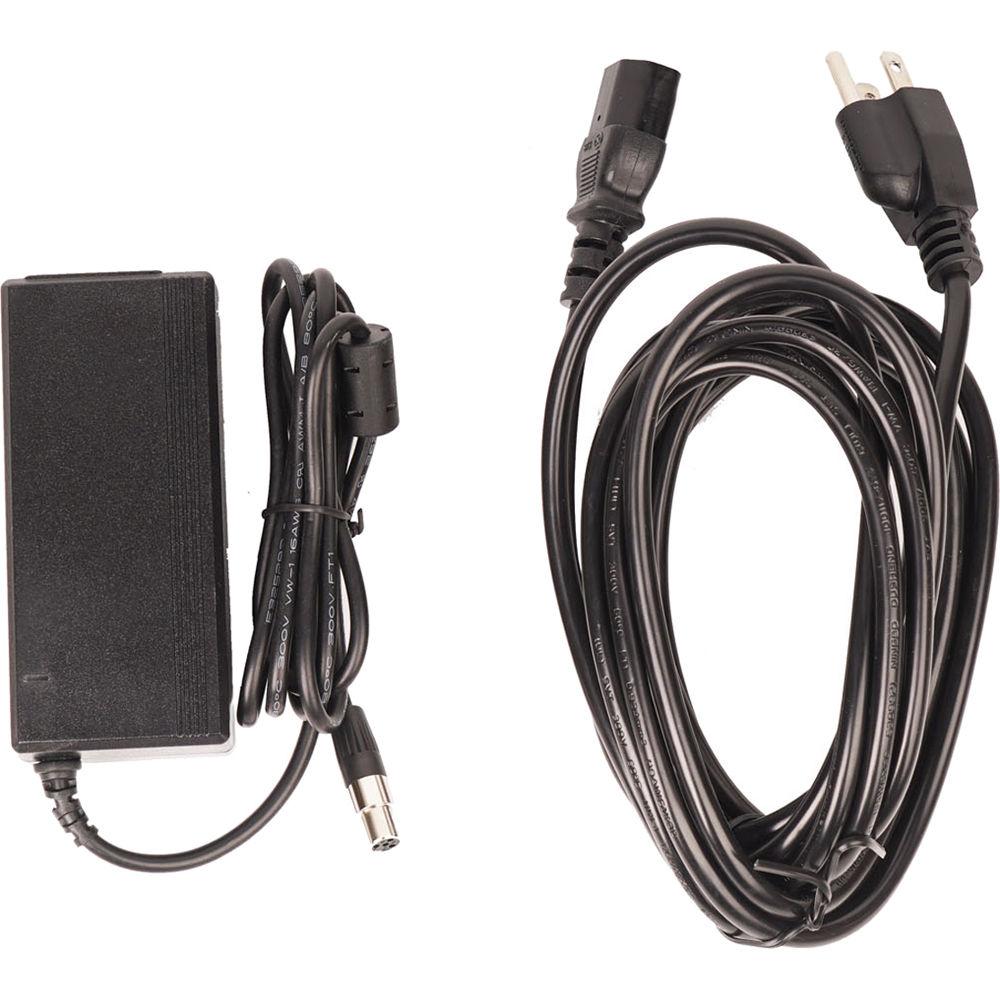

- AC power adapter included
- Dimming knob can steplessly adjust the brightness according to users' need

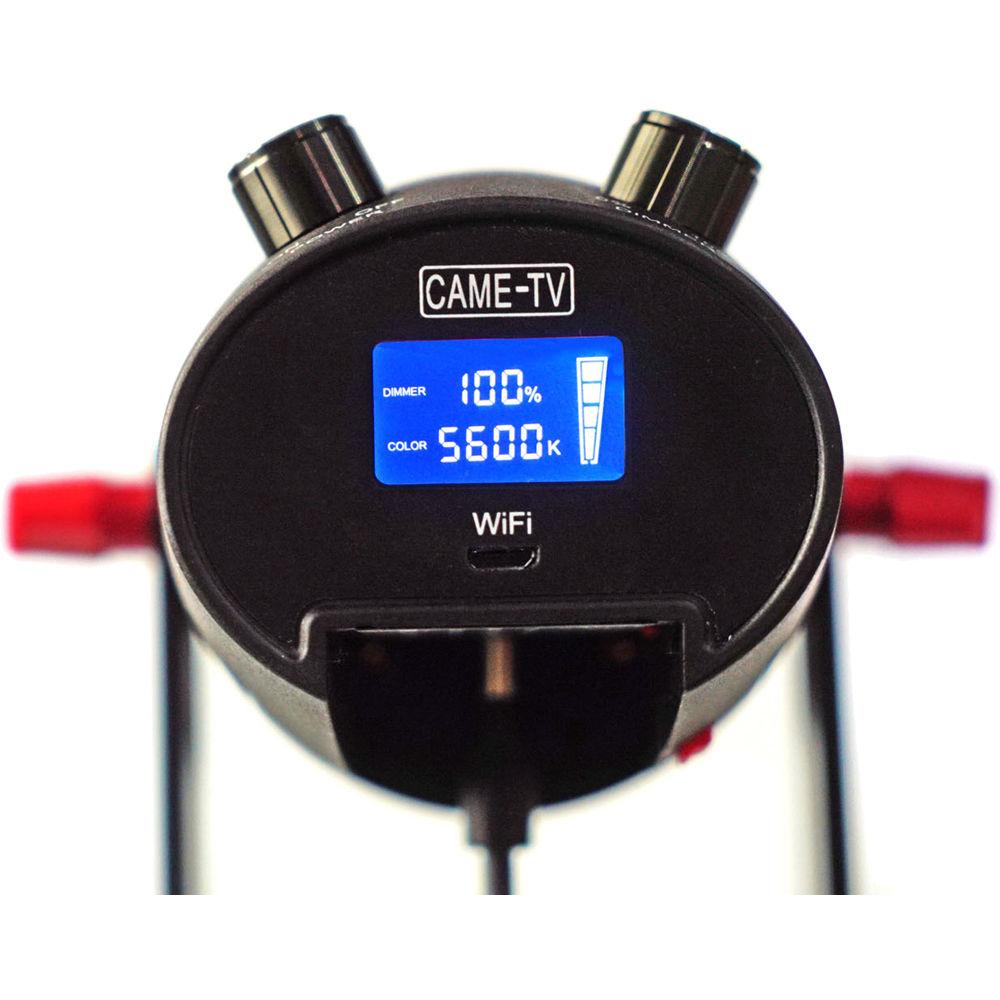

- LCD display screen
- Can be powered from NP-F75/F970 or D-tap-equipped battery
- Filter Set includes Soft, Milky-White and Orange filters that can change the color temperature to match an existing setup or create a specific lighting look
- Optional Bowens-Mount provides an easy way to mount a softbox and any other studio accessories

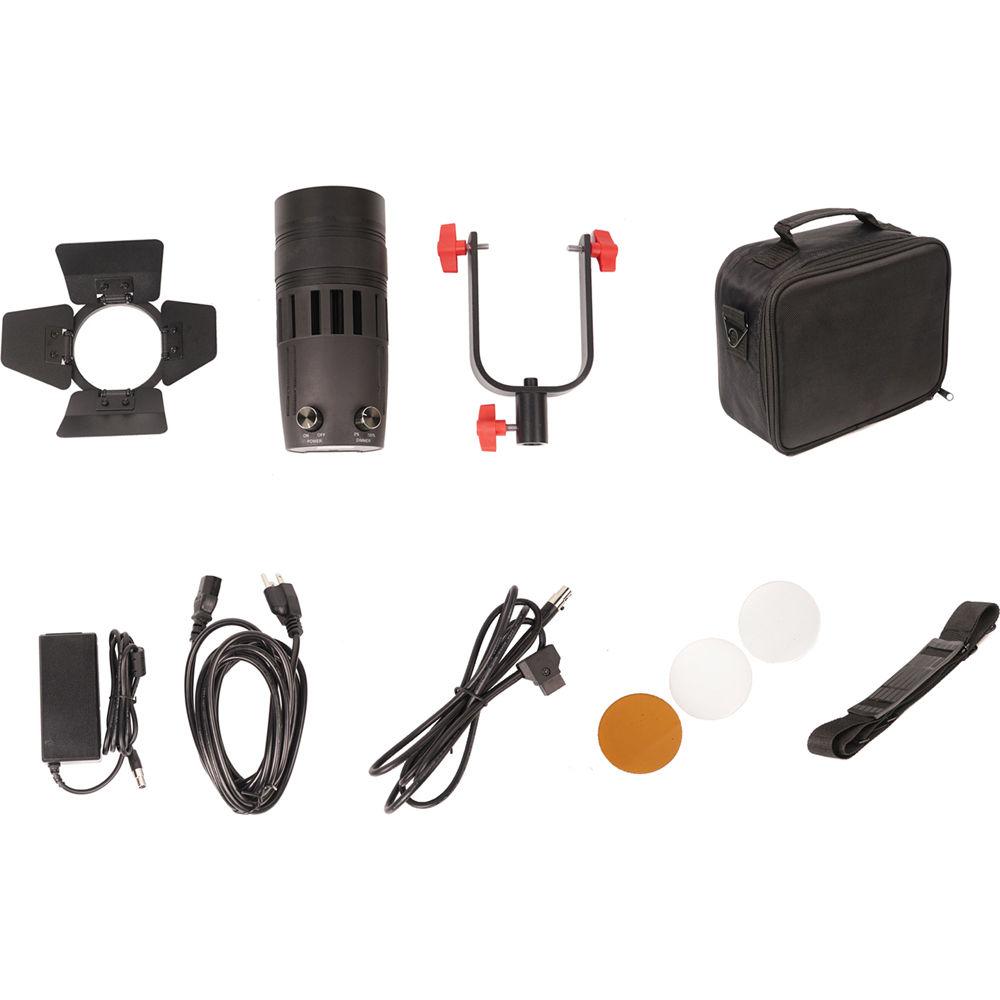

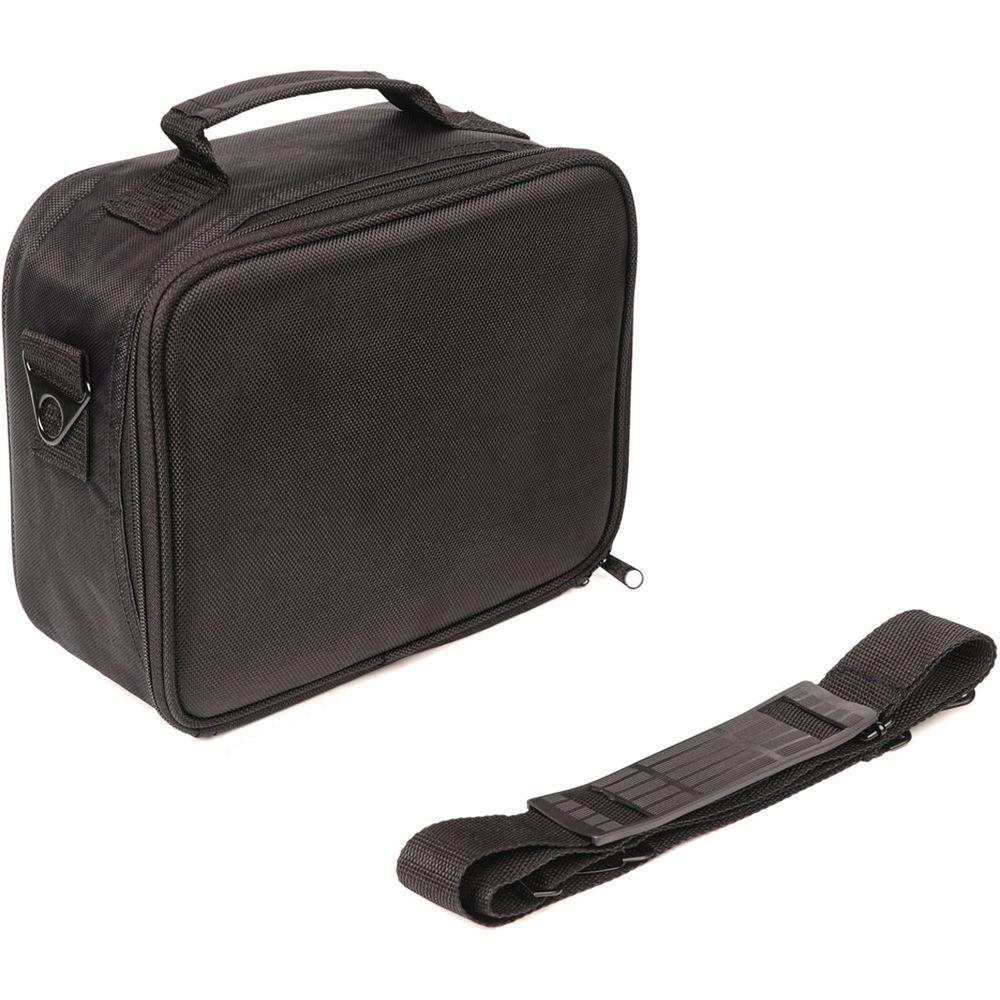

UPC: 602668720735 In the Box CAME-TV Boltzen B-30 Fresnel 30W Focusable LED Daylight Fixture Milky White Filter Soft Filter Orange CTO Filter AC Power Adapter D-Tap Cable Carrying Bag with Shoulder Strap 4-Way Barndoors Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Boltzen B-30 Fresnel 30W Focusable LED Daylight Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV B-30 Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 96 | | Cooling System | None | | Dimming | Yes | | Display | None | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7 to 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Cable Length | 5.9' / 1.8 m | | Cable Type | 3-Pin XLR to D-Tap | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 10.079 x 9.134 x 5.669" |
