User Manual for CAME-TV C700D Daylight LED Edge Light 2-Light Kit Click to enlarge the picture
Contents of the user manual for the CAME-TV C700D Daylight LED Edge Light
- Product category: LED Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV LED Lights
 |
User manual for the CAME-TV C700D Daylight LED Edge Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

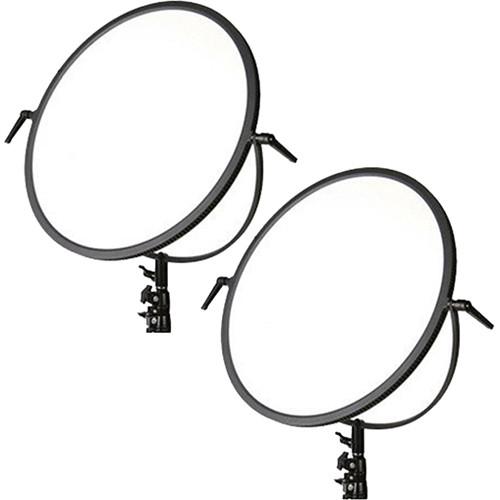

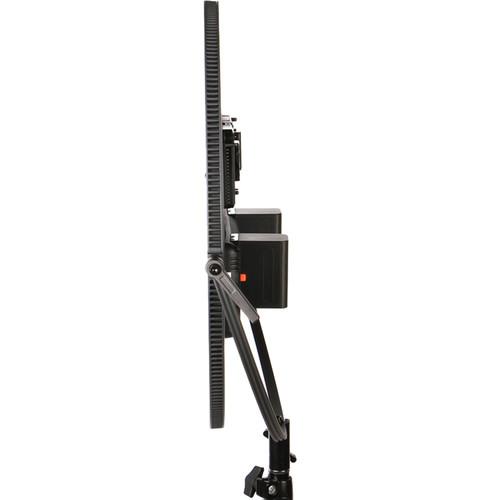

Product description The C700D Daylight LED Edge Light 2-Light Kit from Came-TV includes 2 light fixtures with 3 power options that make it an asset in the studio or on location. The kit includes 2 C700D's, each with 2 NPF-960 lithium batteries, chargers, an AC adapter, and a carry case with shoulder strap. The 17.7" diameter C700D uses Edge Light technology that points LEDs toward the outer edge of the fixture and reflects them back toward the middle for significantly soft results. The light has a 5600K color temperature and maintains a high CRI of 90 indicating faithful rendition of colors - even the subtlest tones. It's also dimmable from 10-100%. A back-lit LCD screen displays your adjustments and dimming level. At only 1/2-inch-thick the C700D fits where other lights just can't go. And you can work close-up too, without fear of causing the talent discomfort since running the light all day at full power barely makes it warm to the touch, while its low power draw makes for a rapid return on investment. The C700D offers 3 power options. The fixture comes with an AC adapter but it also comes with 2 NP-F960 lithium batteries that give you a 1.3 hour run time on a full charge. The 3rd option is the C700D's V-Mount battery plate that allows you to use pro batteries in the field. Each light comes with a padded carry case with shoulder strap that has room for the C700D and its accessories. - Benefits
-
- PMW integrated digital designed, dimmable 10%-100%, flicker-free

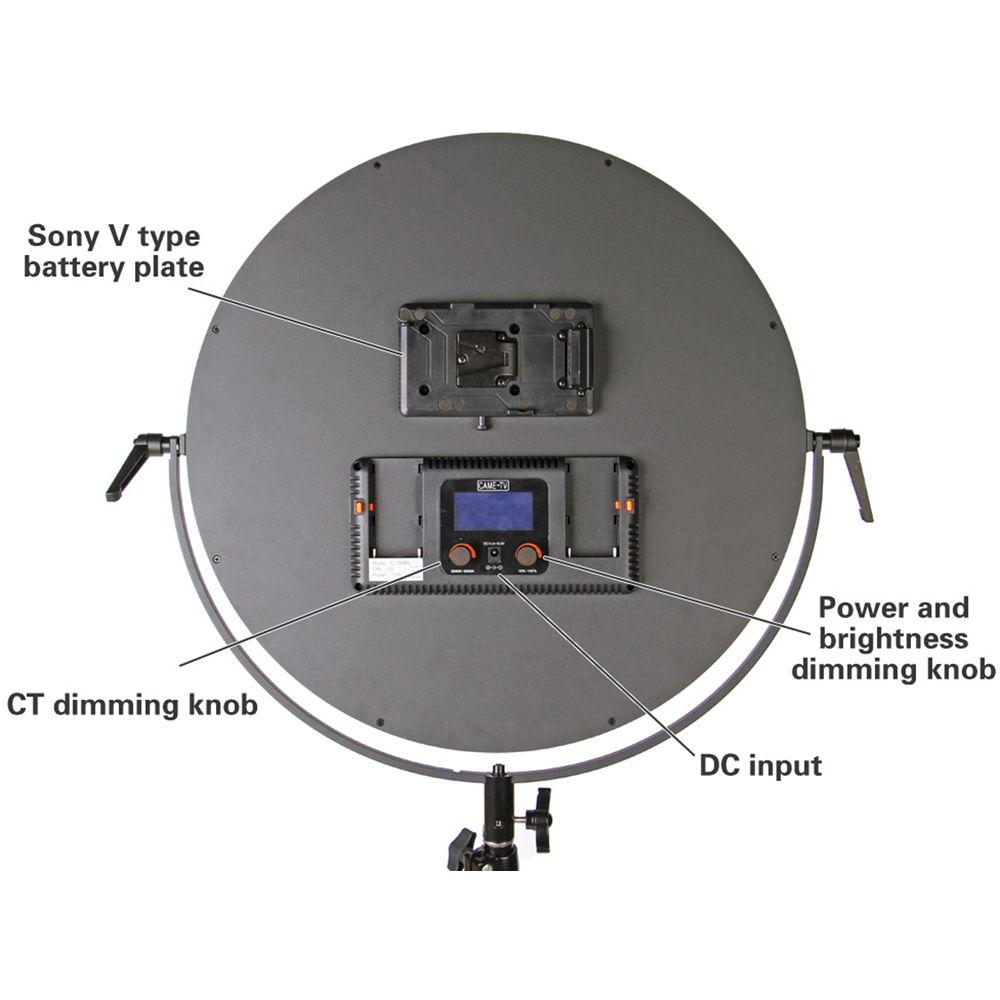

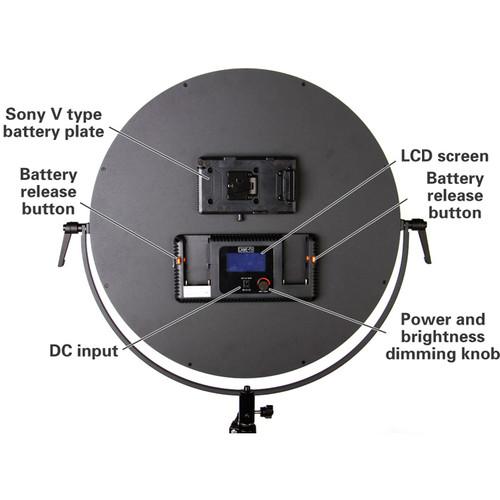

- LCD screen conveniently displays brightness and battery level
- Lateral LED layout makes the light much softer - no need for an additional diffuser
- Suitable for indoor and outdoor, portrait and weddings, and interviews. It's especially valuable when working with babies

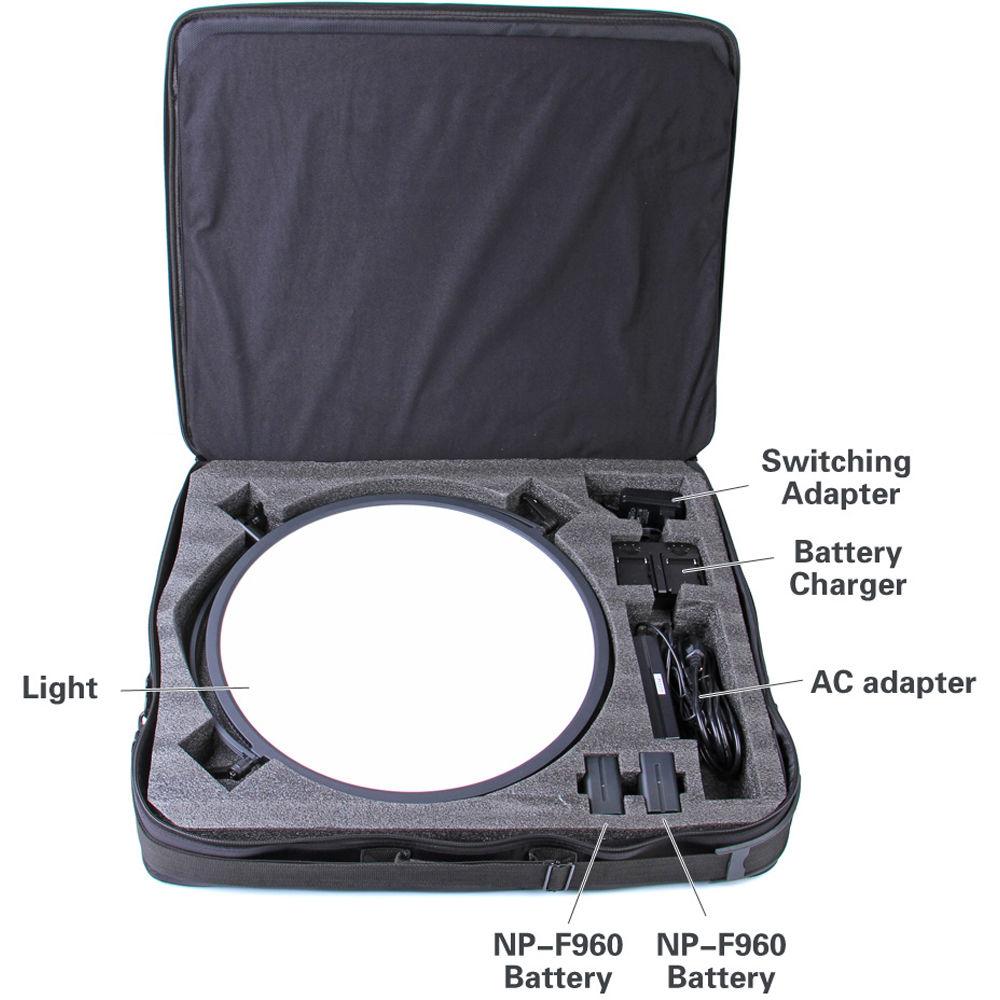

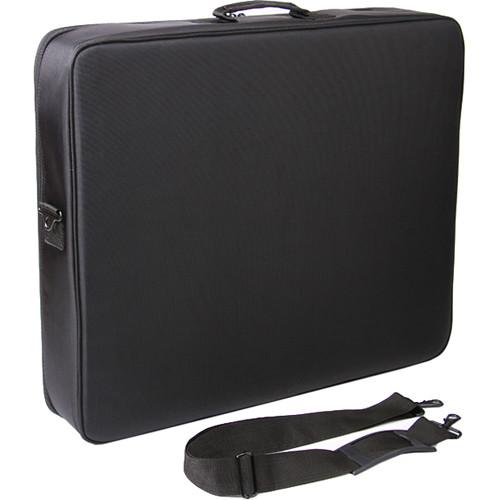

UPC: 602668719852 In the Box CAME-TV C700D Daylight LED Edge Light 2-Light Kit (17.7") 2 x C700D 17.7" LED Fixtures 4 x NP-F960 Li-Ion Battery 2 x Battery Chargers 2 x Mounting Yokes 2 x Carry Cases with Shoulder Straps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV C700D Daylight LED Edge Light 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV C700D Specs | Light Source | 240 LEDs | | Color Balance | 5600K (+/- 300K) | | CRI | >90 | | Light Intensity | 1510 lux @ 3.3' (1.0 m), 510 lux @ 6.5' (2.0 m) | | Dimming | 10 - 100% | | Display | LCD screen | | Mounting | Mounting yoke for 5/8" (16 mm) receiver | | Power | Included AC adapter
DC 14.5 V - 16.8 V
Included 2 x NP-F960 batteries | | Power Consumption | 72 W | | Battery Type | Rechargeable lithium (6600 mAh, 7.4 V) with 4-segment power indicator | | Battery Run Time | Approx. 1.3 hours at full power | | Battery Charging | Approx. 8.0 - 10 hours
Approx. 500 drain/recharge cycles | | Dimensions | Fixture Housing: 17.7" (45 cm) diameter x 0.5" (1.3 cm) thickness
Included Case: 27 x 22 x 4.3" (68 x 56 x 11 cm) | | Weight | Each Fixture: 6.28 lb (2.85 kg) | | | | Package Weight | 16.6 lb | | Box Dimensions (LxWxH) | 28.5 x 23.5 x 5.5" |
