CAME-TV C700D Daylight LED Edge Light

Search your instruction manual in PDF to download

User Manual for CAME-TV C700D Daylight LED Edge Light

Click to enlarge the picture
CAME-TV C700D Daylight LED Edge Light Contents of the user manual for the CAME-TV C700D Daylight LED Edge Light
  • Product category: LED Lights CAME-TV
  • Brand: CAME-TV
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CAME-TV LED Lights

CAME-TV C700D Daylight LED Edge Light CAME-TV C700D Daylight LED Edge Light CAME-TV C700D Daylight LED Edge Light CAME-TV C700D Daylight LED Edge Light
User manual for the CAME-TV C700D Daylight LED Edge Light contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CAME-TV product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!

Product description

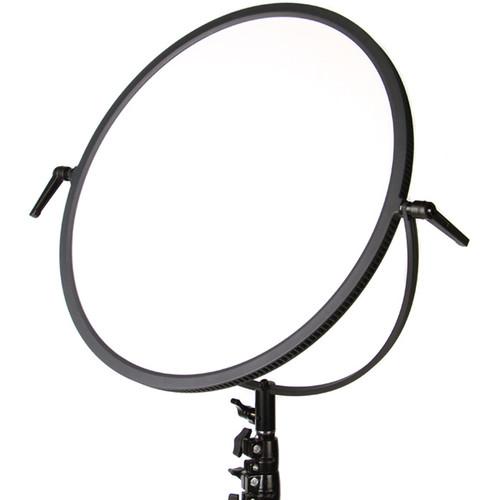

This CAME-TV C700D Daylight LED Edge Light comes in a pack of 3. Each light is a suitable mobile studio lighting solution for any photo, video, or film production applications. It operates on either AC power or rechargeable battery, both of which are included. The LED light has 240 LEDs that are arranged on the outer edge and facing inwards at a diffusion material.

The light from the panel is diffused which makes it easier on the talents eyes over traditional LED lights. The daylight LED bulbs are specifically targeted to 5500K which closely matches the natural daylight. The light comes with a built-in dimmer that gives you complete control over the brightness of your lighting setup.

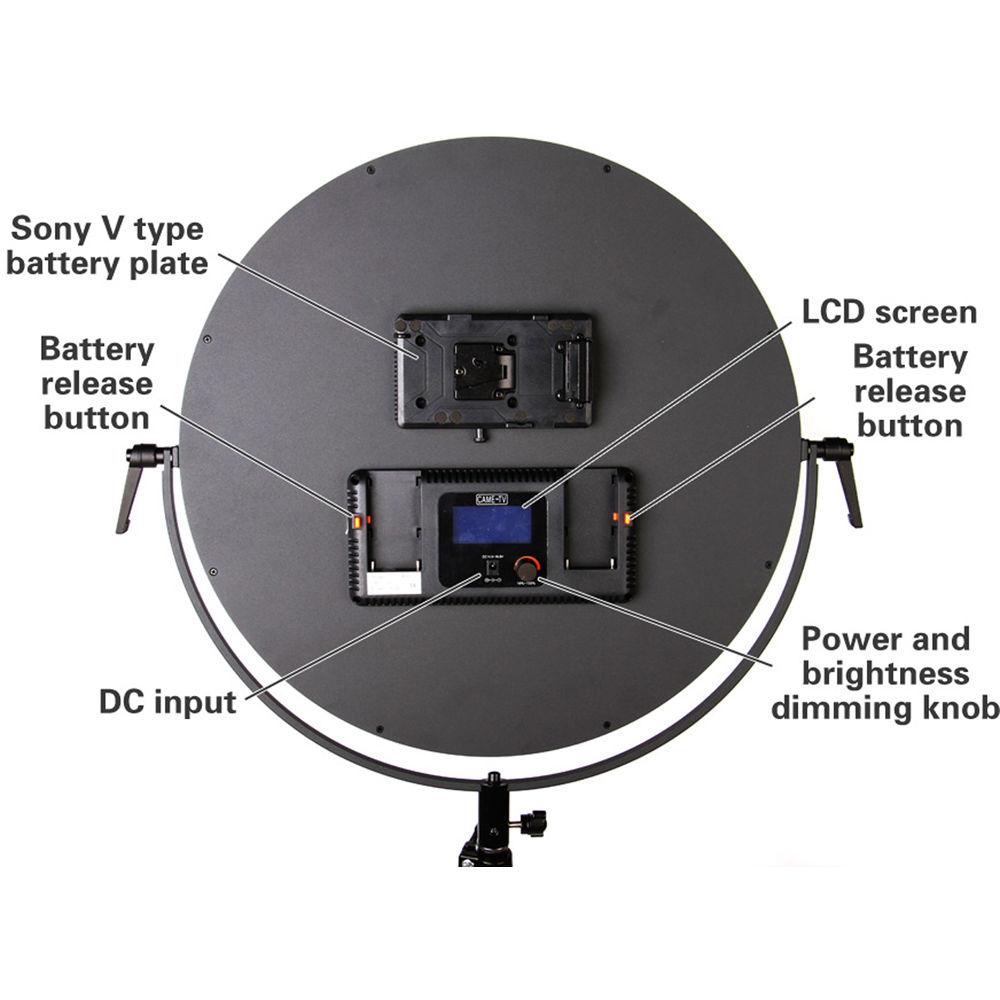

  • PMW integrated digital design
  • 10 to 100% dimmable and flicker-free
  • LCD screen conveniently displays the color temperature, brightness, and battery level
  • Lateral LED layout makes the light much softer, eliminating the need for an additional diffuser
  • Suitable for use in indoor and outdoor applications, portraits and weddings, and interviews
  • Suitable for use in shoots that involves working with babies
  • V-mount battery plate (V-mount battery not included)
  • Two battery release buttons (2 x NP-type batteries included)
  • Power and brightness dimming knobs
  • DC input

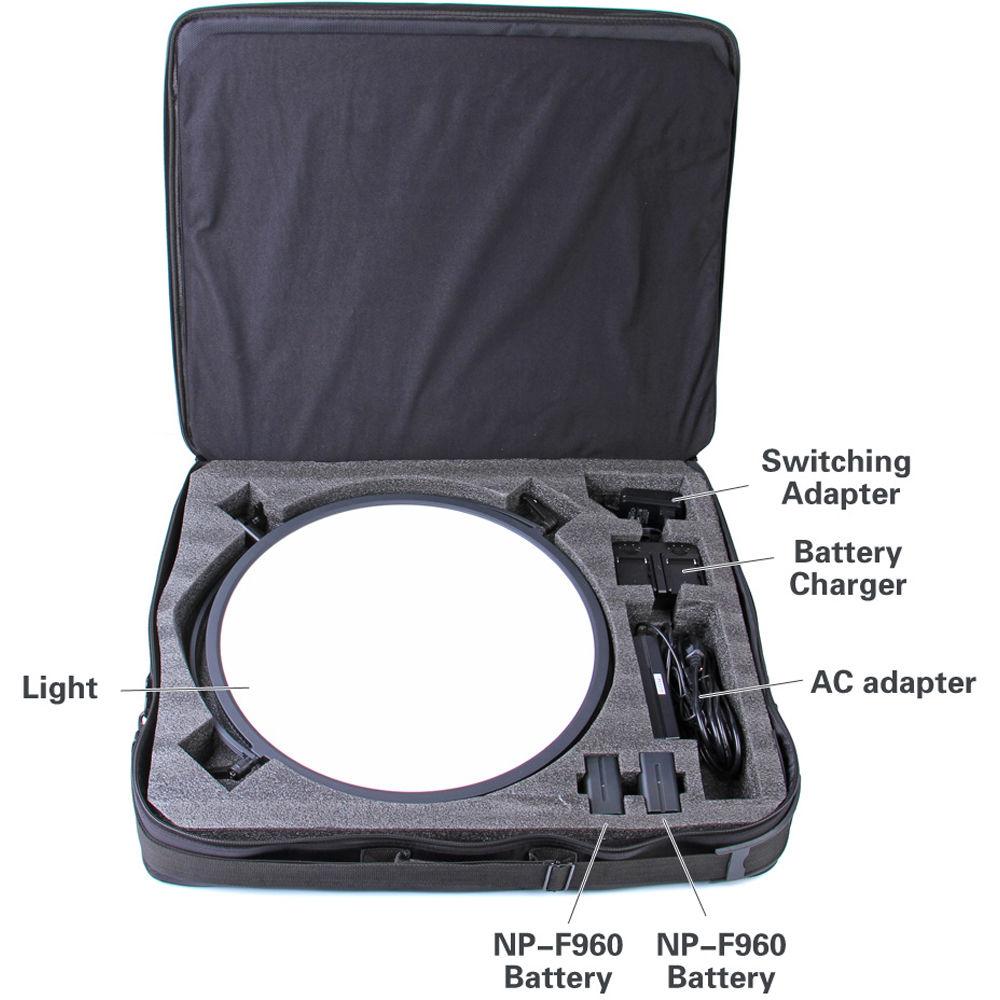

In the Box CAME-TV C700D Daylight LED Edge Light (3-Pack)
  • 3 x AC/DC Wall Adapter
  • 3 x Battery Charger
  • 6 x NP-F960 Battery

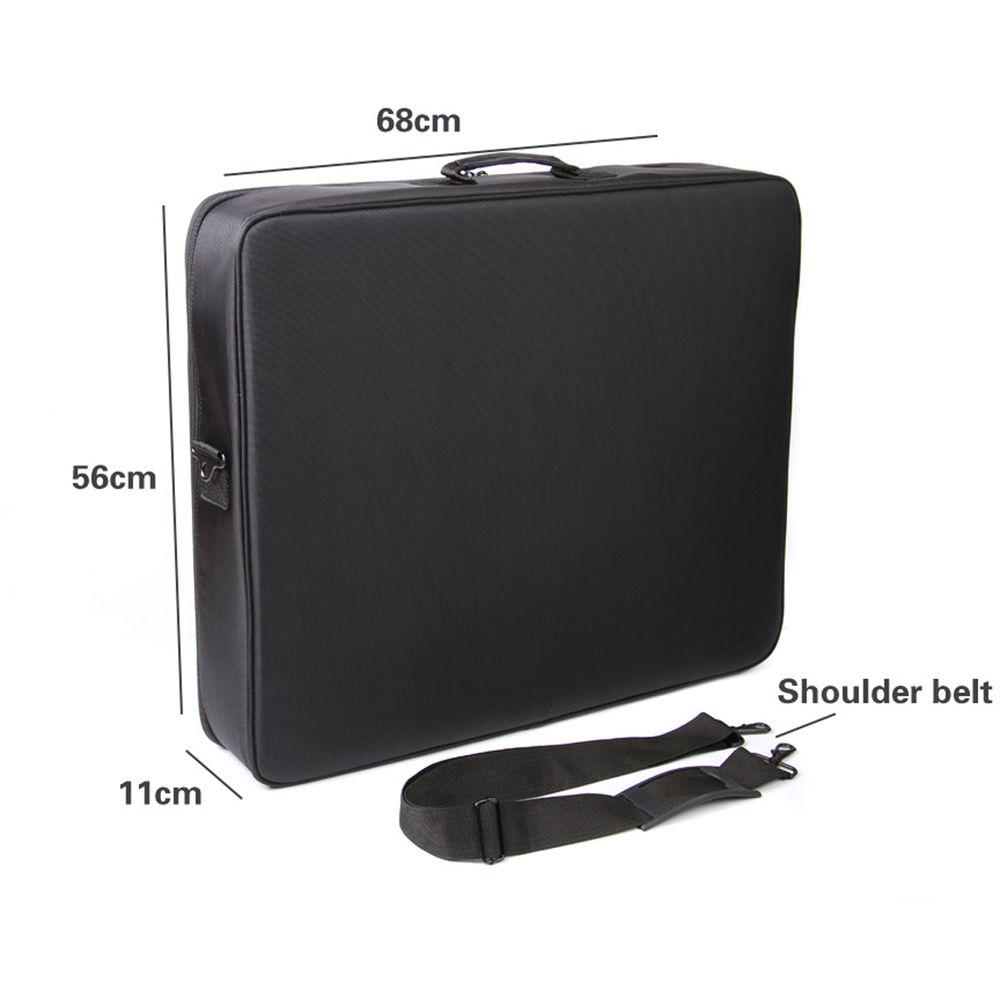

  • 3 x Carry Bag
  • 3 x Shoulder Belt
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the CAME-TV C700D Daylight LED Edge Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    CAME-TV C700D Specs

    Power 72 W
    Color Range 5600K ±300K
    Beam Angle 75°
    Number of LEDs 240
    Illuminance 1510 Lux / 3.28' (1 m)
    510 Lux / 6.56' (2 m)
    CRI >90
    Uninterrupted Working Time Approximately 1.3 hours
    Operating Voltage 16.8 to 14.5 VDC
    Dimming 10 to 100%
    Battery Type Rechargeable Li-ion, 6600 mAh, 7.4 V
    Battery Lifetime Charge and discharge for approximately 500 times
    Recharging Time Approximately 8 to 10 hours
    Mount Light stand (sold separately)
    Battery Level 4 Segments

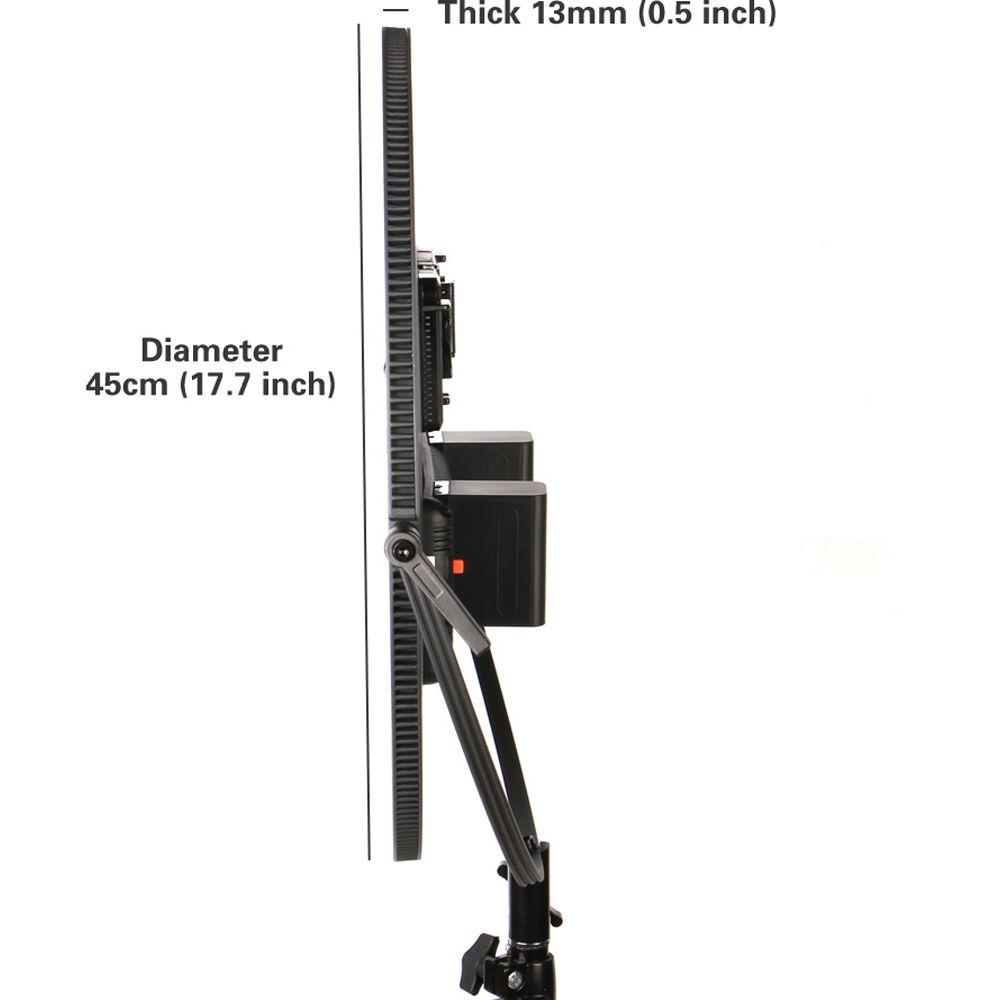

    Dimensions (Ø x D) 17.7 x 0.5" (45 x 1.3 cm)
    Weight 6.28 lb (2.85 kg)
