User Manual for CAME-TV CAME-MT06 10.1" HDMI 4K Broadcast Monitor Click to enlarge the picture
Contents of the user manual for the CAME-TV CAME-MT06 10.1" HDMI 4K Broadcast
- Product category: On Camera Monitors CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV On Camera Monitors
 |
User manual for the CAME-TV CAME-MT06 10.1" HDMI 4K Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

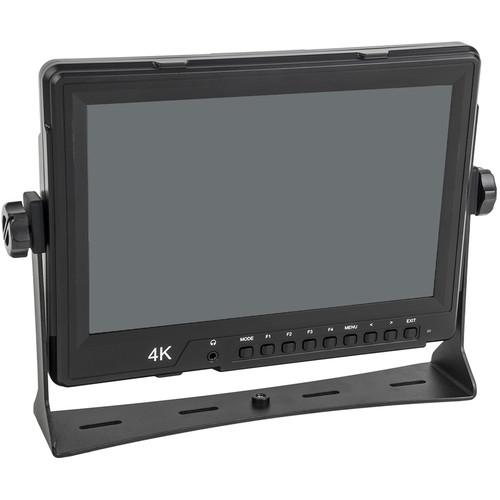

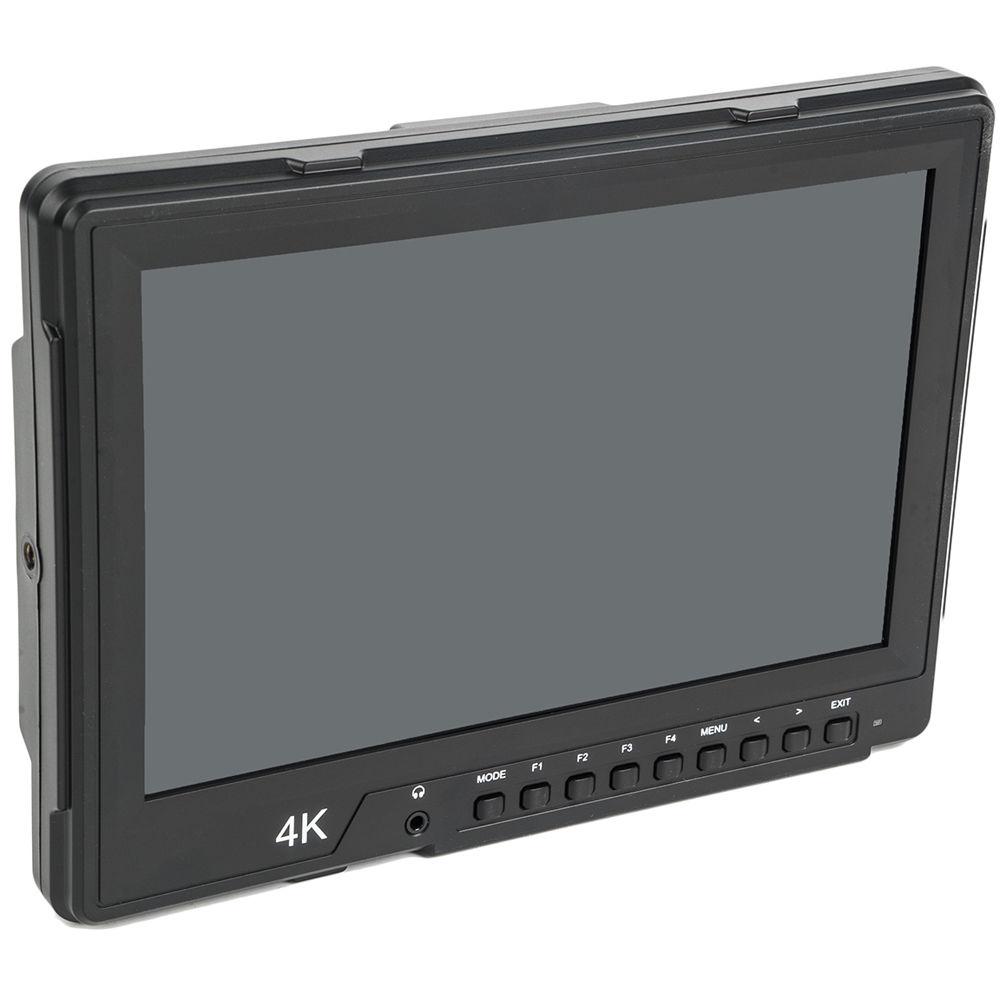

Product description The CAME-MT06 10.1" HDMI 4K Broadcast Monitor from CAME‑TV offers 2560 x 1600 resolution with precise color, and 298.9 PPI (Pixels Per Inch), blending individual pixels to the point that the naked eye can't define individual pixels. It uses an IPS panel, which provides a wide 178°/178° viewing angle. In addition, the monitor has a front panel control for you to quickly and easily control auxiliary functions and input selections.
The monitor features 3G-SDI and 4K HDMI 2.0 inputs for connecting professional SDI and consumer HDMI cameras. Its SDI input supports all SD, HD and SDI formats up to 1080p 60 Hz and HDMI input supports formats up to 4K 2160p 60 Hz, suitable for almost all signal formats. It includes professional SDI output, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It supports single and dual view monitoring functions, enabling two-camera monitoring in any location. - Quad split display (1P, 2P LR, 2P TB, 2P PIP)
- Display rotate (0°, 90°, 180°, 270°)
- Check field (red, green, blue, mono)
- Screen marker (80%, 85%, 90%, 93%, 96%)
- Line color (red, green, blue, white）
- Color temperature adjustment
- Built-in LED tally indicators (red, green, yellow)

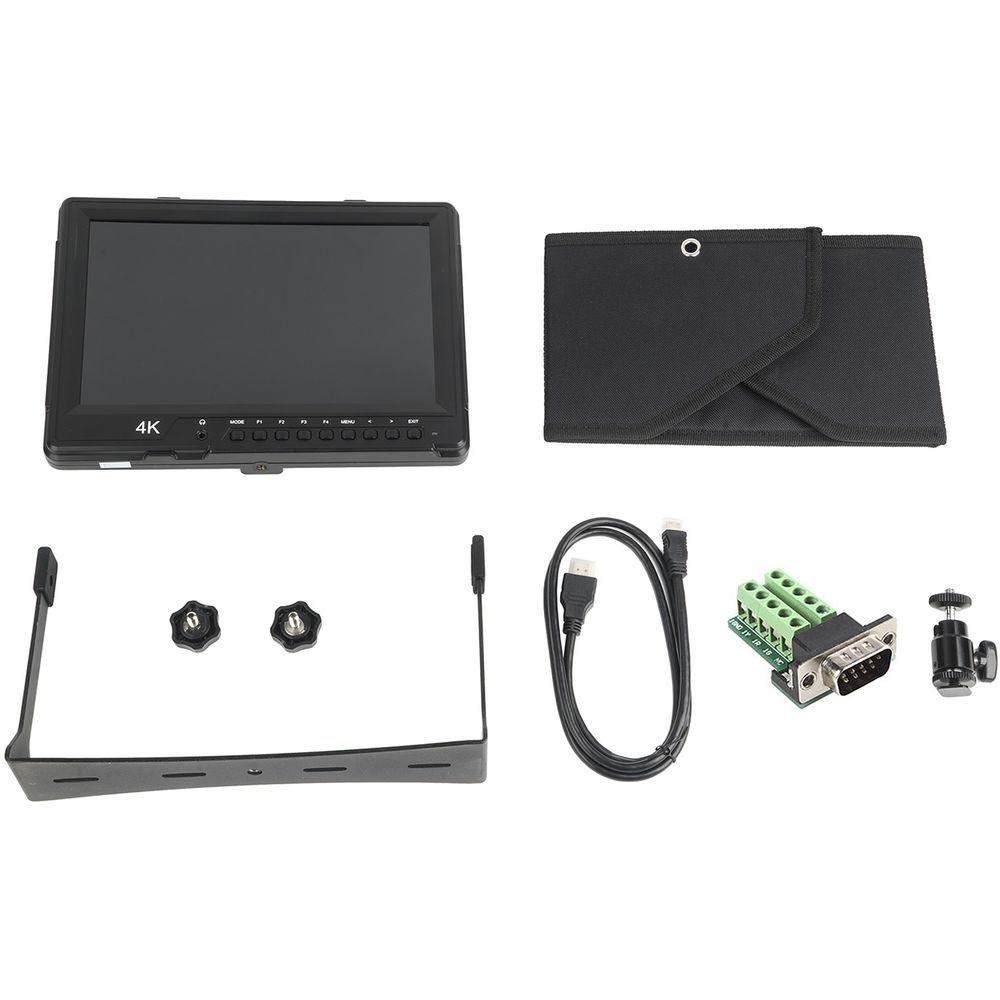

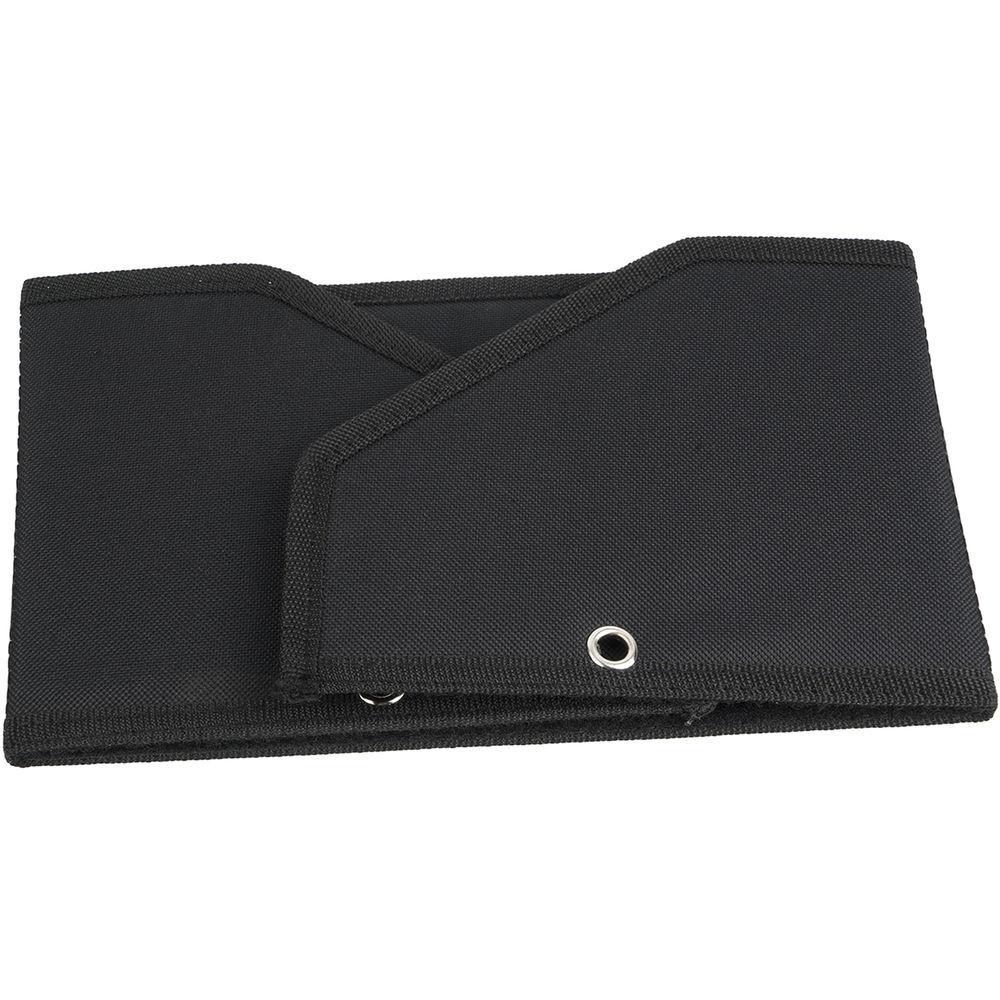

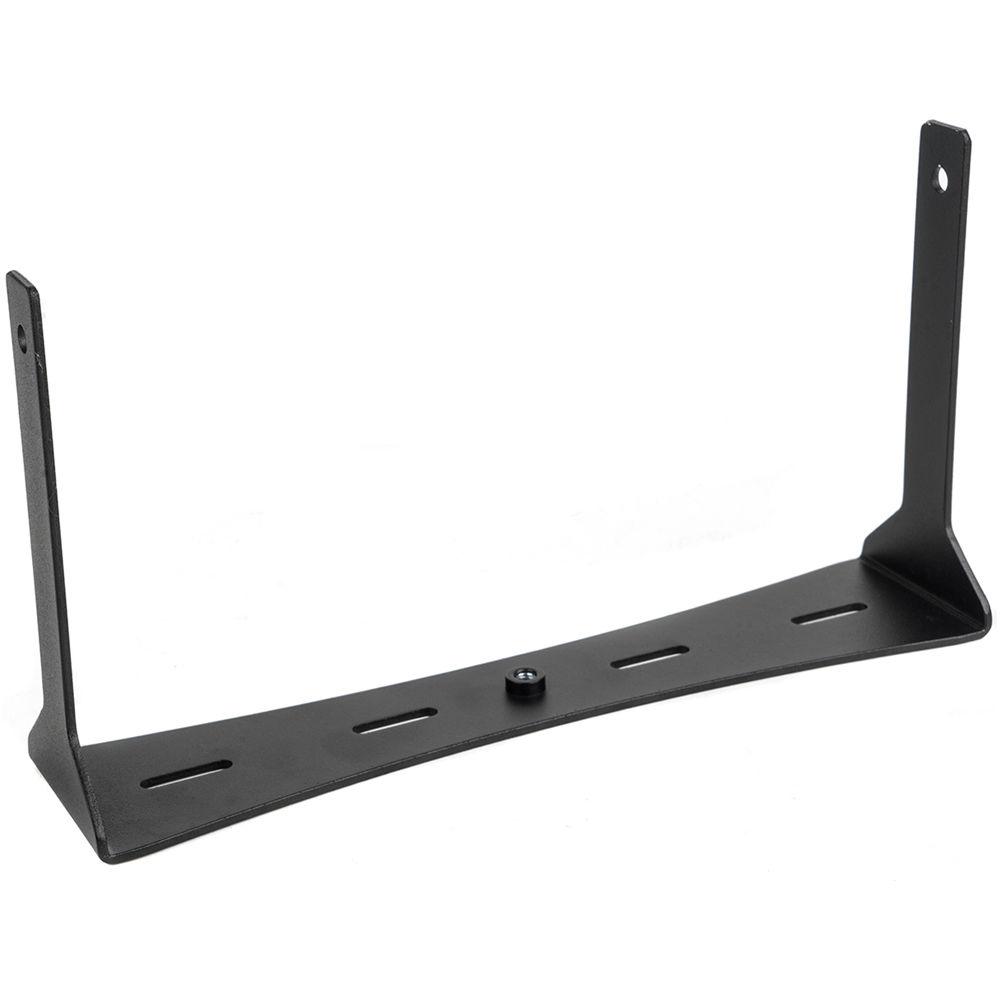

UPC: 614993188937 In the Box CAME-TV CAME-MT06 10.1" HDMI 4K Broadcast Monitor Bracket Sun Shade F970 Battery Plate Mini HDMI Cable Tally Kit Hot Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV CAME-MT06 10.1" HDMI 4K Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

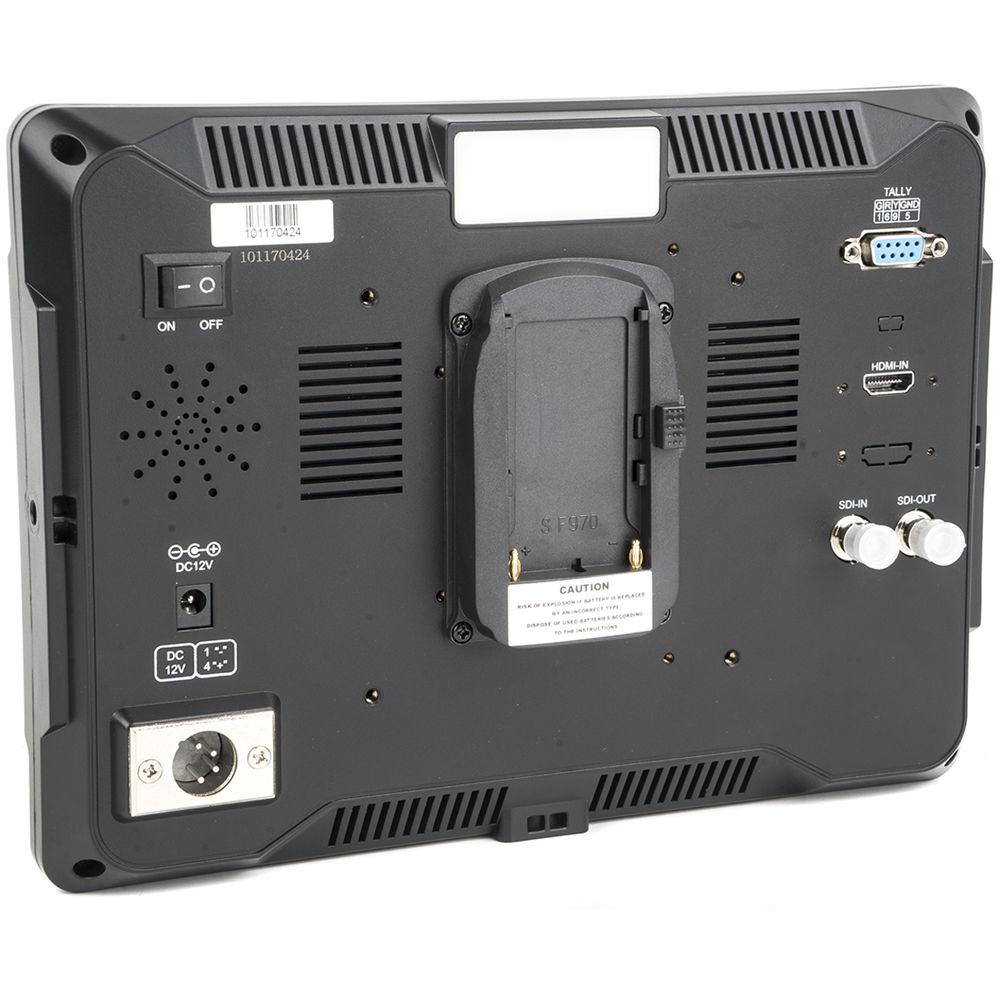

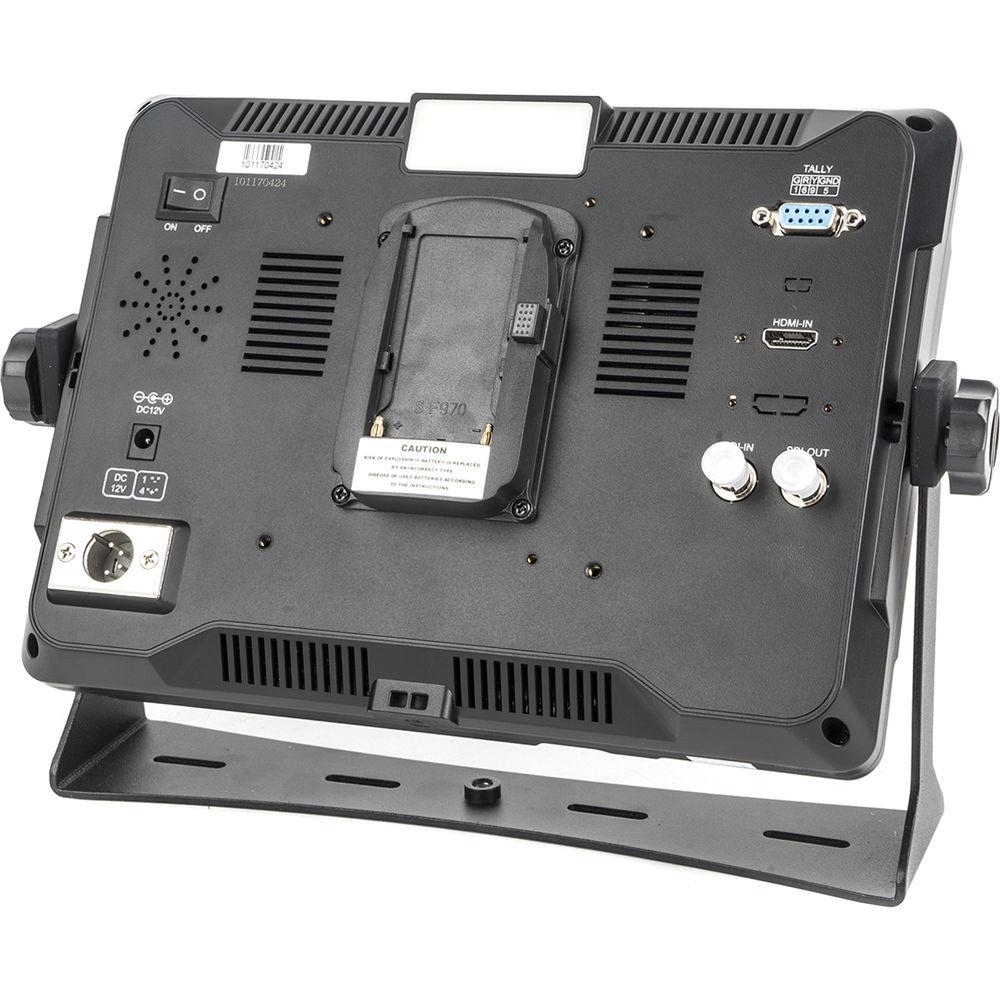

Technical parametersCAME-TV CAME-MT06 Specs | Screen Size | 10.1" (25.6 cm) IPS | | Color Depth | 16.2 million, 8-bit (6-bit+FRC) | | Resolution | 2560 x 1600p | | Pixel Pitch | 0.0423 x 0.0846 mm | | Aspect Ratio | 16:10 | | Brightness | 370 cd/m2 | | Contrast Ratio | 800:1 | | Backlight | LED | | Viewing Angle | 89°/89° (L/R) 89°/89° (U/D) | | Input | 1 x HDMI 2.0 (Supports 4K 60 Hz)
3G-SDI: 1 x BNC
1 x DB-9 Tally | | Output | 1 x BNC, 3G-SDI | | Audio | Headphone, speaker | | SDI | Support Format
480i/576i
720p: 60/59.94/50/30/29/25/24/23.98 1080i: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF | | HDMI | 480i/576i/480p/576p
720p: 60/59.94/50/30/29/25/24/23.98
1080i: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF
4K UHD 2160p: 60/50/30/29.97/25/24/23.98 | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤12 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 10.2 x 7.5 x 1.4" (25.8 x 19 x 3.6 cm) | | Weight | 23.9 oz (680 g)
25 oz (710 g) with battery plate | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 12.2 x 10.6 x 4.2" |
