CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal

Search your instruction manual in PDF to download

User Manual for CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal

Click to enlarge the picture
CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal Contents of the user manual for the CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal
  • Product category: See All Gimbal Stabilizers CAME-TV
  • Brand: CAME-TV
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CAME-TV See All Gimbal Stabilizers

CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal
User manual for the CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CAME-TV product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!



Product description

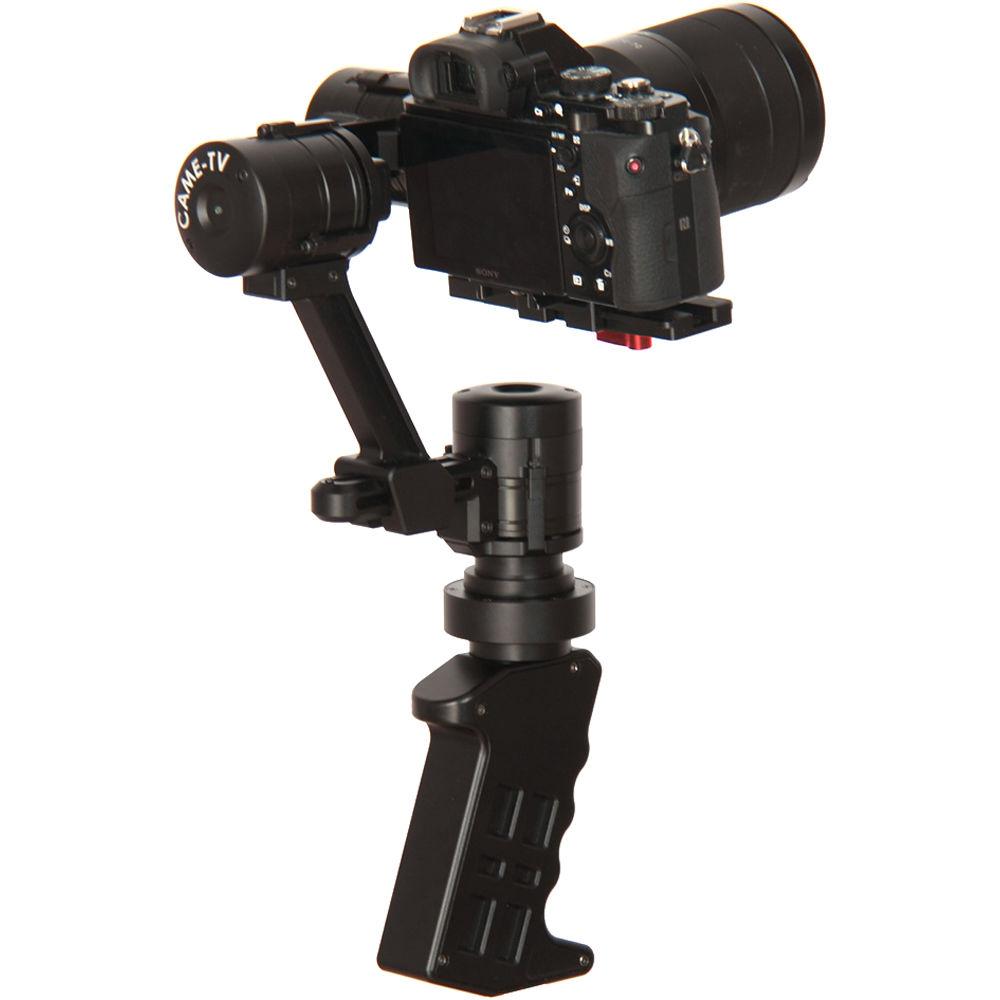

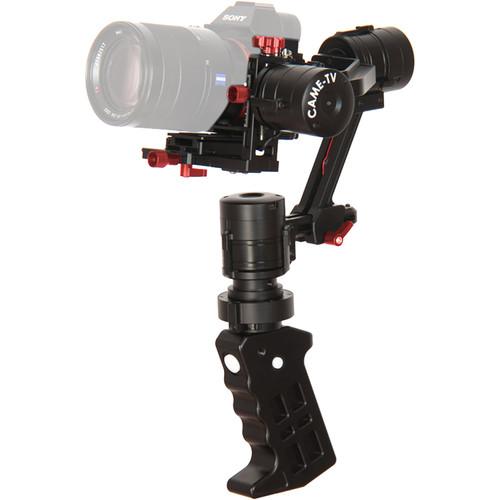

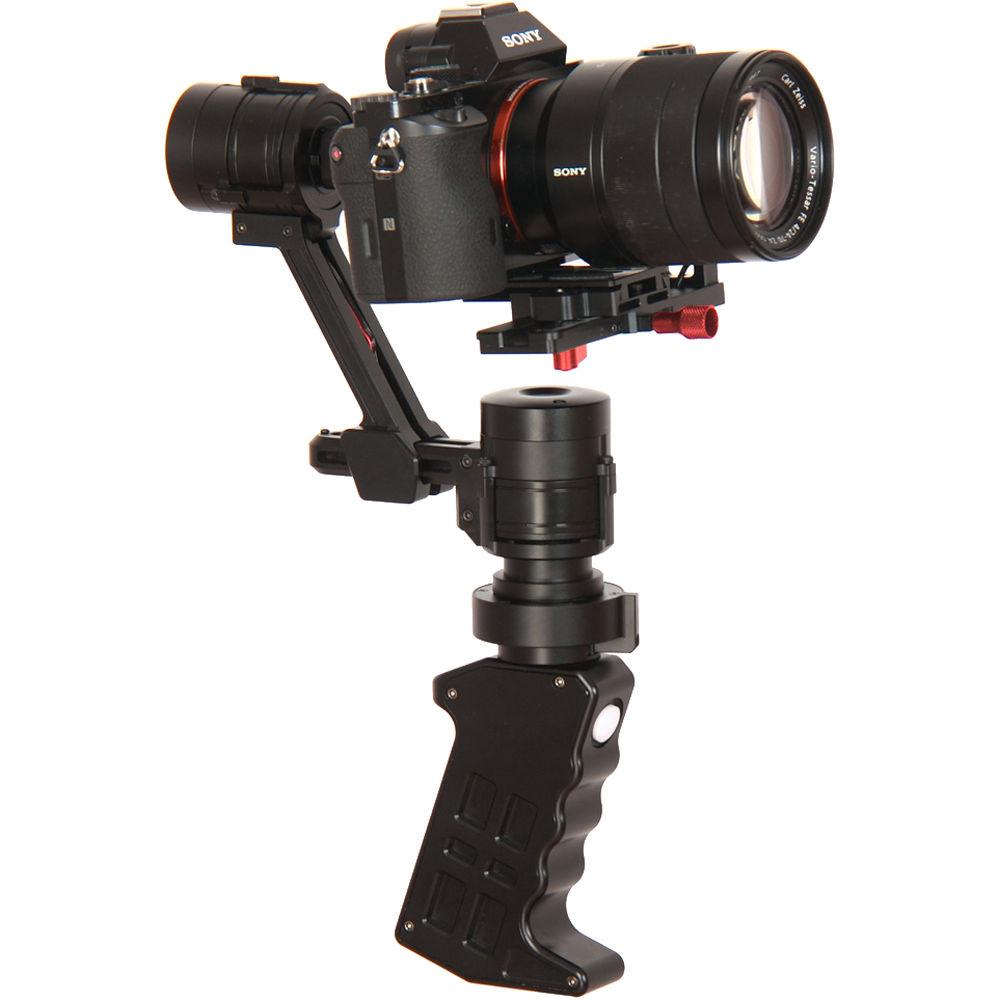

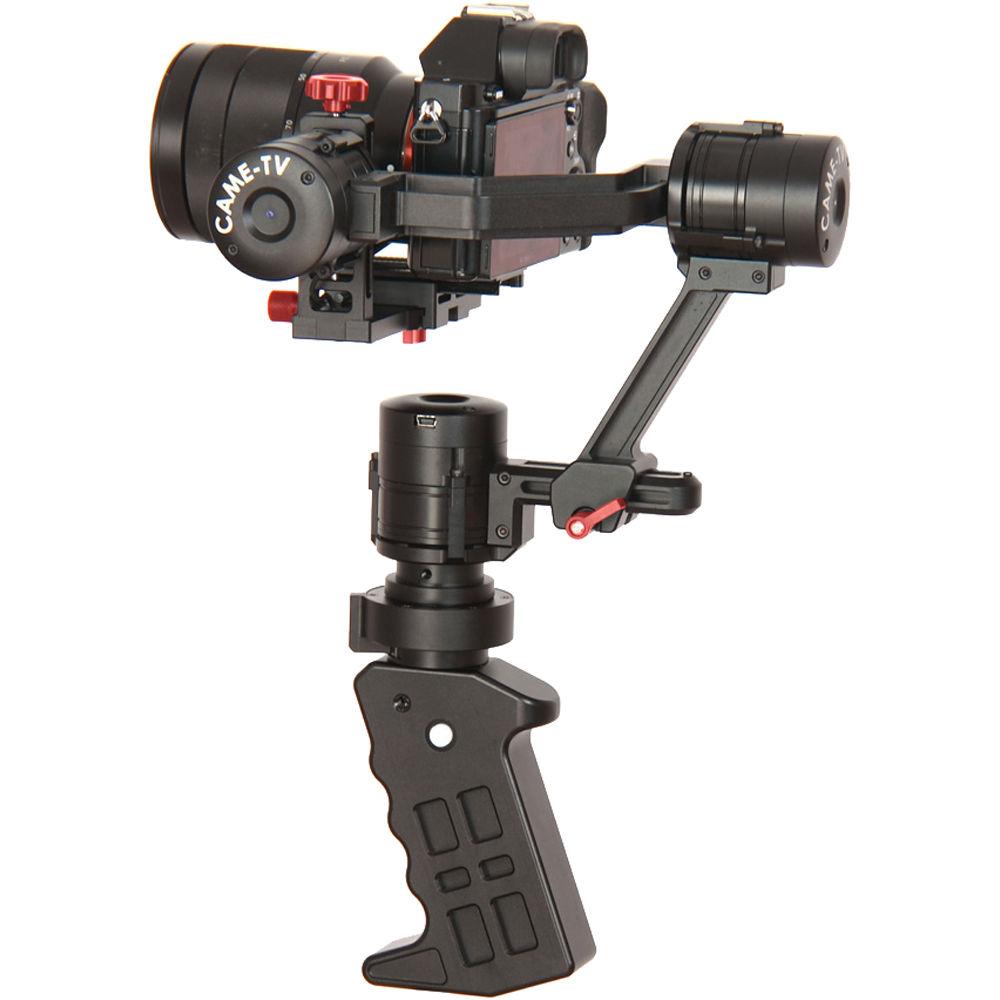

The CAME-Single 3-Axis Handheld Camera Gimbal from CAME-TV is a single-handed stabilizer that supports loads up to 2.6 pounds, making it suitable for use with compact cameras such as the Panasonic GH4, Sony a7S, and Blackmagic Pocket Cinema Camera. It utilizes three motors that stabilize the camera along the pan, tilt, and roll axes. This compensates for shakes, vibrations, and other unwanted movements, allowing you to capture smooth, free-floating shots. The system offers multiple operation modes for increased creative possibilities. You can choose to lock the camera in place along all three axes or have the camera smoothly follow your pan and tilt motions while keeping the horizon level. There is also a Commixture Mode, which locks the tilt axis while allowing the camera to follow left and right panning movements. Modes can be easily switched using a joystick, which can also be used to adjust camera pan and tilt position. The system includes a quick-release plate for mounting your camera. As with sled-style stabilizers, your camera needs to be balanced in order to get the best performance. The balancing process is made easier thanks to tool-less adjustments along all axes. On the bottom of the handle, you'll find a 1/4"-20 threaded hole for mounting the stabilizer on an additional device, such as a slider, jib, or tripod. An additional 1/4"-20 threaded hole is located just above the handle for convenient mounting of a monitor without throwing of the camera balance or exceeding the load capacity of the motors. The stabilizer is powered using two included 18650-type, 2500mAh rechargeable lithium-ion batteries that slot into the handle and provide around 20 hours of use on a full charge. A battery charger is also included, along with a hard carry case for storing and transporting the system.
    Key Features
    • 2.6 lb load capacity
    • Updated 32-bit board
    • Lock, Follow, and Commixture Modes

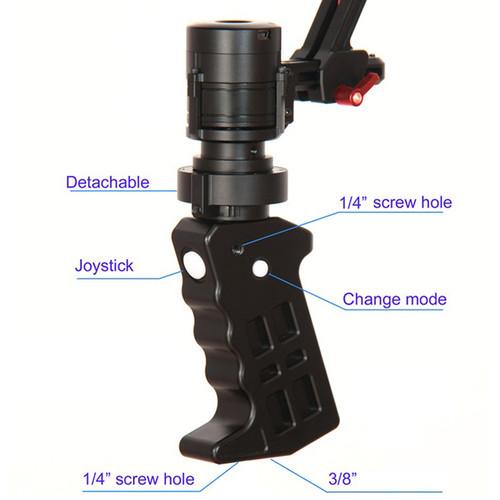

    • Joystick for pan and tilt control
    • Button on side of handle for power on/off and changing modes
    • Tool-less balancing
    • Quick-release plat
    • Larger frame for increased tilt range
    • Internal rechargeable battery provides around 20 hours of operating time
    • 1/4"-20 threaded hole on bottom of the handle for mounting stabilizer on tripods, sliders, jibs, and other support devices
    • 1/4"-20 threaded hole above the handle for mounting a monitor or other accessory
    • Hard carry case included
UPC: 602766006700 In the Box CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal
  • Battery Charger
  • Hard Carry Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CAME-TV CAME-SINGLE Specs

    Number of Axes 3-Axis
    Load Capacity 2.6 lb / 1.2 kg
    Battery Type 1 x Built-In
    Battery Runtime 20 Hours
    Mounting 1 x 1/4"-20 Female
    Weight 2.6 lb / 1.2 kg
    Package Weight 8.85 lb
    Box Dimensions (LxWxH) 13.4 x 13.3 x 7.0"

    Rating

    64% users recommend this product to others. And what about you?
    Rating: 3.2 of 5

    This product has already been rated by 14 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to CAME-TV CAME-Single 3-Axis Handheld Camera Gimbal

    Subject: Fehlerhafte Funktion
    Date: 27.02.2021 15:52:26Name: Manuel Zlanabitnig
    Sehr geehrte Damen und Herrn,
    Ich habe bei meinem came-tv single 3-axis gimbal folgendes problem: Ihm is es nicht mehr möglich das gleichgewicht und die fixierung auf einen punkt zu halten. Die joystick funktion is gegeben aber da er nicht mehr die position halten kann dreht er so lange weiter bis er ansteht.
    Was kann da sein und wie kann ich dies beheben?
    Mit freundlichen grüßen
    Manuel Zlanabitnig
