User Manual for CAME-TV Camera Rig Matte Box Shoulder Support Kit for Sony a7R III Click to enlarge the picture
Contents of the user manual for the CAME-TV Camera Rig Matte Box Shoulder
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV Camera Rig Matte Box Shoulder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

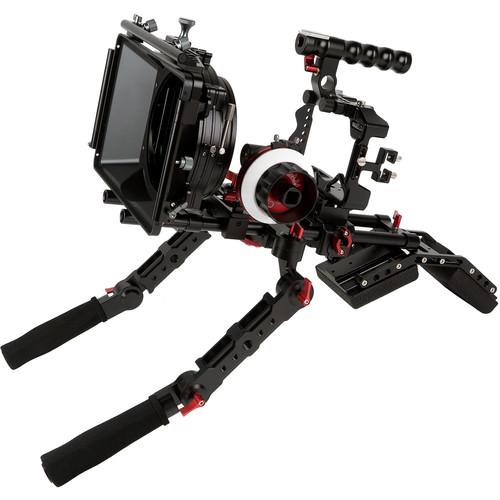

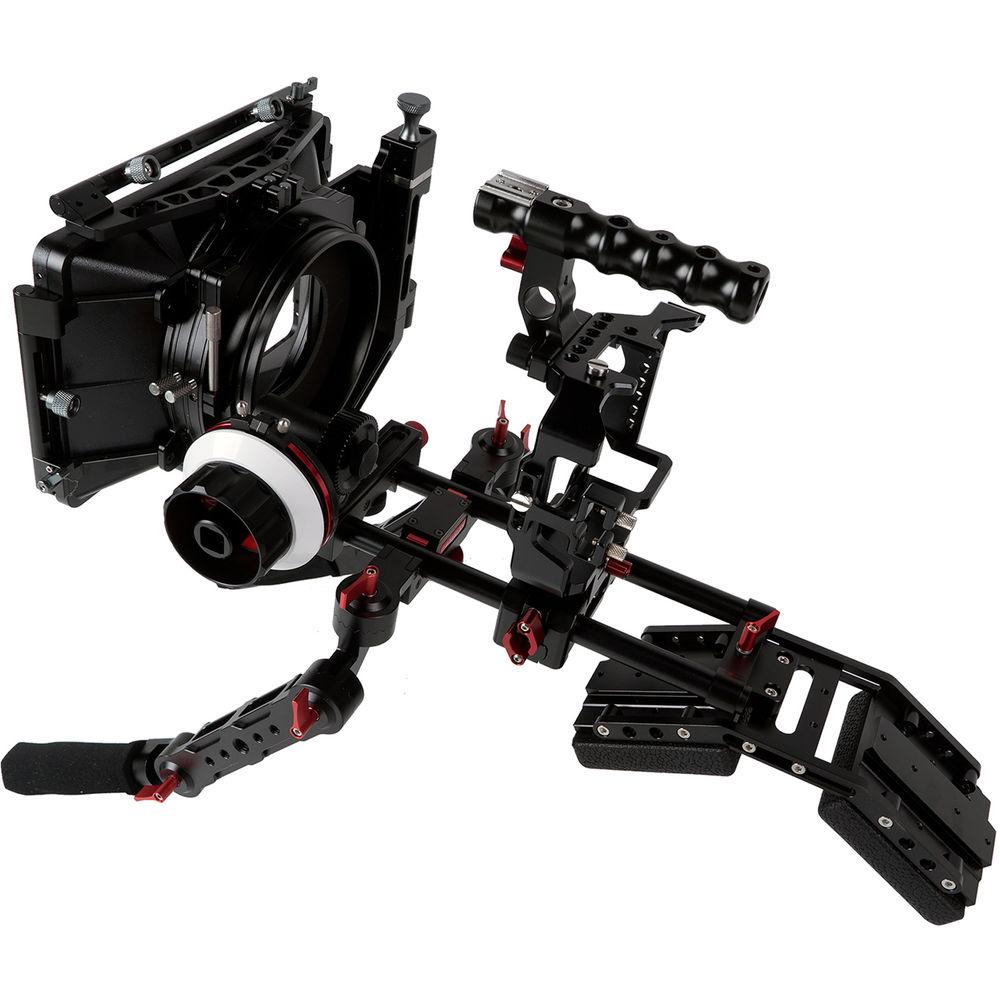

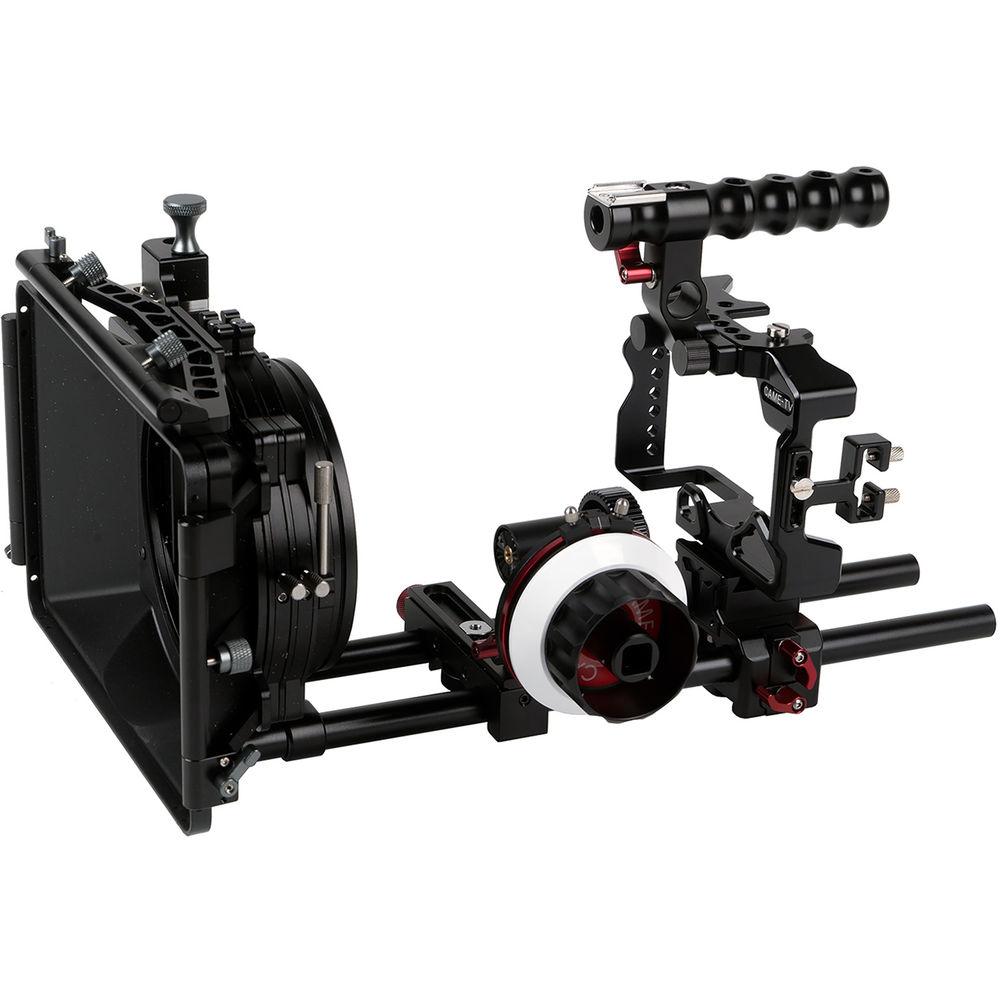

Product description Turn your Sony Alpha a7R III into a full-fledged motion-picture camera rig with this Camera Rig Matte Box Shoulder Support Kit from CAME-TV. The kit includes a camera cage, a top handle, a baseplate, a matte box with three French flags, a follow focus system, a shoulder support, and dual handgrips.

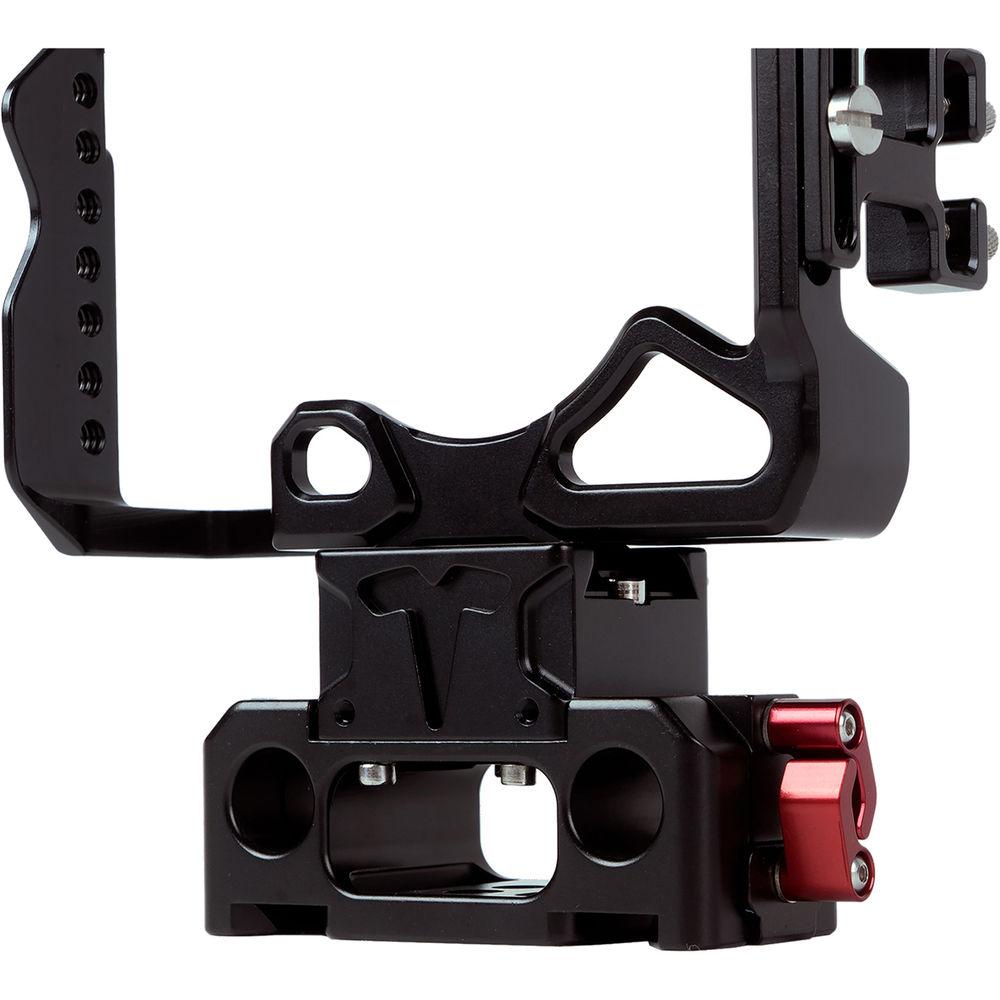

Offering multiple threaded mounting holes, the cage serves as a base structure on which to attach accessories. The baseplate and top handle have 15mm rod clamps for further rig expansion. HDMI and USB cable locks minimize the chance of your cables being yanked out inadvertently while recording, thus lessening the possibility of damage to the ports of your camera.

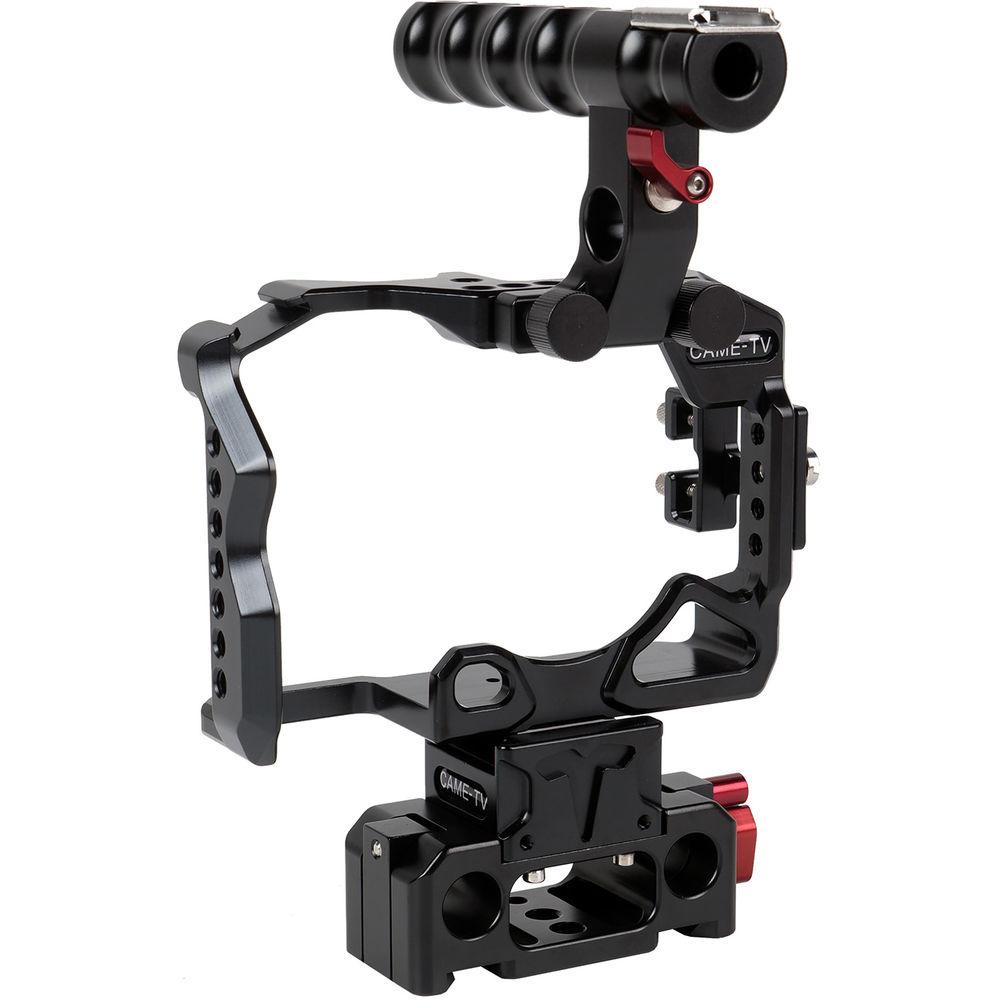

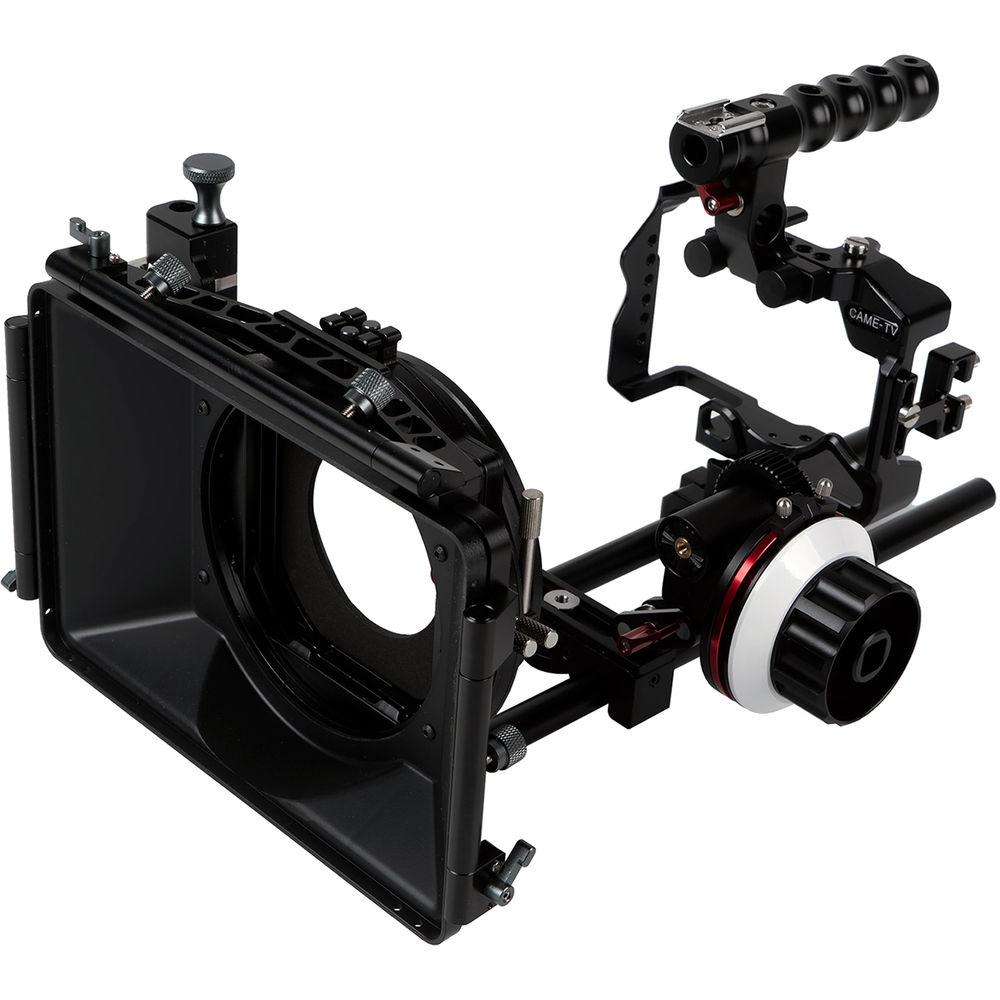

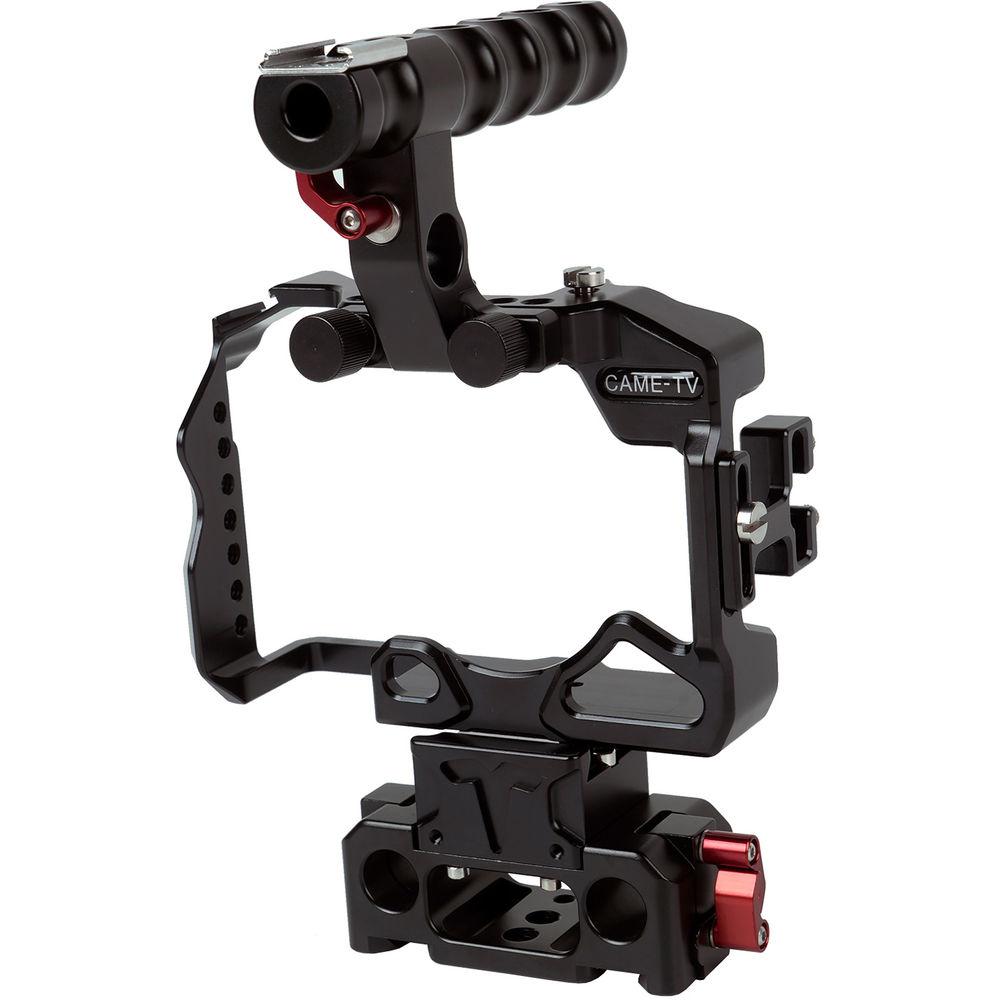

The matte box attaches to the end of your camera's lens to help block stray light. It also holds up to two 4x4" filters in front of the lens. Top and side French flags allow you to block sunlight and artificial light sources to prevent glare. The follow focus system with A/B hard stops allows for smooth and controlled focus pulling, while the two-piece shoulder support and handgrips offer comfort and support for better shooting. Also included are two 15.7" 15mm rods, four gear rings, three rubber lens adapters, five sponge lens donuts, and an aluminum donut. - Camera Cage Rig with 15mm Rod System for Sony Alpha a7R III This Camera Cage Rig from CAME-TV is designed to fit the Sony Alpha a7R III digital camera. The rig allows easy access to the camera's battery compartment, saving you time when swapping out batteries. Offering multiple threaded mounting holes, the cage serves as a base structure on which to attach accessories. The baseplate and top handle have 15mm rod clamps for further rig expansion. HDMI and USB cable locks minimize the chance of your cables being yanked out inadvertently while recording, thus lessening the possibility of damage to the ports of your camera.
- Modular assembly: Cage, top handle, and baseplate
- CNC Machined aluminum construction
- Multiple threaded mounting holes
UPC: 614993189484 - ABS 4 x 4" Matte Box with Top & Side Flags This ABS 4 x 4" Matte Box from CAME-TV fits the Sony Alpha a7S and the Canon EOS 7D, 5D Mark II, and 5D Mark III cameras. It mounts onto lenses up to 110mm in diameter and includes two 4 x 4" filter holders, as well as removable top and side flags that can be precisely set and locked to prevent stray light from hitting your lens and flaring your image. Height adjustability of up to ±0.79" ensures accurate alignment of the matte box to your camera lens.
- FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod The FF-01 Follow Focus from CAME-TV is a follow focus system with A/B hard stops for a 15mm rod system. The FF-01 is constructed of aluminum and has a bright white magnetic marking disk. It has a smooth, controlled operation; various clamp options; and four gear rings attachment sizes. UPC: 602766007479
- DSLR Shoulder Support for 15mm LWS Rod System The Came-TV DSLR Shoulder Support for 15mm LWS Rod System Provides comfort and support when using a shoulder rig that uses 15mm LWS rods. This shoulder supports slides onto your support rig and features a two-piece shoulder pad that rests on the front and back of your shoulder, preventing the hard metal rods of the rig from pressing down on your shoulder.
Made from CNC Machined aluminum, the shoulder support balances strength and weight. The attached 15mm LWS rod clamps enable positioning of the support quickly and easily along your rig, and feature a spring-loaded locking lever so you can position the lever where you need it. UPC: 717080143410 - DSLR Universal Handle Grip for 15mm Rods Provided by third party: Designed ergonomically, the DSLR Universal Handle Grip is adjustable to fit most rigs and the comfortable hand grips provide support when shooting.
- Key Features
-
- 15mm rod holes
- Tool-less fasteners
- Universally adjustable
- CNC machined aluminum

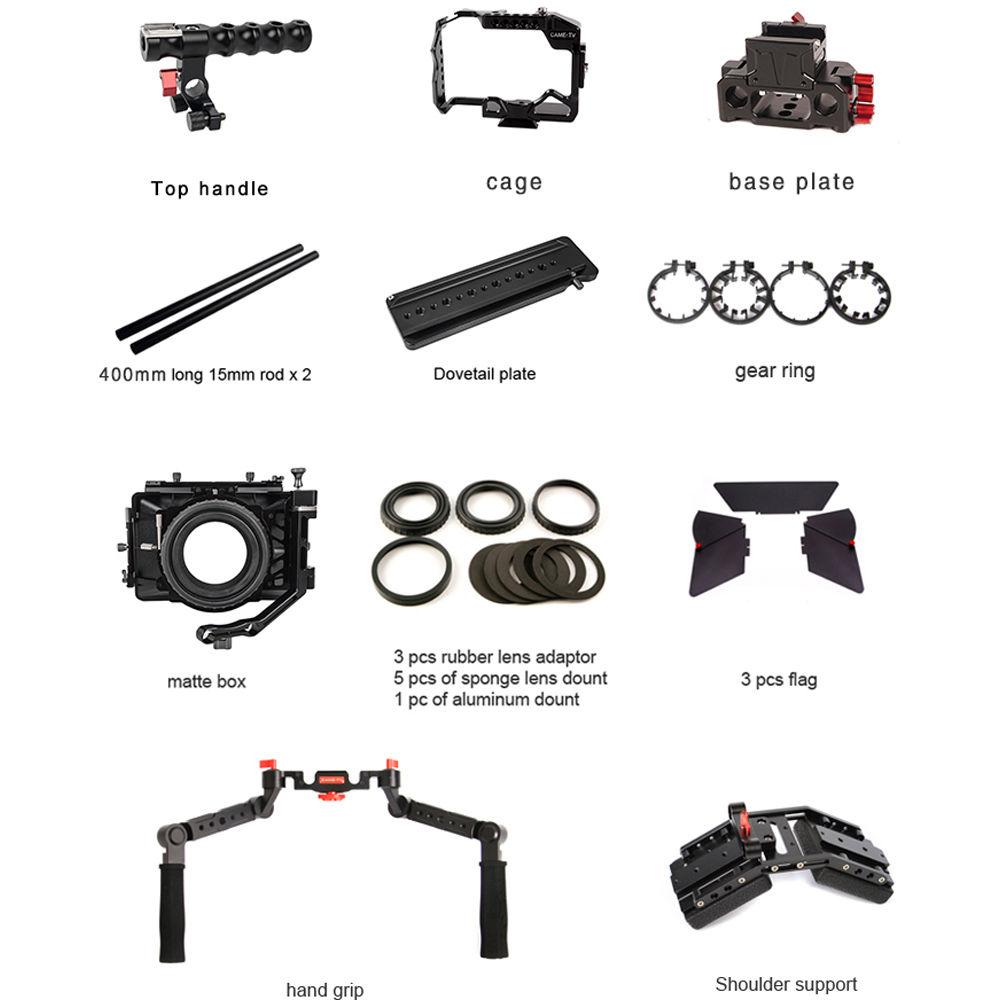

UPC: 717080143427 In the Box Bundle Items Camera Cage Rig with 15mm Rod System for Sony Alpha a7R III ddeudtqseuabacrstyazvxyqwy ABS 4 x 4" Matte Box with Top & Side Flags FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod ddeudtqseuabacrstyazvxyqwy DSLR Shoulder Support for 15mm LWS Rod System DSLR Universal Handle Grip for 15mm Rods
Also Includes - 2 x R40 15mm Rod (15.7")
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Camera Rig Matte Box Shoulder Support Kit for Sony a7R III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Camera Cage Rig with 15mm Rod System for Sony Alpha a7R III
| Compatibility | Sony Alpha a7R III | | Mounting Options | Threaded holes
15 mm rod clamps (on baseplate and handle) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 10.0 x 8.3 x 2.7" | - ABS 4 x 4" Matte Box with Top & Side Flags
| Compatibility | Sony Alpha a7S
Canon EOS 7D
Canon EOS 5D Mark II
Canon EOS 5D Mark III | | Material | ABS Plastic | | Height Adjustment | ±0.79" / 2 cm | | Maximum Lens Diameter | 110mm | | Filter | Holder: 4.00 x 4.00 x 0.12" / 10.16 x 10.16 x 0.30 cm | | Dimensions | 9.80 x 7.00 x 2.75" / 25.0 x 18.0 x 7.0 cm | | Weight | Not Specified by Manufacturer | - FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod
| Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Fixed | | Marking Disk | Yes | | Switchable Handwheel Speed | No | | Gear Material | Aluminum | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 11.35 x 7.65 x 4.05" | - DSLR Shoulder Support for 15mm LWS Rod System
| Material of Construction | Structure: Machined aluminum
Shoulder Pads: Polyurethane | | Mounting | 15mm LWS rods | | Dimensions | 8.66 x 3.54 x 4.13" / 22.0 x 9.0 x 10.5 cm | | Weight | 1.1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 10.0 x 8.1 x 3.8" | - DSLR Universal Handle Grip for 15mm Rods
| | | Accessory Type | Handle grip rod block | | | | Intended For | 15 mm support rod system | | | | Box Dimensions (LxWxH) | 8.504 x 7.874 x 3.071" |
