User Manual for CAME-TV Compact 575W HMI Fresnel Light and Electronic Ballast Click to enlarge the picture
Contents of the user manual for the CAME-TV Compact 575W HMI Fresnel Light
- Product category: HMI & Plasma Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV HMI & Plasma Lights
 |
User manual for the CAME-TV Compact 575W HMI Fresnel Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

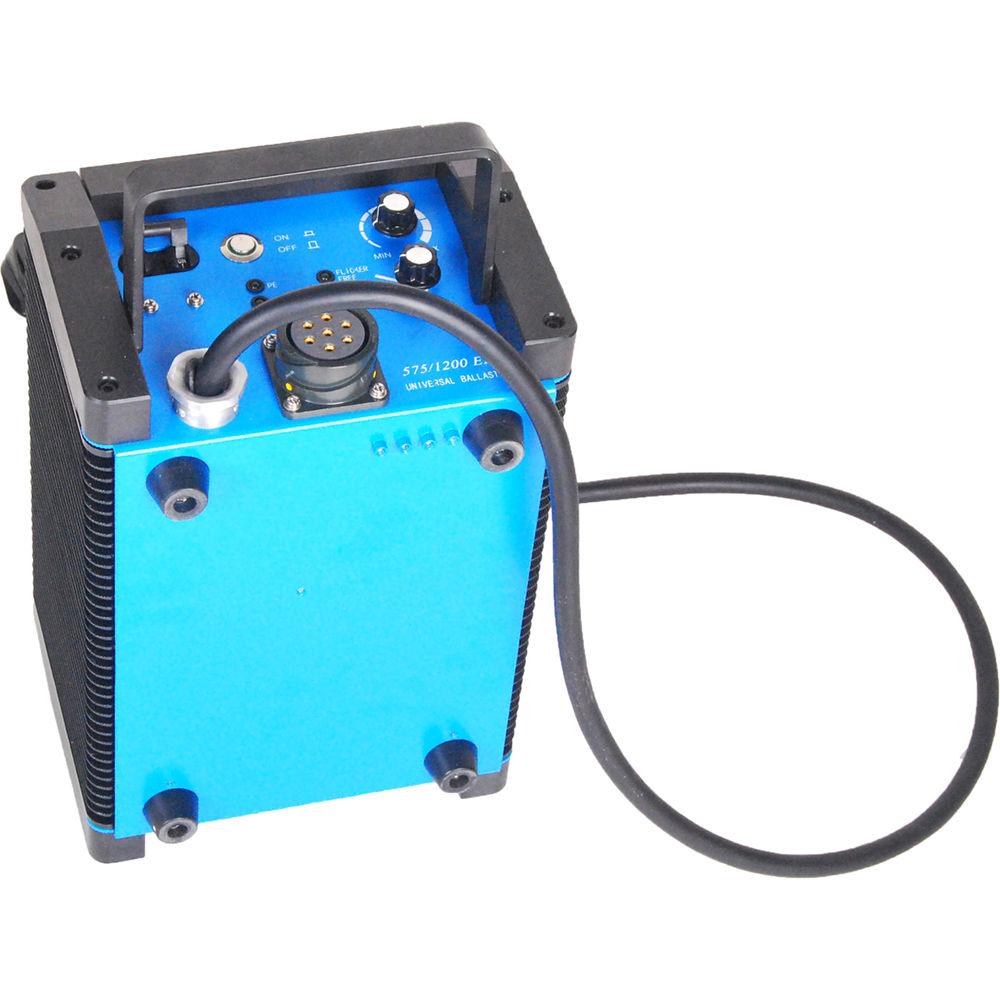

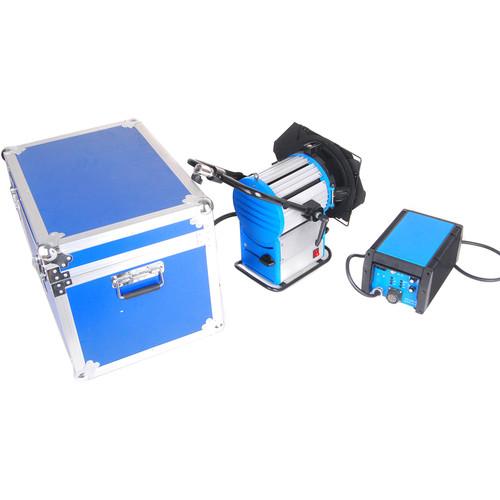

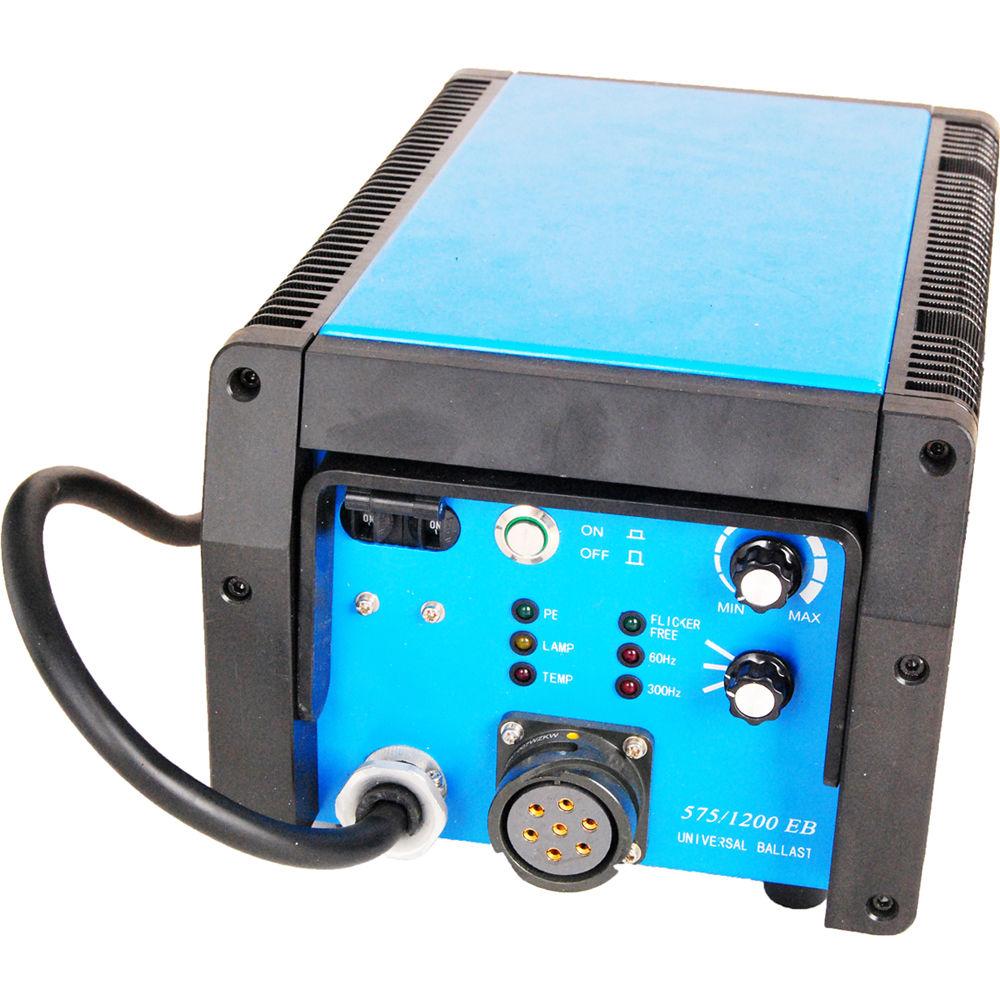

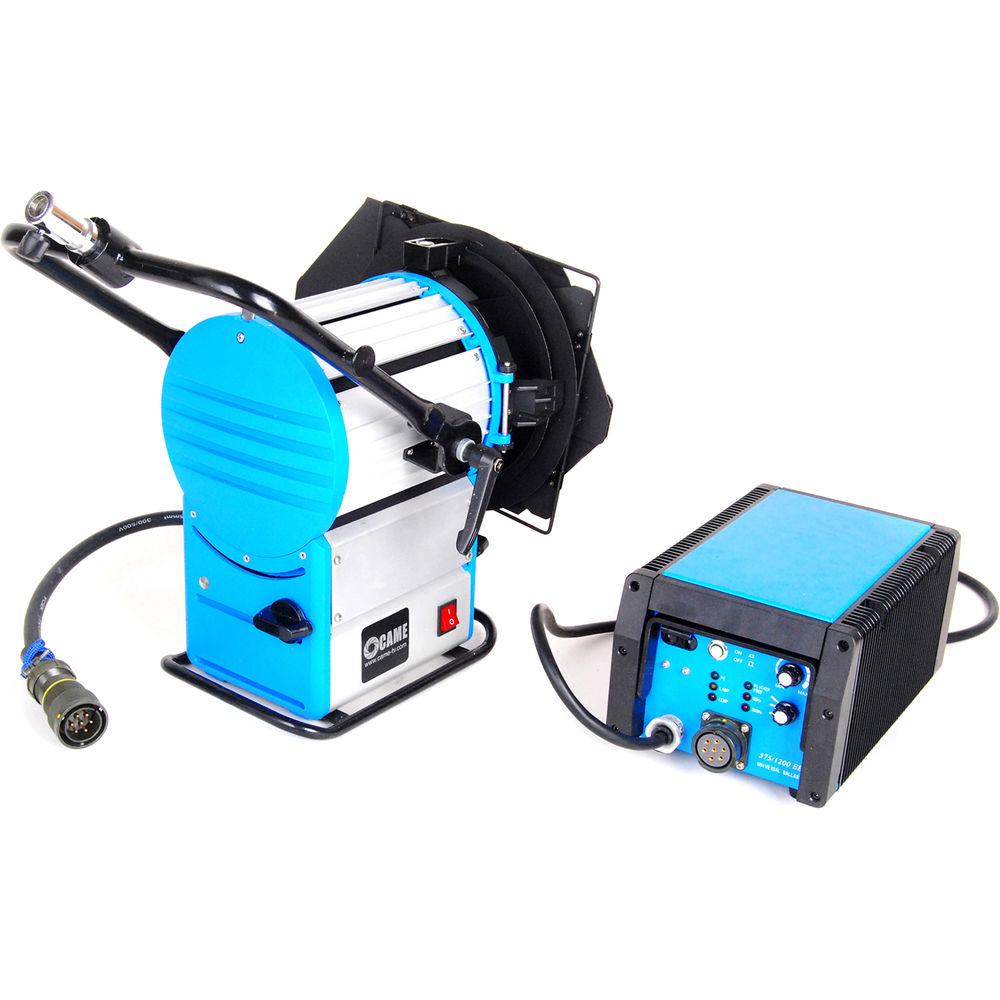

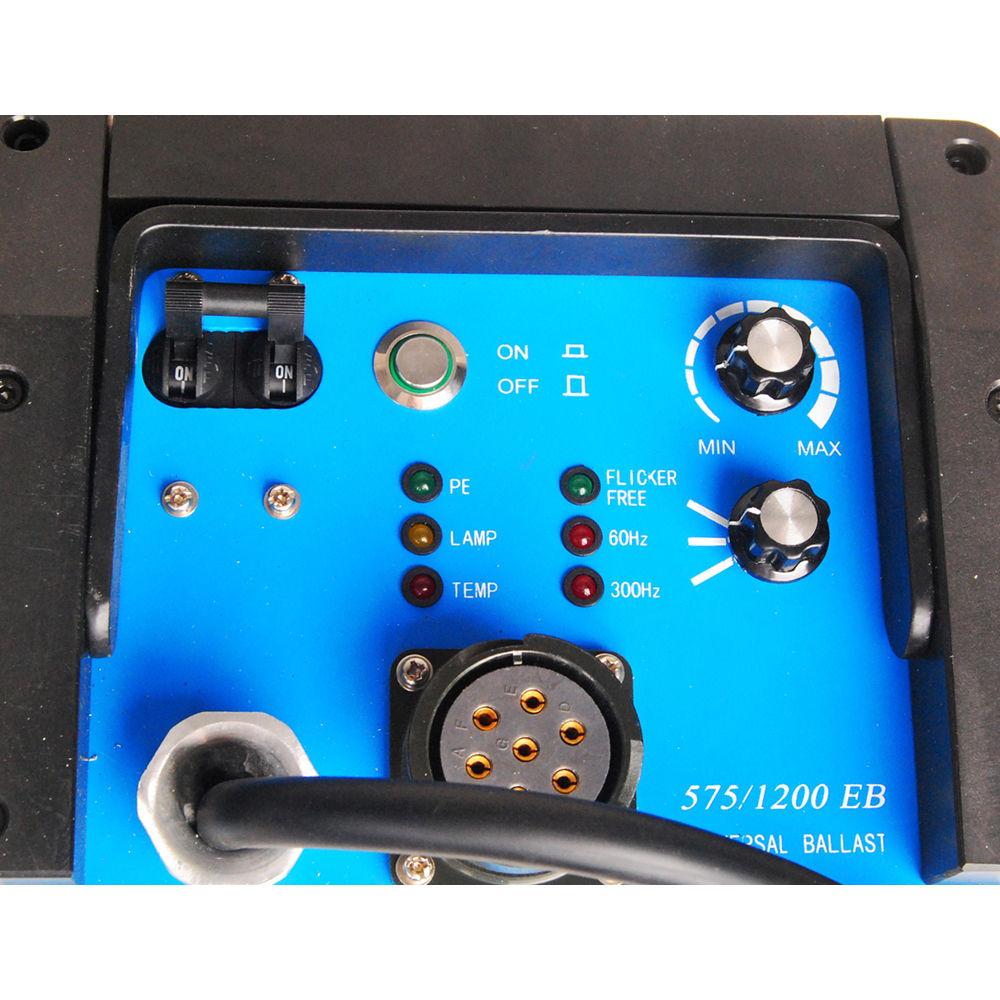

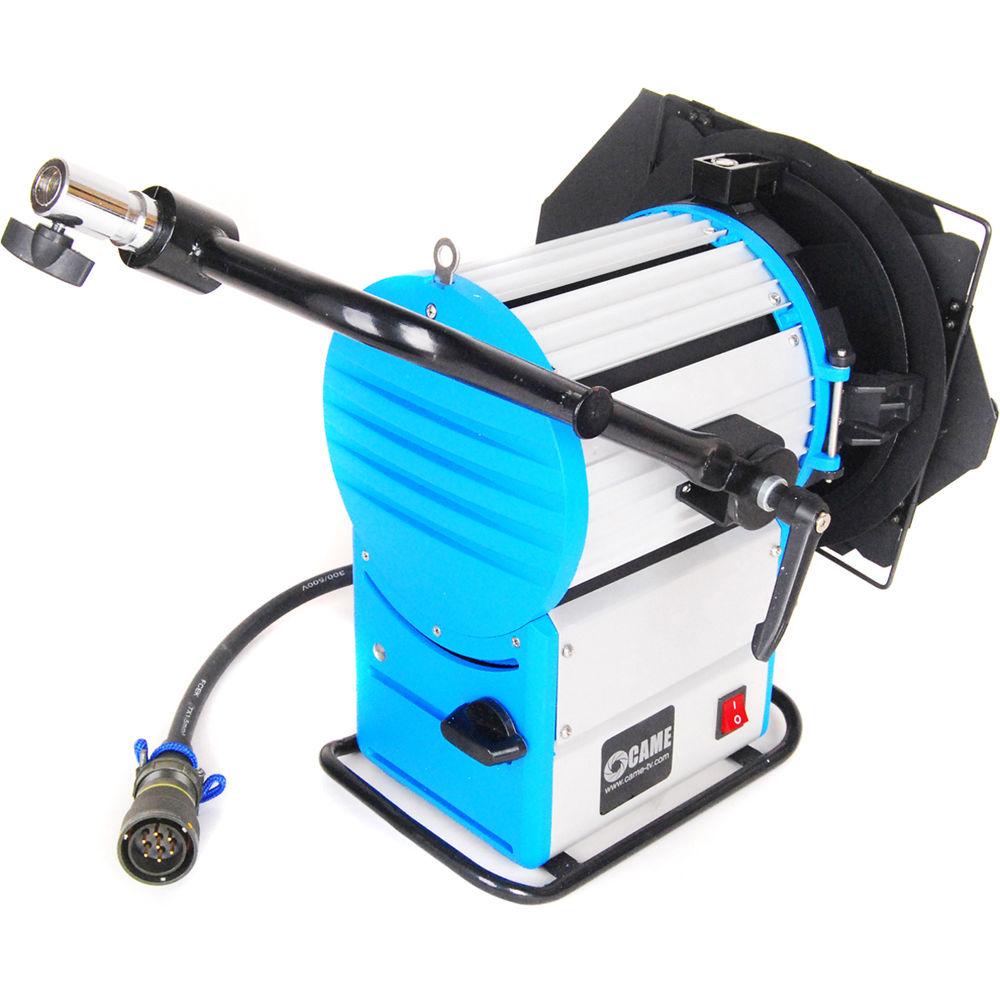

Product description The Compact 575W HMI Fresnel Light and Electronic Ballast from Came-TV are a staple of any film set or location. The kit includes a Fresnel head with 575W Osram HMI lamp, 4-leaf barndoors, 575W / 1200W electronic ballast, 23' head to ballast cable, 5' power cable, and an aluminum travel case.The Fresnel head has a 1-1/8" spigot for stand-mounting or hanging, a G22 lamp base and pigtail captive power lead. The Fresnel is a 5.1" Borosilicate lens for flood-to-spot beam variation. Four-way barndoors allow you to shape the fixture's beam spread for precise lighting. The 575W/1200W electronic ballast is 90-250 VAC mains compatible for worldwide use, and dims from full to 50% power without flicker. The ballast incorporates over-voltage, over-temperature and short-circuit protection, as well as A.L.F. and P.F.C. to ensure consistent and accurate color regardless of voltage fluctuations. UPC: 603629357625 In the Box CAME-TV Compact 575W HMI Fresnel Light and Electronic Ballast 575W HMI Fresnel Light Head 4-Leaf Barndoors Yoke with 1-1/8" Spigot 575W / 1200W Electronic Ballast (90-250 VAC) 575/1200W HMI Fresnel/Par Light Head to Electronic Ballast Cable (23') 5' Power Cable 575W Osram HMI Bulb Aluminum Travel Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Compact 575W HMI Fresnel Light and Electronic Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV AR575FRESNEL Specs | | | Rating | 575 W HMI | | Material | Aluminum alloy | | Socket (Lampholder) | G22 | | Color Temperature | Approx. 6000K | | Lens (Condenser) | 5.1" (130 mm) Borosilicate Fresnel lens | | Cable | 23' (7.0 m) | | Mounting | 1-1/8" (28 mm) Spigot | | IP Rating | IP23 | | | | Rating | 575 / 1200 W | | Voltage | 90 - 250 VAC | | Dimming | 0 - 50% | | Material | Aluminum alloy | | Cable | 5.0' (1.5 m) | | IP Rating | IP23 | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 23.1 x 16.0 x 15.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
