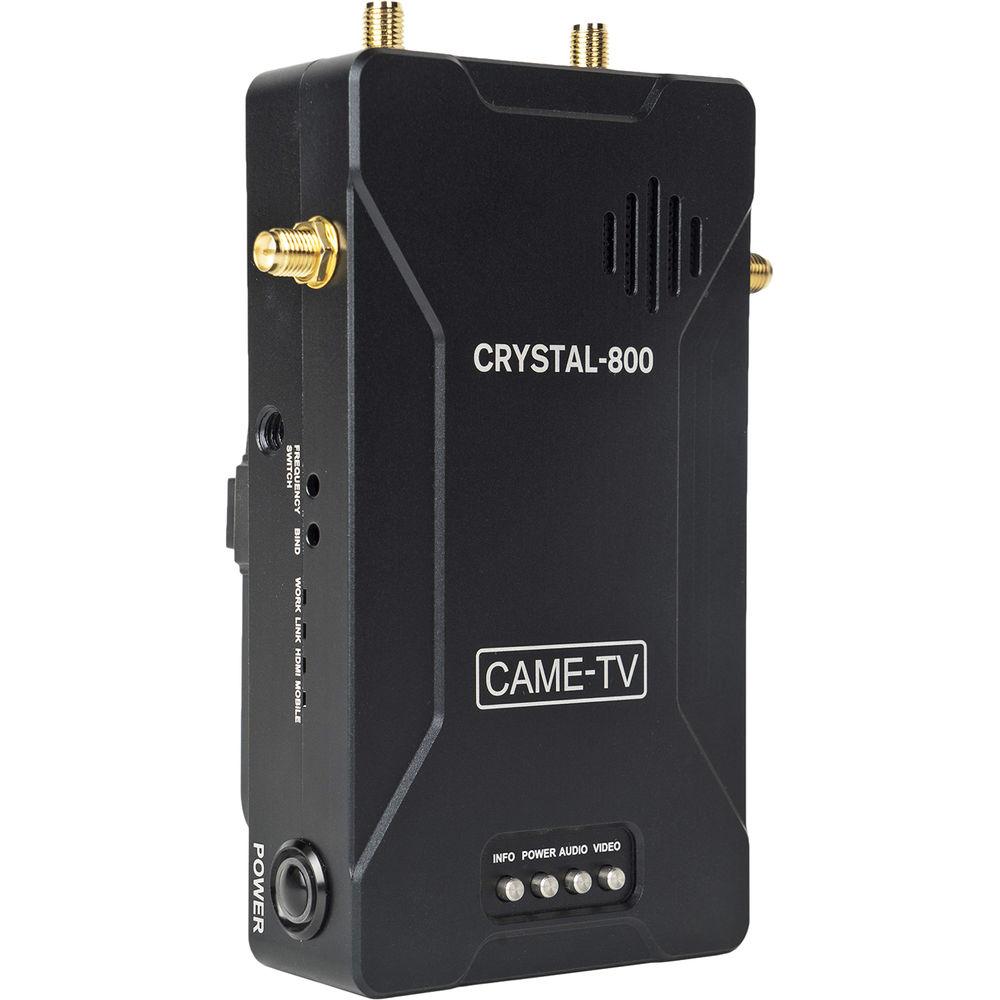

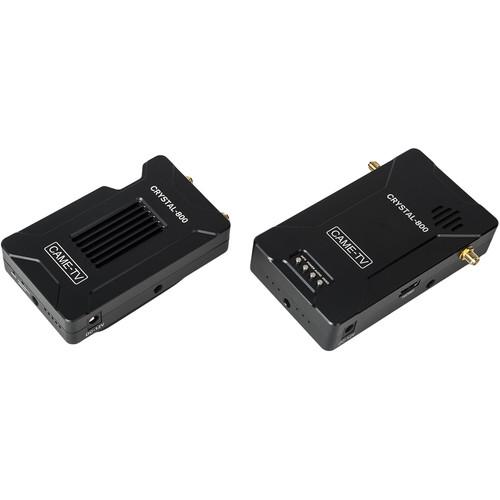

Product description The Crystal-800 Wireless Full HD Video Transmission System from CAME-TV allows you to wirelessly connect your camera to a monitoring device with a 5 GHz signal. The system supports 1080p60 video over HDMI with < 300 ms latency and offers an effective line-of-sight transmission up to 2600'.

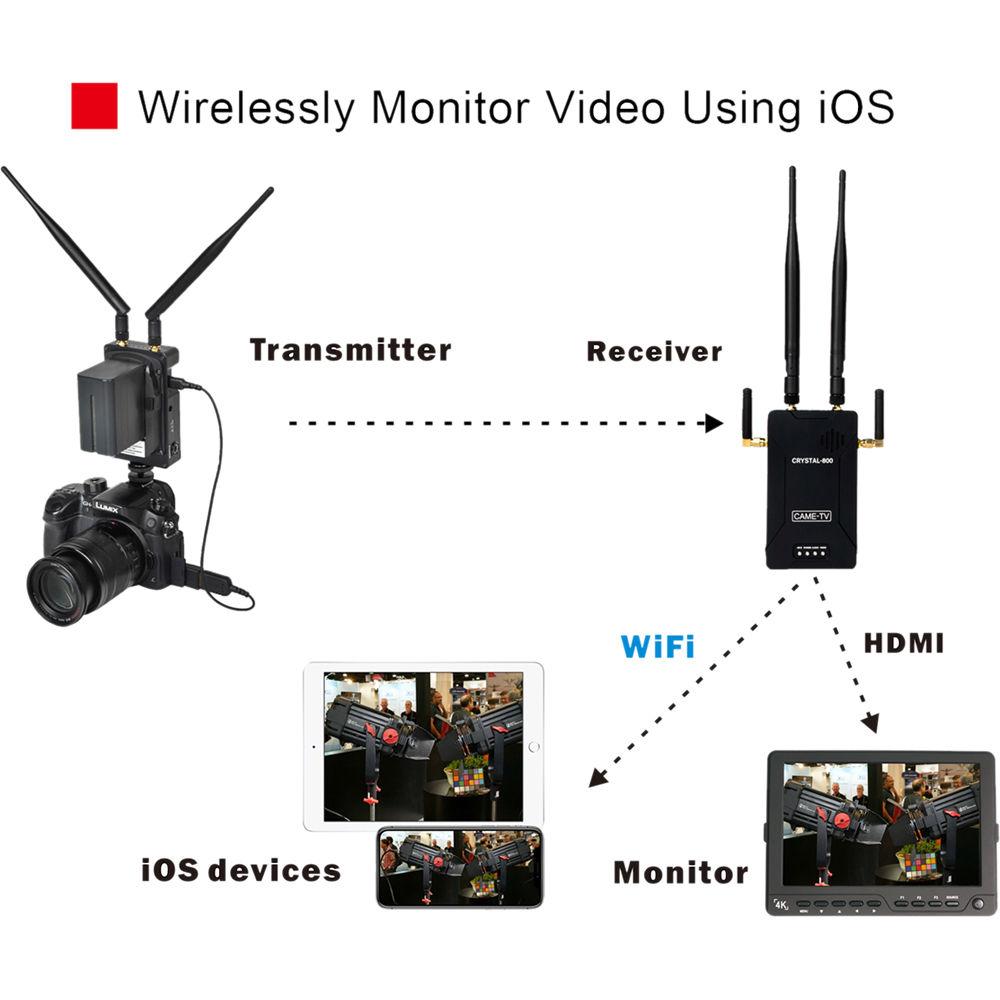

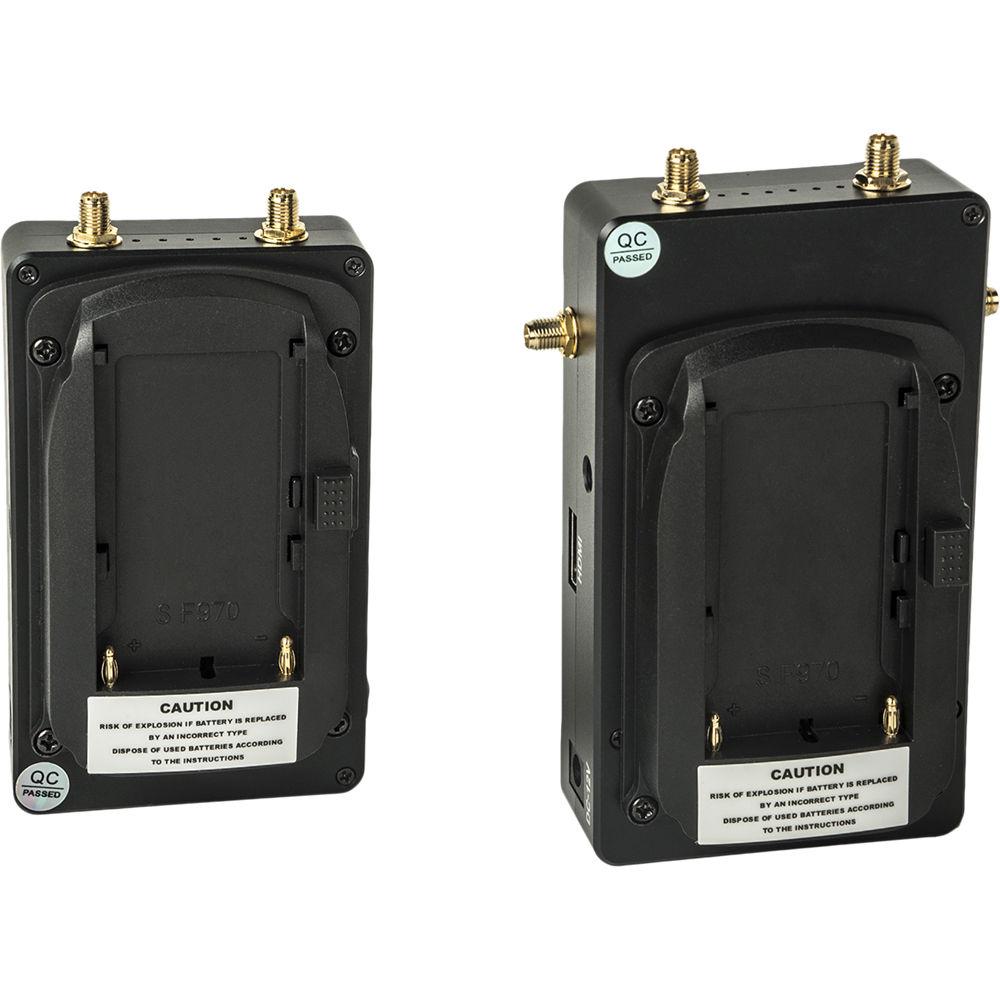

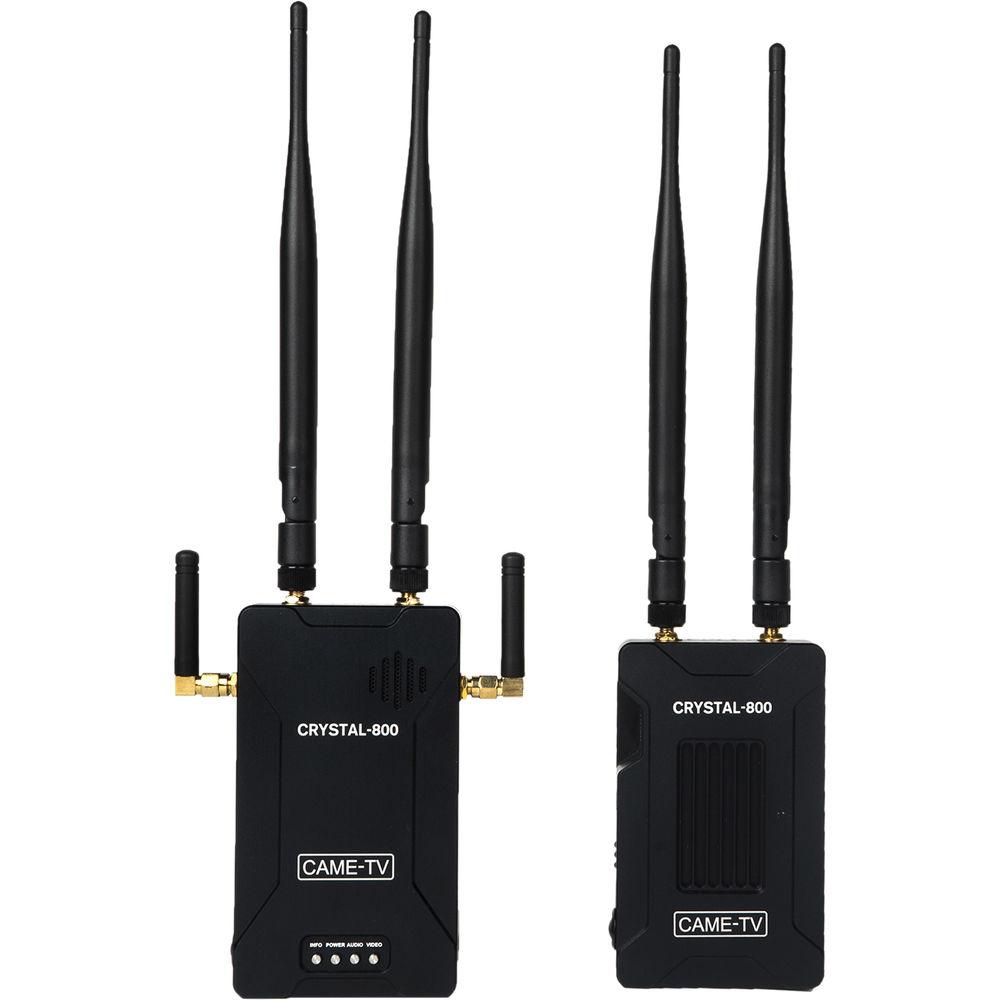

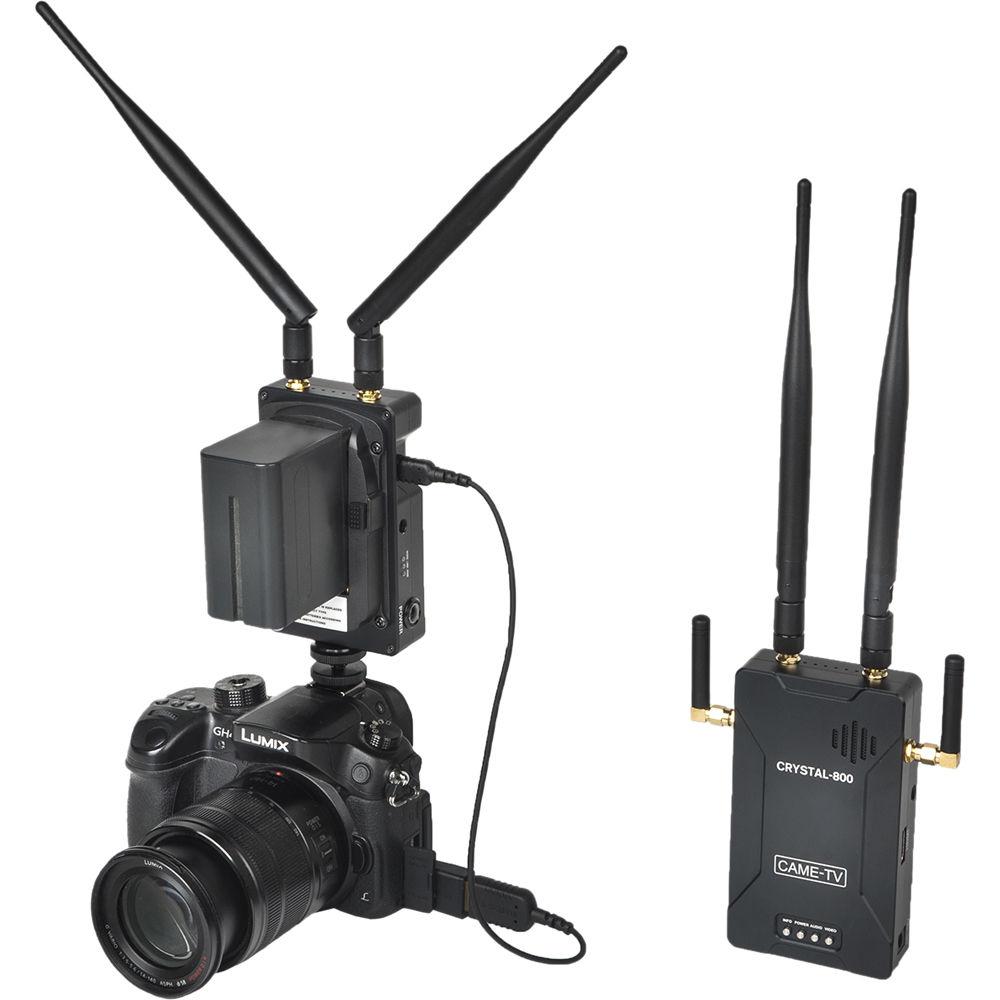

Both the transmitter and receiver are powered by an L-series battery, and they can also be powered with a separately available 12 VDC power adapter. Both units can be configured over Wi-Fi with a downloadable iOS app for your iPhone or iPad that can also preview your live video transmission. The transmitter comes with two antennas and the receiver comes with two long and two short antennas. Also included are two HDMI cables to connect the units to your camera and monitor, as well as a hot shoe mounting kit. - Wireless HD video transmission up to 1080p60 with low < 300 ms latency
- Up to 2600' effective line-of-sight range
- Supports external L-series Li-ion battery power for mobile convenience
- Both units support mounting with 1/4"-20 screw
- Configure settings and preview video on an iOS device

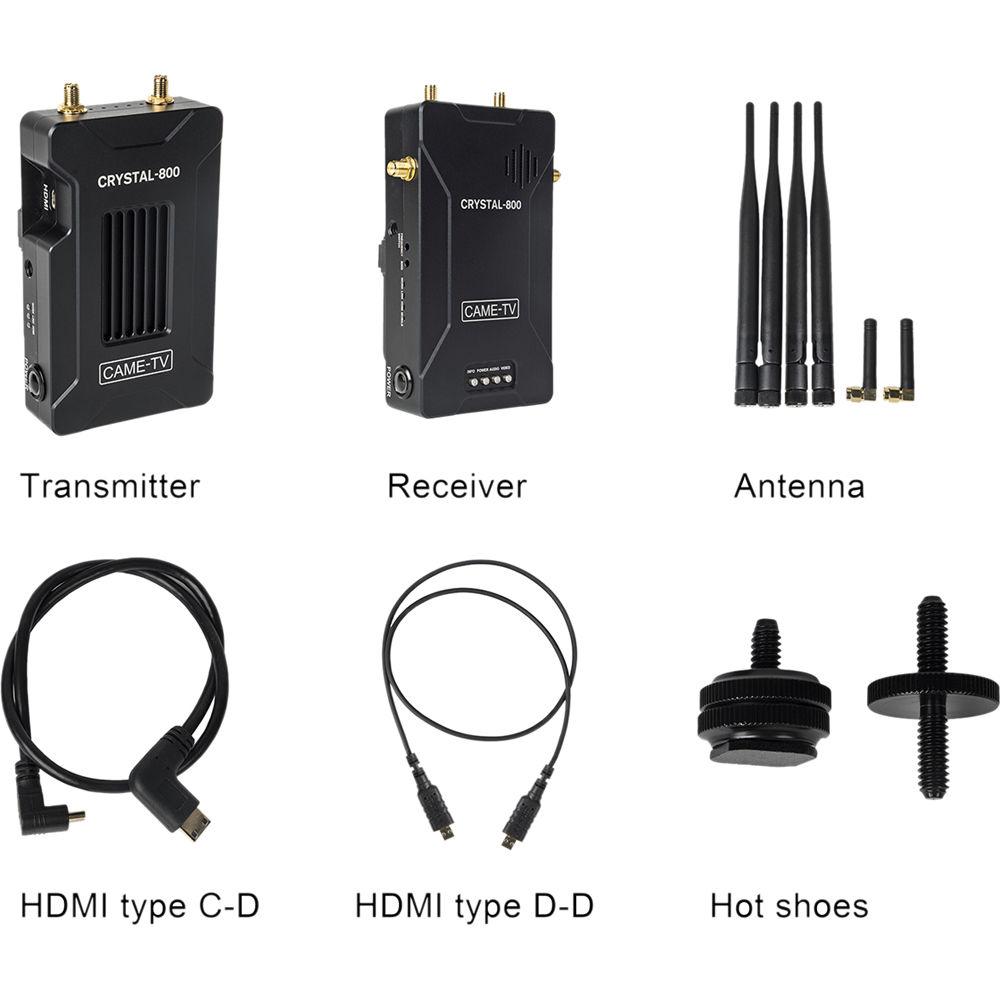

UPC: 614993189606 In the Box CAME-TV Crystal-800 Wireless Full HD Video Transmission System Crystal-800 Transmitter Crystal-800 Receiver 2 x Transmitter Antenna 4 x Receiver Antenna Mini-HDMI Type C to Micro-HDMI Type D Cable Micro-HDMI Type D to Type D Cable Shoe Mount Adapter Kit Limited 1-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Crystal-800 Wireless Full HD Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV CRYSTAL-800 Specs | | | Transmission Frequency | 5 GHz Wi-Fi | | Input / Output Connectors | 1 x 12 VDC Power
1 x Micro-HDMI Type D | | Receiving Sensitivity | -95 dBm, ±2 dBm | | System Latency | ≤ 300 ms | | Antenna | 2 x External | | Transmission Power | 25 mW to 800 mW, Adjustable | | Transmission Distance | 2600' / 800 m, Line of Sight | | Power Supply | 12 VDC
L-Series Battery Mount | | Power Output | 6 to 16 VDC | | Mounting | 1/4"-20 Thread | | Dimensions (W x D x H) | 4.5 x 2.8 x 1" / 11.4 x 7 x 2.5 cm | | Weight | 6.3 oz / 178 g | | | | Transmission Frequency | 5 GHz Wi-Fi | | Output Connectors | 1 x 12 VDC Power
1 x HDMI Type A | | Receiving Sensitivity | -95 dBm, ±2 dBm | | System Latency | ≤ 300 ms | | Antenna | 4 x External | | Transmission Power | 25 mW to 800 mW, Adjustable | | Transmission Distance | 2600' / 800 m, Line of Sight | | Power Supply | 12 VDC
L-Series Battery Mount | | Power Output | 6 to 16 VDC | | Mounting | 1/4"-20 Thread | | Dimensions (W x D x H) | 5 x 2.8 x 1.1" / 12.7 x 7.2 x 2.8 cm | | Weight | 8.2 oz / 233 g | | | | Supported Video Resolutions | 1080p: 60/50/30/25/24
720p: 60/50/30/25
PAL
NTSC | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.4 x 8.7 x 4.4" |
