User Manual for CAME-TV DSLR Cage Kit for Panasonic GH4, Sony a7S, and Canon 5D Mark III Click to enlarge the picture
Contents of the user manual for the CAME-TV DSLR Cage Kit for Panasonic
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV DSLR Cage Kit for Panasonic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

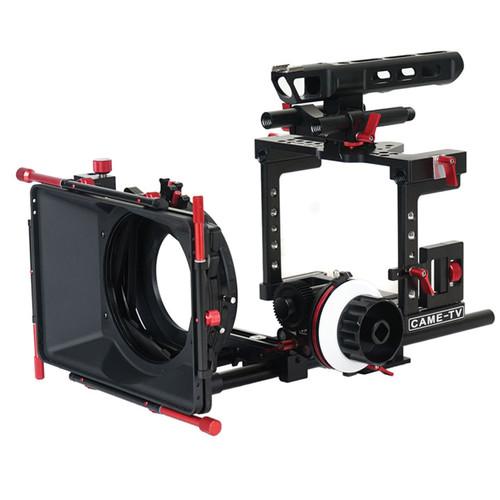

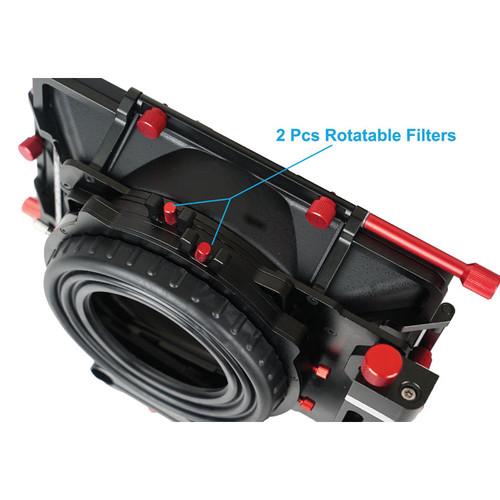

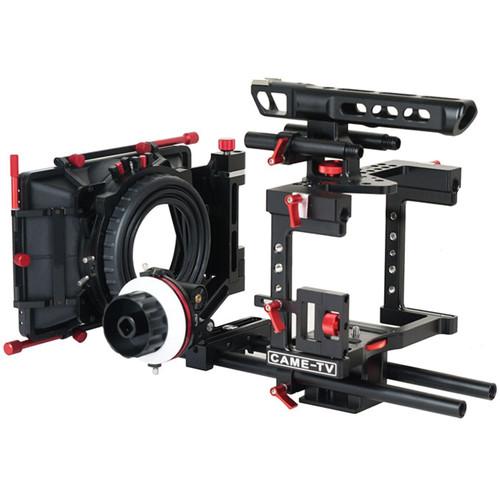

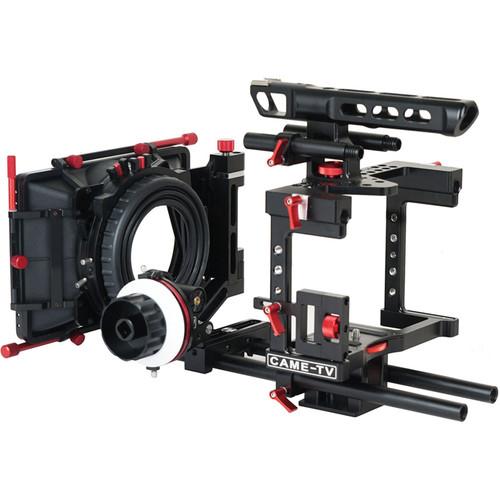

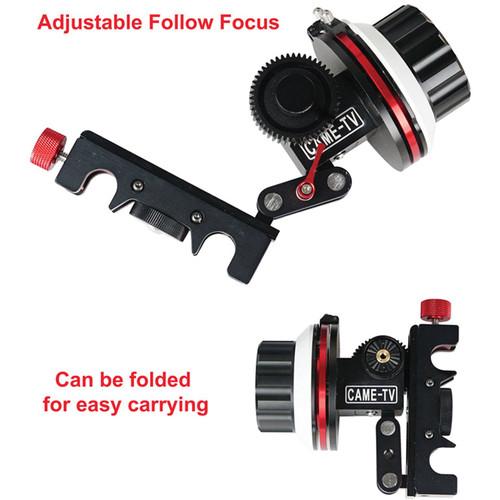

Product description Build your Panasonic GH4, Sony a7S, or Canon 5D Mark III up into a cinema studio form factor with this DSLR Cage Kit from Came-TV. Included in this kit is the Came-TV Cage, which is machined from aluminum and surrounds the camera on the top, bottom, and sides for protection. It also features tapped 1/4"-20 holes for accessory mounting around the perimeter as well as a cable clamp. The top handle features a removable 15mm LWS (LightWeight Standard) rod mount in addition to the 15mm LWS rods below the cage. Rounding out this kit are the included follow focus and matte box. The follow focus mounts to 15mm LWS rods and has built-in, moveable hard stops and a white marking disk. To fit different lens diameters, the follow focus can articulate on dual joints; this also allows it to fold down for transport. The dual-stage matte box is molded from ABS and, like the follow focus, mounts on 15mm LWS rods. It will hold up to two 4x4 filters, one of which can be rotated. For easy lens changes, the matte box swings out of the way while remaining attached to the rods. - DSLR Cage Rig Kit The DSLR Cage Rig from CAME-TV is a universal camera cage designed to fit DSLRs such as the Canon 5D Mark III and 7D, as well as mirrorless cameras such as the Panasonic GH4 and Sony a7 series. A quick release plate is used to attach your camera, making it easy to transition to handheld shooting when a cage isn't required. The plate features a back stop to prevent your camera form twisting while operating, and is secured in place using a push-button safety pin to prevent it from accidentally coming off the cage.

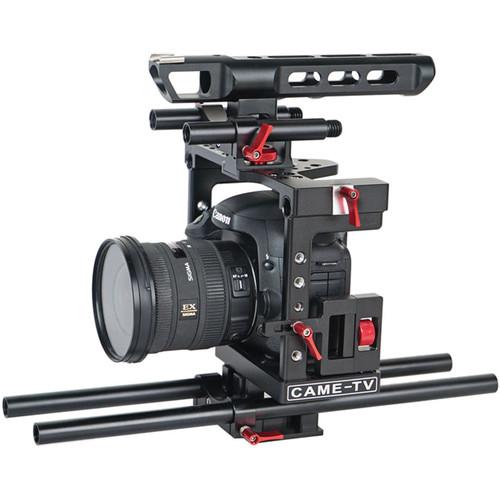

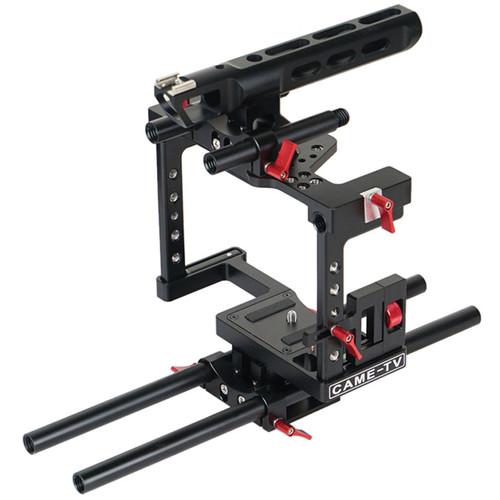

A cutout at the bottom of the cage provides access to the battery compartment of your camera, facilitating easy battery swaps without having to remove the camera from the cage. The cage has built-in 15mm rod clamps at the bottom and includes a pair of 13.8" long rods, useful for mounting optional accessories such as a follow focus, matte box, or external battery solution. For tripod mounting, the entire cage mounts onto an included dovetail plate, giving you sliding range to help balance out front- or rear-heavy rigs.
The aluminum cage features 1/4"-20 accessory mounting threads along the top and sides, with each threaded hole lined with stainless-steel Heli-Coils to prevent the aluminum threads from stripping. The included top handle assembly adds a shoe mount and attaches to the top of the cage for carrying the camera rig. - Features
-
- Universal cage fits popular DSLR and mirrorless cameras, such as the Canon 5D/7D, Panasonic GH4, and Sony a7 series
- Quick release plate for quickly attaching and removing camera
- Back top on plate to prevent camera twisting
- Push button safety pin to prevent accidental release of the camera plate
- Cut-out in cage for access to camera's battery compartment
- 15mm rod baseplate
- Dovetail plate
- CNC milled from billet aluminum
- 1/4"-20 accessory-mounting threads lined with stainless-steel Heli-Coils
UPC: 602766007585 - FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod The FF-01 Follow Focus from CAME-TV is a follow focus system with A/B hard stops for a 15mm rod system. The FF-01 is constructed of aluminum and has a bright white magnetic marking disk. It has a smooth, controlled operation; various clamp options; and four gear rings attachment sizes. UPC: 602766007479

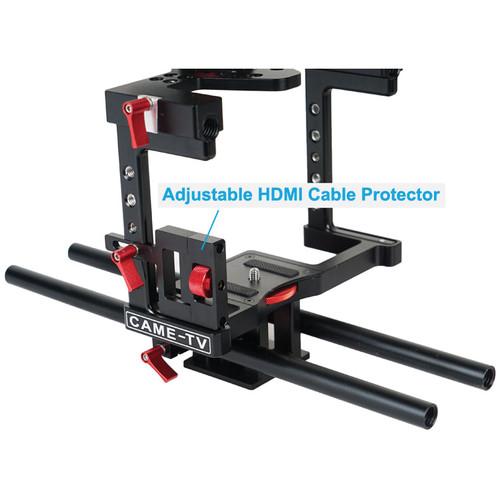

In the Box Bundle Items DSLR Cage Rig Kit ctqytxdrrxcrxvvawtxqve - 2 x Side Plate for 5D Mark II/III with HDMI Cable Clamp
FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod ctqytxdrrxcrxvvawtxqve
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV DSLR Cage Kit for Panasonic GH4, Sony a7S, and Canon 5D Mark III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DSLR Cage Rig Kit
| Camera Mounting Screw | 1/4"-20 | | Accessory Mounting Threads | 1/4"-20 | | Tripod Mounting Threads | 1/4"-20 and 3/8"-16 (on dovetail plate) | | 15mm Rod Length | 2 x 13.8" / 35 cm | | | | Box Dimensions (LxWxH) | 15.95 x 10.75 x 6.0" | - FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod
| Construction | Aluminum | | Backlash | < 0.5 mm | | Gear Pitch | 0.8 | | Gears | 60 mm
70 mm
80 mm
90 mm | | Weight | 1.8 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 11.35 x 7.65 x 4.05" |
