User Manual for CAME-TV DSLR Cage Rig Kit Click to enlarge the picture
Contents of the user manual for the CAME-TV DSLR Cage Rig Kit
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV DSLR Cage Rig Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

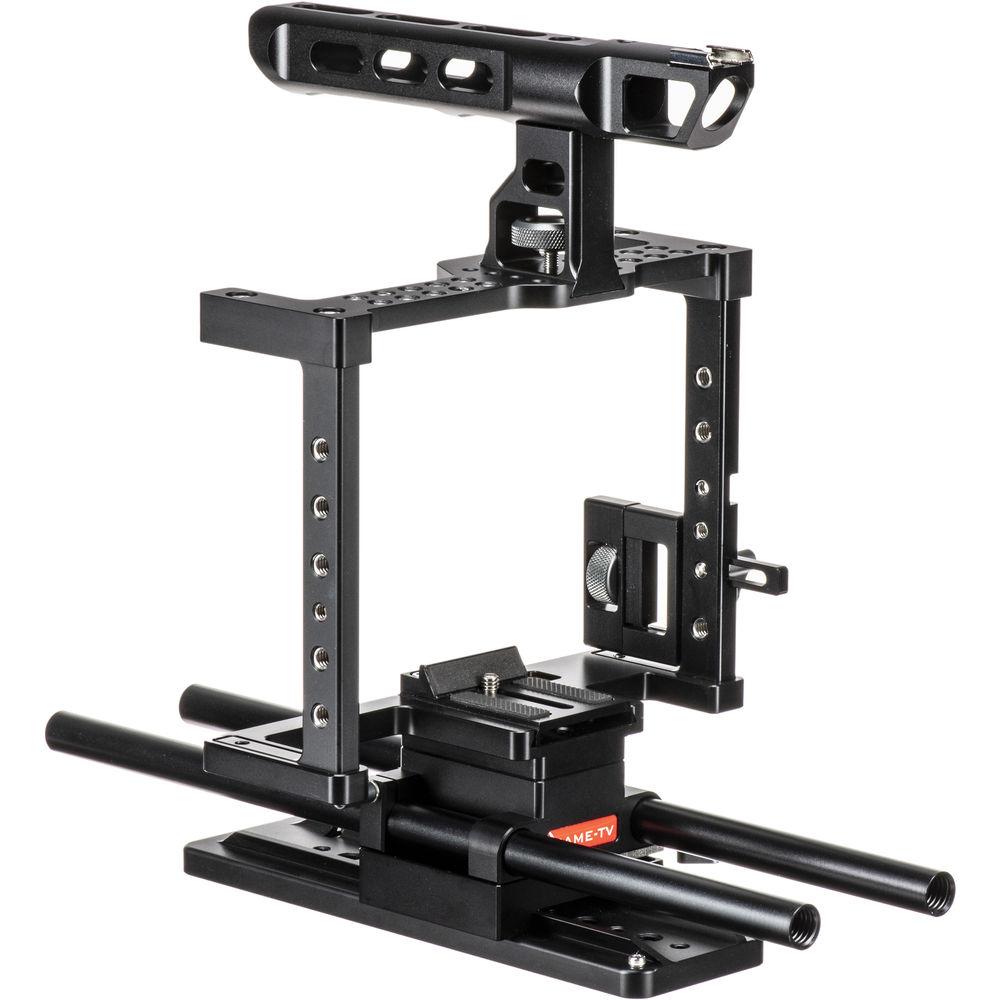

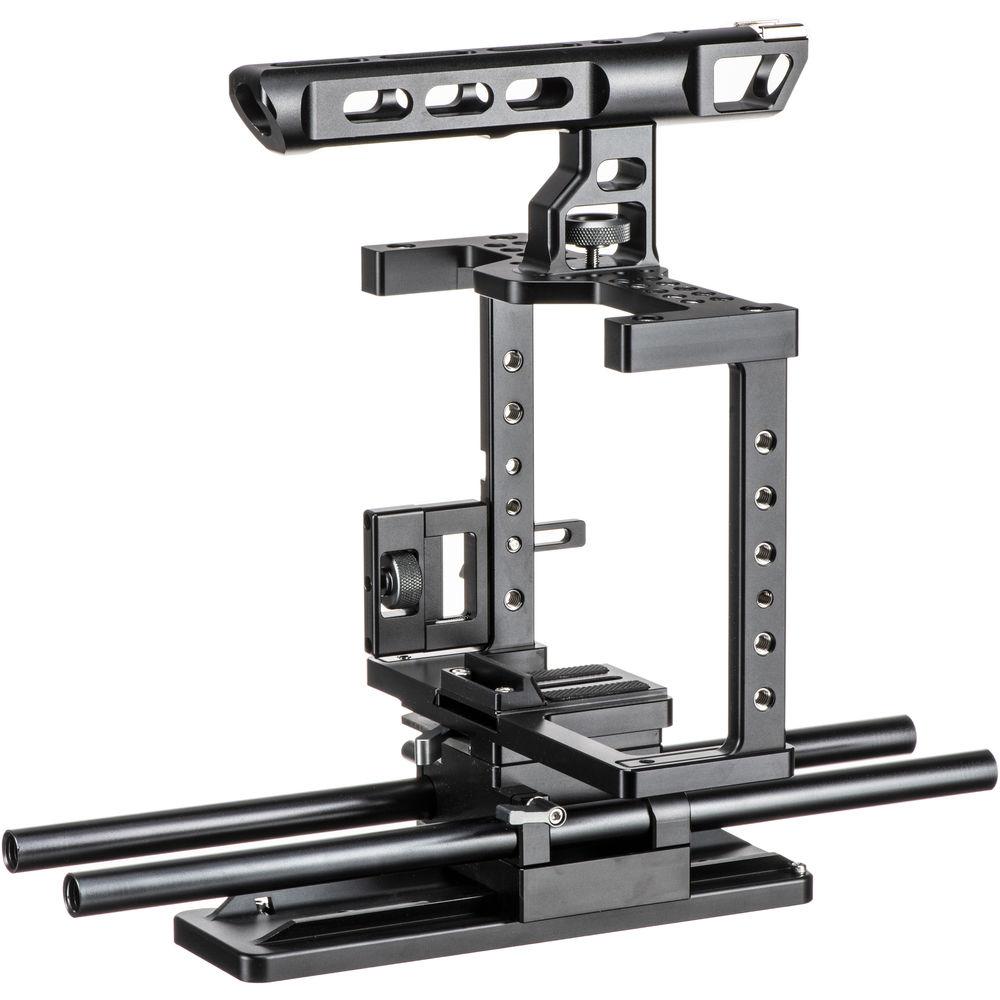

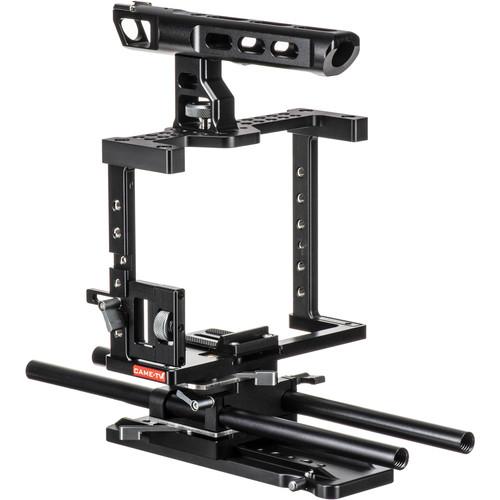

Product description The DSLR Cage Rig from CAME-TV is a universal camera cage designed to fit DSLRs such as the Canon 5D Mark III and 7D, as well as mirrorless cameras such as the Panasonic GH4 and Sony a7 series. A quick release plate is used to attach your camera, making it easy to transition to handheld shooting when a cage isn't required. The plate features a back stop to prevent your camera form twisting while operating, and is secured in place using a push-button safety pin to prevent it from accidentally coming off the cage.

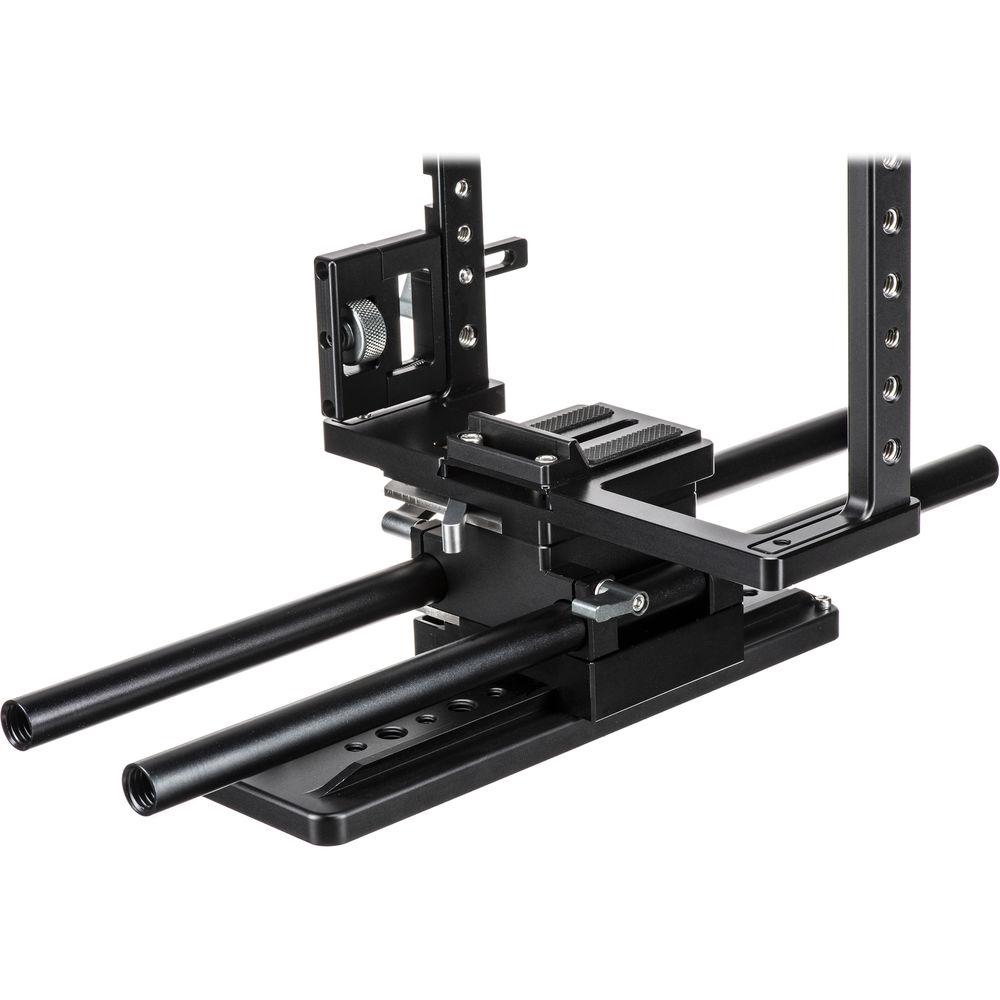

A cutout at the bottom of the cage provides access to the battery compartment of your camera, facilitating easy battery swaps without having to remove the camera from the cage. The cage has built-in 15mm rod clamps at the bottom and includes a pair of 13.8" long rods, useful for mounting optional accessories such as a follow focus, matte box, or external battery solution. For tripod mounting, the entire cage mounts onto an included dovetail plate, giving you sliding range to help balance out front- or rear-heavy rigs.

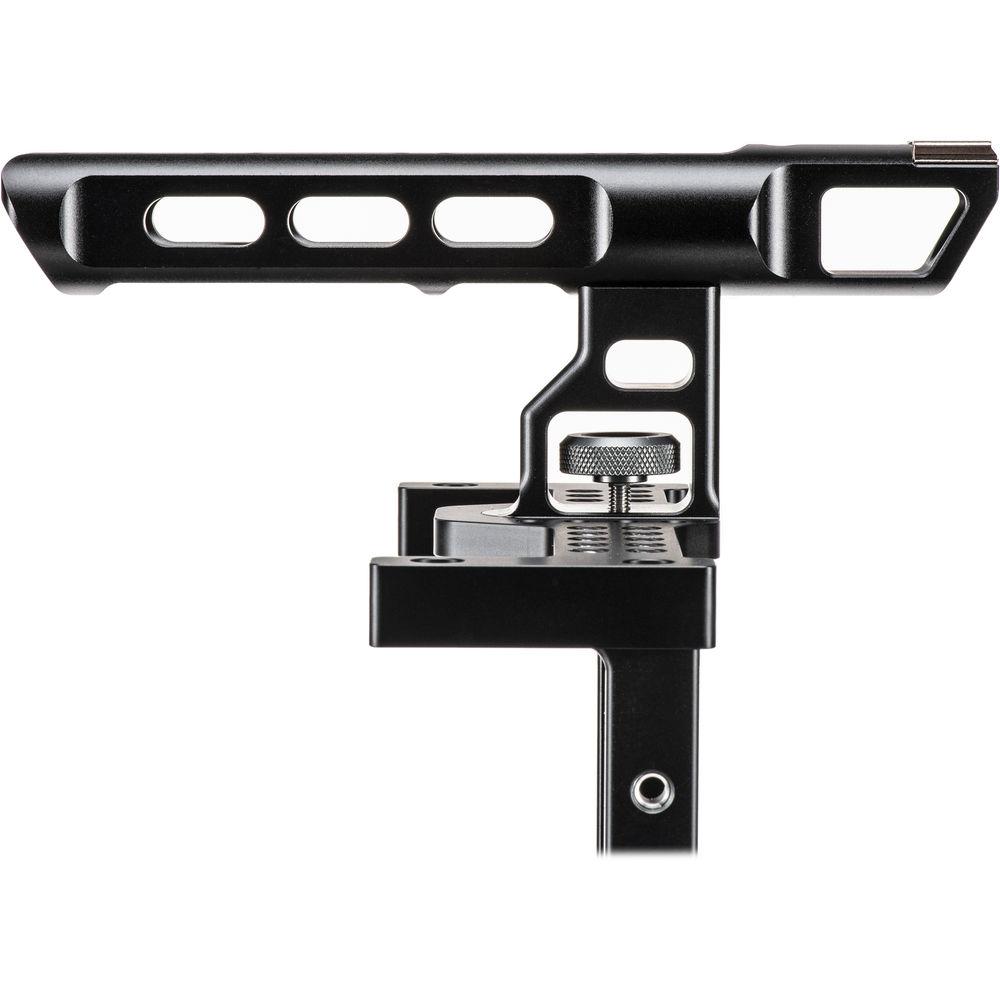

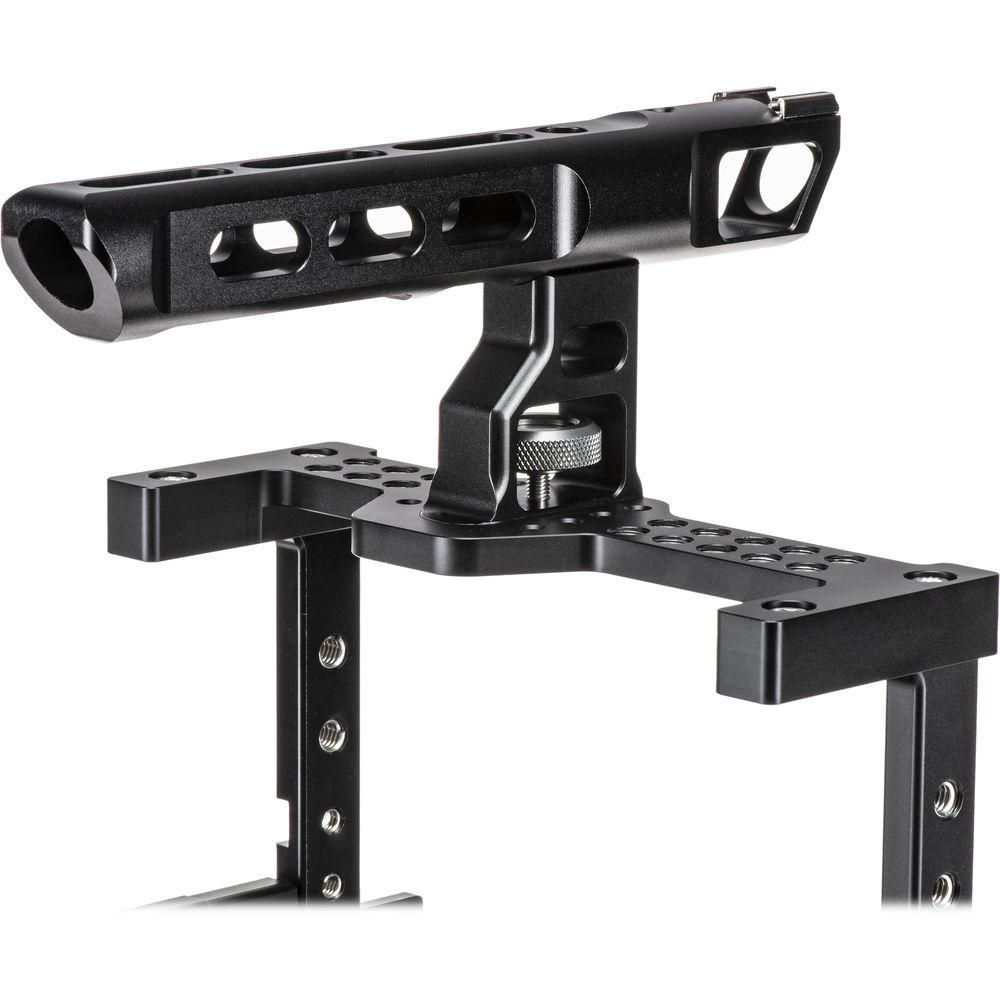

The aluminum cage features 1/4"-20 accessory mounting threads along the top and sides, with each threaded hole lined with stainless-steel Heli-Coils to prevent the aluminum threads from stripping. The included top handle assembly adds a shoe mount and attaches to the top of the cage for carrying the camera rig. - Features
-
- Universal cage fits popular DSLR and mirrorless cameras, such as the Canon 5D/7D, Panasonic GH4, and Sony a7 series
- Quick release plate for quickly attaching and removing camera
- Back top on plate to prevent camera twisting
- Push button safety pin to prevent accidental release of the camera plate
- Cut-out in cage for access to camera's battery compartment
- 15mm rod baseplate
- Dovetail plate
- CNC milled from billet aluminum
- 1/4"-20 accessory-mounting threads lined with stainless-steel Heli-Coils
UPC: 602766007585 In the Box CAME-TV DSLR Cage Rig Kit Top Handle Top Plate Bottom Plate 2 x Side Plate for 5D Mark II/III with HDMI Cable Clamp 2 x 13.8" 15mm Rod Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV DSLR Cage Rig Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV ZBTL01 Specs | Camera Mounting Screw | 1/4"-20 | | Accessory Mounting Threads | 1/4"-20 | | Tripod Mounting Threads | 1/4"-20 and 3/8"-16 (on dovetail plate) | | 15mm Rod Length | 2 x 13.8" / 35 cm | | | | Package Weight | 4.725 lb | | Box Dimensions (LxWxH) | 15.95 x 10.75 x 6.0" |
