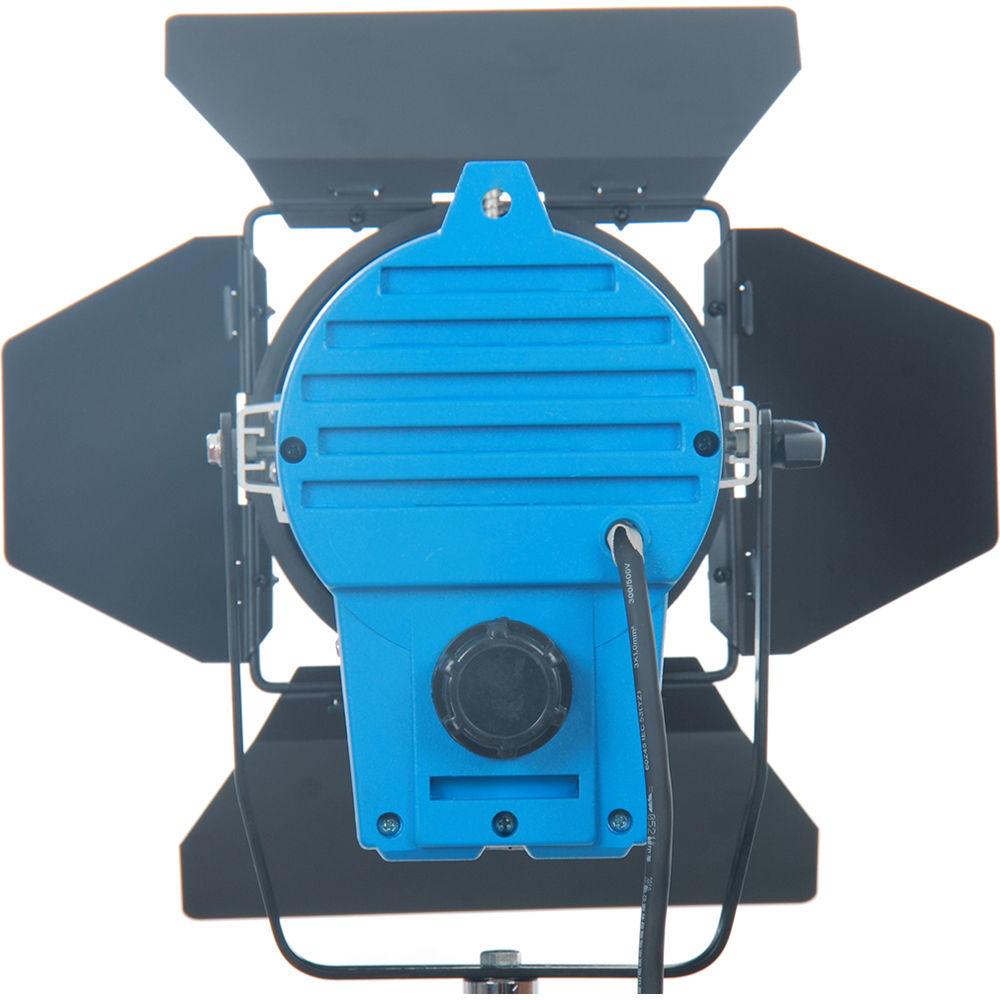

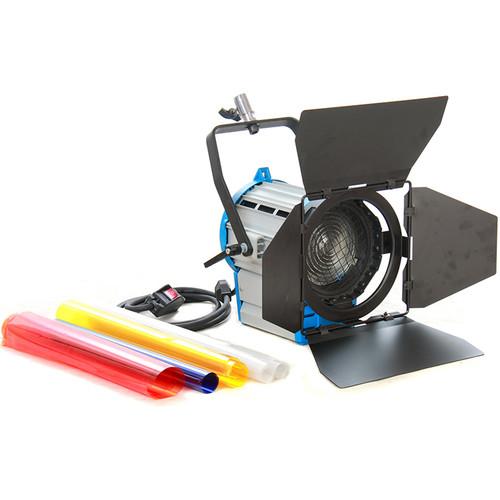

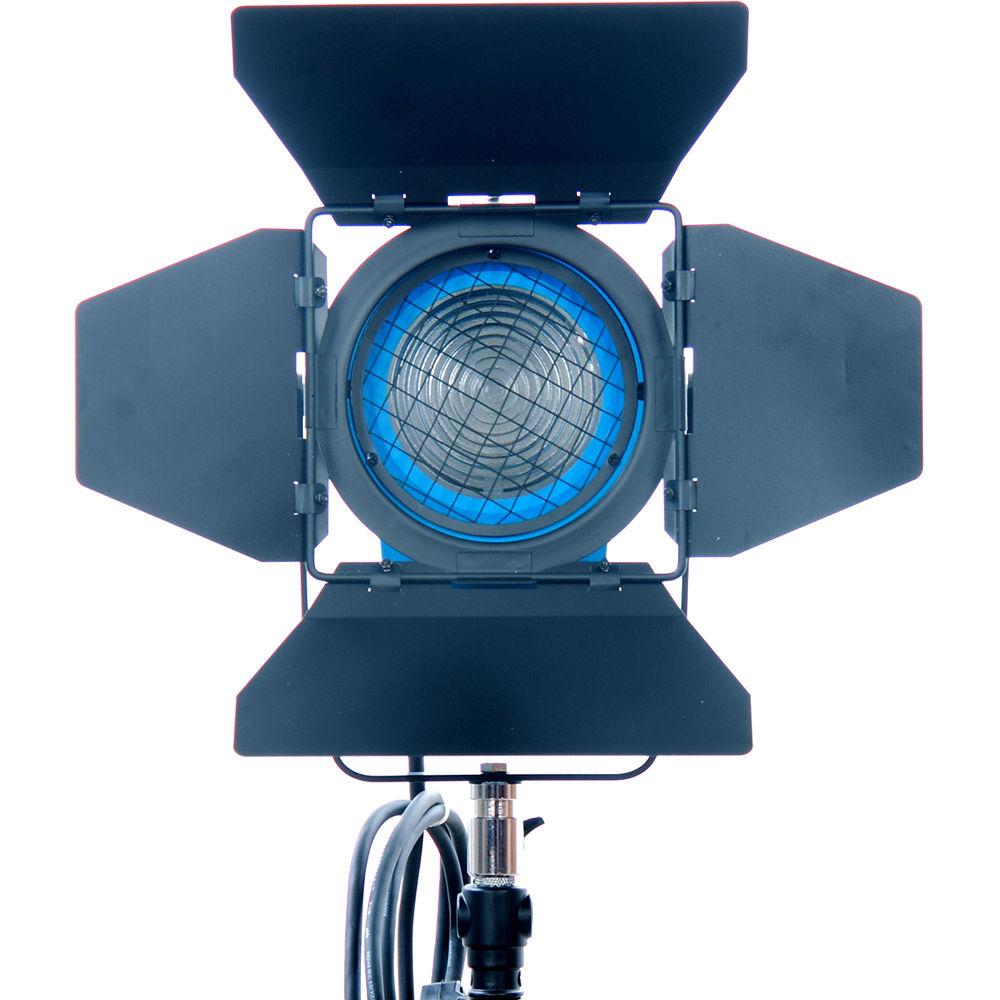

Product description Create an elaborate lighting setup with this Fresnel Tungsten Video Spotlight Four-Light Kit from CAME-TV. It stars four focusable tungsten Fresnel fixtures, two 650W and two 1000W, each with their own accessories including bulbs, barndoors, power cords, gels, dimmers, and more. Also, the kit makes sure you have everything you need for setup and transport by packing in four 7.9' air-cushioned light stands and a carrying bag with wheels. - Pro 1000W Fresnel Tungsten Light with Built-In Dimmer Control The blue/gray Pro 1000W Fresnel Tungsten Light from CAME-TV offers a total power output of 1000W, and features a dimmer with inline switch on the cable. It conforms to IP22 standards and offers a color temperature rating of 3200K. UPC: 717080142253

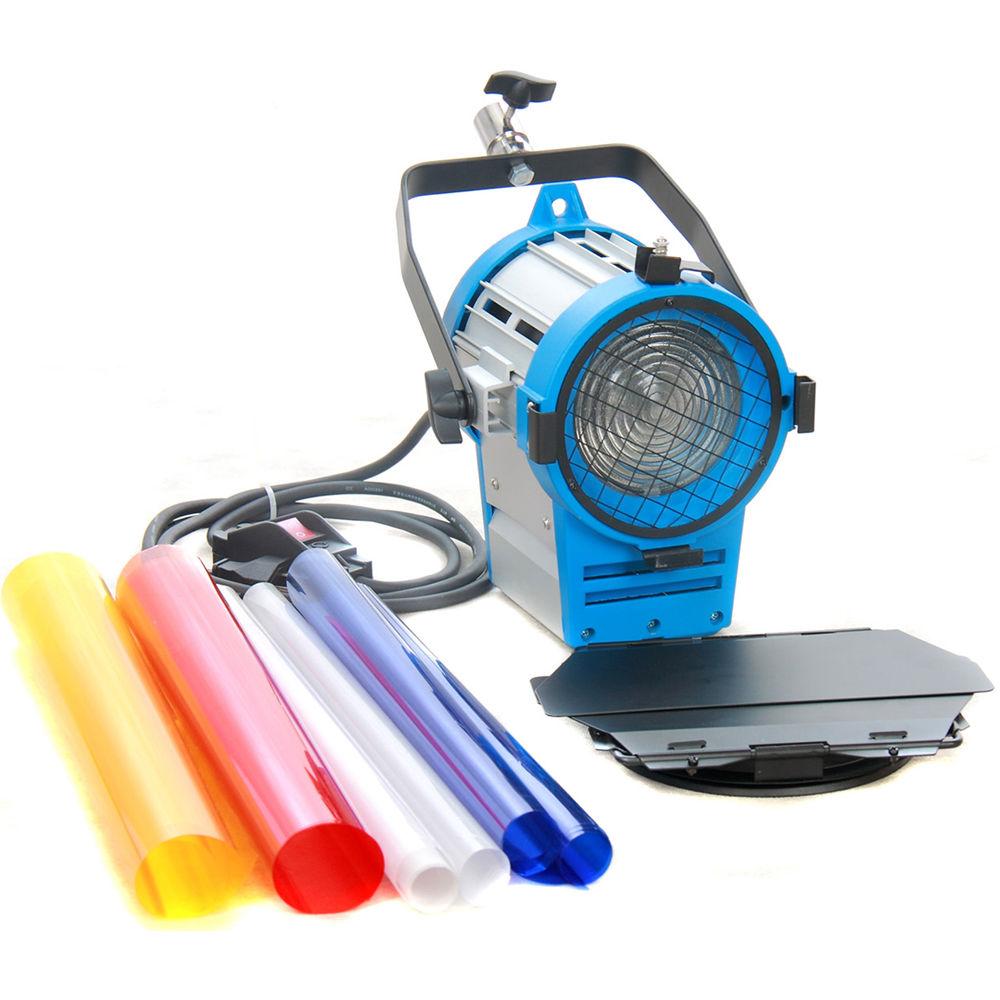

- Pro 650W Fresnel Tungsten Light with Built-In Dimmer Control The Pro 650W Fresnel Tungsten Light from CAME-TV includes an adjustable Fresnel lens to help focus the light and provide a longer throw. It offers a power output of 650W and features a dimmer with inline switch. Furthermore, the light conforms to IP22 standard and offers a color temperature rating of 3200K. UPC: 717080142246
- Max Work 2.4m Air-Cushioned Light Stand (7.9', Black) Offered as a spare or replacement light stand for CAME-TV kits, the black Max Work 2.4m Air-Cushioned Light Stand from CAME-TV has a maximum height of 7.9'. The stand features three sections and a reversible stud with a 1/4"-20 mounting stud on one end, and 3/8"-16 on the opposite end. For versatility, the stud may be locked in a vertical or horizontal position. The large knobs are easy to grasp and simplify the raising or lowering of your mounted light. UPC: 603629358424
In the Box Bundle Items 2 x Pro 1000W Fresnel Tungsten Light with Built-In Dimmer Control bdycrdvacfbzbczrsfwcrfywr - Power Cord with Inline Dimmer Switch (23')
2 x Pro 650W Fresnel Tungsten Light with Built-In Dimmer Control - Power Cord with Dimmer Switch (9.8')
4 x Max Work 2.4m Air-Cushioned Light Stand (7.9', Black) bdycrdvacfbzbczrsfwcrfywr
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Fresnel Tungsten Video Spotlight Four-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pro 1000W Fresnel Tungsten Light with Built-In Dimmer Control

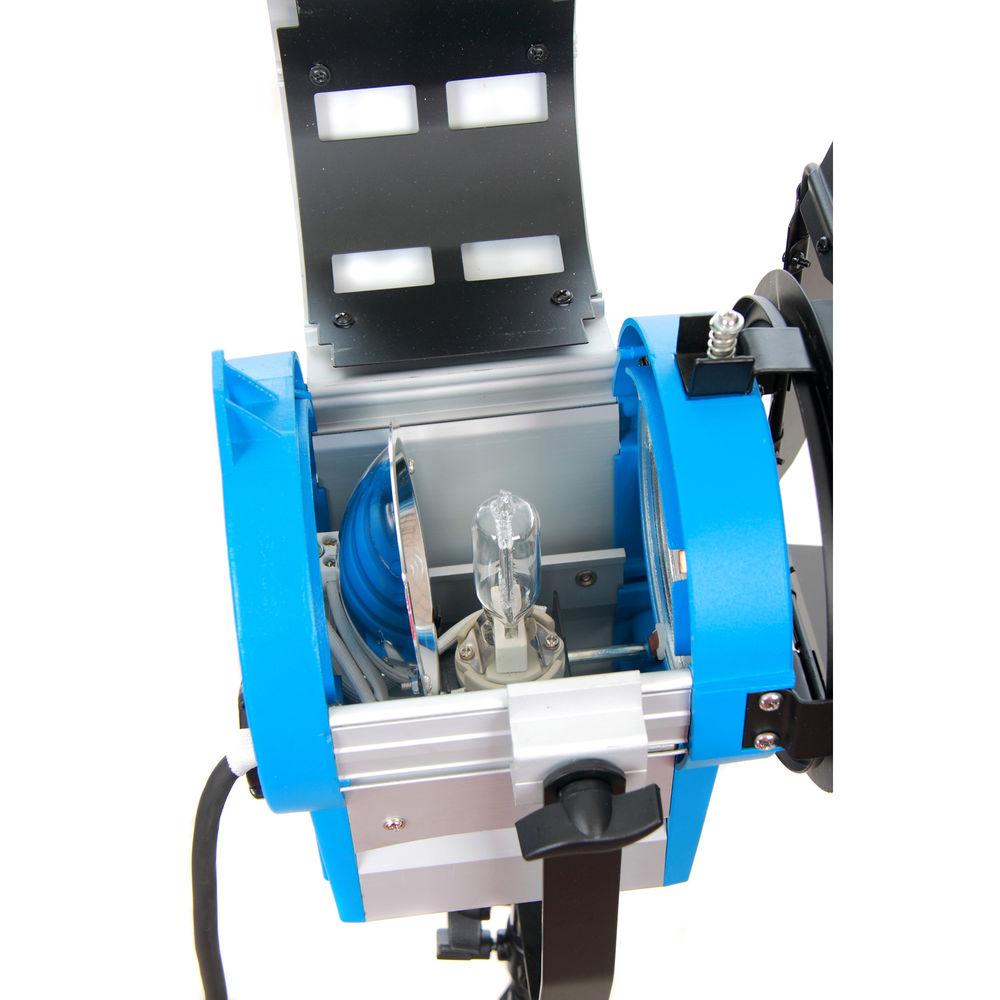

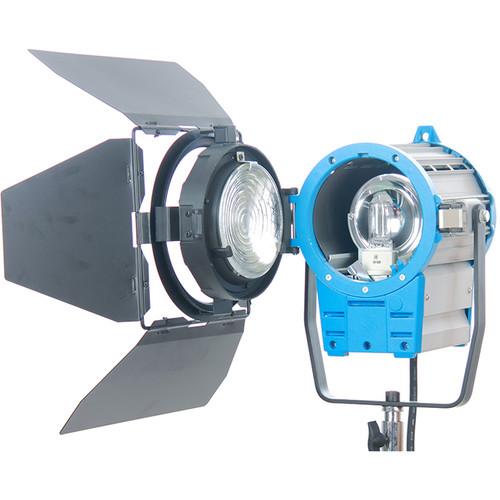

| Light Source Type | Tungsten with Fresnel lens | | Rating | 1000 W | | Color Temperature | 3200K | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | Fresnel Lens Diameter: 5.1" / 130 mm | | Socket | Filter/Barndoor Diameter: 7.7" / 197 mm | | Illumination Angle | Spot: 12°
Flood: 60° | | Illumination Strength | Spot Mode: 9500 lux at 9.8' / 3 m
Flood Mode: 1900 lux at 9.8' / 3 m | | Mounting | Not specified by manufacturer | | Yoke | Yes | | Cable | 23' / 7 m, with inline dimmer switch | | Material | Aluminum | | Protection Class | IP22 | | Compliance | CE, RoHS | | Voltage | 110 VAC | | Dimensions (H x W x L) | 16.9 x 11.4 x 9.8" / 43.0 x 29.0 x 25.0 cm | | Weight | 11 lb / 5 kg | | | | Box Dimensions (LxWxH) | 16.8 x 13.7 x 12.4" | - Pro 650W Fresnel Tungsten Light with Built-In Dimmer Control
| Light Source Type | Tungsten with Fresnel lens | | Power | 650 W | | Color Temperature | 3200K | | Socket (Lampholder) | GY9.5 | | Lens Diameter | 4.5" / 112 mm | | Socket | Filter/Barndoors: 6.5" / 165 mm | | Illumination Angle | Spot: 12°
Flood: 55° | | Illumination Strength | Spot Mode:
6800 lux at 3.2' / 1 m
3750 lux at 6.6' / 2 m
1310 lux at 9.8' / 3 m
Flood Mode:
3200 lux at 3.2' / 1 m
1250 lux at 6.6' / 2 m
570 lux at 9.8' / 3 m | | Power Cord | 9.8' / 3 m, with inline dimmer switch | | Material | Aluminum | | Protection Class | IP22 | | Compliance | CE, RoHS | | Voltage | 110 VAC | | Dimensions (H x W x L) | 14.6 x 9.1 x 7.1" / 37.0 x 23.0 x 18.0 cm | | Weight | 7.1 lb / 3.2 kg | | | | Box Dimensions (LxWxH) | 15.3 x 11.8 x 11.4" | - Max Work 2.4m Air-Cushioned Light Stand (7.9', Black)
| Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Stud | | Maximum Working Height | 7.9' / 2.4 m | | Collapsed Height | 37.4" / 95 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | | | Box Dimensions (LxWxH) | 29.3 x 4.1 x 3.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to CAME-TV Fresnel Tungsten Video Spotlight Four-Light Kit
| Subject: To operate Fresnel lens lights DSH 1000 blue colour | | Date: 11.02.2022 07:17:17 | Name: Granville Wisidagama | To Technical team,
From Sri Lanka- we have purchased two above mentioned lights and need to operate and as soon as when we switched on the light the two bulbs got burned, this may be due to voltage power- in Sri Lanka the voltage is 220 and this light power is 110. Please provide instruction manual to operate.
Thanks | | Post reply |
