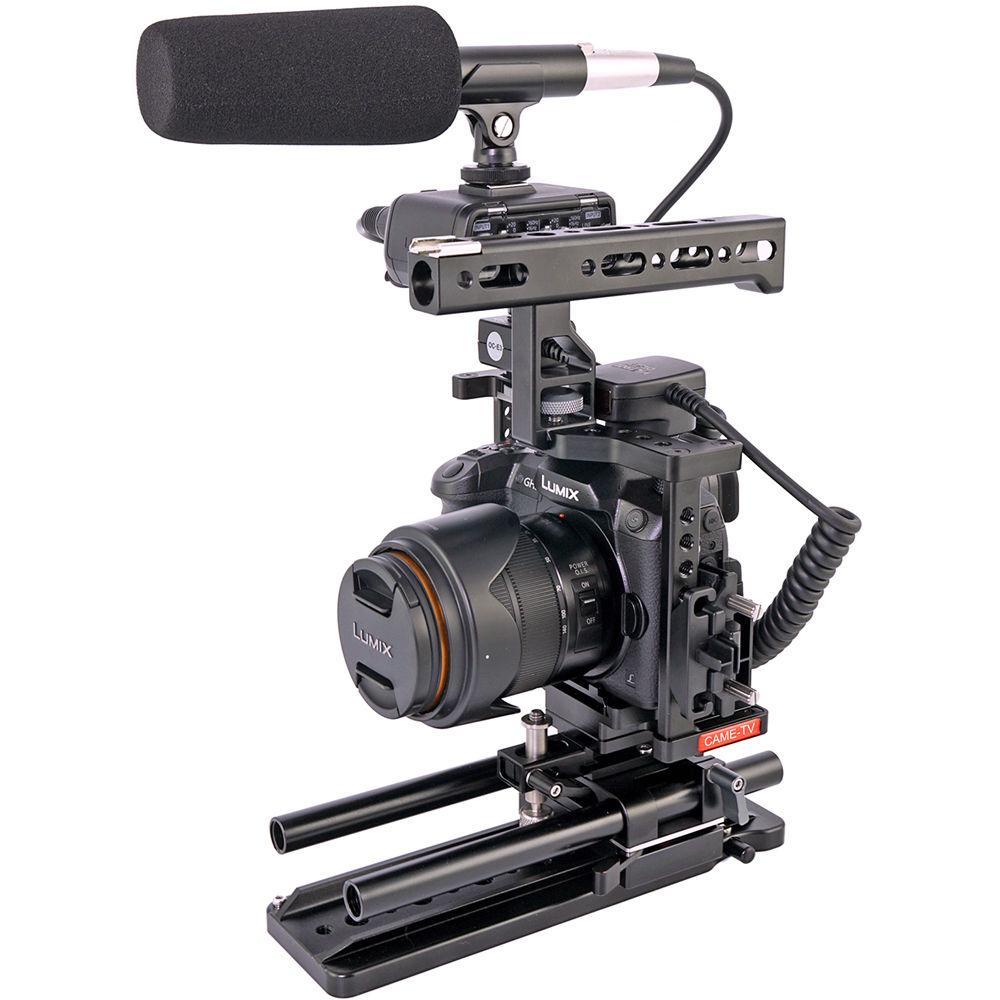

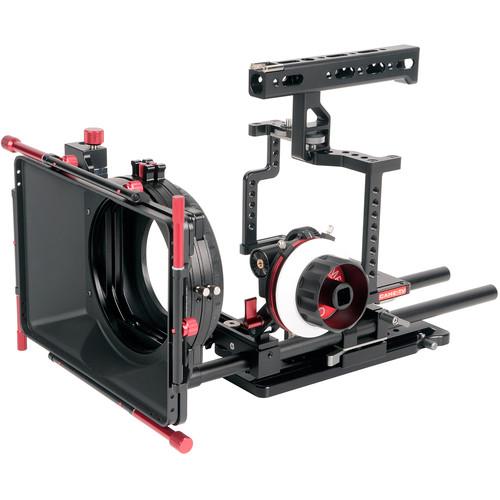

Product description The CAME-TV Guardian Cage for GH4/GH5/a7S Camera Rig with Matte Box and Follow Focus is a bundle assembled to provide you with a ready-to-go cage, matte box, and follow focus package for your Panasonic GH5/GH4 or the Sony a7S camera. The included Guardian Cage is CNC-machined with more than twenty 1/4"-20 threaded mounting holes. Built into the cage are tabs that help prevent your camera from twisting when mounted within. The cage also features an integrated 15mm LWS rod clamp.

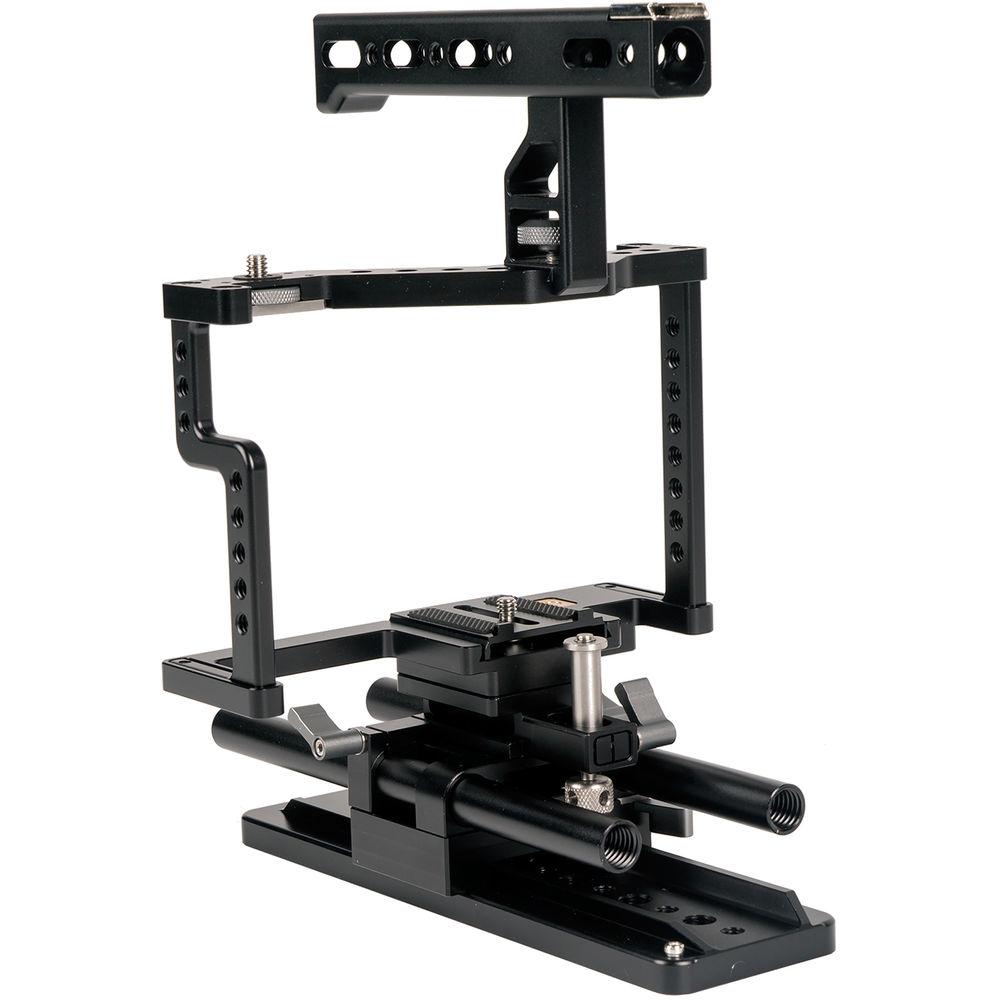

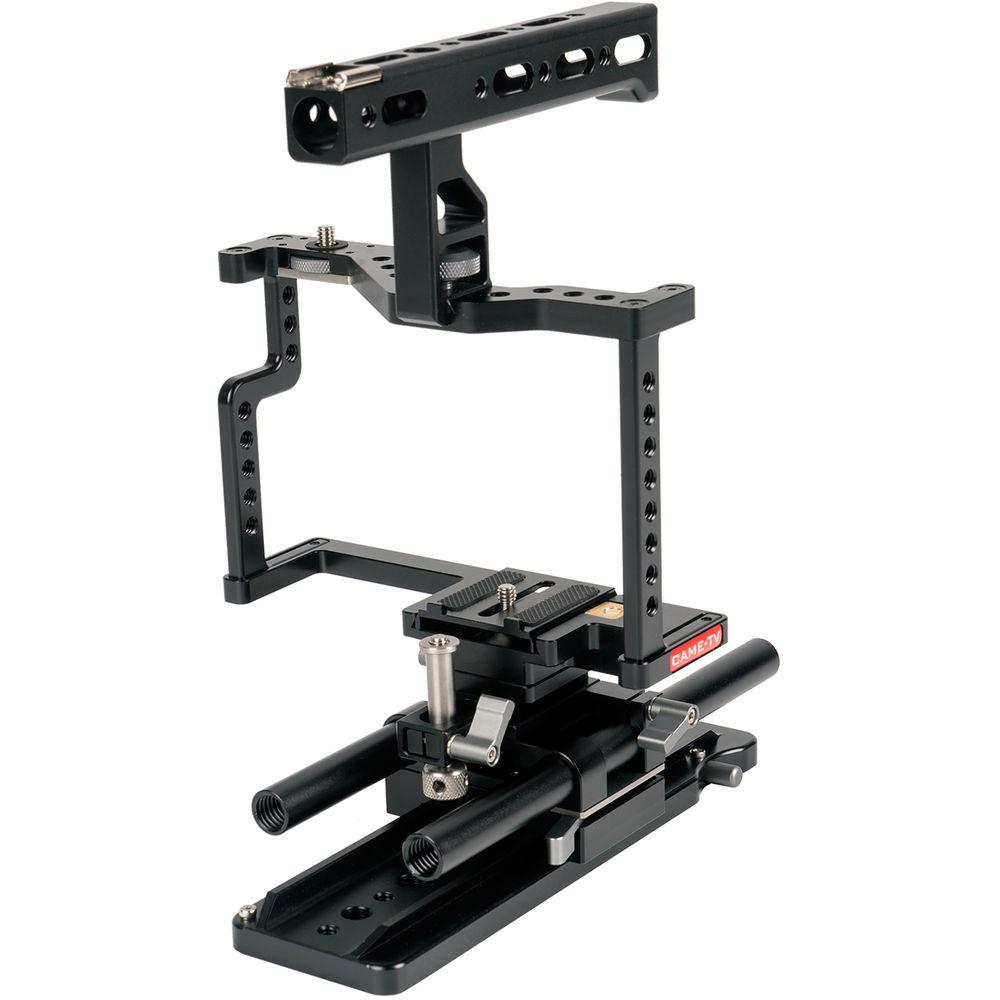

The included swing-away matte box has two filter stages and comes with two filter trays, a top flag, and two side flags. The follow focus unit snaps onto the included 15mm rods, allowing you to position and secure the follow focus unit on your rods. The focus unit is adjustable, allowing it to work with lenses with a variety of lens diameters. Four included lens drive gears enable pulling focus on lenses without integrated gears. - Guardian Cage for GH5/GH4/a7S Camera Rigs The CAME-TV Guardian Cage for GH5/GH4/a7S Camera Rigs is a CNC Machined armor cage that protects your camera and provides over twenty 1/4"-20 accessory mounting points for you to mount accessories without stressing your camera's body. The cage features a QR camera plate with raised tabs to hold your camera snugly and prevent it from twisting in the rig.

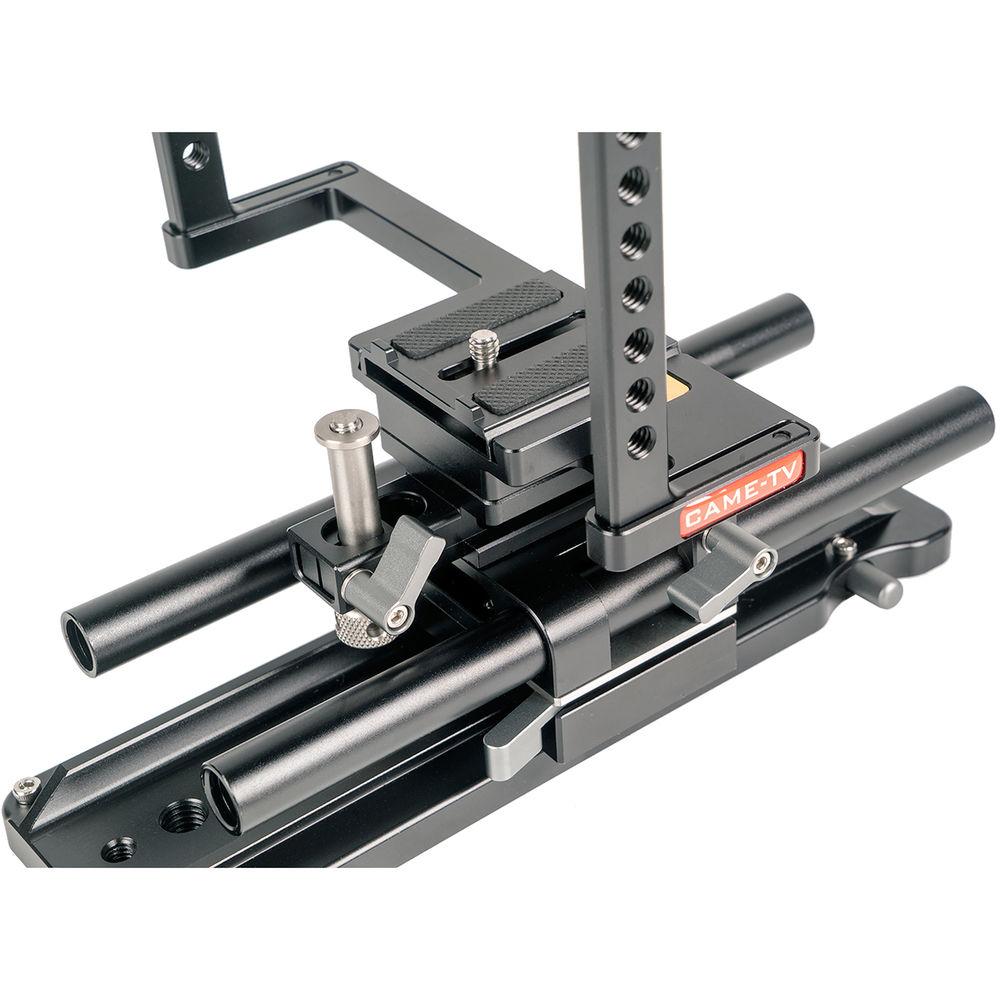

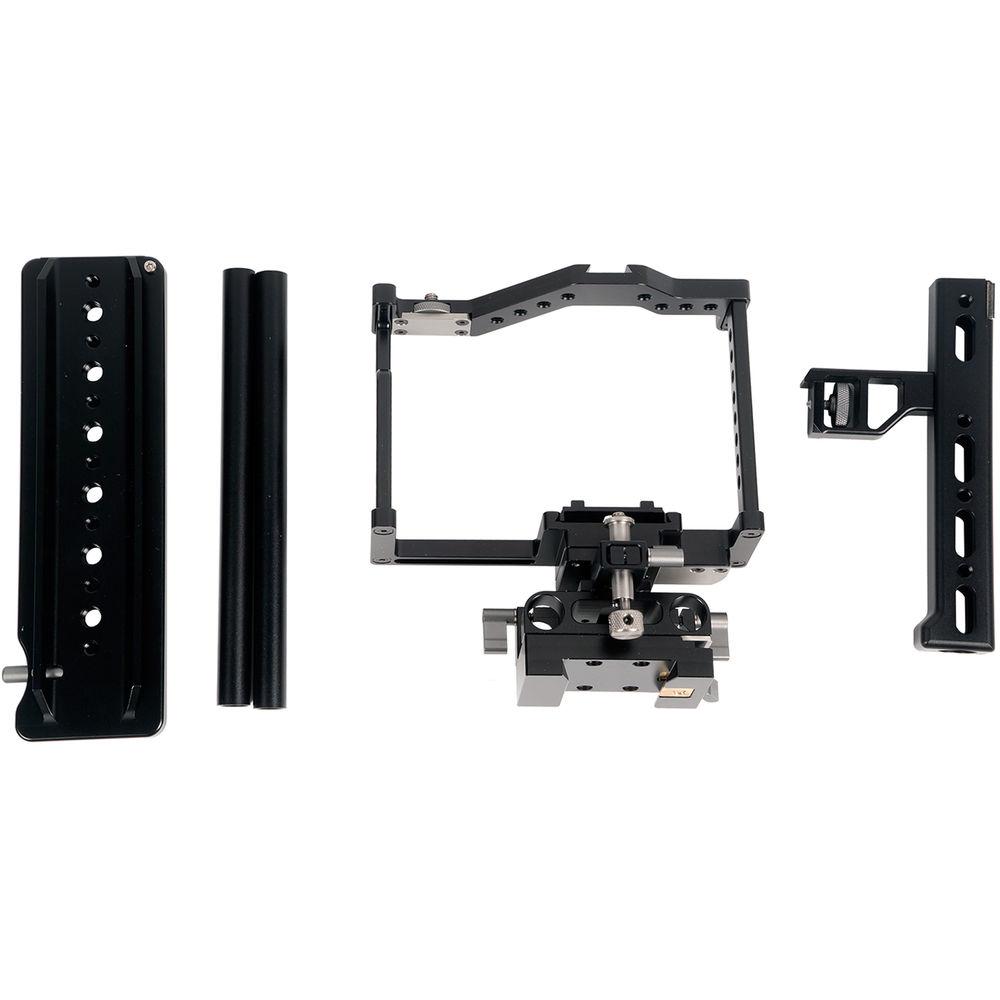

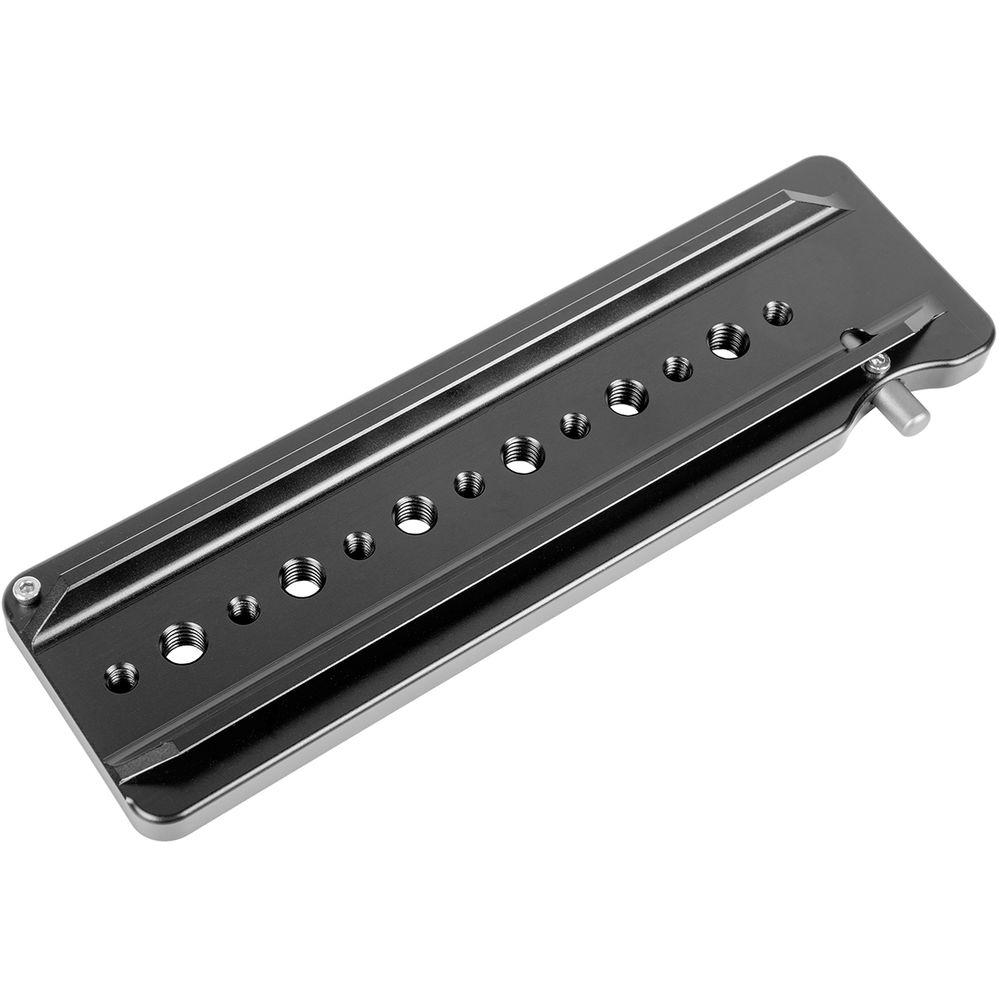

The cage includes a removable top handle with 1/4"-20 mounting holes and a cold shoe mount. The camera plate attaches to the bottom of the cage, and the cage can be used by itself or mounted onto the baseplate with built-in 15mm LWS rod clamps. The baseplate allows you to mount the included lens mount adapter support. The included dovetail plate features a spring-loaded safety catch at the front of the plate. - This cage provides easy access to the battery and SD card without removing the camera from the cage.

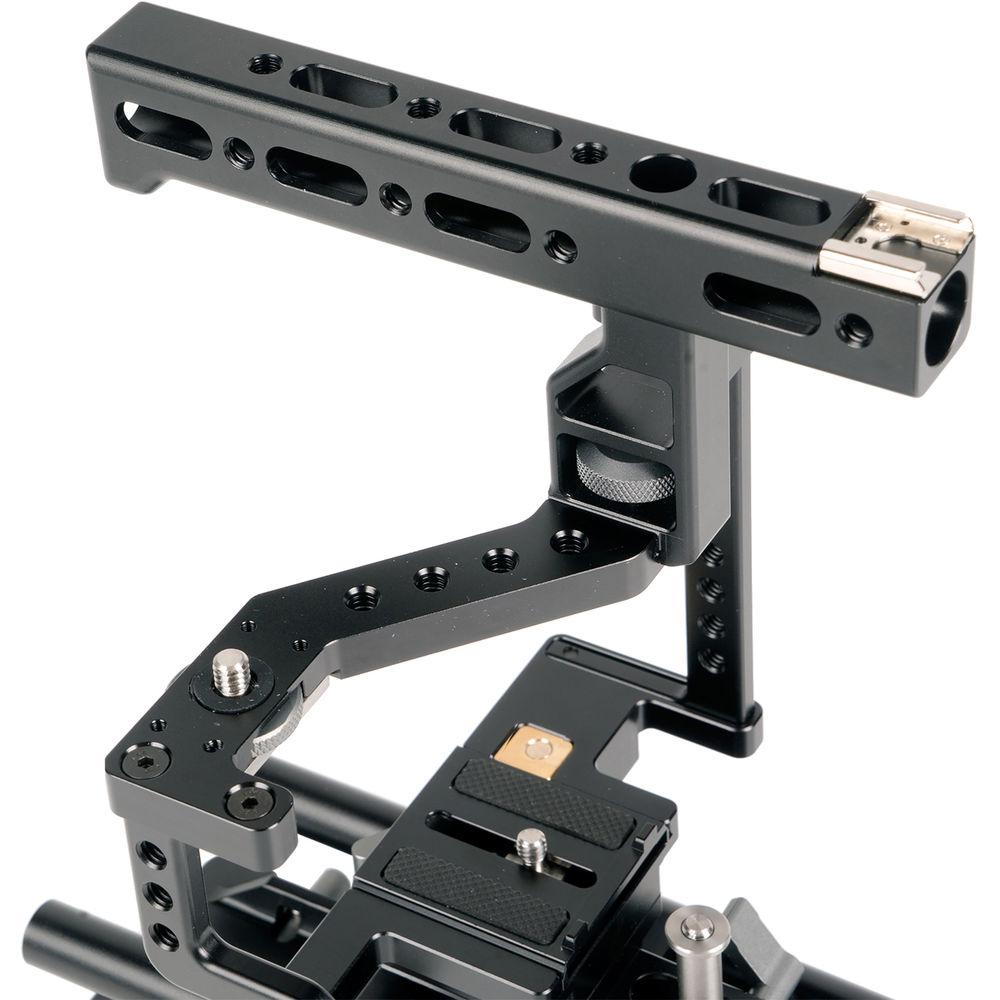

- The tool-less top handle allows for easy assembly and storage.
- The included lens adapter support has forward/back and up/down adjustment.
- Included with the cage is a baseplate with built-in 15mm LWS rod clamps and a pair of 15mm rods.

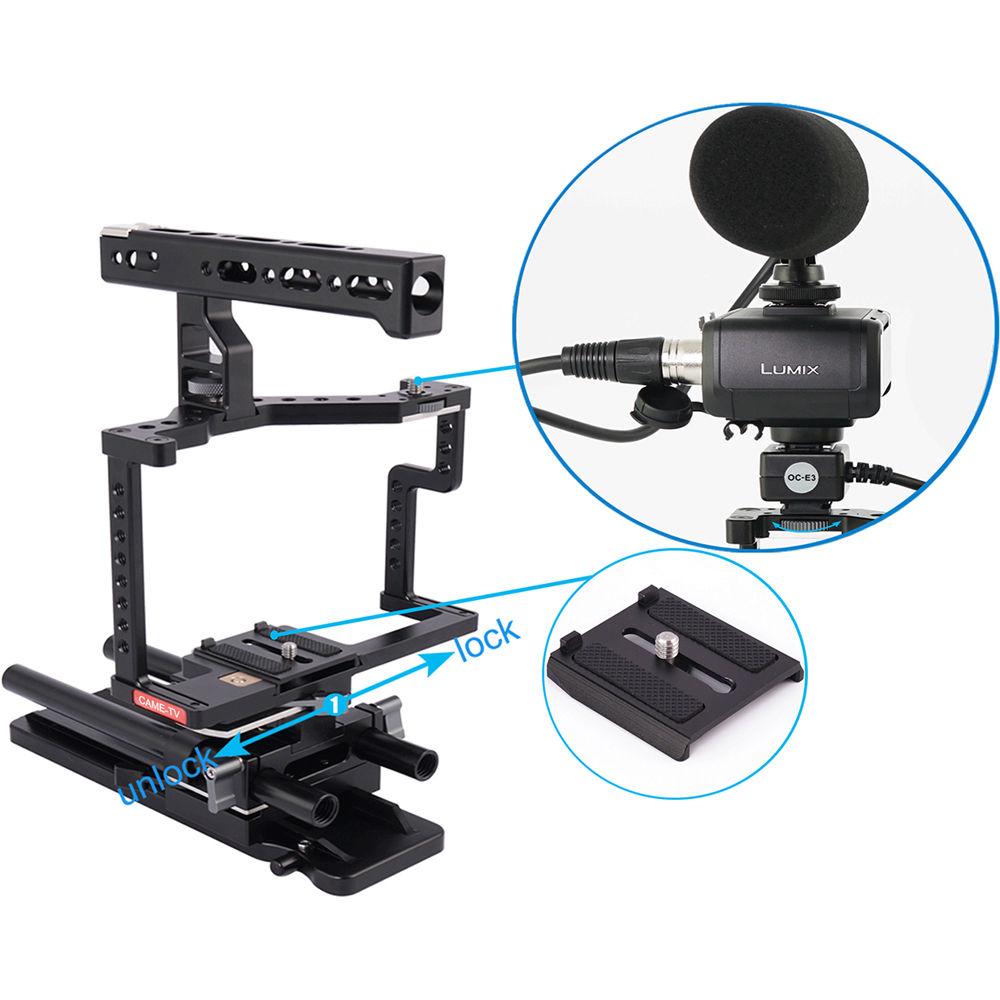

- The top of the cage features a 1/4"-20 threaded stud that allows you to mount an optional CAME-TV adapter cable for using the Panasonic XLR microphone adapter for the GH5/5S with the cage.
UPC: 614993188821 - ABS 4 x 4" Matte Box with Top & Side Flags This ABS 4 x 4" Matte Box from CAME-TV fits the Sony Alpha a7S and the Canon EOS 7D, 5D Mark II, and 5D Mark III cameras. It mounts onto lenses up to 110mm in diameter and includes two 4 x 4" filter holders, as well as removable top and side flags that can be precisely set and locked to prevent stray light from hitting your lens and flaring your image. Height adjustability of up to ±0.79" ensures accurate alignment of the matte box to your camera lens.
- FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod The FF-01 Follow Focus from CAME-TV is a follow focus system with A/B hard stops for a 15mm rod system. The FF-01 is constructed of aluminum and has a bright white magnetic marking disk. It has a smooth, controlled operation; various clamp options; and four gear rings attachment sizes. UPC: 602766007479

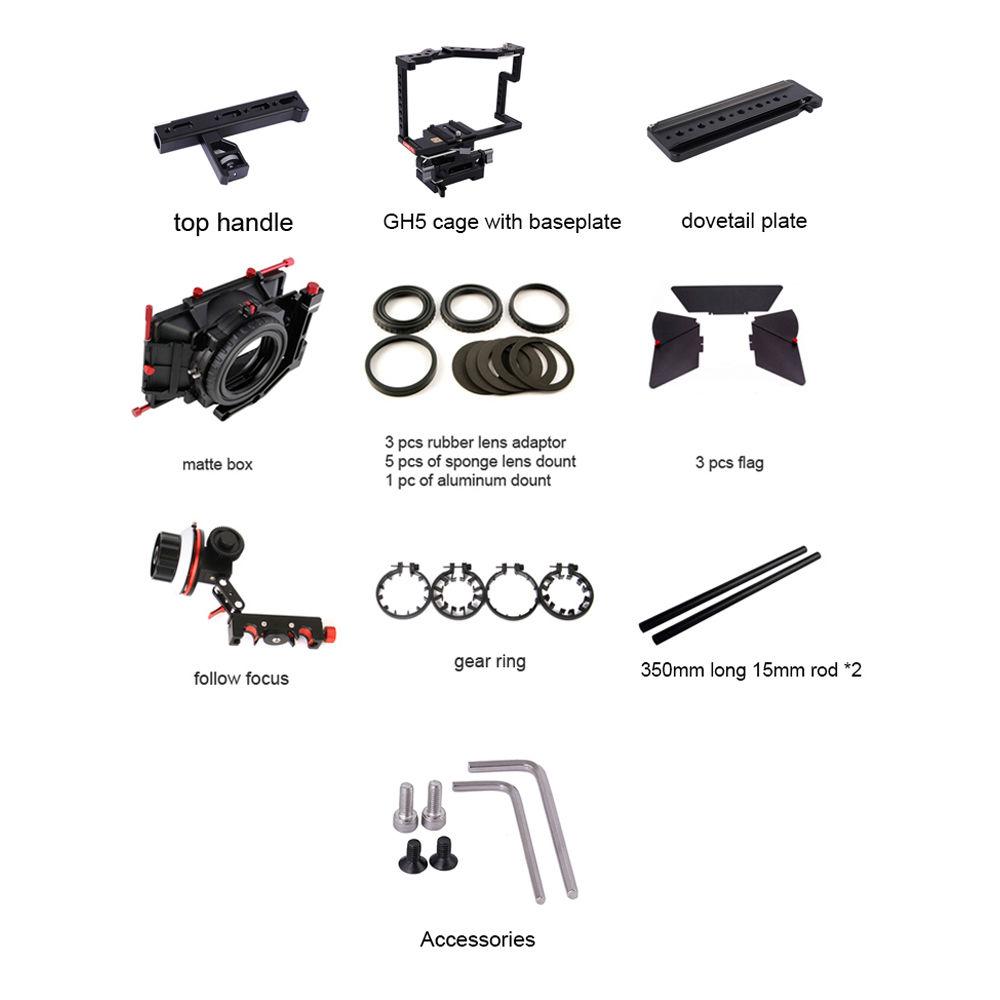

In the Box Bundle Items Guardian Cage for GH5/GH4/a7S Camera Rigs daedtdzfttdcvwbvvxvesevuvzuwxxwud - Baseplate with 15mm Rod Clamps
ABS 4 x 4" Matte Box with Top & Side Flags FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Guardian Cage for GH5 GH4 a7S Camera Rig with Matte Box and Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Guardian Cage for GH5/GH4/a7S Camera Rigs
| Material of Construction | CNC Machined aluminum | | Accessory Mounting | Cage: 24 x 1/4"-20 threaded holes
Top Handle: 3 x 1/4"-20 threaded holes | | Mounting | Tripod: Baseplate/dovetail plate combo | | Rod Compatibility | 15 mm | | Dimensions | Cage: 6.65 x 4.65" / 16.9 x 11.8 cm | | Weight | 2.9 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 15.9 x 10.55 x 6.0" | - ABS 4 x 4" Matte Box with Top & Side Flags
| Compatibility | Sony Alpha a7S
Canon EOS 7D
Canon EOS 5D Mark II
Canon EOS 5D Mark III | | Material | ABS Plastic | | Height Adjustment | ±0.79" / 2 cm | | Maximum Lens Diameter | 110mm | | Filter | Holder: 4.00 x 4.00 x 0.12" / 10.16 x 10.16 x 0.30 cm | | Dimensions | 9.80 x 7.00 x 2.75" / 25.0 x 18.0 x 7.0 cm | | Weight | Not Specified by Manufacturer | - FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod
| Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Fixed | | Marking Disk | Yes | | Switchable Handwheel Speed | No | | Gear Material | Aluminum | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 11.35 x 7.65 x 4.05" |
