User Manual for CAME-TV Guardian Cage with Shoulder Mount, Matte Box & Follow Focus for GH5 GH4 a7S Rig Click to enlarge the picture
Contents of the user manual for the CAME-TV Guardian Cage with Shoulder Mount,
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV Guardian Cage with Shoulder Mount, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

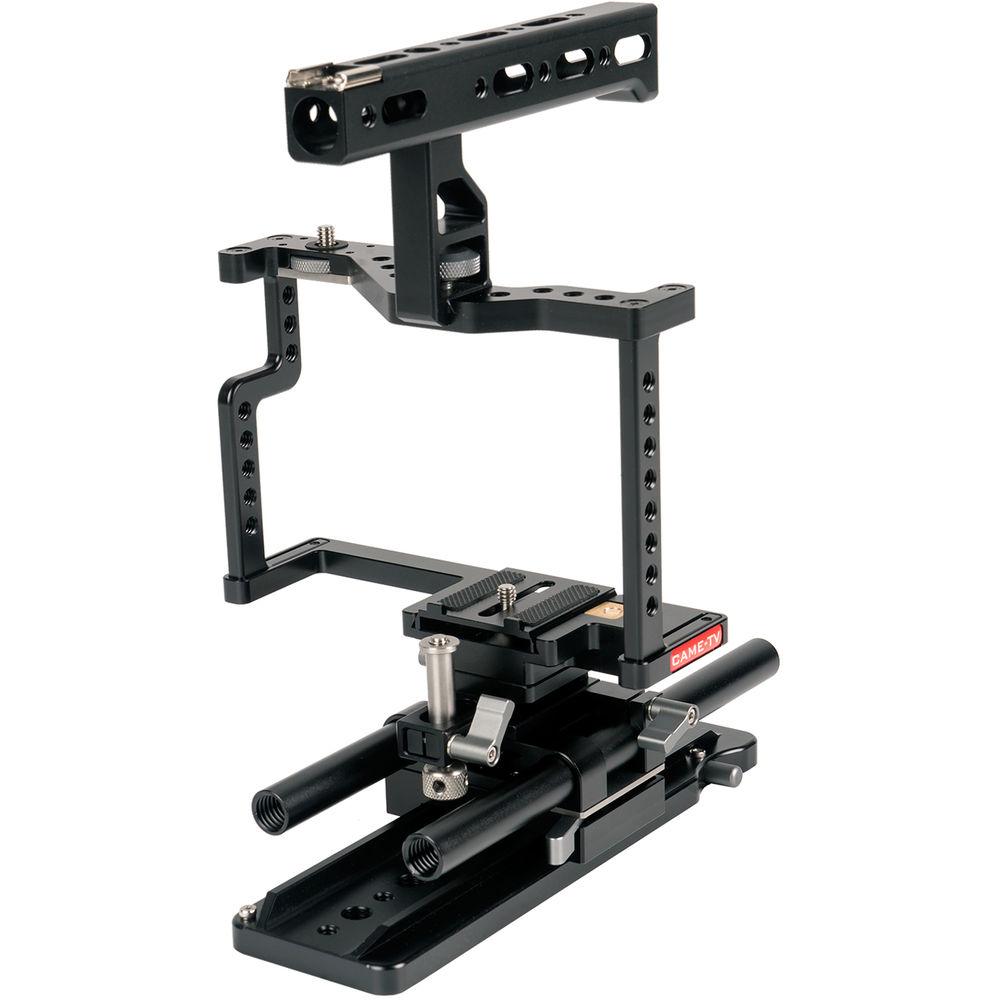

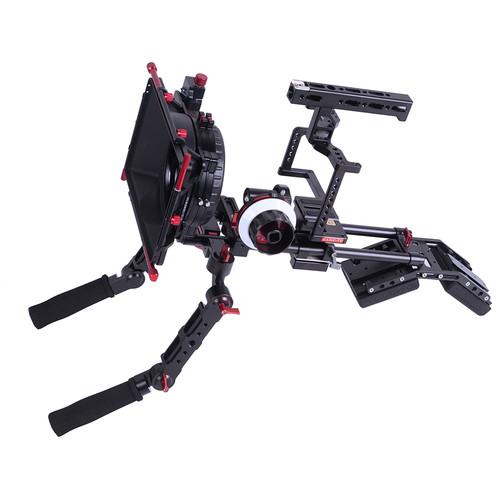

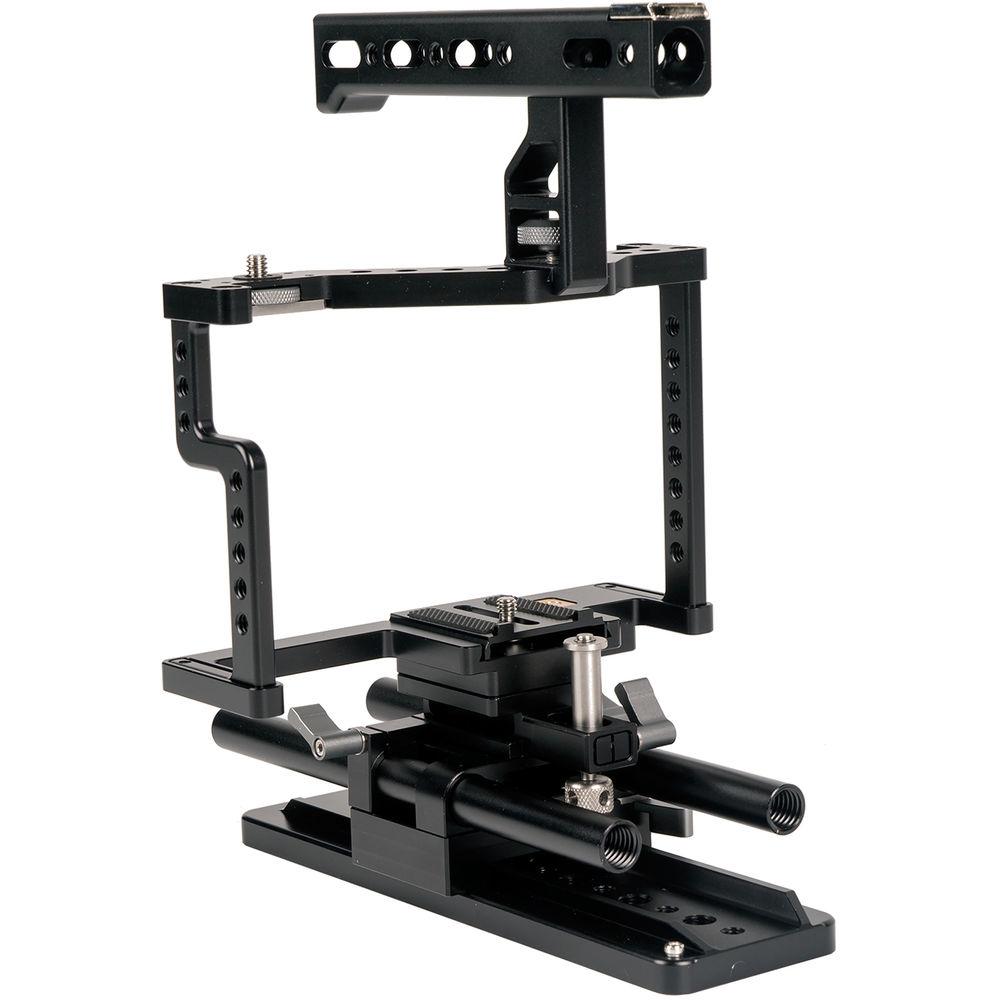

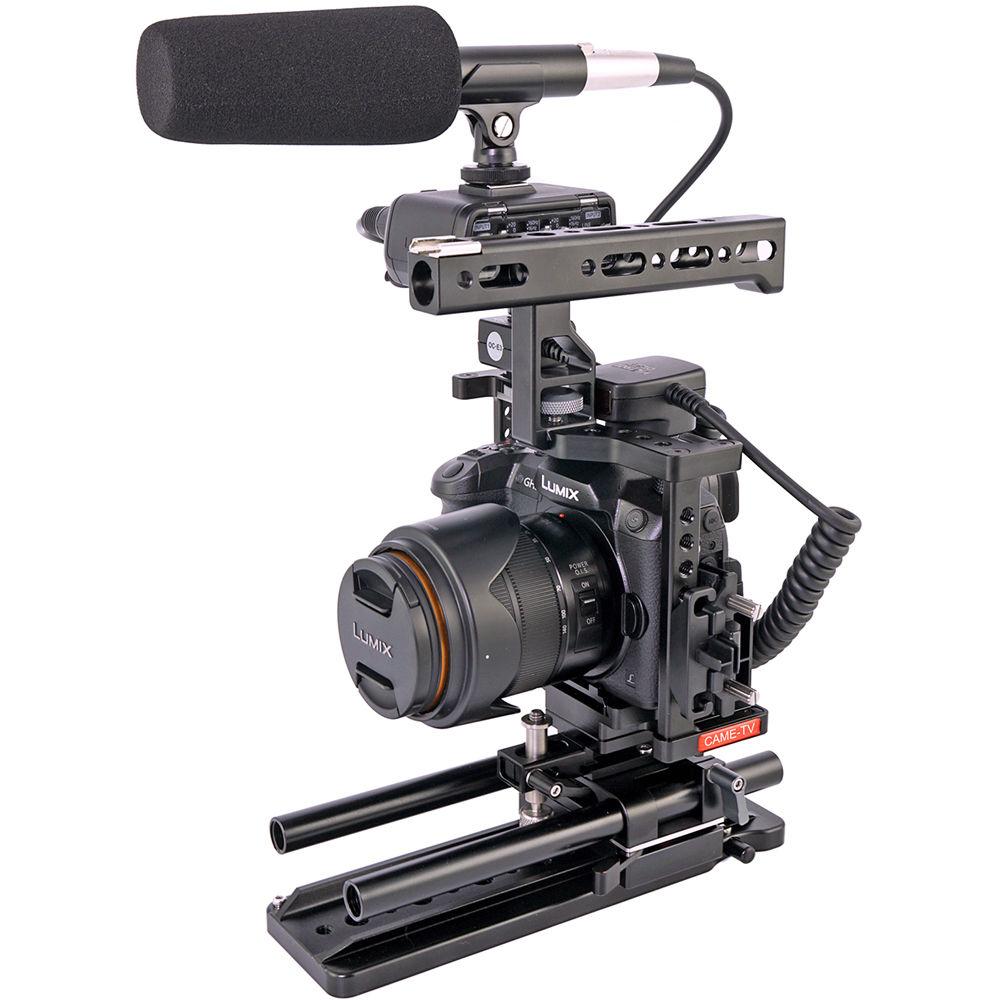

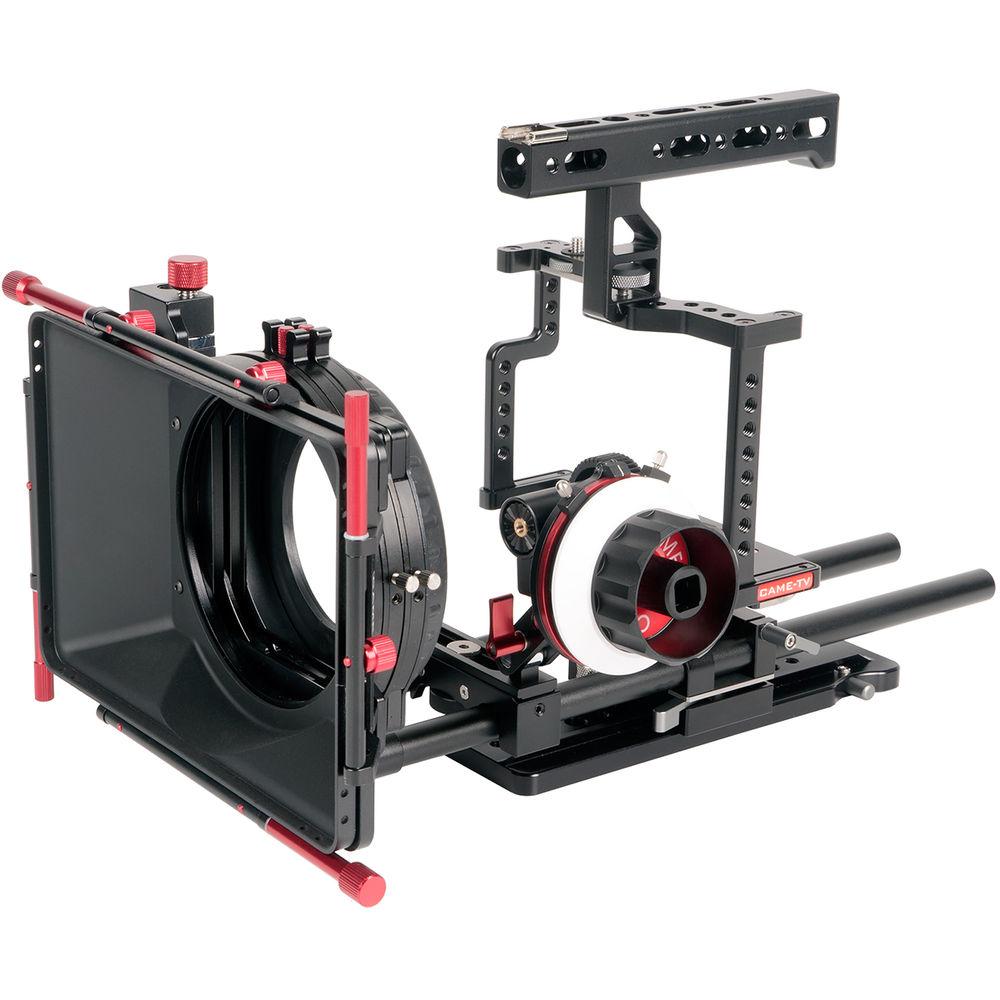

Product description The CAME-TV Guardian Cage with Shoulder Mount, Matte Box & Follow Focus for GH5/GH4/a7S Rig includes the camera cage with removable top handle, a swing-away 4 x 4" matte box, a snap-on follow focus unit, four removable lens gear rings, a rod-mounted shoulder pad, universal 15mm snap-on handgrips, and a pair of 15.7" 15mm support rods. The cage is made of CNC Machined aluminum, and features over twenty 1/4"-20 mounting points for you to mount accessories without stressing your camera's body. The cage features a quick release camera plate with raised tabs to hold your camera snugly and prevent it from twisting in the rig.
The included accessories enable you to build a fully functional shoulder mounted shooting package. The 4 x 4" matte box incorporates a swing-away function that speeds up lens changes. The follow focus snaps onto the included support rods, and the removable lens gears enable you to use lenses that don't have built-in gears. The shoulder support and handgrips mount on the support rods and provide stability and control to your rig. GH5 Cage - This cage provides easy access to the battery and SD card without removing the camera from the cage

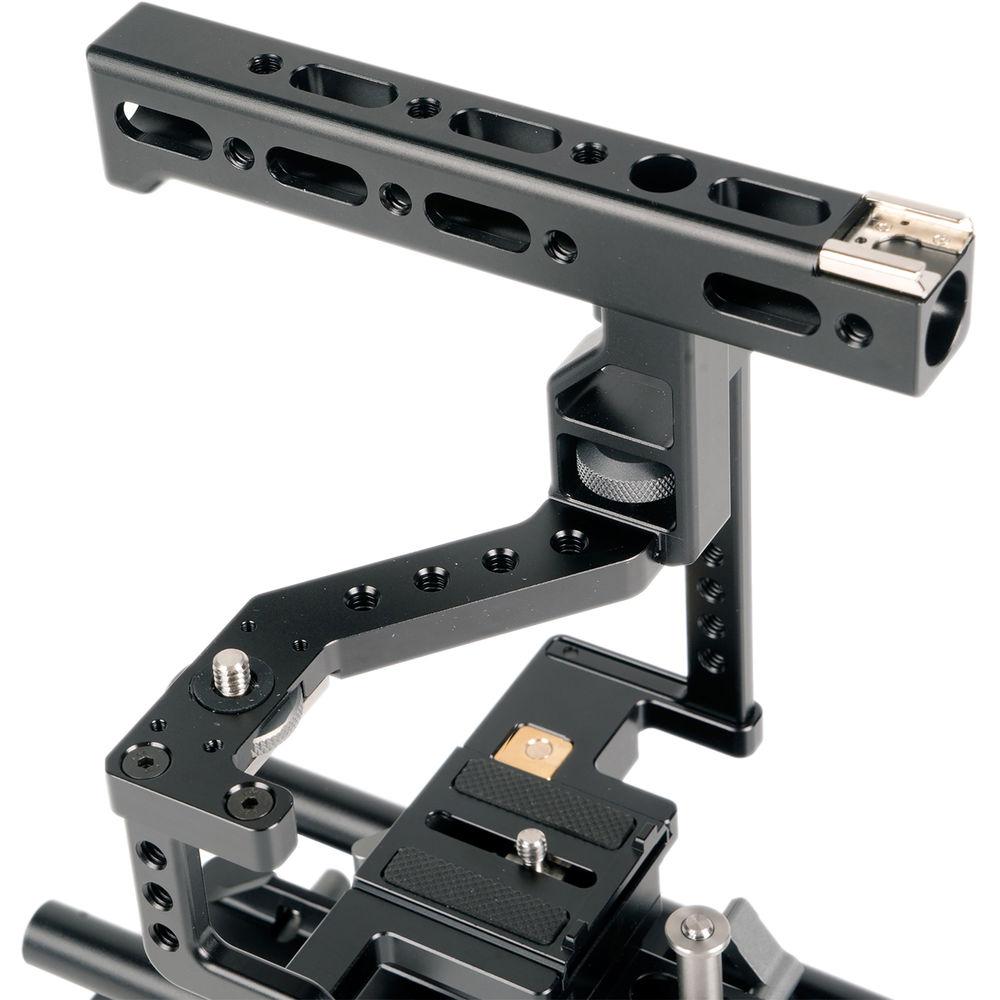

- The tool-less top handle allows for easy assembly and storage
- The included lens adapter support has forward/backward and up/down adjustment

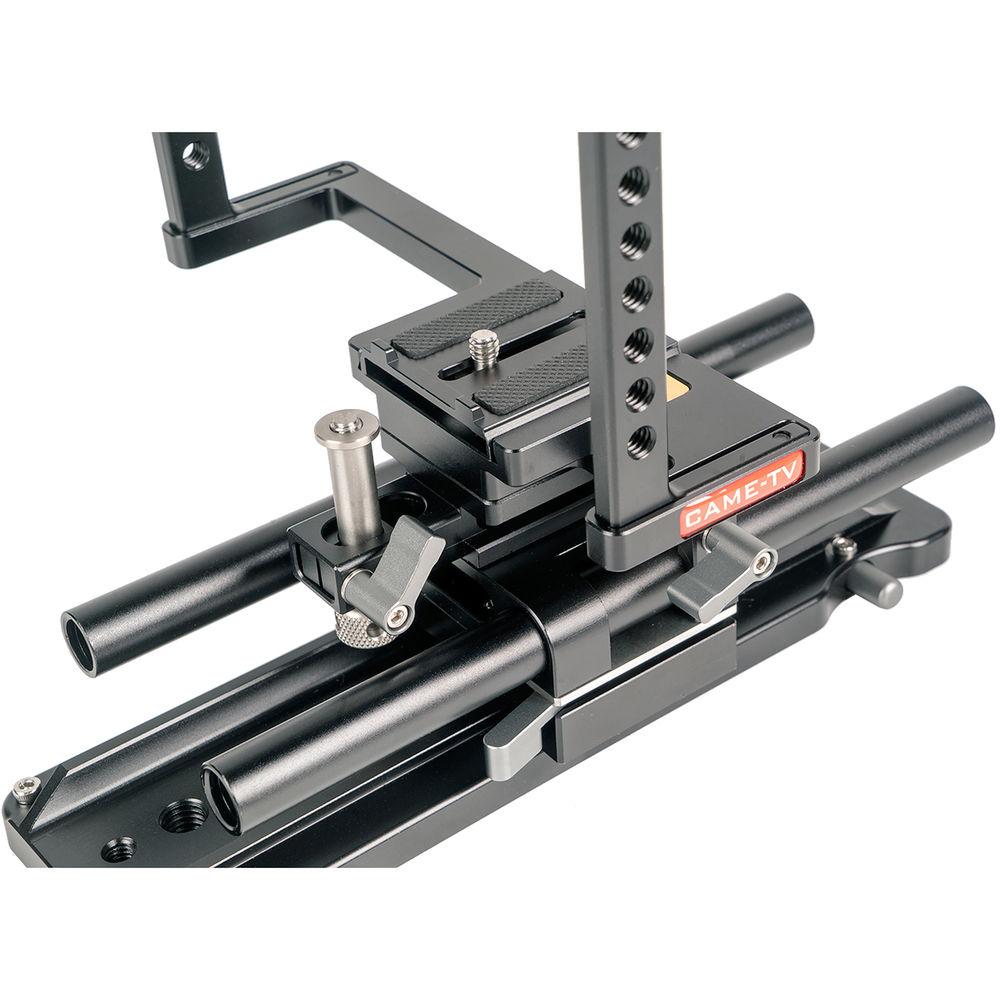

- Included with the cage is a baseplate with built-in 15mm LWS rod clamps and a pair of 15mm rods

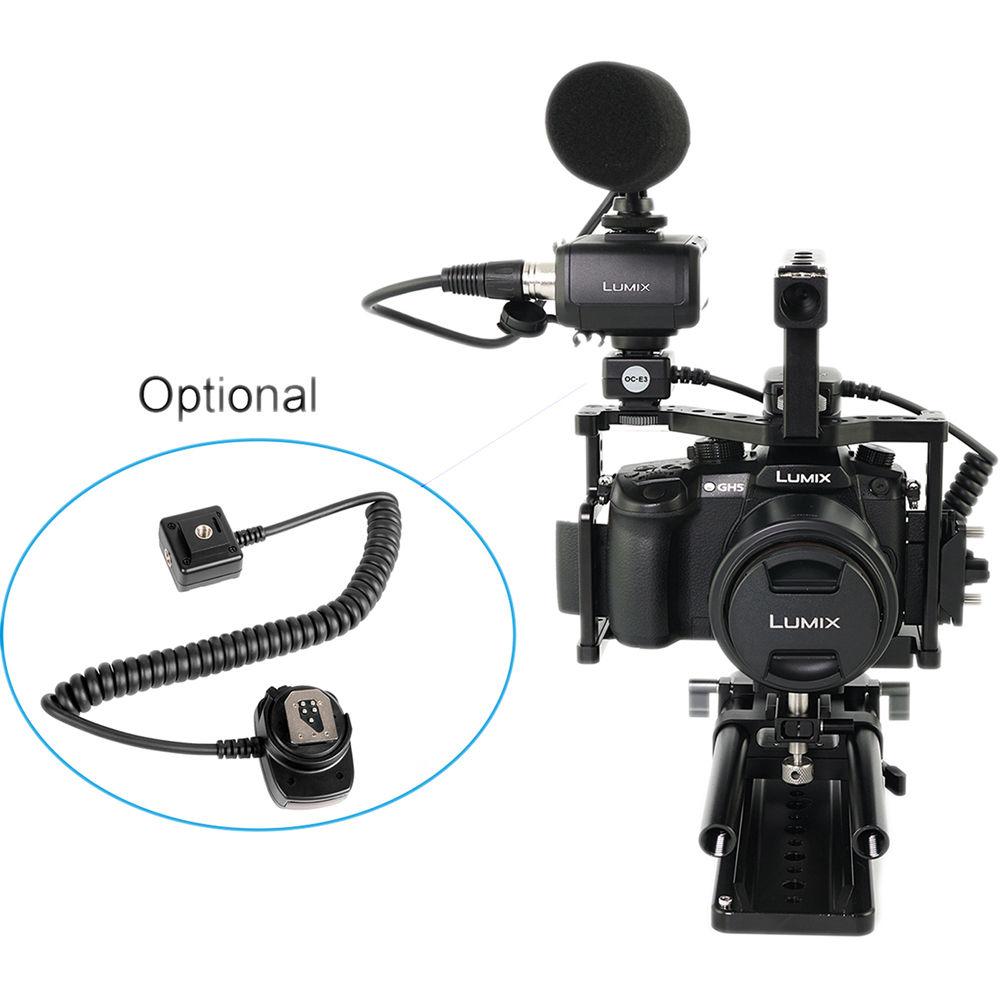

- The top of the cage features a 1/4"-20 threaded stud, allowing you to mount an optional CAME-TV adapter cable for the Panasonic XLR microphone adapter for the GH5/5S
Matte Box - Works with lenses with an outer-front diameter up to 110mm, accepts two 4 x 4 filters
- 15mm LWS rod support, height-adjustable, swing-away design
- Includes top flag, expandable side flags, and anti-reflection donuts
Follow Focus - Snap-on follow focus unit with A/B hard stops
Shoulder Pad - Slide-on, rod-mounted shoulder pad
Universal Handle Grip - 15mm LWS rod, snap-on handgrips

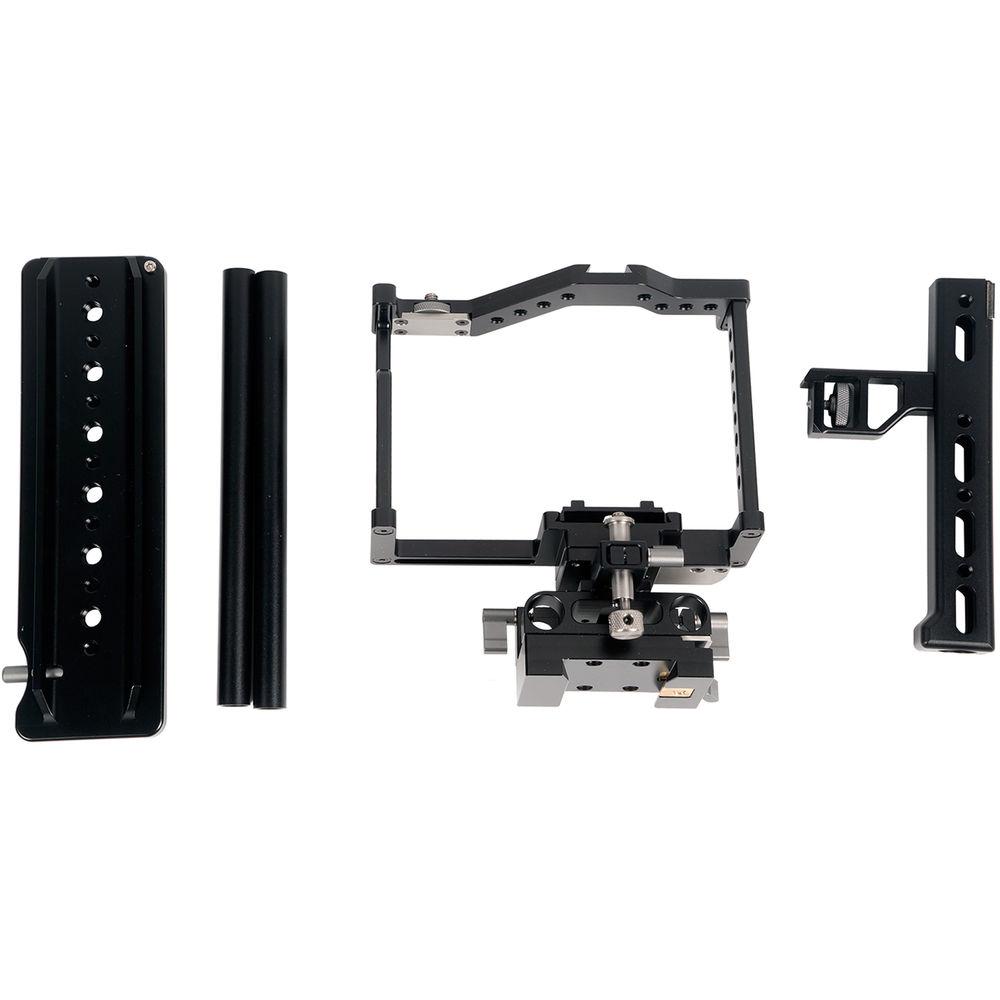

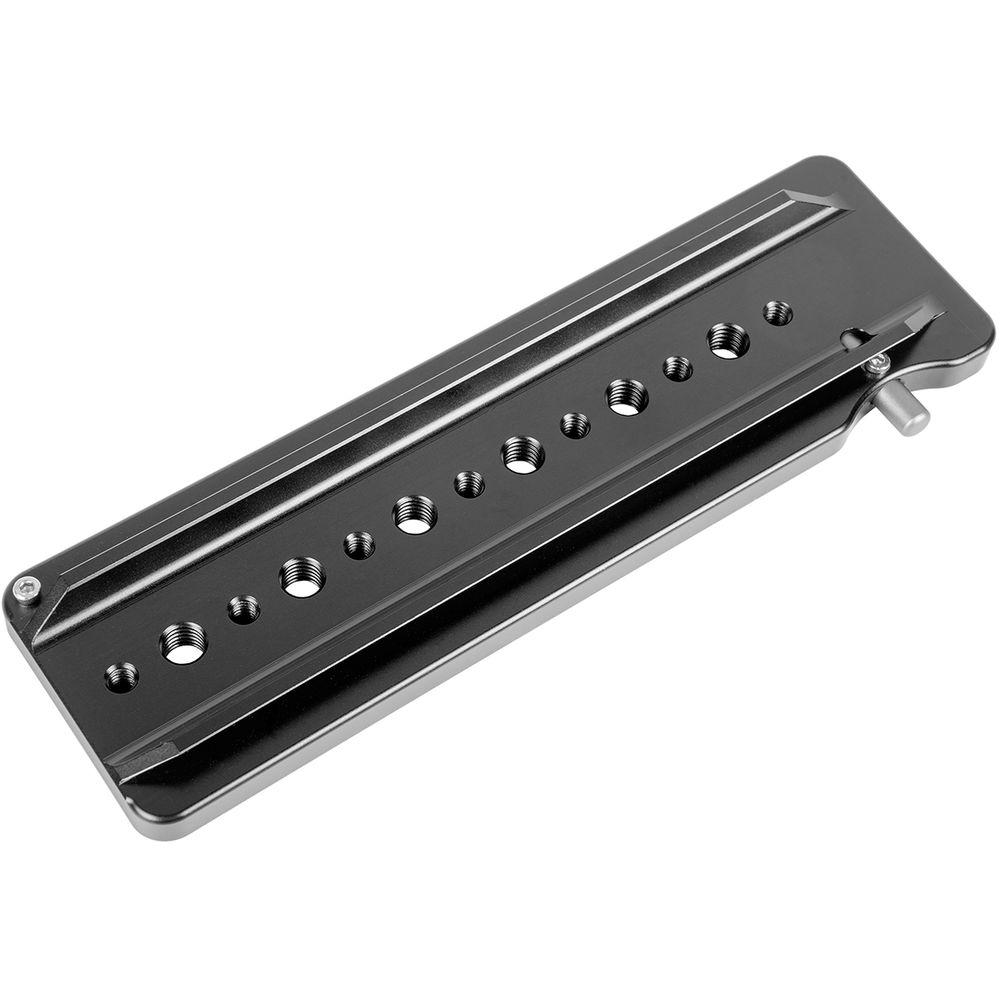

UPC: 614993188869 In the Box CAME-TV Guardian Cage with Shoulder Mount, Matte Box & Follow Focus for GH5/GH4/a7S Rig Guardian GH5 Cage Top Handle QR Camera Plate Baseplate with 15mm Rod Clamps Removable Lens Support Dovetail Plate ABS 4 x 4" Matte Box with Top & Side Flags ayurcbrcuqdzvqtucfatwxzubebvdfwszrvsdy FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod DSLR Shoulder Support for 15mm LWS Rod System DSLR Universal Handle Grip for 15mm Rods 4 x Gear Ring 2 x 15mm Rod (15.7") 2 x Cap-Head Screw 2 x Hex-Head Screw 2 x Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Guardian Cage with Shoulder Mount, Matte Box & Follow Focus for GH5 GH4 a7S Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV Z-GH5-5 Specs | Material of Construction | CNC Machined aluminum | | Accessory Mounting | Cage: 24 x 1/4"-20 threaded holes
Top Handle: 3 x 1/4"-20 threaded holes | | Mounting | Tripod: Baseplate/dovetail plate combo | | Rod Compatibility | 15 mm | | Dimensions | Cage: 6.65 x 4.65" / 16.9 x 11.8 cm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 20.9 x 15.1 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
