User Manual for CAME-TV L2500S High CRI Bi-Color SMD LED L2500S Panel Click to enlarge the picture
Contents of the user manual for the CAME-TV L2500S High CRI Bi-Color SMD
- Product category: LED Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV LED Lights
 |
User manual for the CAME-TV L2500S High CRI Bi-Color SMD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

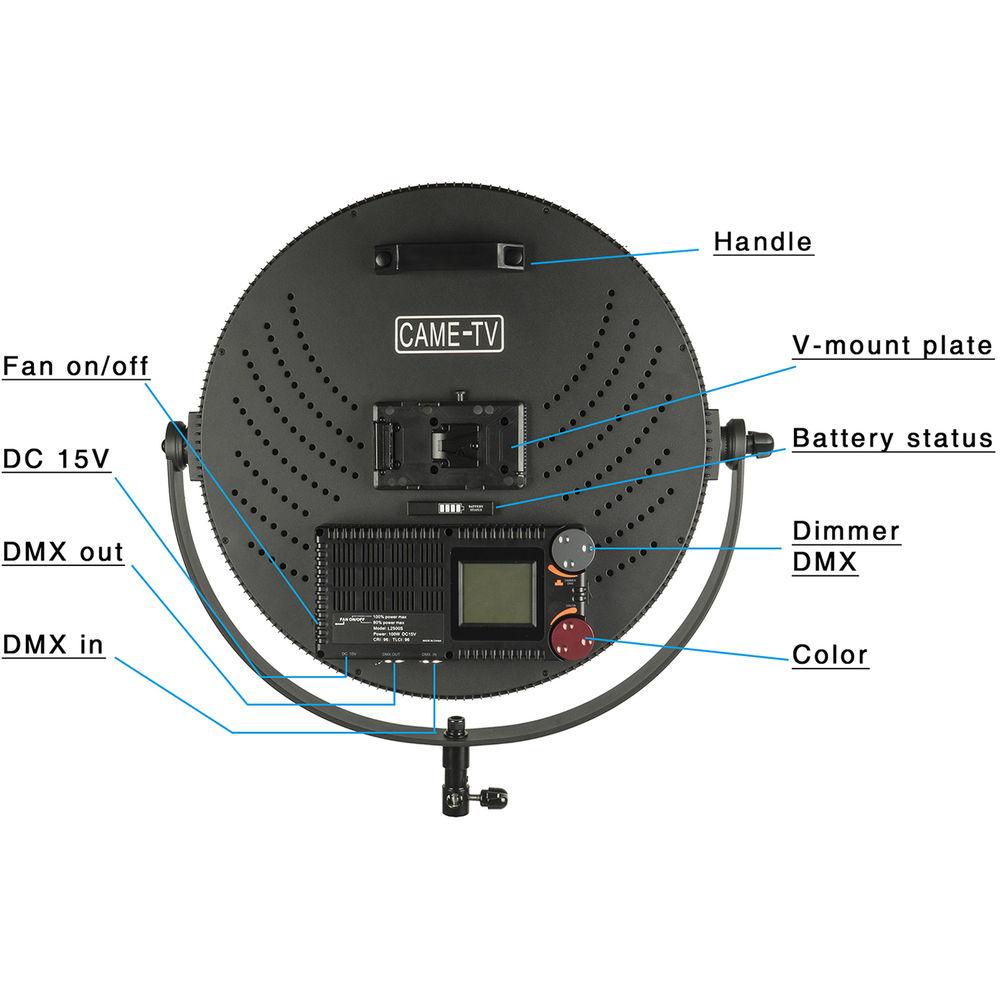

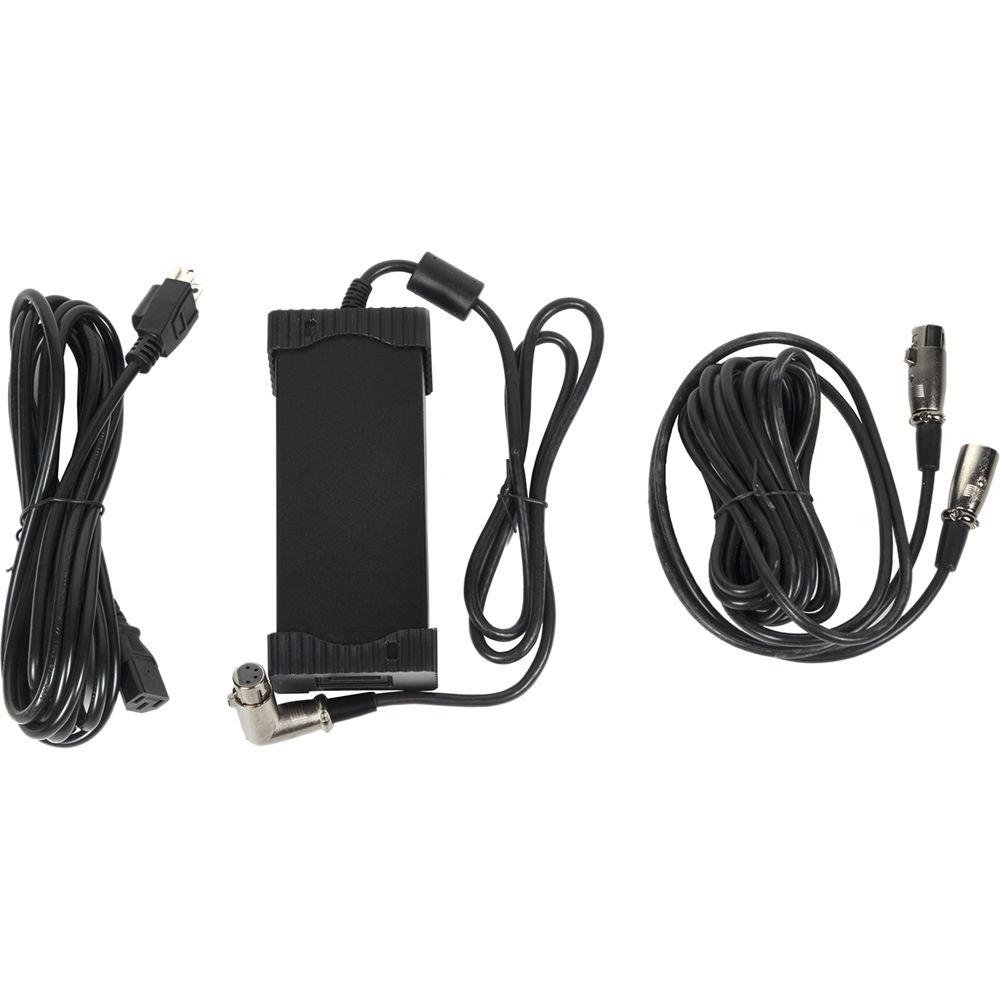

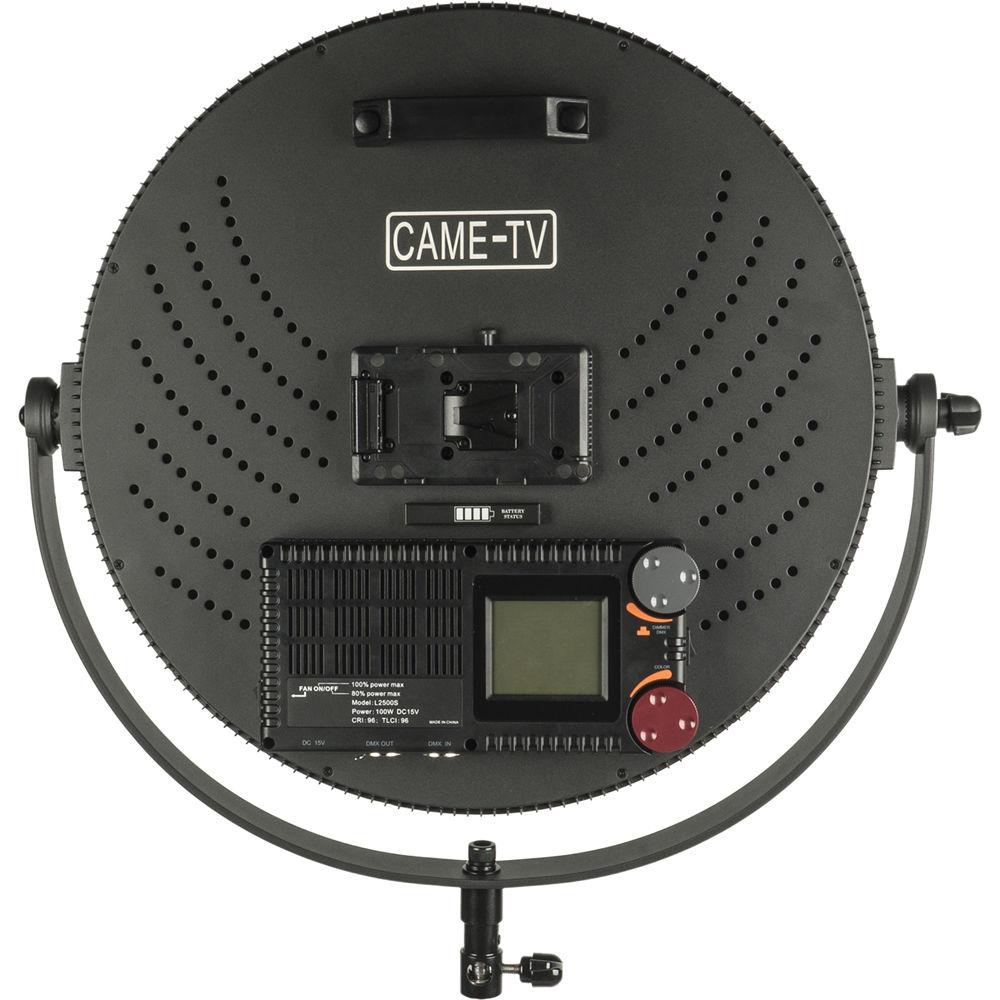

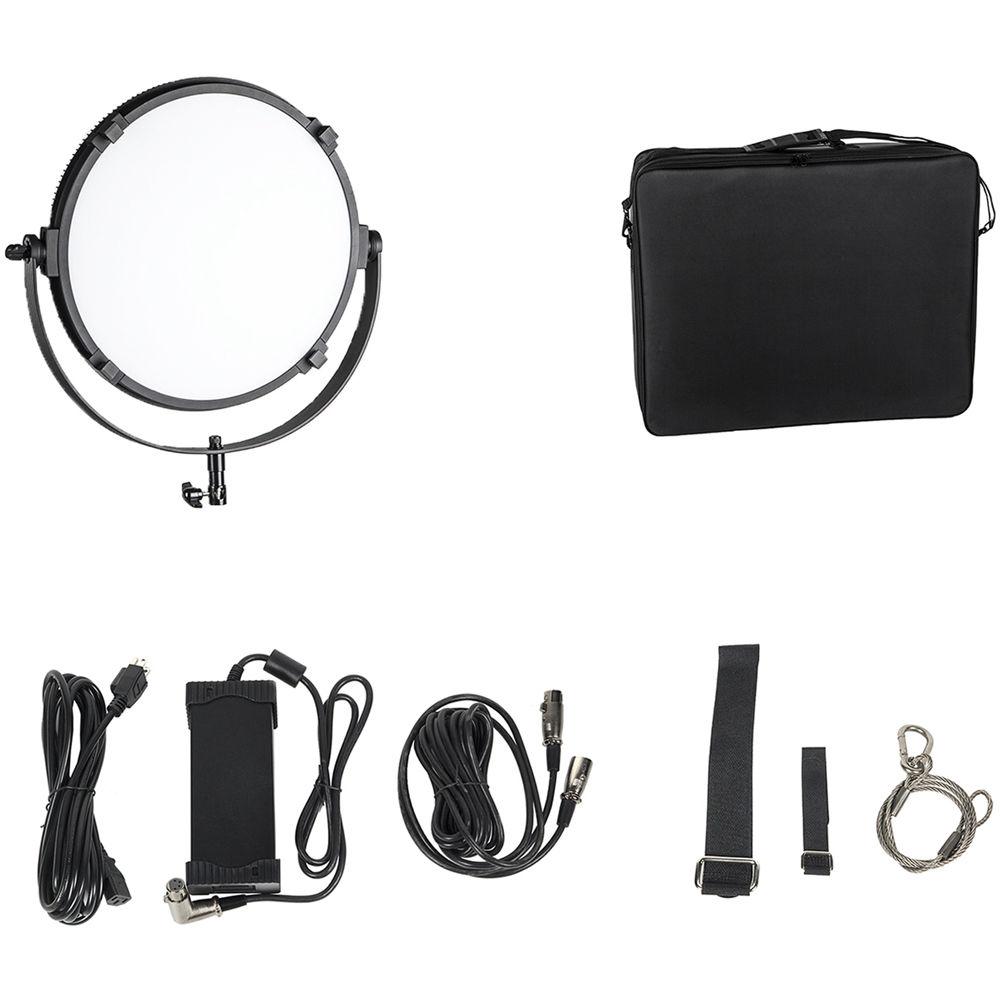

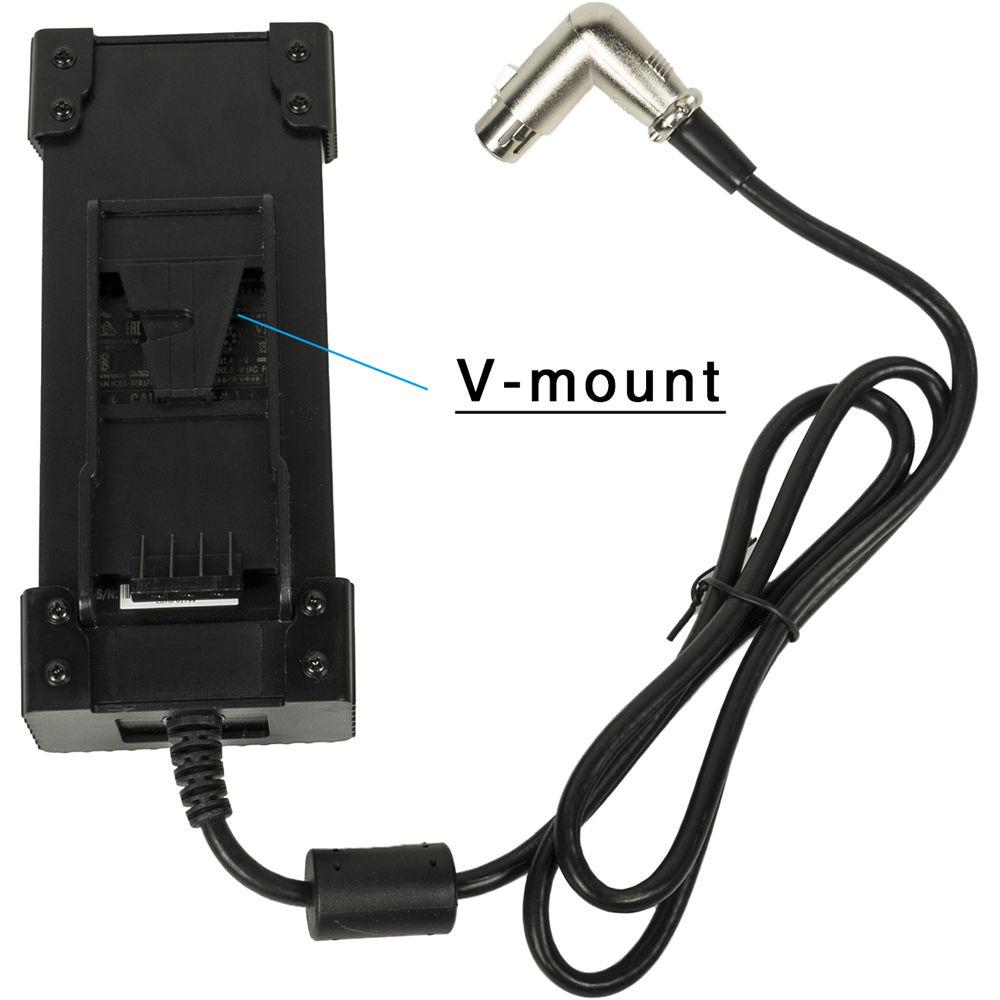

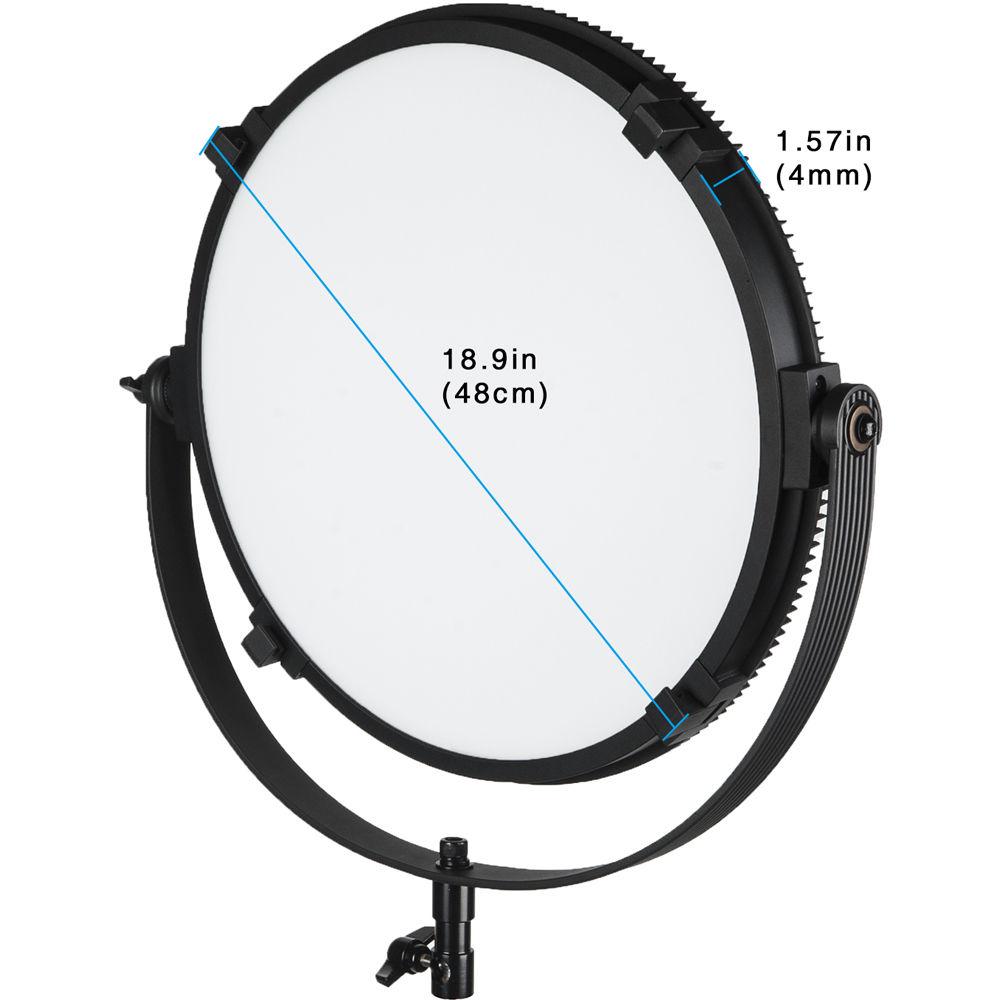

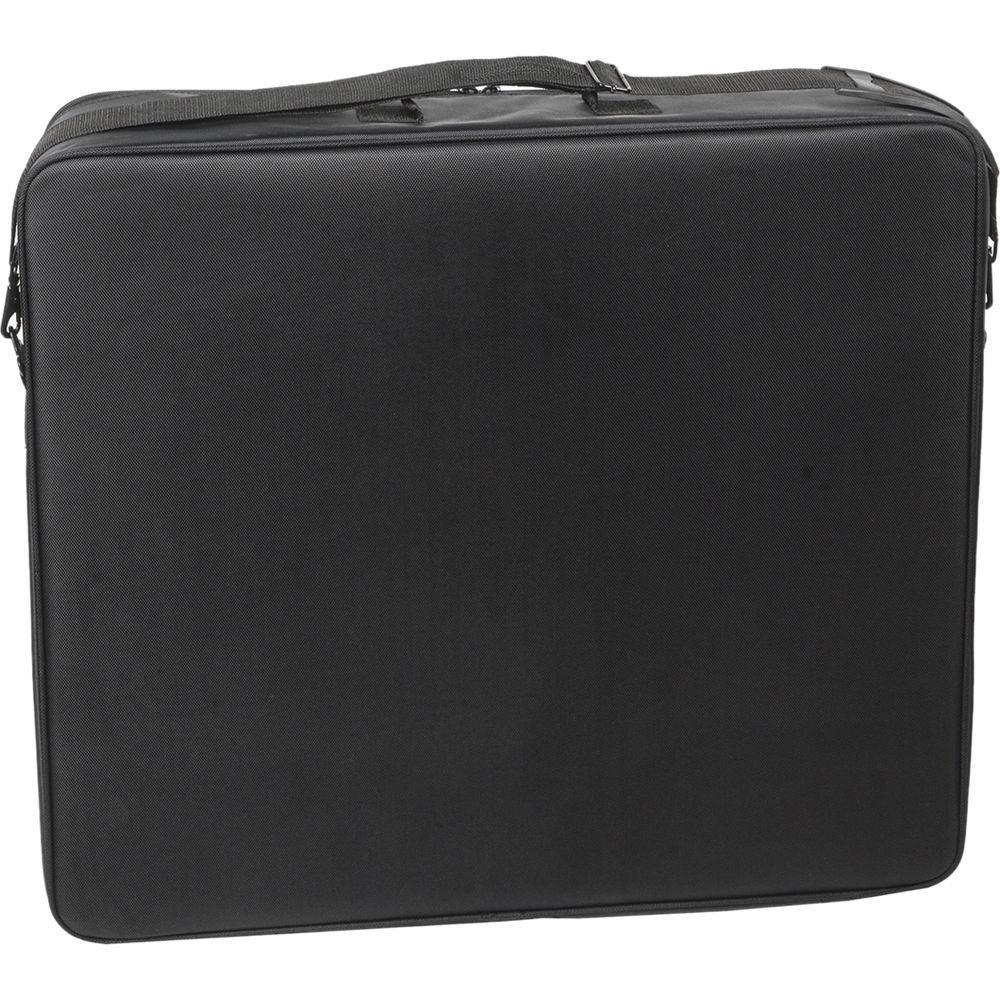

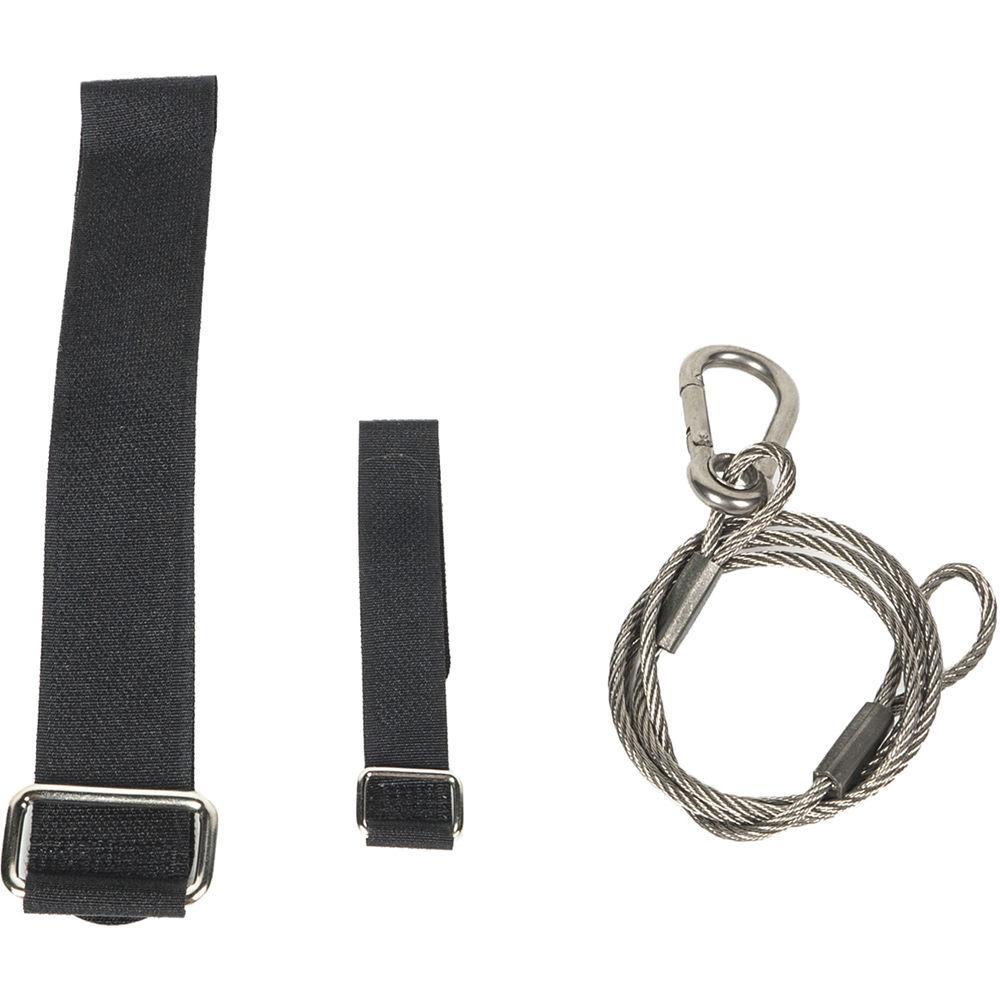

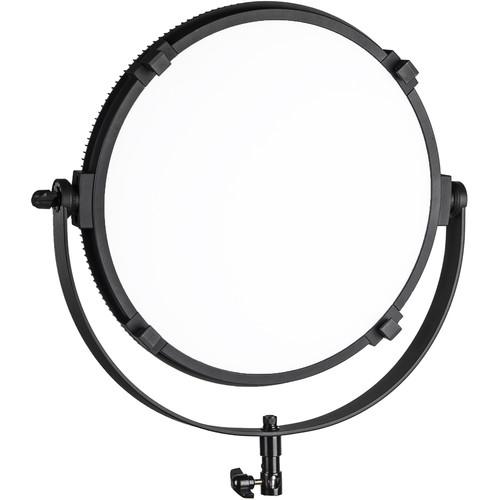

Product description The 19" diameter L2500S High CRI Bi-Color SMD LED Round Panel from CAME-TV is a fixture with color that's variable from 3200 to 5600K or anywhere in between to match other fixtures, meet the challenge of ambient light conditions, or just for creative effect. The L2500S's 120-degree beam spread offers wide coverage while an optional grid allows selective lighting.The light has a high CRI/TLCI rating of 96 indicating a precise rendition of color. The L2500S is dimmable to avoid the hassle of moving the light to and fro to obtain the right light intensity. While the light generates a negligible amount of heat, whatever is generated dissipates via the unit's fan that can be turned off for sound-sensitive locations. All of these adjustments can be made locally on the fixture, or remotely from a console thanks to onboard DMX.The L2500S is ready for worldwide use via the included power adapter, but you can also run the light on batteries using the light's V-mount battery plate. UPC: 614993189279 In the Box CAME-TV L2500S High CRI Bi-Color SMD LED L2500S Panel V-Mount Battery Plate Power Adapter Power Cord DMX Cable Touch-Fastener Strap Safety Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV L2500S High CRI Bi-Color SMD LED L2500S Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV L2500S Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96

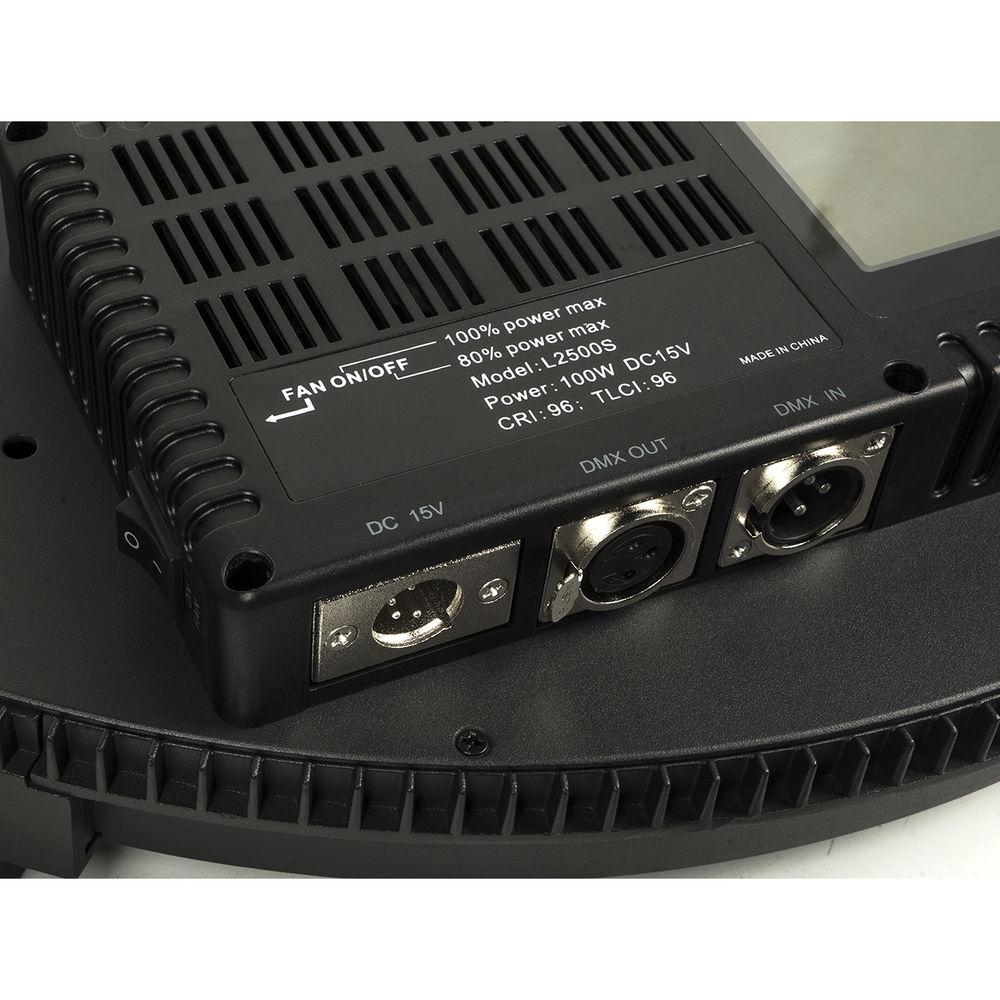

TLCI 96 | | Dimming | Yes | | Display | None | | Fixture Dimensions | Flood: 28.7 x 25.0 x 7.0" / 72.9 x 63.5 x 17.8 cm (Including Yoke) | | Fixture Weight | 25.1 lb / 11.39 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | DMX Connector | 4-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
