User Manual for CAME-TV Matte Box Shoulder Support Rig Kit for Sony a7R II Click to enlarge the picture
Contents of the user manual for the CAME-TV Matte Box Shoulder Support Rig
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV Matte Box Shoulder Support Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

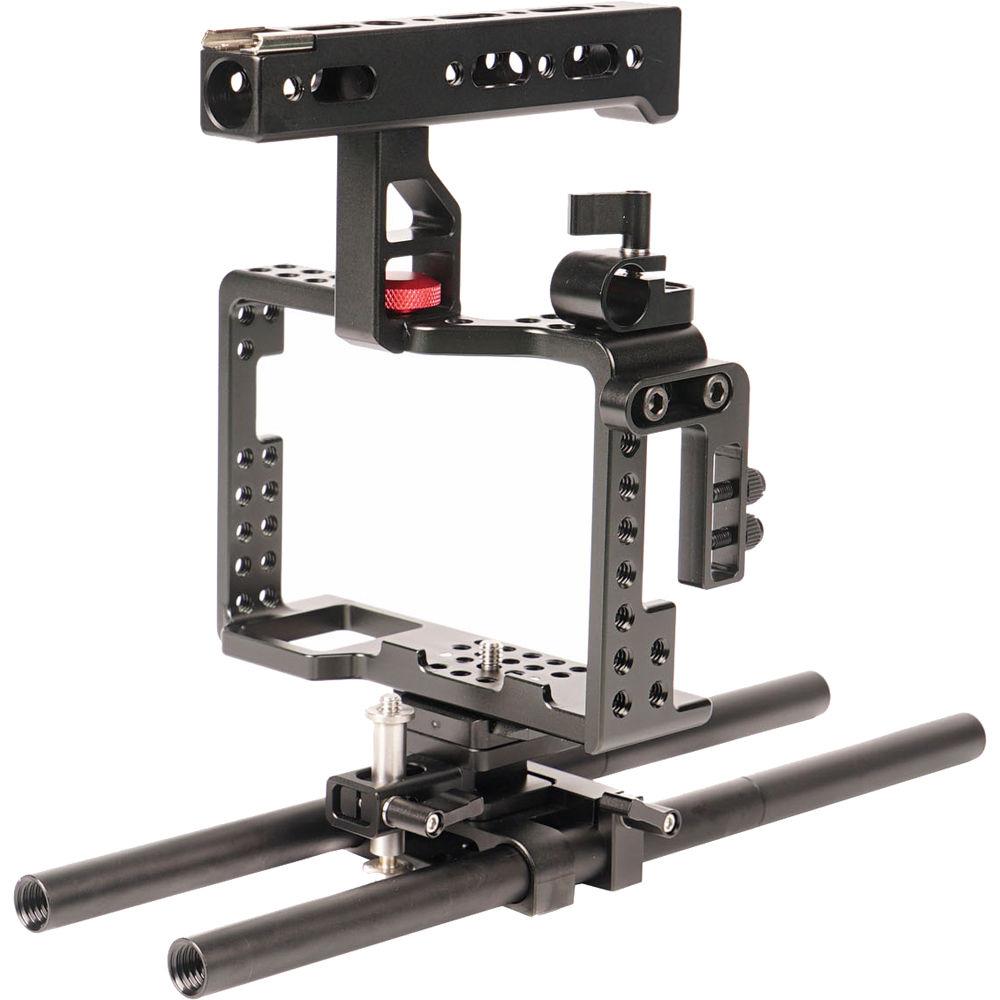

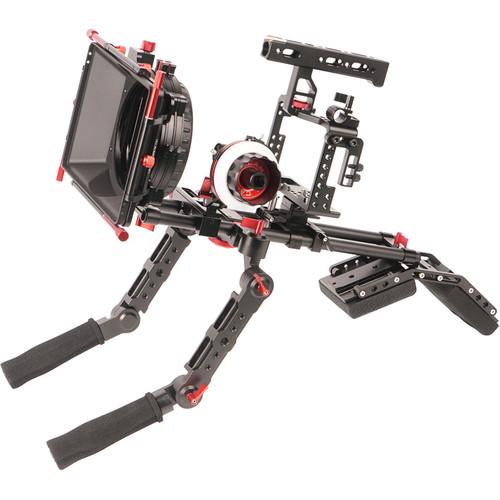

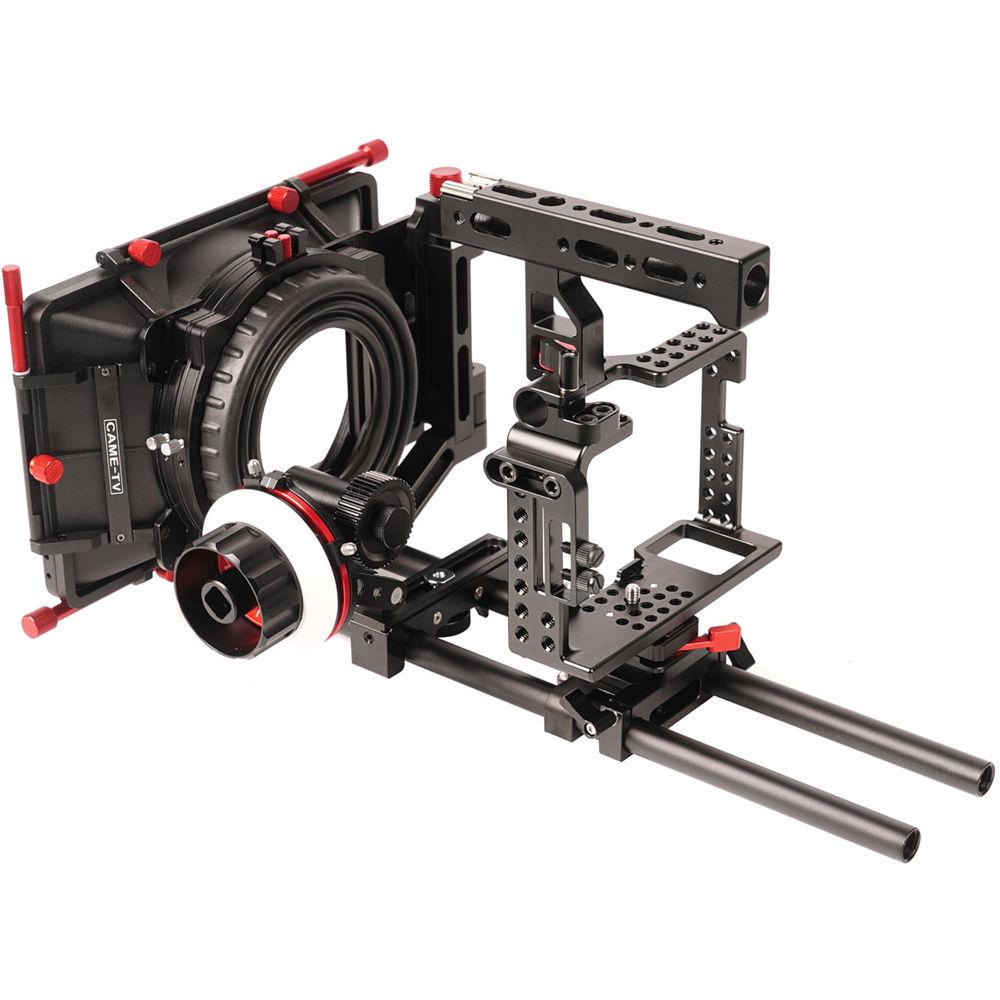

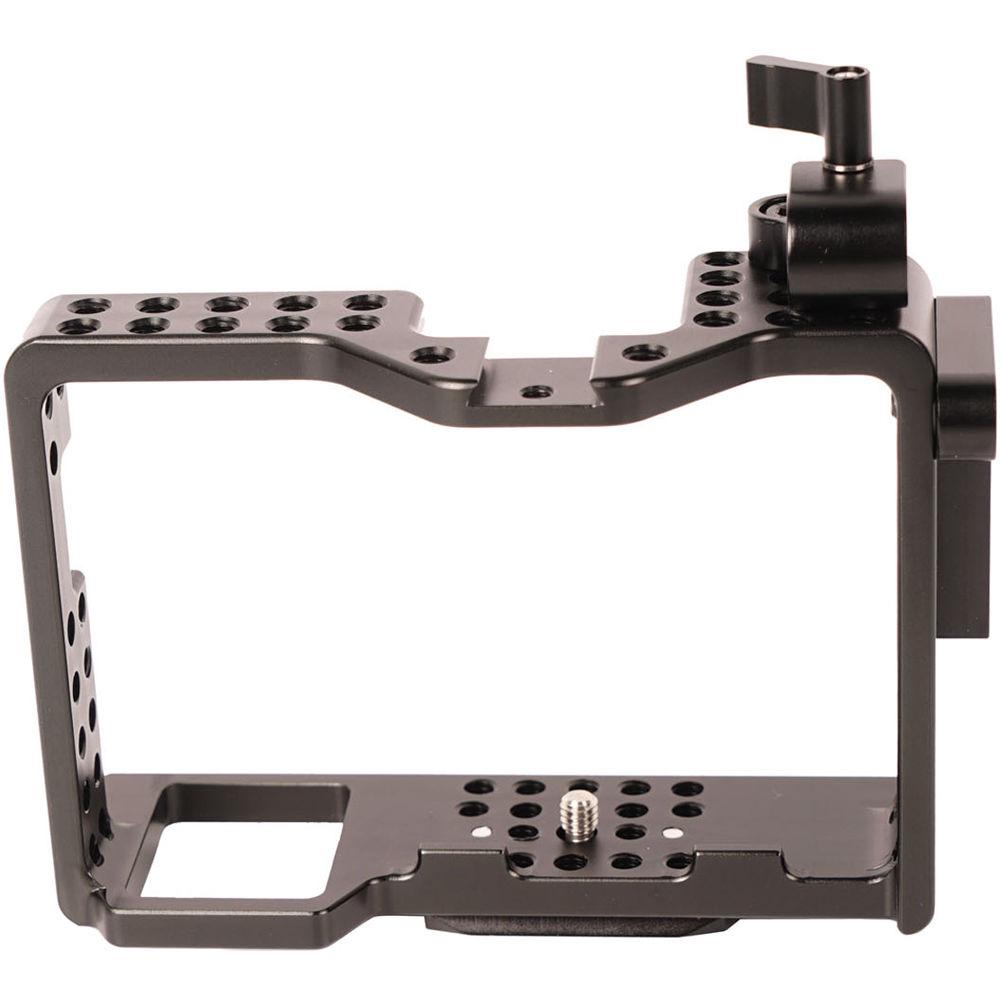

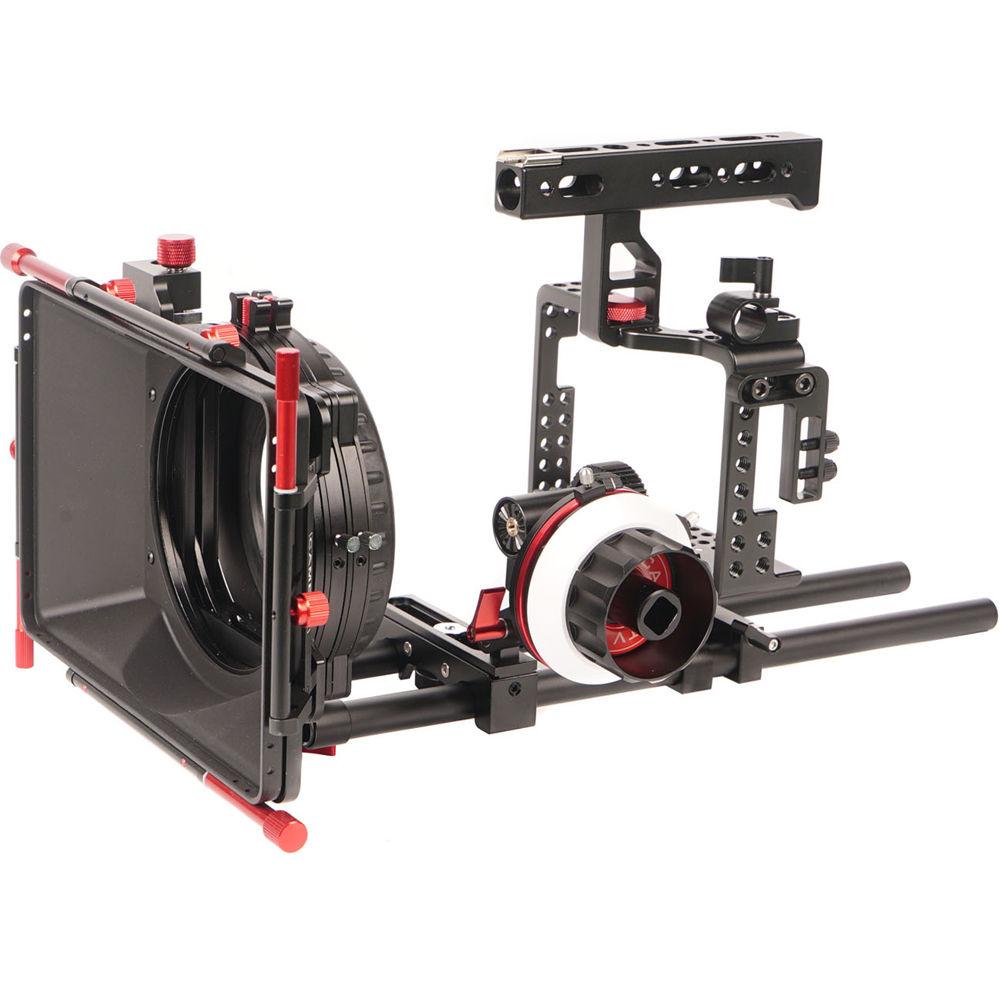

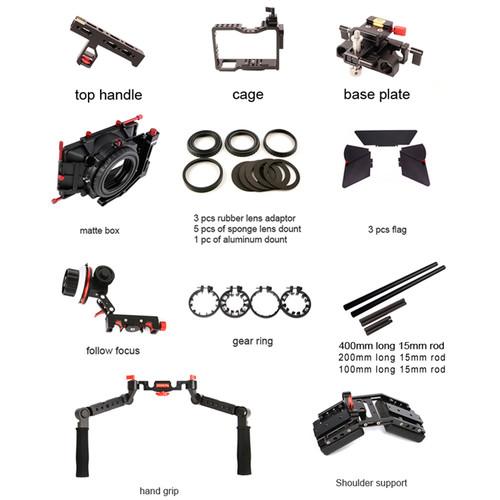

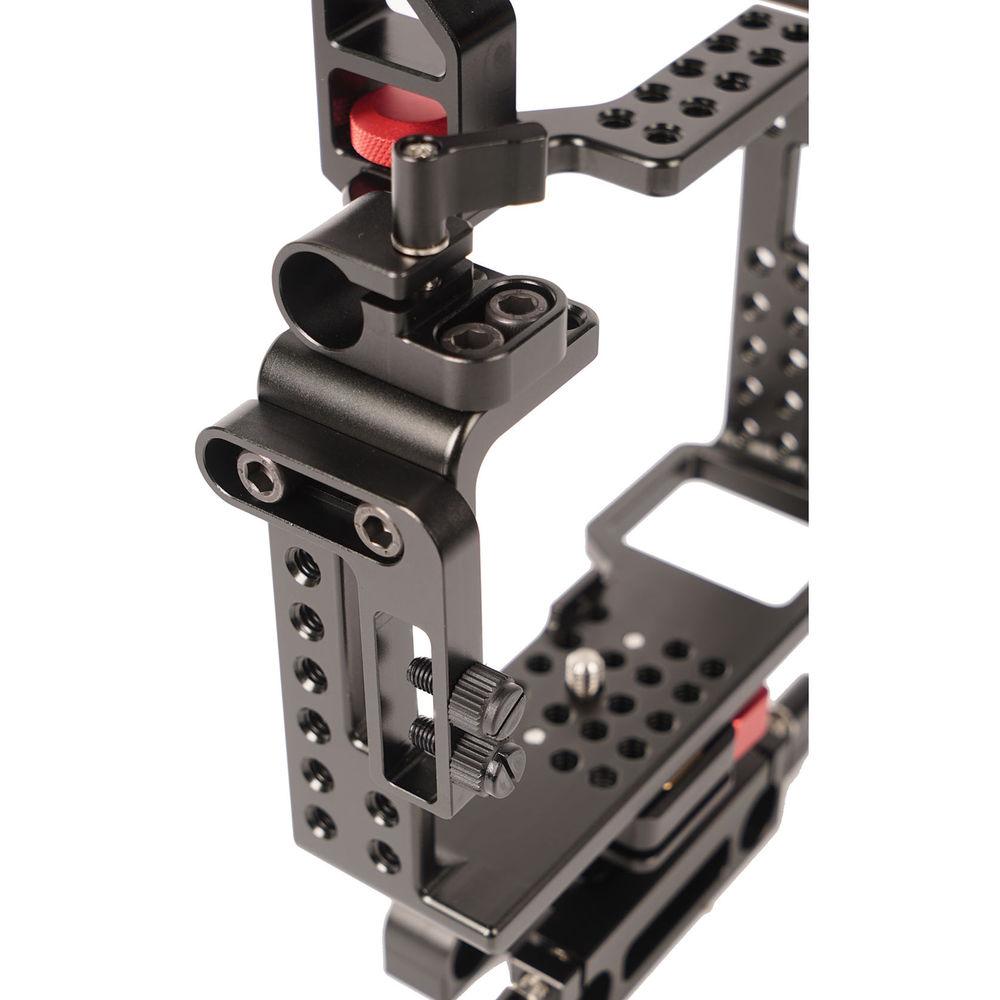

Product description The Matte Box Shoulder Support Rig Kit from CAME-TV transforms the Sony a7R II camera into a fully professional motion picture camera rig, allowing it to withstand the demands of the modern production environment.The kit includes a Sony a7R II cage with top handle and baseplate, ABS 4x4 matte box, follow focus with A/B hard stops, four gear rings, shoulder support, a DSLR universal handle grip, and a pair each of 15.7”, 7.9", and 3.9” 15mm rods. Also included in the kit are three rubber lens adapters, five sponge lens donuts, an aluminum donut, and three flag pieces. - H-A7R2 Cage for Sony a7S II/a7R II The H-A7R2 Cage for Sony a7S II/a7R II from CAME-TV surrounds your camera with accessory mounting options while maintaining access to the display, battery, and card slot. This cage features an anti-twist design, an HDMI/USB cable clamp, and lightweight, aluminum construction. Multiple accessory-mounting options include 3/8"-16 and 1/4"-20 threaded holes, and two cold shoe mounts.
The included baseplate has dual 15mm LWS rod clamps, used with separately available rods for mounting accessories such as a follow focus, matte box, or external battery solution. The H-A7R2 Cage for Sony a7S II/a7R II includes a top handle that can be attached or removed without requiring the use of tools. - Compatibility
- Sony a7S II/a7R II
- Features
-
- Cage provides camera protection on the top, bottom, and sides
- HDMI cable clamp protects against unintentional disconnections
- Threaded 3/8"-16 and 1/4"-20 accessory-mounting holes, and two cold shoe mounts

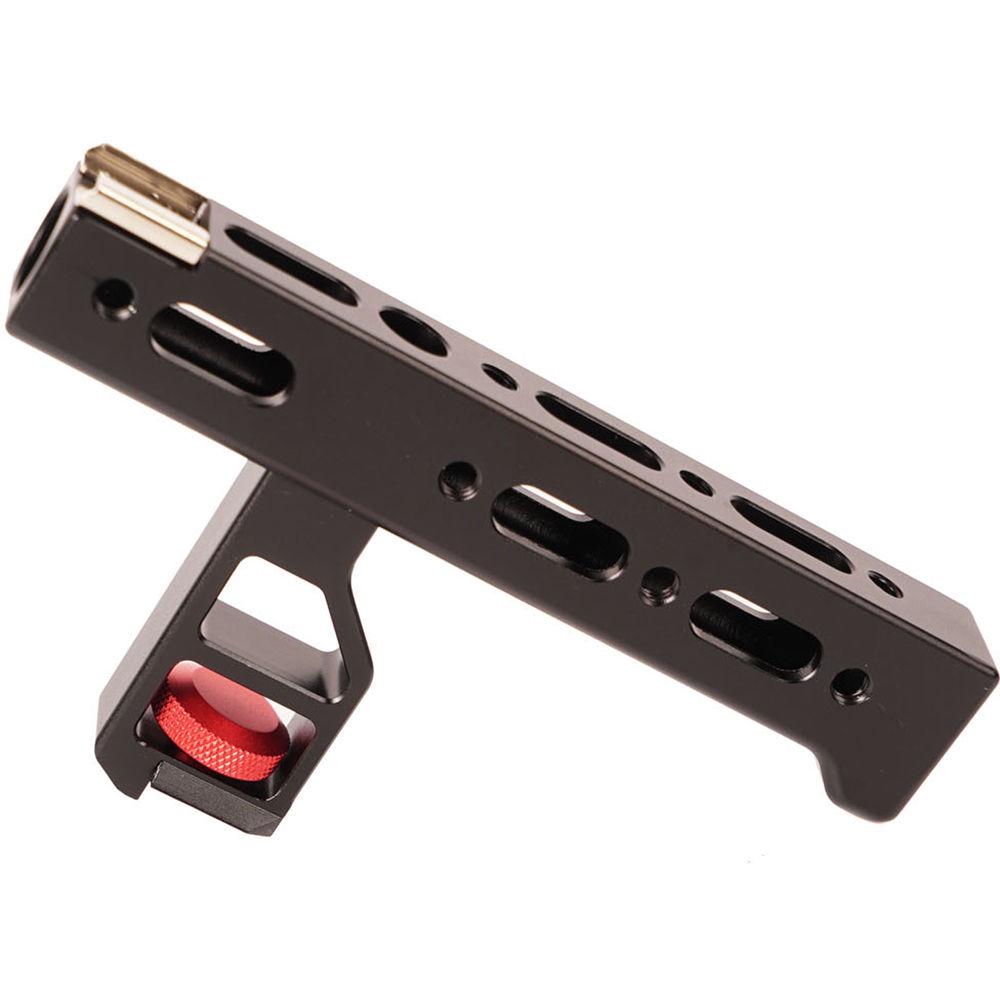

- Tool-less, removable top handle

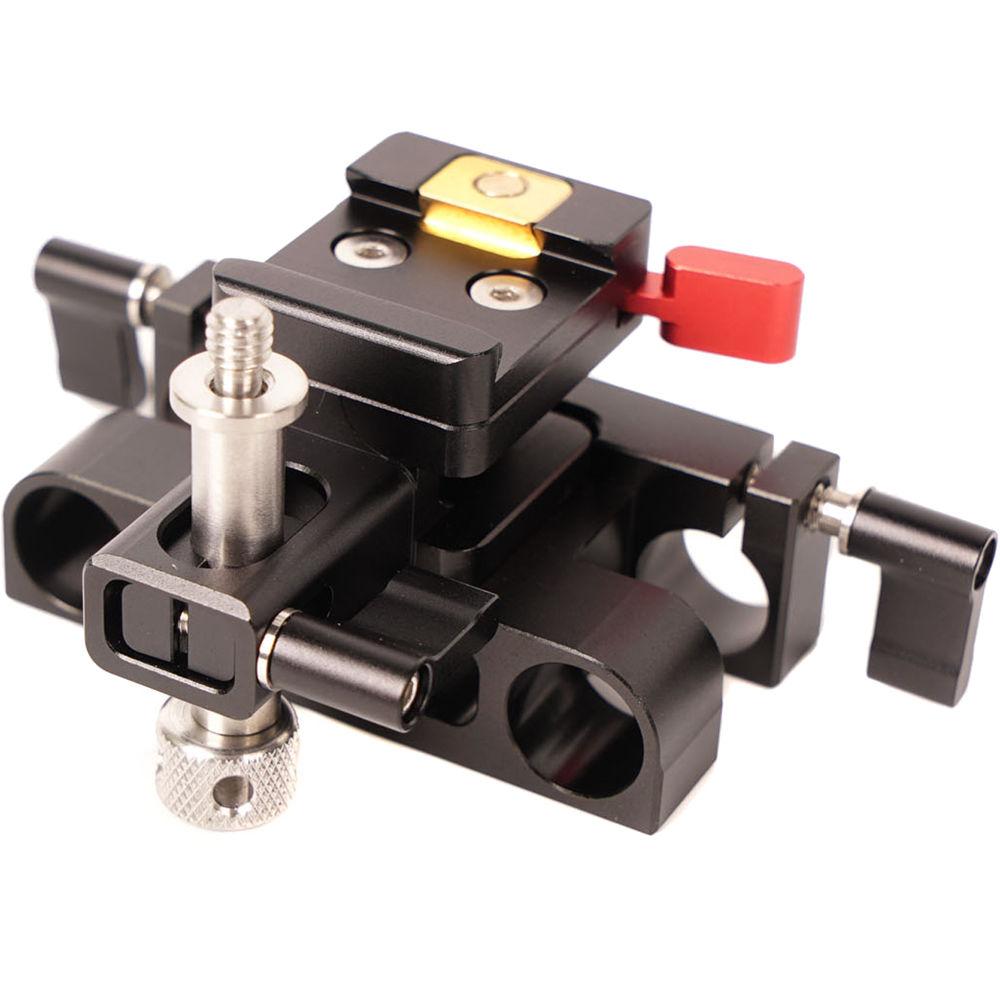

- Baseplate with 15mm LWS rod mounts
- Access to the card slot and battery remains unimpeded while the cage is mounted
UPC: 717080144189 - FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod The FF-01 Follow Focus from CAME-TV is a follow focus system with A/B hard stops for a 15mm rod system. The FF-01 is constructed of aluminum and has a bright white magnetic marking disk. It has a smooth, controlled operation; various clamp options; and four gear rings attachment sizes. UPC: 602766007479
- DSLR Shoulder Support for 15mm LWS Rod System The Came-TV DSLR Shoulder Support for 15mm LWS Rod System Provides comfort and support when using a shoulder rig that uses 15mm LWS rods. This shoulder supports slides onto your support rig and features a two-piece shoulder pad that rests on the front and back of your shoulder, preventing the hard metal rods of the rig from pressing down on your shoulder.
Made from CNC Machined aluminum, the shoulder support balances strength and weight. The attached 15mm LWS rod clamps enable positioning of the support quickly and easily along your rig, and feature a spring-loaded locking lever so you can position the lever where you need it. UPC: 717080143410 In the Box Bundle Items H-A7R2 Cage for Sony a7S II/a7R II sqzwteqqetdestxteatbscbzqutbwscdce FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod DSLR Shoulder Support for 15mm LWS Rod System
Also Includes - ABS 4x4 Matte Box
- UG25 Universal Handgrip
- 3 x Rubber Lens Adapter
- 5 x Sponge Lens Donut
- Aluminum Donut
- 3 x Matte Box Flag Piece

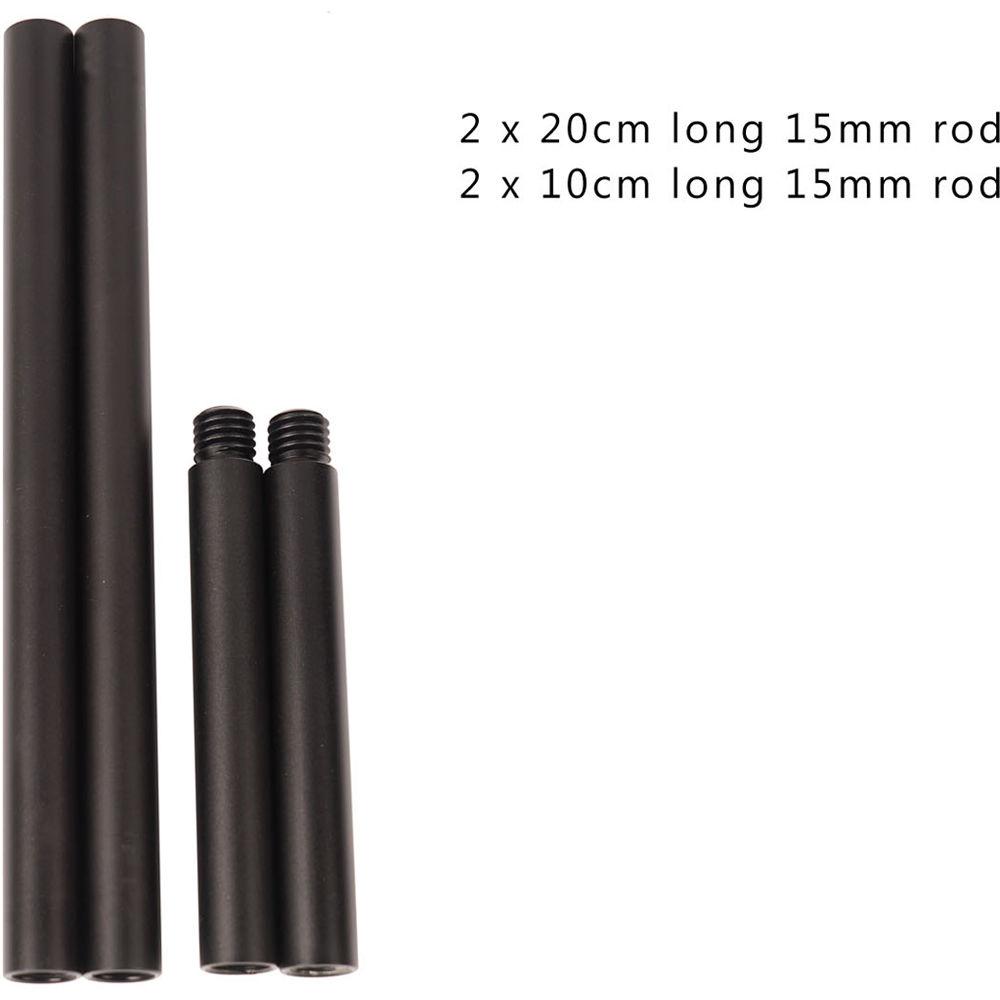

- 2 x 15mm Rod (15.7")
- 2 x 15mm Rod (7.9")
- 2 x Long 15mm Rod (3.9")
- Mounting Hardware
Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Matte Box Shoulder Support Rig Kit for Sony a7R II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - H-A7R2 Cage for Sony a7S II/a7R II
| Accessory Mounting Threads | 1/4"-20, 3/8"-16 | | Rod Standard | 15 mm LWS | | | | Box Dimensions (LxWxH) | 9.95 x 8.35 x 2.85" | - FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod
| Construction | Aluminum | | Backlash | < 0.5 mm | | Gear Pitch | 0.8 | | Gears | 60 mm
70 mm
80 mm
90 mm | | Weight | 1.8 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 11.35 x 7.65 x 4.05" | - DSLR Shoulder Support for 15mm LWS Rod System
| Material of Construction | Structure: Machined aluminum
Shoulder Pads: Polyurethane | | Mounting | 15mm LWS rods | | Dimensions | 8.66 x 3.54 x 4.13" / 22.0 x 9.0 x 10.5 cm | | Weight | 1.1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 10.0 x 8.1 x 3.8" |
