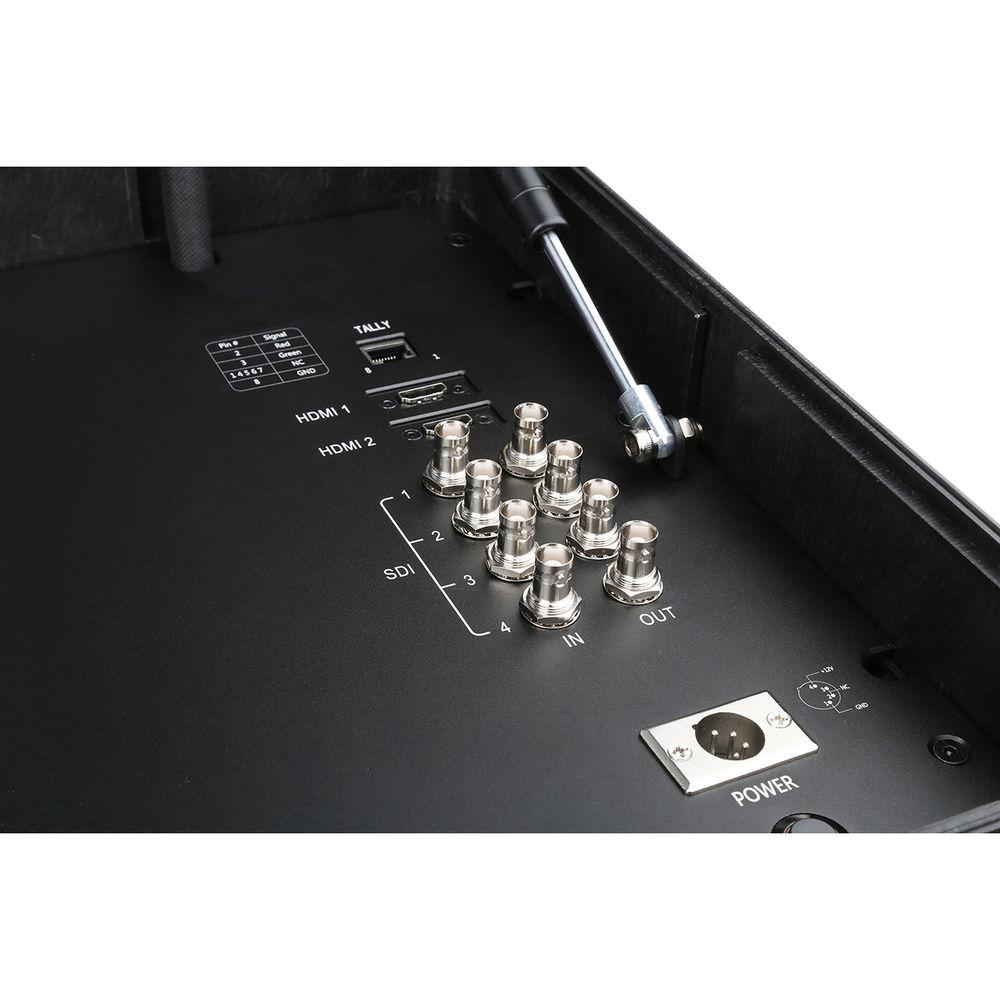

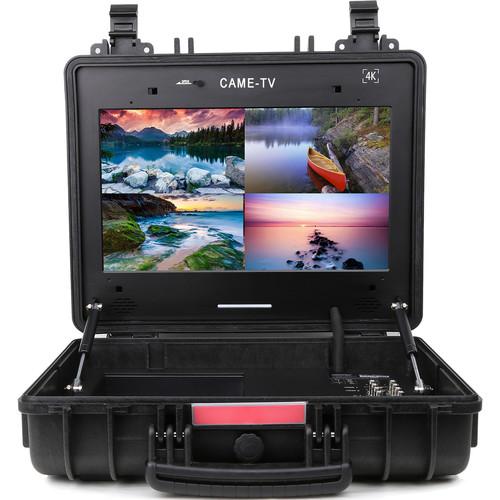

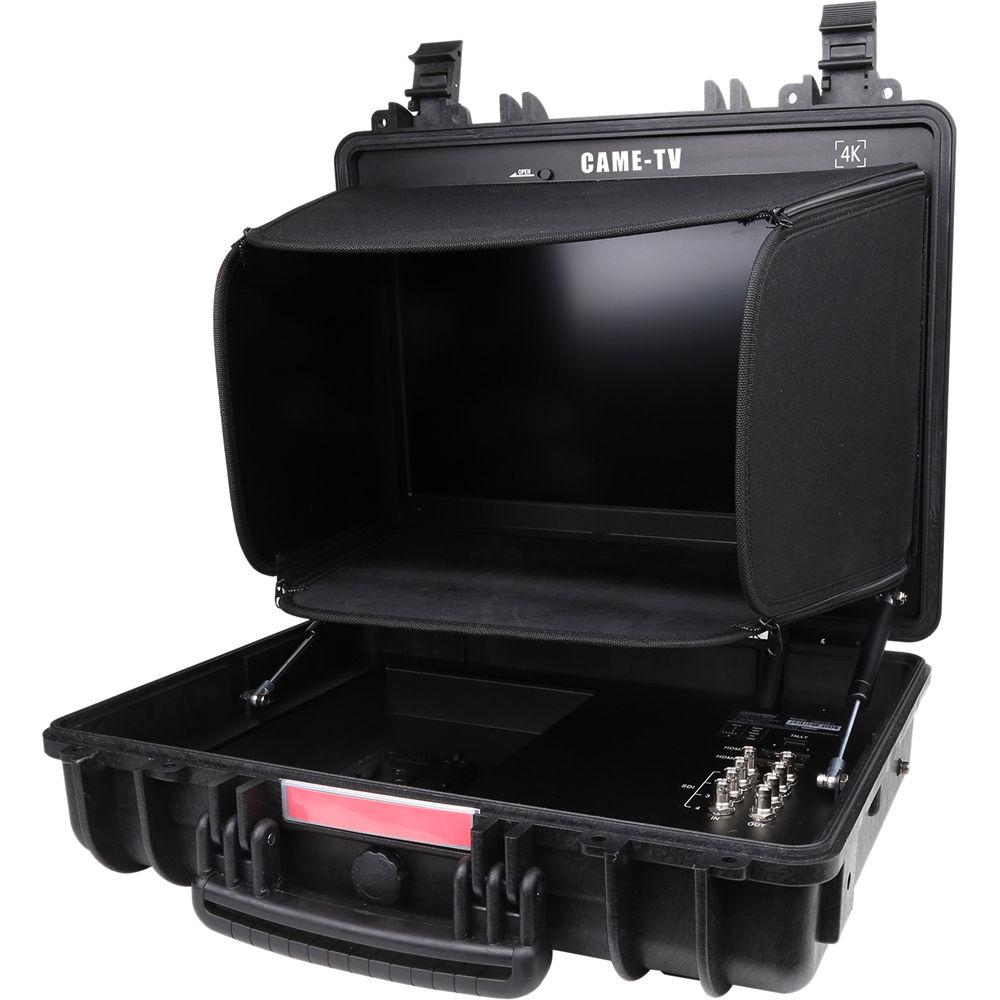

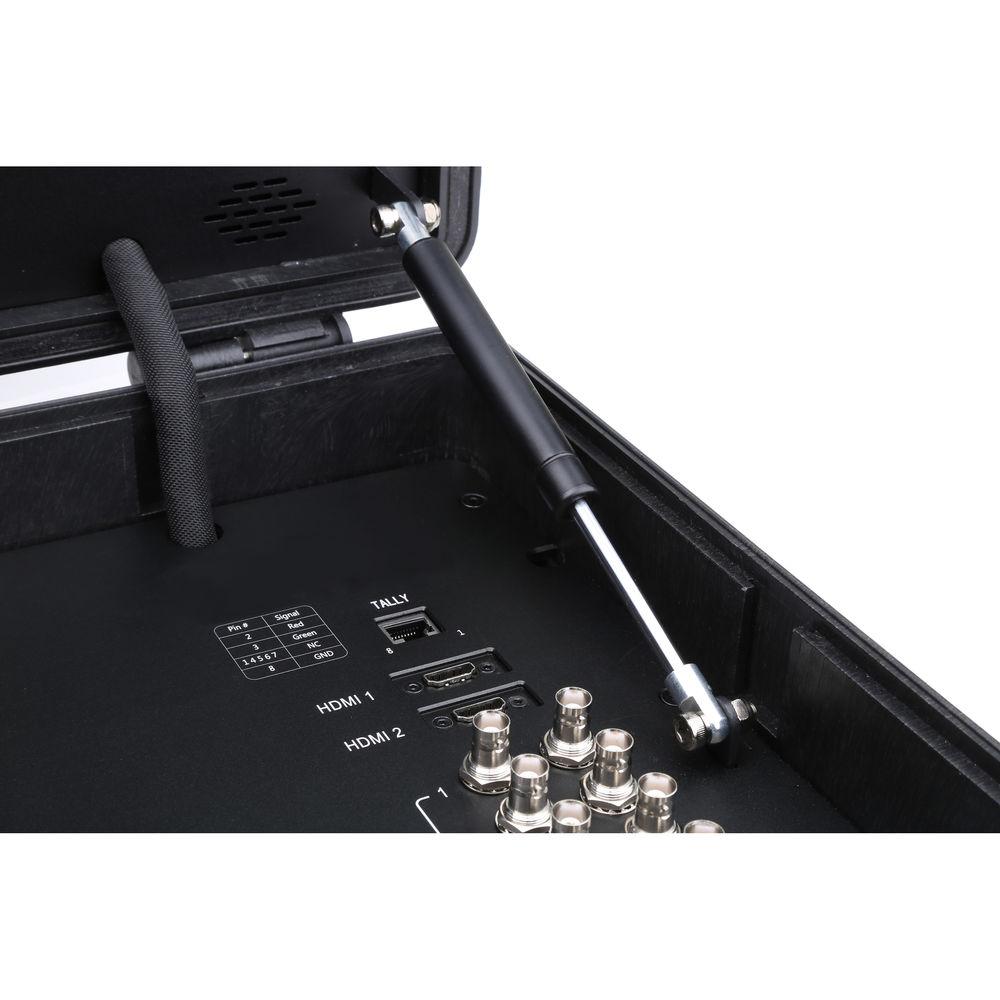

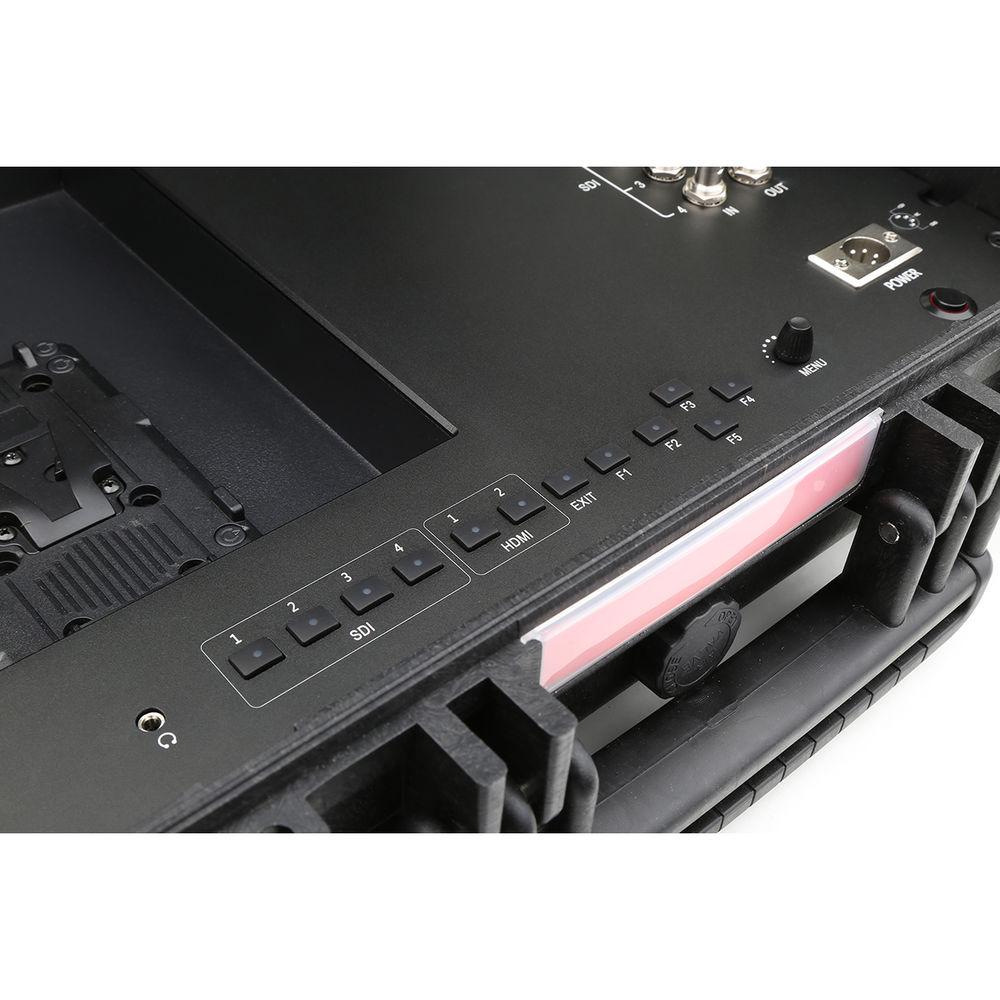

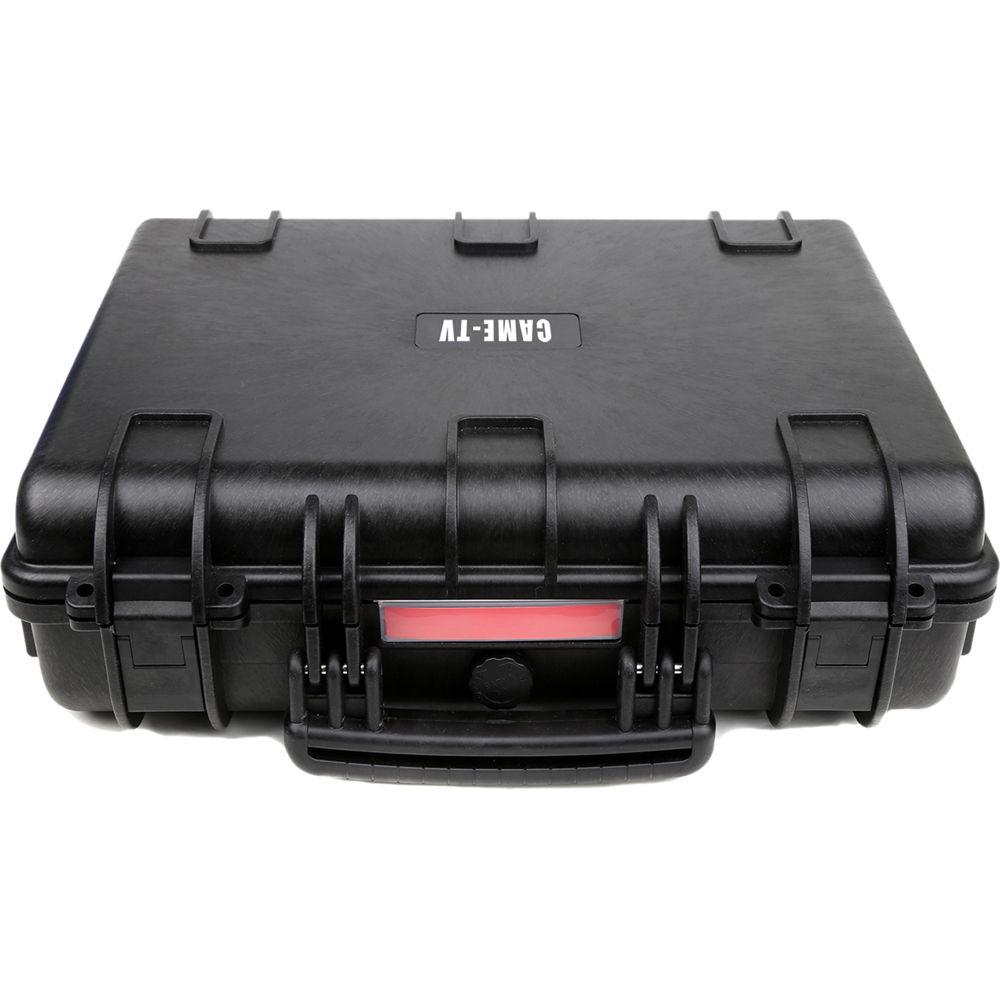

Product description The 17" Portable Case 4K HDMI/3G-SDI Monitor from CAME-TV offers a UHD 3840 x 2160 native resolution in an IPS backlit LCD panel featuring a 178° viewing angle, 400 cd/m² brightness, and 1000:1 contrast ratio. The monitor's connectivity interface includes two HDMI 2.0 inputs, as well as four 3G-SDI inputs and four 3G-SDI outputs. An integrated sun hood blocks out stray reflections to reduce glare when viewing footage in the field. - Monitor controls integrated to the inside of case
- Battery information display
- Gamma selection (1.8/2.0/2.2/2.4)
- V-mount and Gold mount dual power supply system
- Six-channel switchable source signal
- Professional color calibration; supports Rec. 709
- Software functions include peaking filter, check field, center mark (five colors), safe area, underscan, ratio, check field (B/W/R/G/B), image flip (U/D and R/L), and noise reduction
UPC: 614993189392 In the Box CAME-TV Portable Case 4K HDMI/3G-SDI Monitor (17") Sun Hood Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Portable Case 4K HDMI 3G-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV 4K-C17F Specs | Diagonal Size | 17" / 43.18 cm | | Display Area | 15.04 x 8.42" / 38.2 x 21.4 cm | | Display Ratio | 16:9 | | Resolution | 3840 x 2160 | | Response Time | TR/TD: 10/15 typical | | OSD | Push-button control | | Brightness | 400 cd/m² | | Contrast Ratio | 1000:1 | | View Angle | L/R: 178° (89/89°)
U/D: 178° (89/89°) | | Backlight Life | 50,000 hours approx. | | Input Signal | 2 x HDMI
4 x 3G-SDI | | Output Signal | 4 x 3G-SDI | | Supported Resolutions | HDMI:
720 x 480i/p: 59.94, 60
720 x 576i/p: 50
1280 x 720p: 50, 59.94, 60
1920 x 1080i: 50, 59.94, 60
1920 x 1080p: 23.93, 24, 25, 29.97, 30, 50, 59.94, 60
3840 x 2160p: 24, 25, 30, 60
4096 x 2160p: 24
3G-SDI:
720 x 480i: 59.94, 60
720 x 576i/p: 50
1280 x 720p: 50, 59.94, 60
1920 x 1080i: 50, 59.94, 60
1920 x 1080p: 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 | | Audio | 2-channel output | | Power | 110-265 VAC, 50-60 Hz
12 VDC, 2 A | | Max Power Consumption | 26 W, typical | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Operating Humidity | 10-90% non-condensing | | Storage Humidity | 5-90% non-condensing | | Certifications | FCC, CE, RoHS, and KCC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 32.075 lb | | Box Dimensions (LxWxH) | 22.2 x 20.1 x 9.6" |
