User Manual for CAME-TV Pro 650W Fresnel Tungsten Light with Built-In Dimmer Control Click to enlarge the picture
Contents of the user manual for the CAME-TV Pro 650W Fresnel Tungsten Light
- Product category: Tungsten Lights CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Tungsten Lights
 |
User manual for the CAME-TV Pro 650W Fresnel Tungsten Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

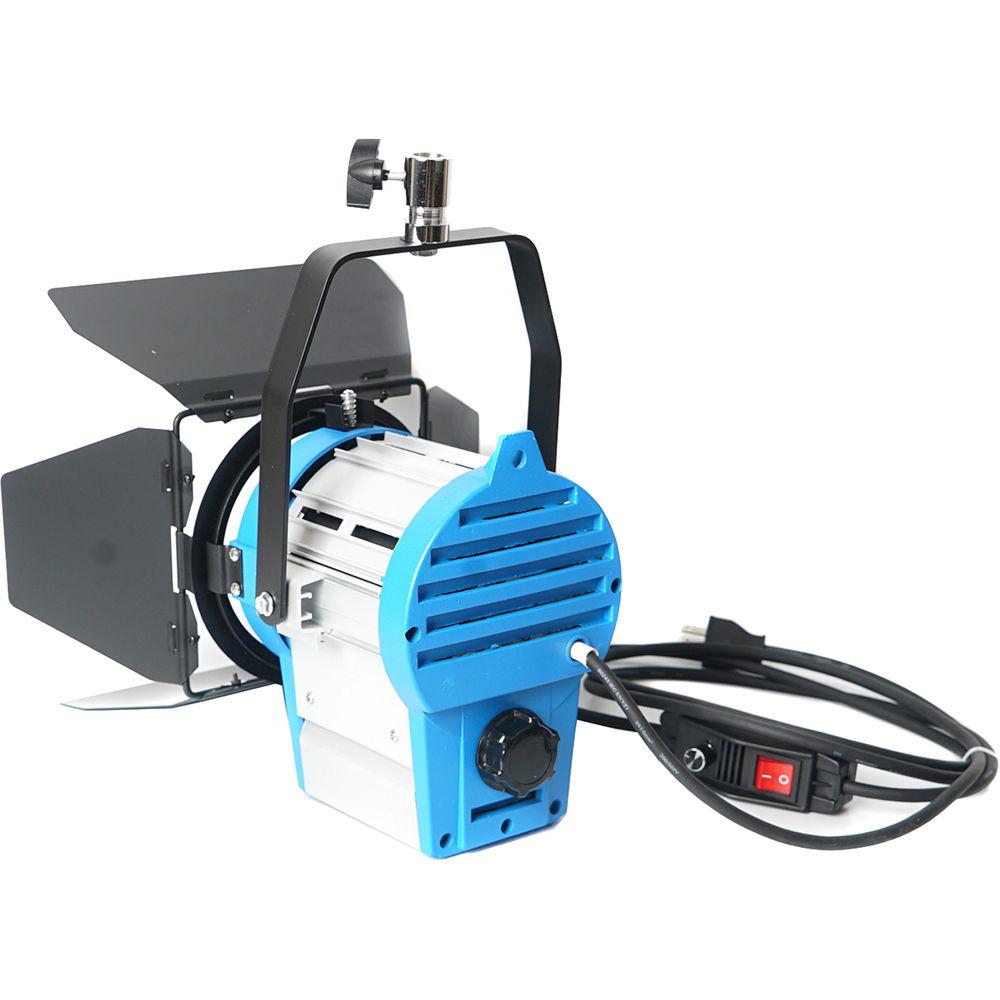

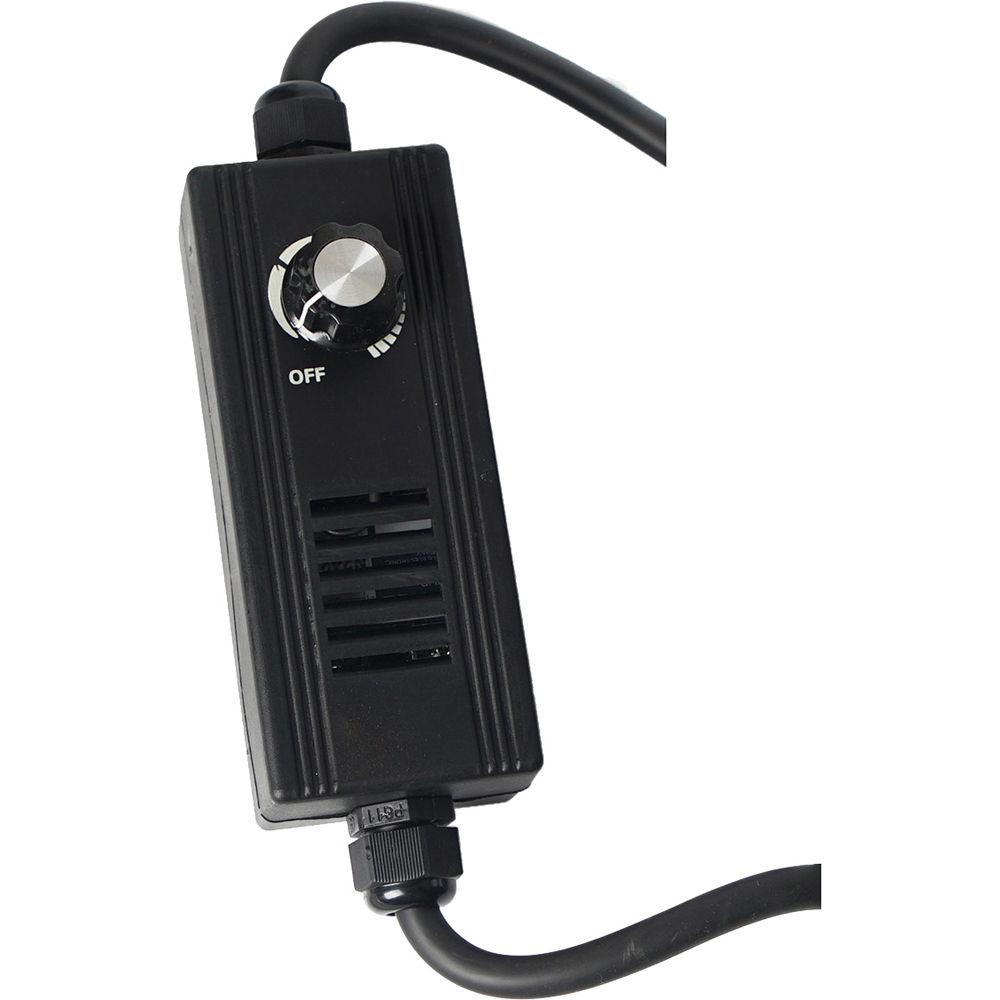

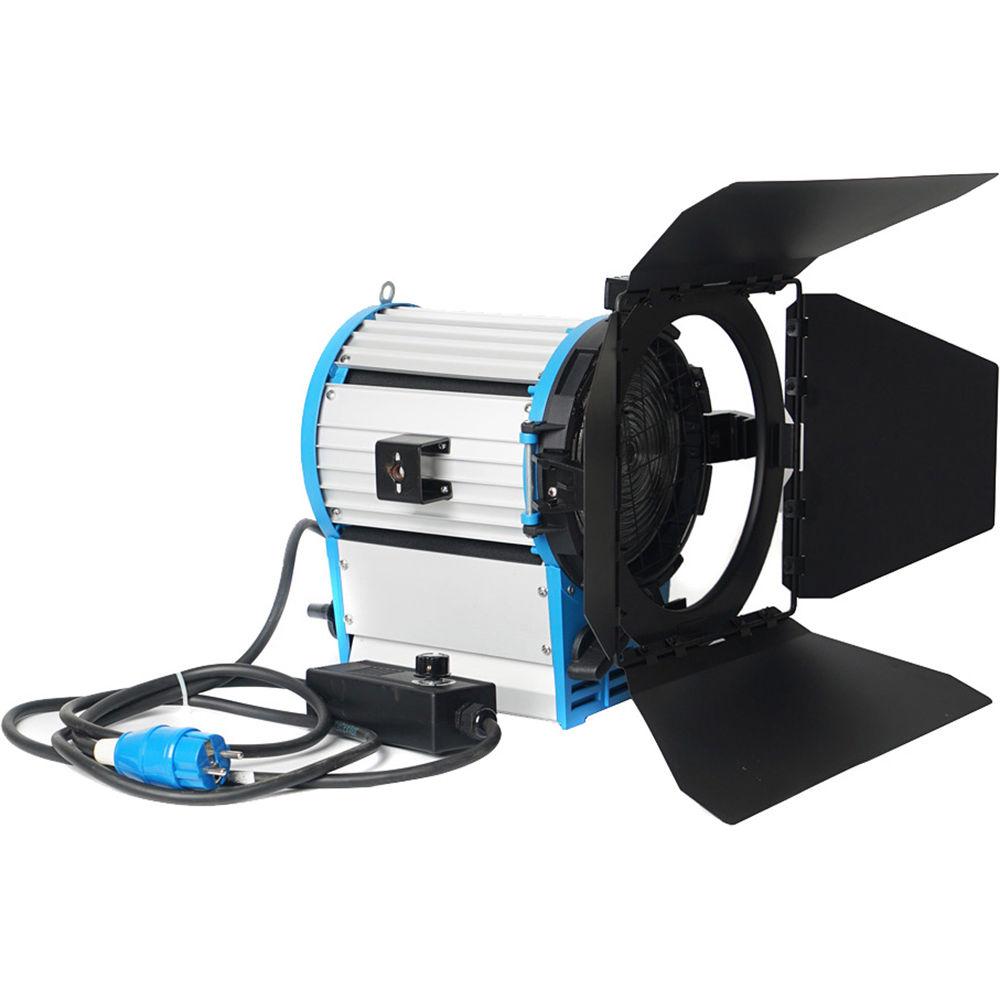

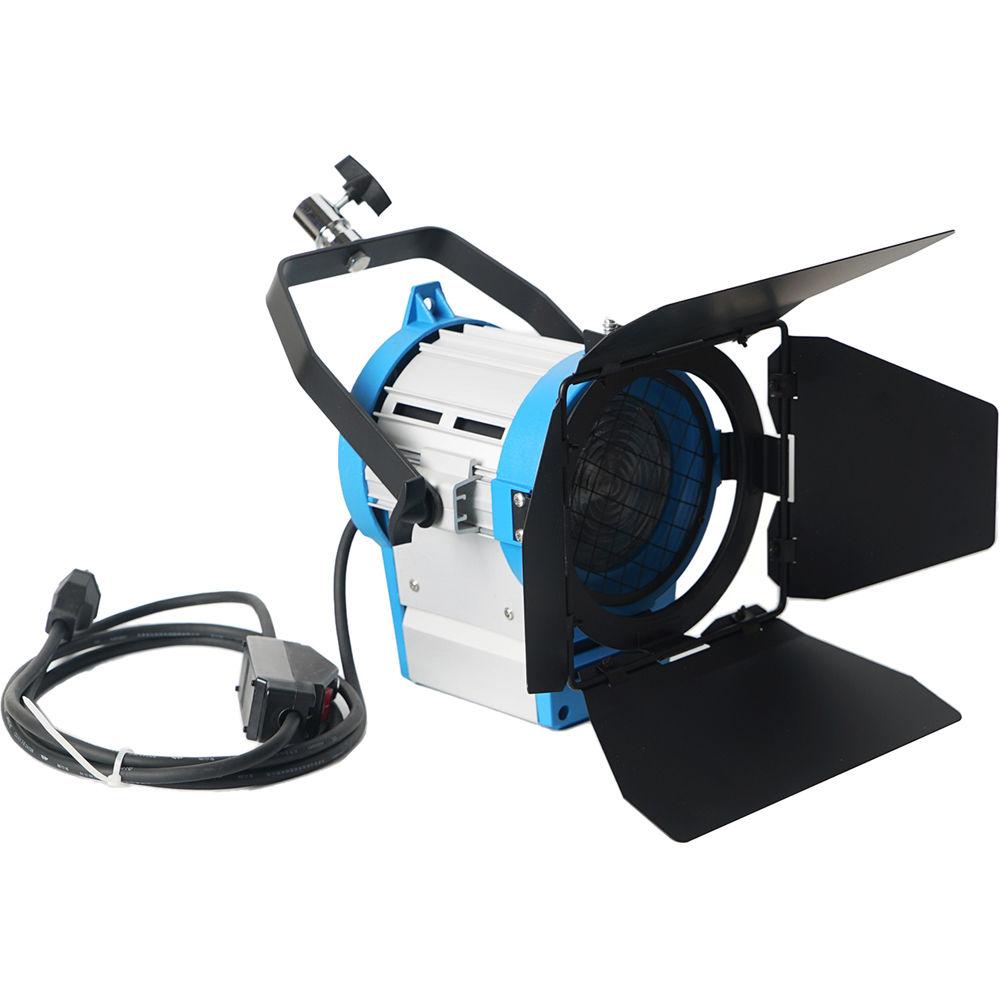

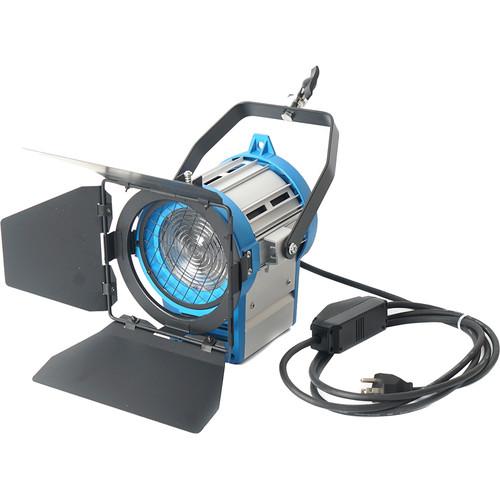

Product description The Pro 650W Fresnel Tungsten Light from CAME-TV includes an adjustable Fresnel lens to help focus the light and provide a longer throw. It offers a power output of 650W and features a dimmer with inline switch. Furthermore, the light conforms to IP22 standard and offers a color temperature rating of 3200K. UPC: 717080142246 In the Box CAME-TV Pro 650W Fresnel Tungsten Light with Built-In Dimmer Control 4-Leaf Barndoors Power Cord with Dimmer Switch (9.8') 650W Lamp 4 x Colored Gel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Pro 650W Fresnel Tungsten Light with Built-In Dimmer Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV Pro 650W Specs | Light Source Type | Tungsten with Fresnel lens | | Power | 650 W | | Color Temperature | 3200K | | Socket (Lampholder) | GY9.5 | | Lens Diameter | 4.5" / 112 mm | | Socket | Filter/Barndoors: 6.5" / 165 mm | | Illumination Angle | Spot: 12°
Flood: 55° | | Illumination Strength | Spot Mode:
6800 lux at 3.2' / 1 m
3750 lux at 6.6' / 2 m
1310 lux at 9.8' / 3 m
Flood Mode:
3200 lux at 3.2' / 1 m
1250 lux at 6.6' / 2 m
570 lux at 9.8' / 3 m | | Power Cord | 9.8' / 3 m, with inline dimmer switch | | Material | Aluminum | | Protection Class | IP22 | | Compliance | CE, RoHS | | Voltage | 110 VAC | | Dimensions (H x W x L) | 14.6 x 9.1 x 7.1" / 37.0 x 23.0 x 18.0 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 15.3 x 11.8 x 11.4" |
