User Manual for CAME-TV Protective Cage Plus for GH5 Click to enlarge the picture
Contents of the user manual for the CAME-TV Protective Cage Plus for GH5
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV Protective Cage Plus for GH5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

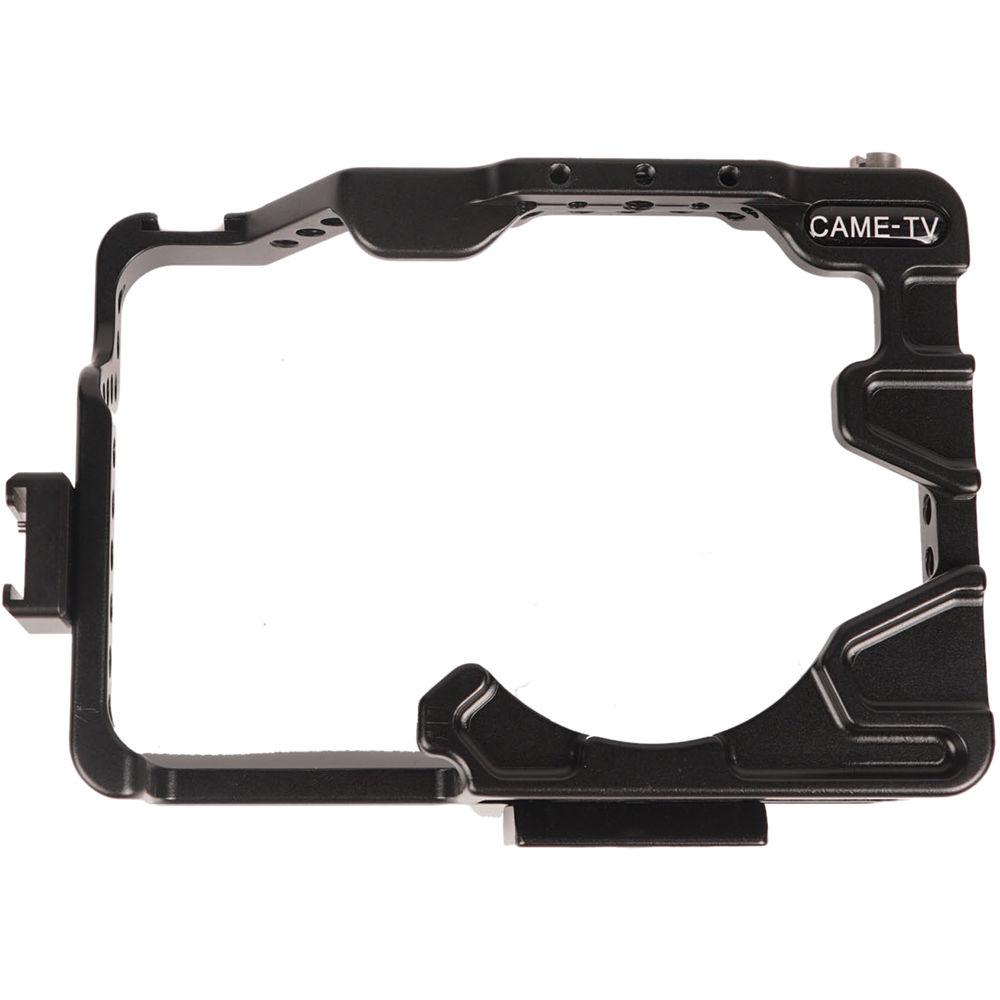

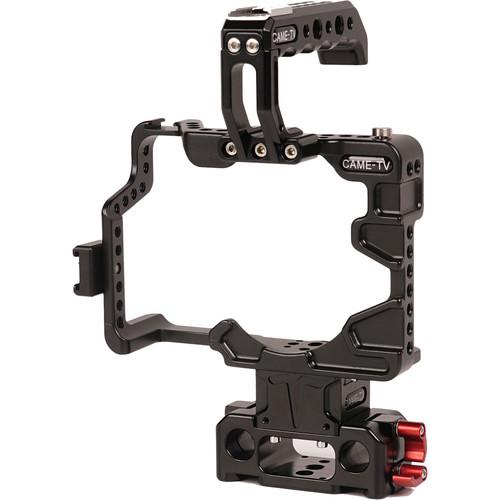

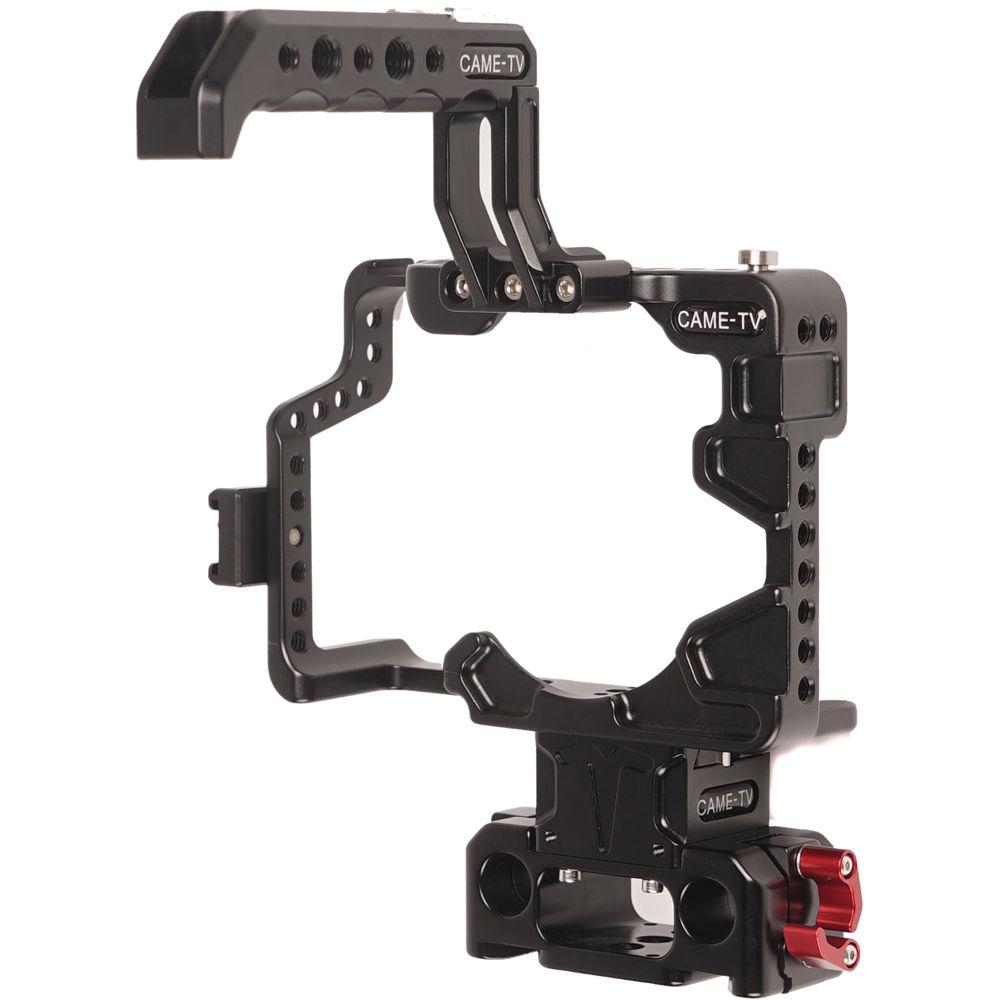

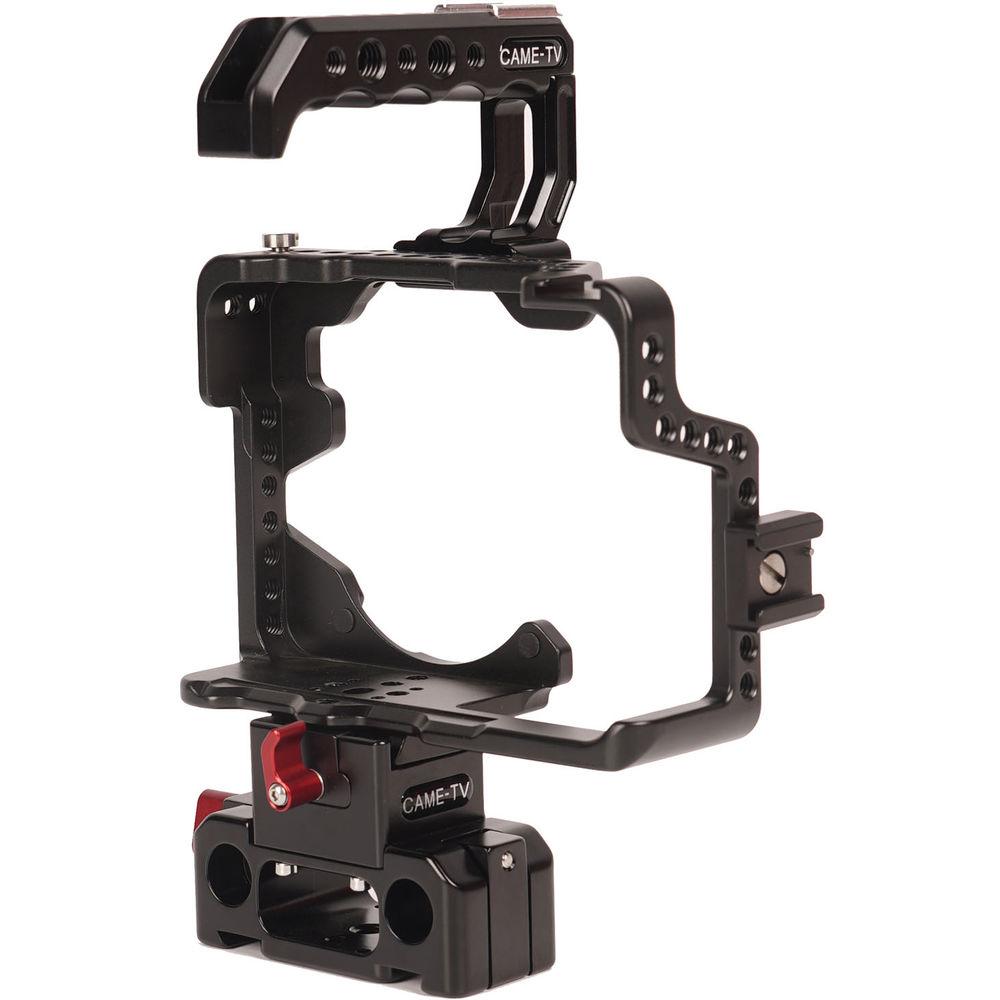

Product description The CAME-TV Protective Cage Plus for GH5 is a CNC Machined armor cage that protects your camera and provides over 50 accessory mounting points for you to mount accessories without stressing your camera's body. The cage is form-fitting, without obstructing access to the camera's functions, connections, battery, or SD card compartment. It features an integrated front plate which prevents your camera from twisting within the cage, and the reversible top handle can be mounted in a forward orientation, enabling the use of the Panasonic XLR microphone adapter (not included).
The cage itself incorporates a cold shoe, and the top handle also incorporates a cold shoe. A third cold shoe is removable, so you can place it virtually anywhere on any of the 1/4"-20 accessory mounting points distributed over the cage. In addition to the cage, an included 15mm LWS rod clamp accepts 15mm rods (not included). The cage features spring-loaded locking levers, and the rod clamp has one 1/4"-30 and two 3/8"-16 threaded mounting holes, so you can mount the cage to a tripod. - Form-fitting cage incorporates a front plate that prevents the camera from twisting in the cage.

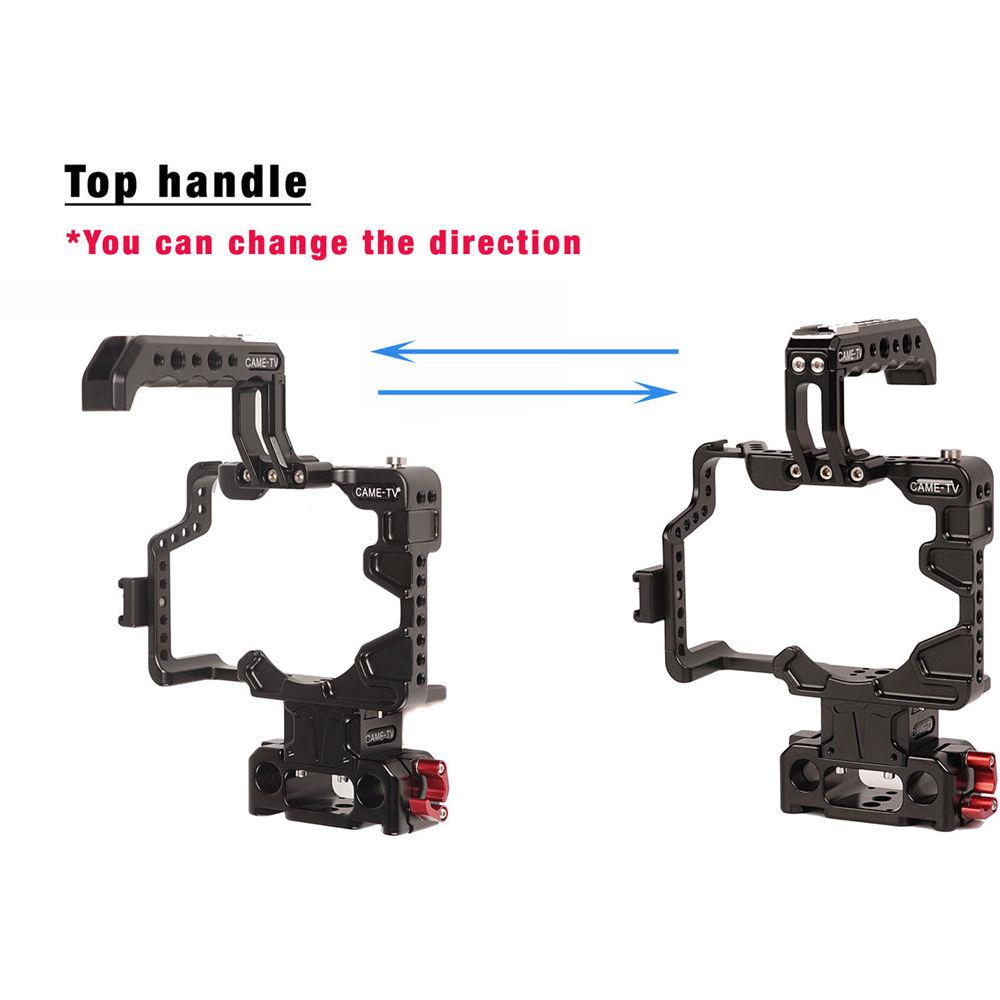

- The reversible top handle mounts using cap head screws, and can be mounted either with the handle extending back away from the lens, or forward over the lens. Mounting the handle forward over the lens allows you to mount the optional Panasonic XLR microphone adapter.
- Fifty-three 1/4"-20 and four 3/8"-16 threaded accessory mounting holes enable mounting accessories to your camera without stressing your camera's body.
- The cage uses a rail system to attach to the tripod adapter with built-in rod clamps.
- Spring-loaded locking levers enable you to lock or loosen the cage's functions, even when there isn't enough room to fully rotate the lever.

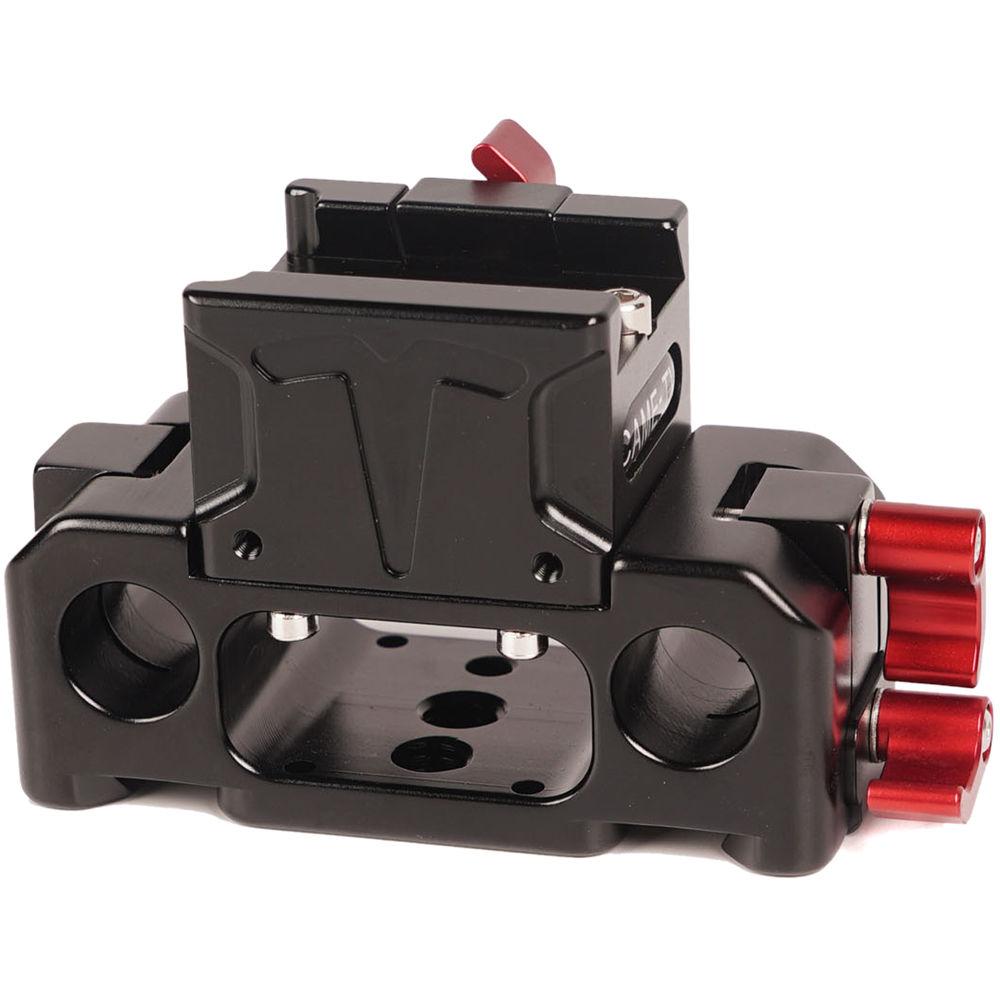

- The tripod adapter with built-in rod clamps allows you to mount 15mm support rods (not included), which enables using industry standard rod-mounted accessories.
UPC: 614993188555 In the Box CAME-TV Protective Cage Plus for GH5 Top Handle 15mm Rod Clamp Removable Cold Shoe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Protective Cage Plus for GH5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV GH5-PLUS Specs | Material of Construction | 6061 aluminum | | Accessory Mounting | 52 x 1/4"-20 threaded holes
4 x 3/8"-16 threaded holes | | Tripod Mounting Thread | 1 x 1/4"-20 threaded holes
2 x 3/8"-16 threaded holes | | Rod Compatibility | 15 mm | | Dimensions | 11.02 x 8.66 x 3.54" / 28 x 22 x 9 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 3.3" |
