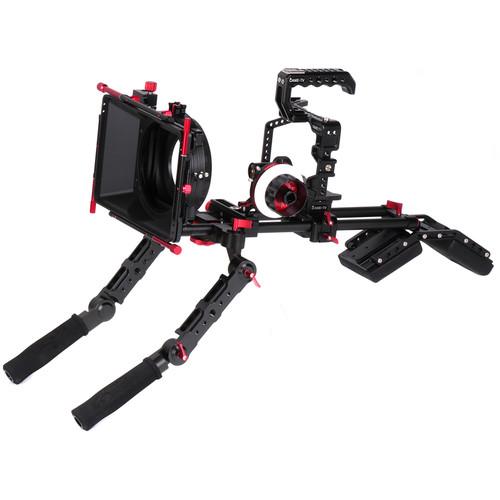

CAME-TV Protective Cage Plus for GH5

User Manual for CAME-TV Protective Cage Plus for GH5 with Matte Box, Follow Focus, Handgrip & Shoulder Pad

• Product category: DSLR Video Supports & Rigs CAME-TV
• Brand: CAME-TV
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CAME-TV DSLR Video Supports & Rigs

Product description

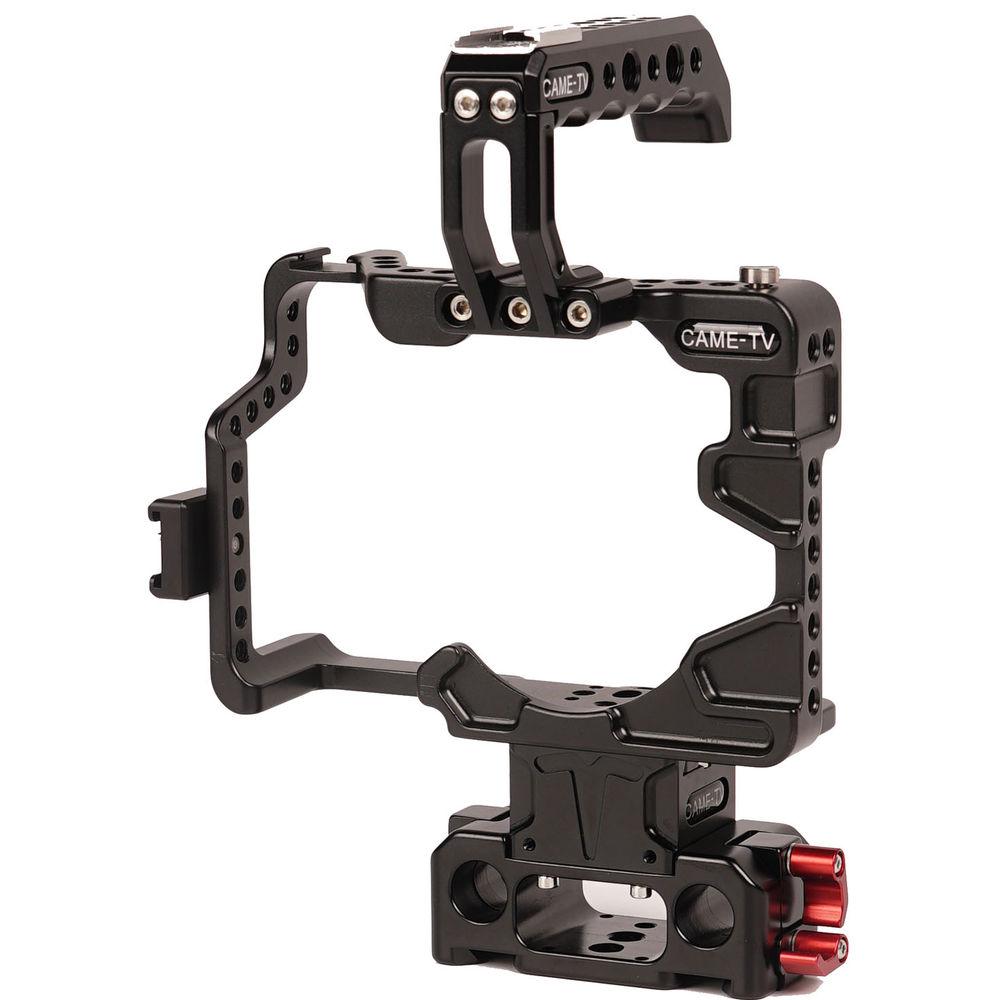

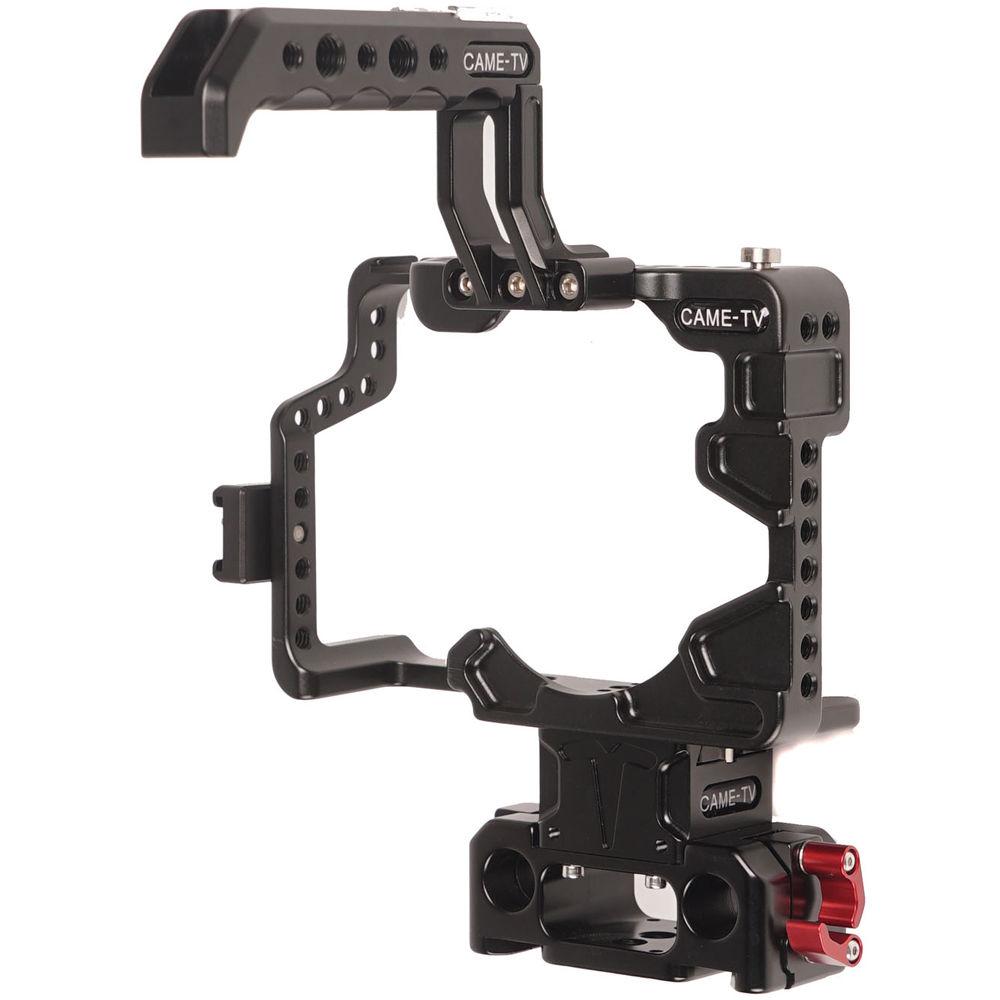

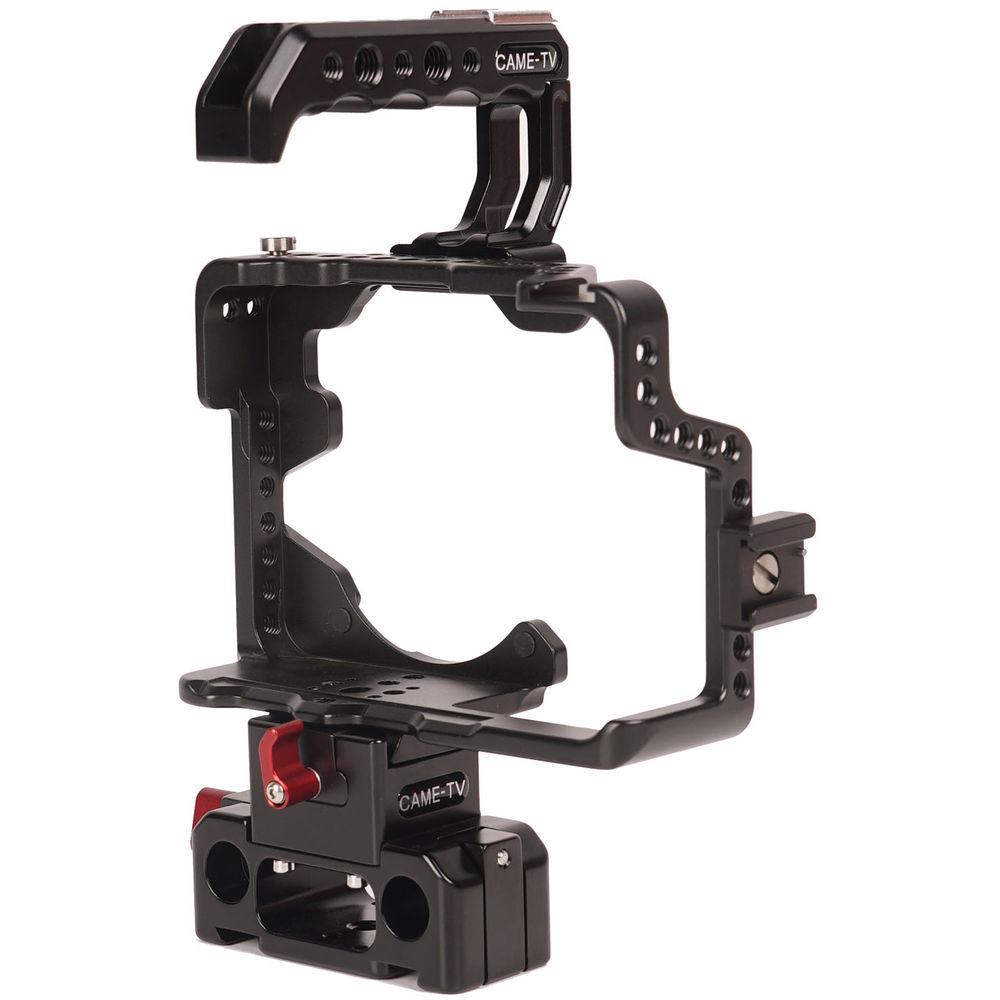

• Protective Cage Plus for GH5 The CAME-TV Protective Cage Plus for GH5 is a CNC Machined armor cage that protects your camera and provides over 50 accessory mounting points for you to mount accessories without stressing your camera's body. The cage is form-fitting, without obstructing access to the camera's functions, connections, battery, or SD card compartment. It features an integrated front plate which prevents your camera from twisting within the cage, and the reversible top handle can be mounted in a forward orientation, enabling the use of the Panasonic XLR microphone adapter (not included).

  The cage itself incorporates a cold shoe, and the top handle also incorporates a cold shoe. A third cold shoe is removable, so you can place it virtually anywhere on any of the 1/4"-20 accessory mounting points distributed over the cage. In addition to the cage, an included 15mm LWS rod clamp accepts 15mm rods (not included). The cage features spring-loaded locking levers, and the rod clamp has one 1/4"-30 and two 3/8"-16 threaded mounting holes, so you can mount the cage to a tripod.

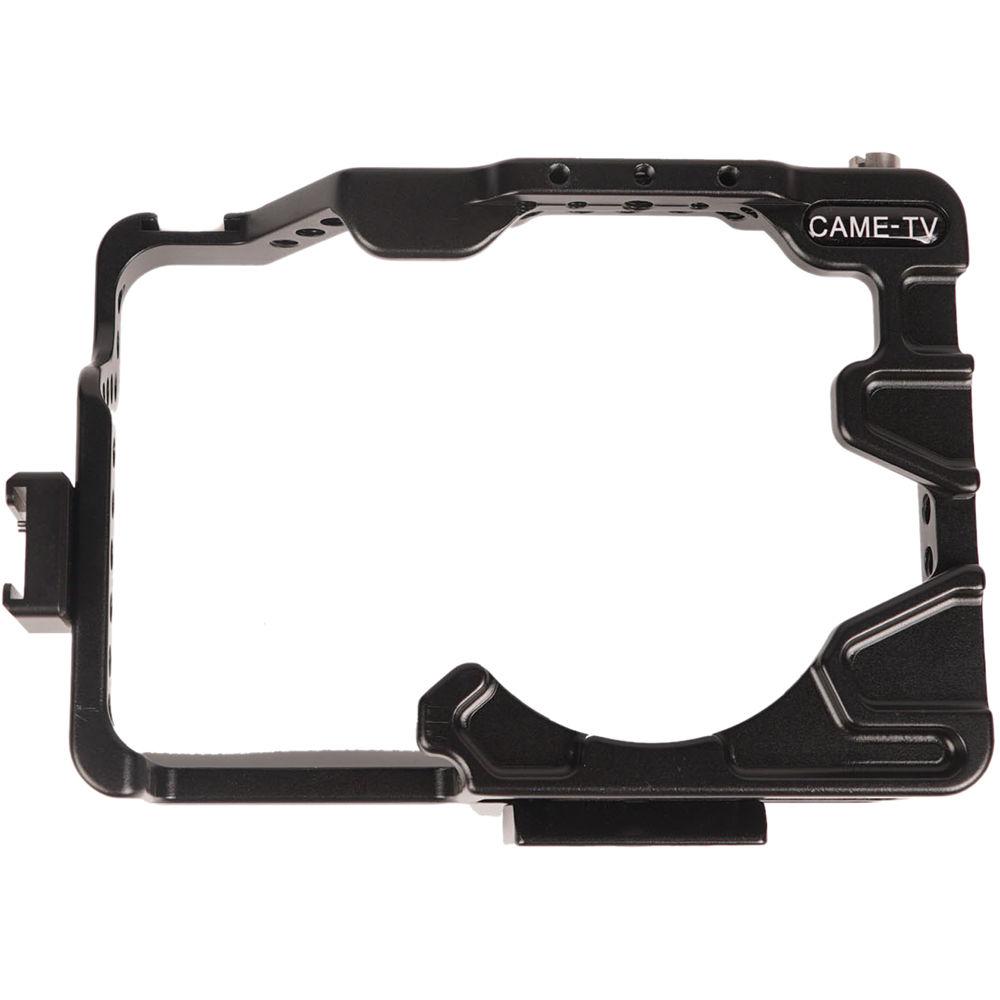

  • Form-fitting cage incorporates a front plate that prevents the camera from twisting in the cage.

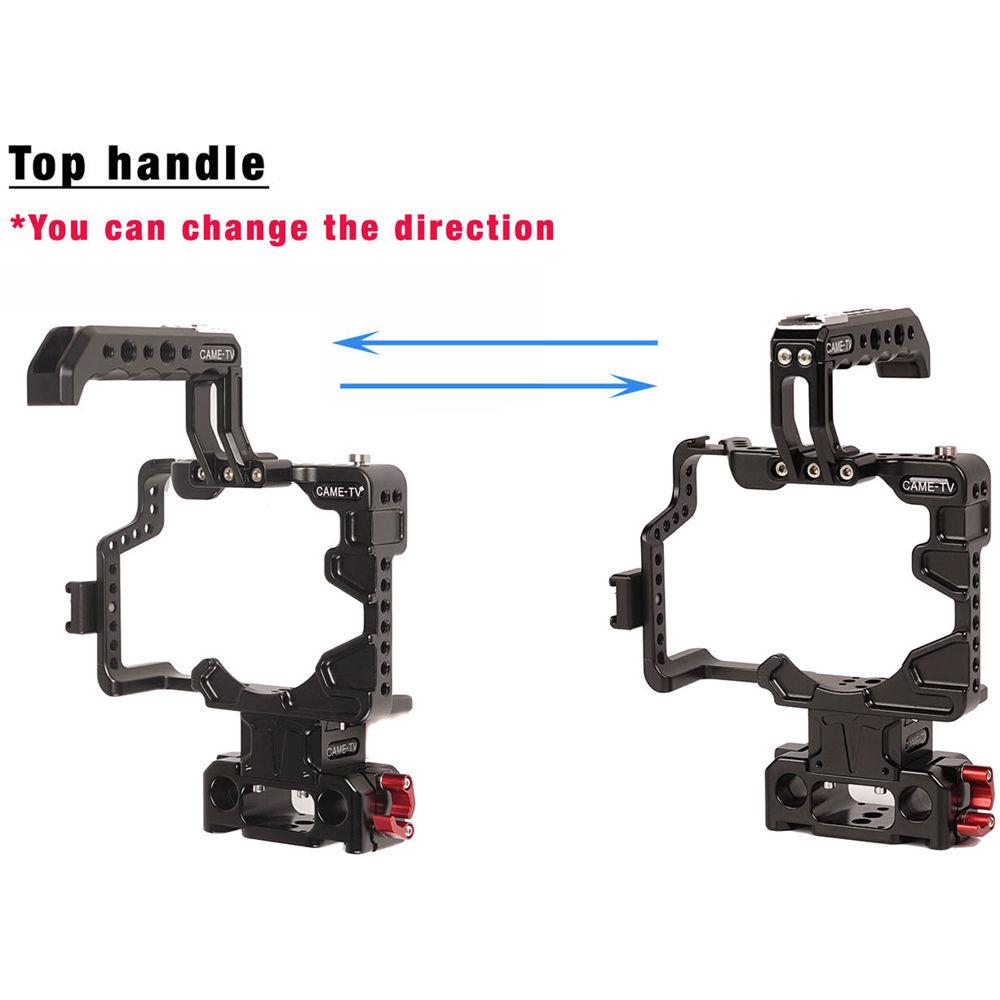

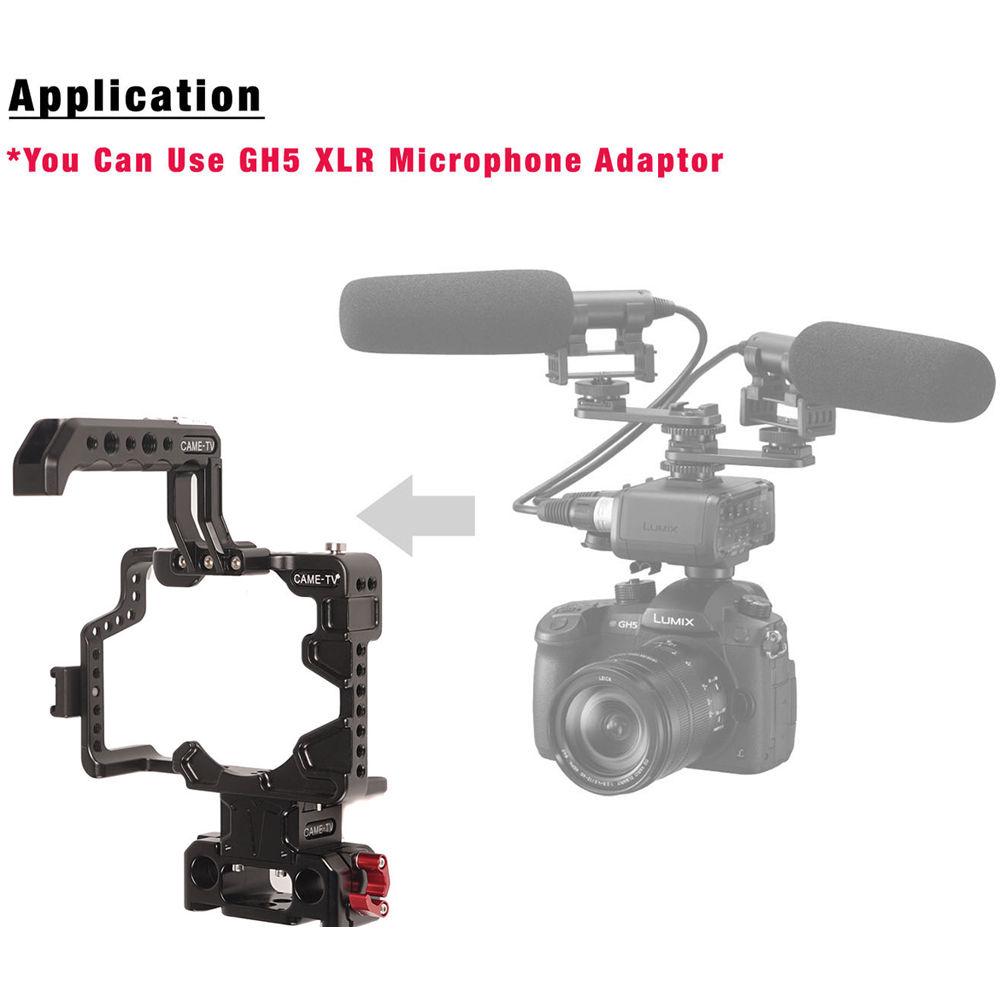

  • The reversible top handle mounts using cap head screws, and can be mounted either with the handle extending back away from the lens, or forward over the lens. Mounting the handle forward over the lens allows you to mount the optional Panasonic XLR microphone adapter.
  • Fifty-three 1/4"-20 and four 3/8"-16 threaded accessory mounting holes enable mounting accessories to your camera without stressing your camera's body.

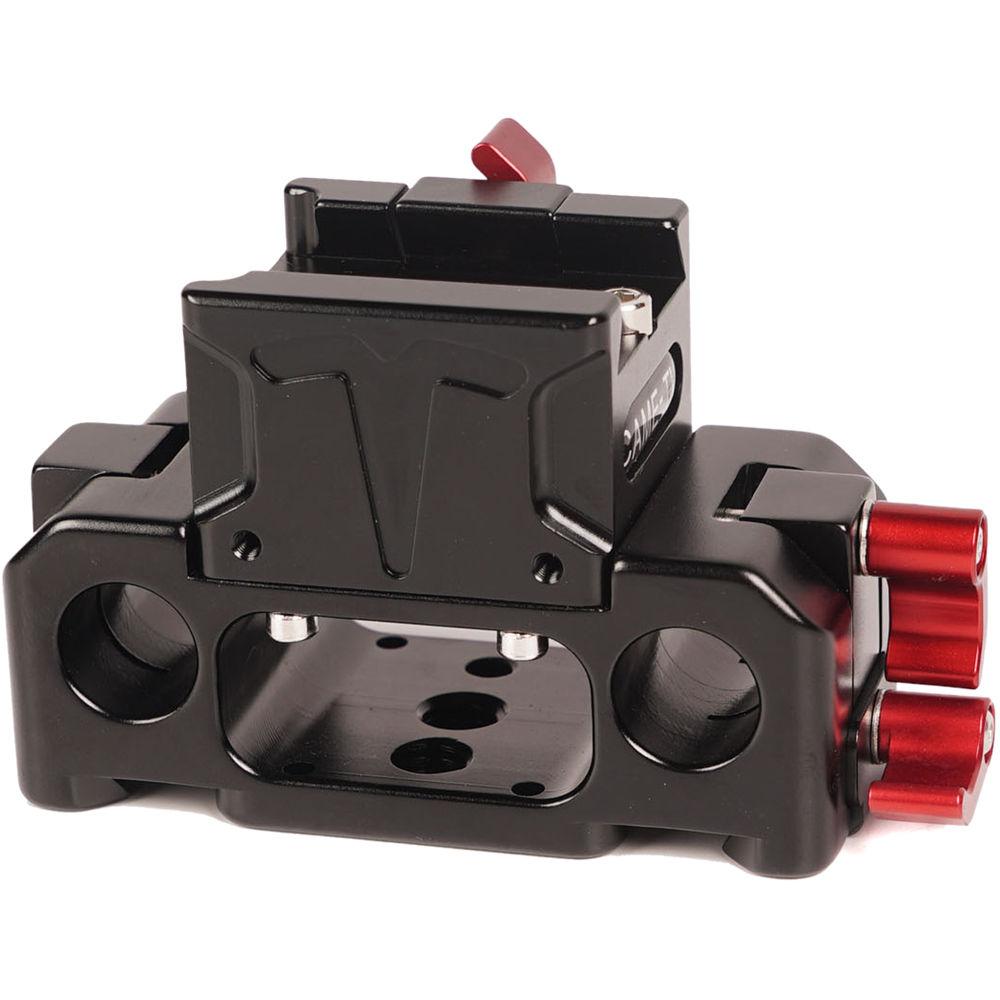

  • The cage uses a rail system to attach to the tripod adapter with built-in rod clamps.
  • Spring-loaded locking levers enable you to lock or loosen the cage's functions, even when there isn't enough room to fully rotate the lever.
  • The tripod adapter with built-in rod clamps allows you to mount 15mm support rods (not included), which enables using industry standard rod-mounted accessories.
  UPC: 614993188555
• ABS 4 x 4" Matte Box with Top & Side Flags This ABS 4 x 4" Matte Box from CAME-TV fits the Sony Alpha a7S and the Canon EOS 7D, 5D Mark II, and 5D Mark III cameras. It mounts onto lenses up to 110mm in diameter and includes two 4 x 4" filter holders, as well as removable top and side flags that can be precisely set and locked to prevent stray light from hitting your lens and flaring your image. Height adjustability of up to ±0.79" ensures accurate alignment of the matte box to your camera lens.
• FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod The FF-01 Follow Focus from CAME-TV is a follow focus system with A/B hard stops for a 15mm rod system. The FF-01 is constructed of aluminum and has a bright white magnetic marking disk. It has a smooth, controlled operation; various clamp options; and four gear rings attachment sizes. UPC: 602766007479
• DSLR Universal Handle Grip for 15mm Rods Provided by third party: Designed ergonomically, the DSLR Universal Handle Grip is adjustable to fit most rigs and the comfortable hand grips provide support when shooting.

  Key Features
  • • 15mm rod holes
    • Tool-less fasteners
    • Universally adjustable
    • CNC machined aluminum
  UPC: 717080143427
• DSLR Shoulder Support for 15mm LWS Rod System The Came-TV DSLR Shoulder Support for 15mm LWS Rod System Provides comfort and support when using a shoulder rig that uses 15mm LWS rods. This shoulder supports slides onto your support rig and features a two-piece shoulder pad that rests on the front and back of your shoulder, preventing the hard metal rods of the rig from pressing down on your shoulder.

  Made from CNC Machined aluminum, the shoulder support balances strength and weight. The attached 15mm LWS rod clamps enable positioning of the support quickly and easily along your rig, and feature a spring-loaded locking lever so you can position the lever where you need it. UPC: 717080143410

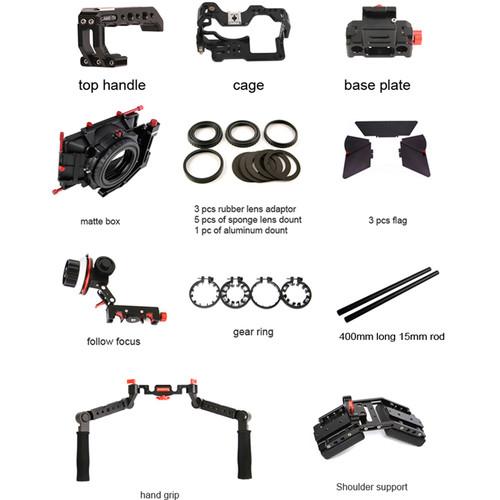

• Top Handle

• 15mm Rod Clamp

• Removable Cold Shoe

• Limited 1-Year Warranty

• Top Flag

• 2 x Side Flag

• 2 x 4 x 4" Filter Holder

• 3 x Rubber Lens Adapter

• 5 x Sponge Lens Donut

• Aluminum Donut

• Limited 1-Year Warranty

• 4 x Gear Rings

• Limited 1-Year Warranty

• Lock Wrench

• Limited 1-Year Warranty

Also Includes

• 2 x 15.75" Long 15mm Rod

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Protective Cage Plus for GH5

  Material of Construction	6061 aluminum
  Accessory Mounting	52 x 1/4"-20 threaded holes 4 x 3/8"-16 threaded holes
  Tripod Mounting Thread	1 x 1/4"-20 threaded holes 2 x 3/8"-16 threaded holes
  Rod Compatibility	15 mm
  Dimensions	11.02 x 8.66 x 3.54" / 28 x 22 x 9 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	10.0 x 8.0 x 3.3"

• ABS 4 x 4" Matte Box with Top & Side Flags

  Compatibility	Sony Alpha a7S Canon EOS 7D Canon EOS 5D Mark II Canon EOS 5D Mark III
  Material	ABS Plastic
  Height Adjustment	±0.79" / 2 cm
  Maximum Lens Diameter	110mm
  Filter	Holder: 4.00 x 4.00 x 0.12" / 10.16 x 10.16 x 0.30 cm
  Dimensions	9.80 x 7.00 x 2.75" / 25.0 x 18.0 x 7.0 cm
  Weight	Not Specified by Manufacturer

• FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod

  Included Drive Gear	0.8 MOD
  Rod Compatibility	15 mm LWS
  Number of Sides	Single-Sided
  Built-In Hardstops	2, Fixed
  Marking Disk	Yes
  Switchable Handwheel Speed	No
  Gear Material	Aluminum
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	11.35 x 7.65 x 4.05"

• DSLR Universal Handle Grip for 15mm Rods

  Accessory Type	Handle grip rod block

  Intended For	15 mm support rod system

  Box Dimensions (LxWxH)	8.504 x 7.874 x 3.071"

• DSLR Shoulder Support for 15mm LWS Rod System

  Material of Construction	Structure: Machined aluminum Shoulder Pads: Polyurethane
  Mounting	15mm LWS rods
  Dimensions	8.66 x 3.54 x 4.13" / 22.0 x 9.0 x 10.5 cm
  Weight	1.1 lb / 0.5 kg

  Box Dimensions (LxWxH)	10.0 x 8.1 x 3.8"
