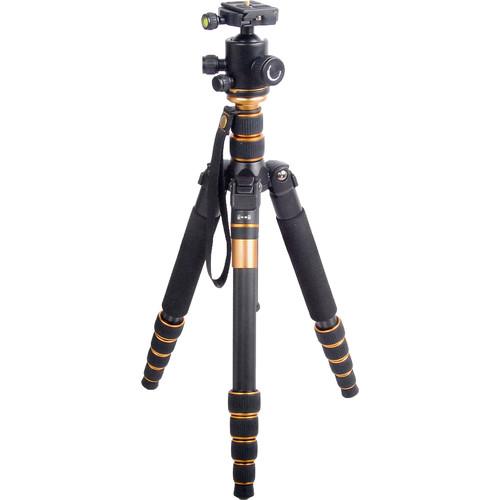

User Manual for CAME-TV Q66C Carbon Fiber Tripod with Ball Head Click to enlarge the picture
Contents of the user manual for the CAME-TV Q66C Carbon Fiber Tripod with
- Product category: Tripods with Heads CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Tripods with Heads
|
User manual for the CAME-TV Q66C Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More yyccsycyrqtczxtv Ideal for travel or on-the-go photographers, the Q66C Carbon Fiber Tripod with Ball Head from Came-TV is a versatile compact tripod that folds down to just 13.8" thanks to reverse-folding legs. The tripod extends from 14.2 to 60.6" and can hold up to 17.6 lb. The 8-layer carbon fiber legs lend to the overall light weight of the tripod, just 2.9 lb including the ball head.
The five-section legs have twist locks to individually adjust their height, and one of the legs can be removed to be used as a monopod. The included ball head has an Arca-style quick-release clamp and plate, separate locks for the ball and panning motions, and multiple bubble levels for properly aligned images. - Center Column
- The center column has two sections, allowing it to extend while remaining compact when it is retracted. It can also be reversed to get the camera down low.
- Ballast Hook
- You can add a weight or heavy bag to the hook on the bottom of the center column for additional stability.
- Included Cases
- A camouflage carrying case protects the tripod when in transport, and a separate case protects the ball head, on or off the tripod. A waist bag and wrist strap are also included.
UPC: 602668719678 In the Box CAME-TV Q66C Carbon Fiber Tripod with Ball Head Tripod Case Ball Head Case Waist Case Hex Key Wrist Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Q66C Carbon Fiber Tripod with Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV Q66C Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Independent Pan Lock | Yes | | Ball Sphere Diameter | 1.4" / 36 mm | | | | Load Capacity | 17.6 lb / 8 kg | | Maximum Working Height | 60.6" / 154 cm | | Minimum Working Height | 14.2" / 36 cm | | Folded Length | 13.8" / 35 cm | | Materials | Carbon Fiber | | Weight | 2.9 lb / 1.3 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Leg Diameter | 1" / 25 mm | | Bubble Level | No | | | | Center Column Features | Ballast Hook, Reversible | | Center Column Shape | Round | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 15.3 x 5.0 x 4.5" |
