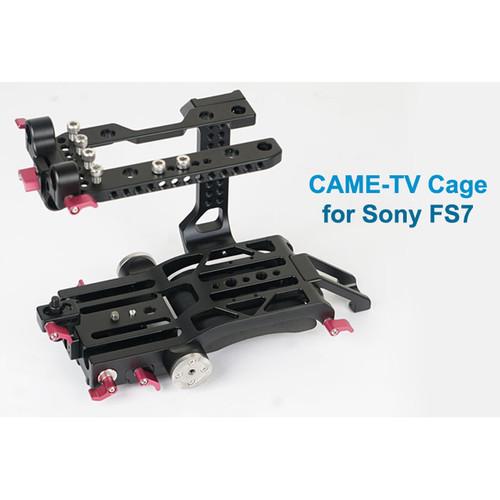

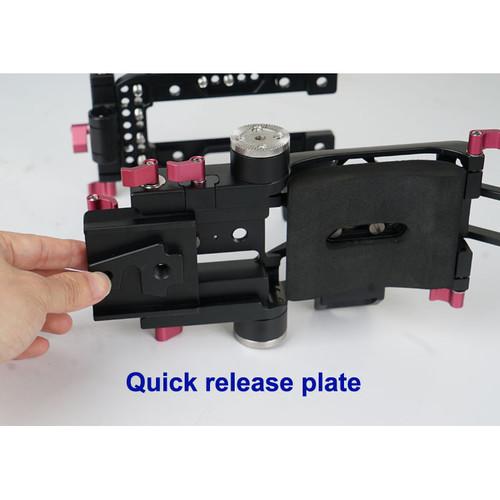

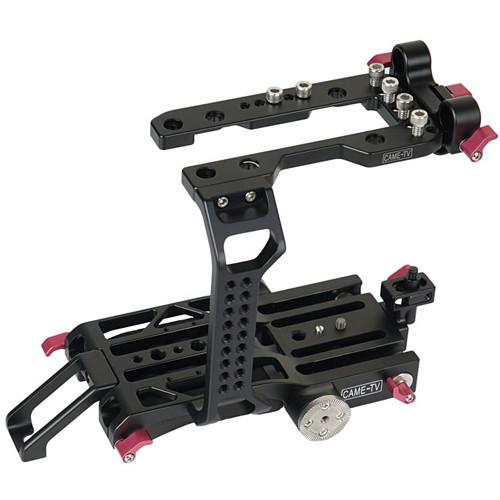

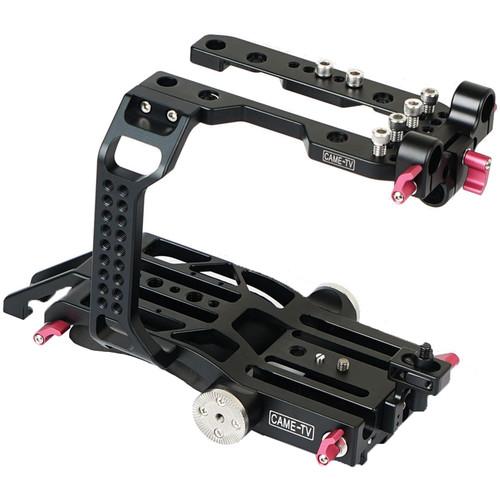

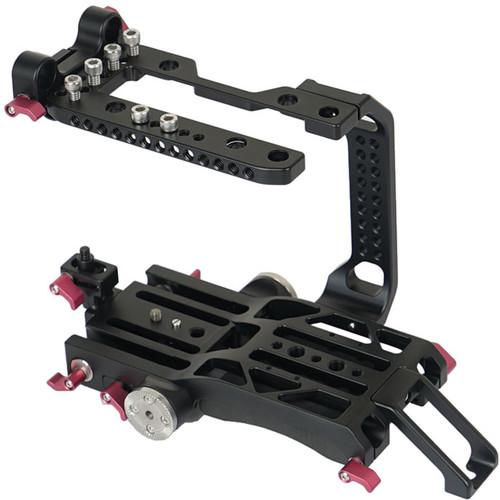

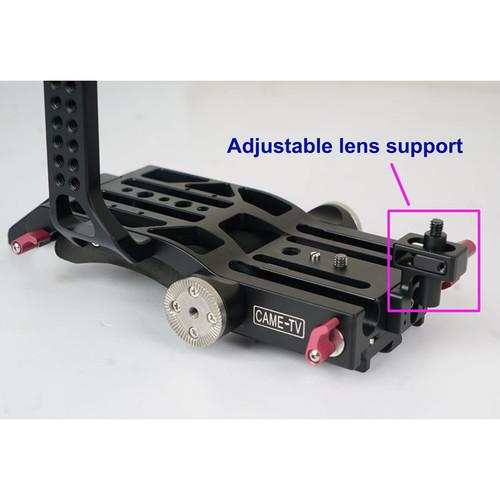

Product description Tailored to fit Sony's FS7, this Rig Cage from CAME-TV expands both your camera mounting and accessory mounting options. The custom rig is comprised of a 15mm LWS rod baseplate, side arm, and top plate with 15mm rod clamp. In addition to front and rear 15mm rod clamps, the baseplate features rosettes on either side for attaching optional handgrips and an adjustable lens support. An integrated support pad at the bottom of the baseplate facilitates shoulder-mounted shooting, while an included quick release plate provides 1/4"-20 and 3/8"-16 mounting threads, as well as a V-lock interface for direct attachment to VCT-style tripod plates.

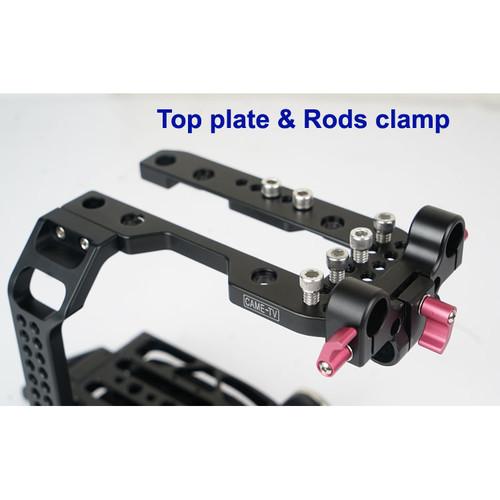

For accessory mounting, you'll find eighteen 1/4"-20 threaded holes on the side arm, with additional threaded holes on the top plate. The top plate bolts directly on top of the camera and allows for continued use of the FS7's top handle assembly. An included 15mm rod clamp attaches to the front of the top plate to not only support a pair of 15mm rods at the top of the rig, but also a single 15mm rod oriented perpendicularly to the camera, particularly useful for mounting optional EVF/monitor support arms. Note: This cage is only suitable for a Sony PXW-FS7 with the original top handle. UPC: 602766007486 In the Box CAME-TV Rig Cage for Sony PXW-FS7 Camera 15mm Baseplate Top Plate 15mm Clamp Side Bracket Adapter Ring Bracket V-Lock Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Rig Cage for Sony PXW-FS7 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV HT-FS7-2 Specs | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 12.4 x 9.3 x 3.1" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
