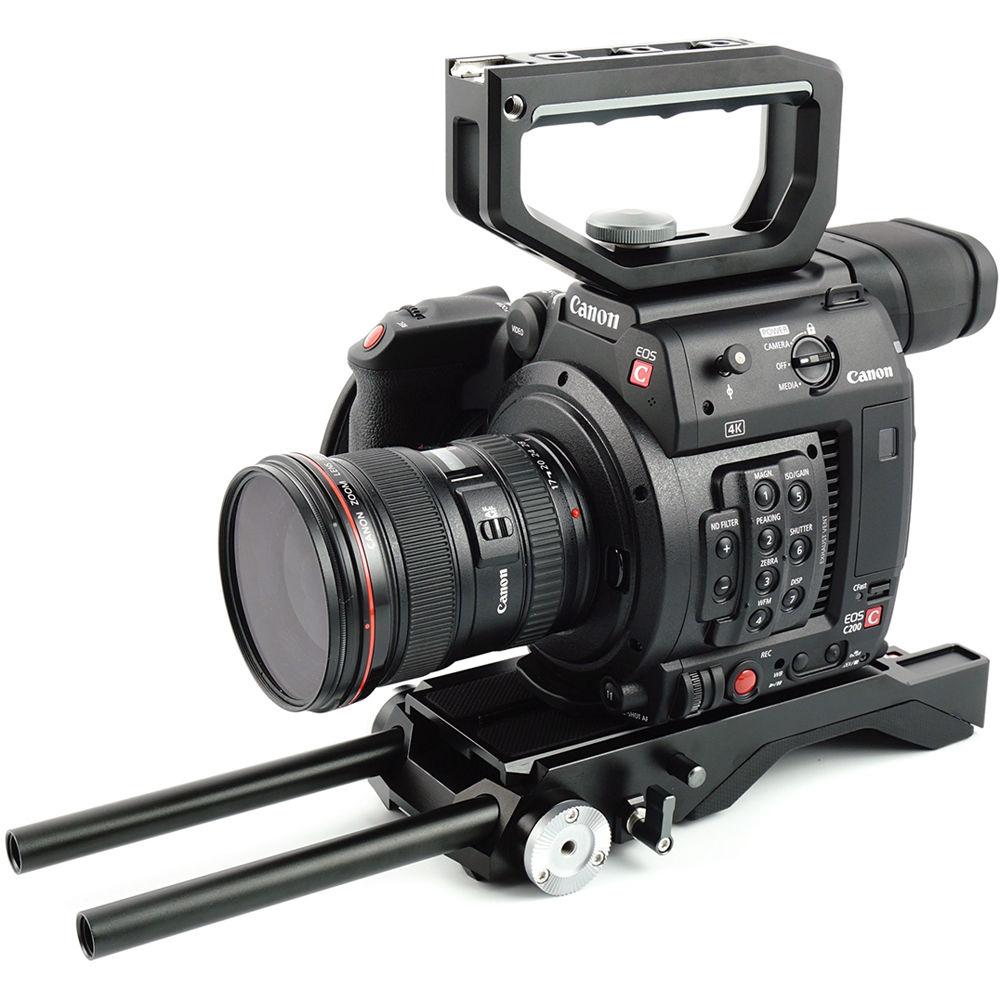

Product description Built for the Canon C200 but compatible with ARRI, RED, Panasonic, Sony, Blackmagic Design, Canon, and other cinema cameras, the CAME-TV Shoulder Rig for Canon EOS C200 provides mounting and support flexibility to your camera system. The baseplate mounts onto a VCT-14 compatible plate, and it incorporates its own sliding camera plate that allows you to balance your camera on the tripod for optimal operation. The built-in shoulder pad allows you to go from tripod to shoulder mount without having to add or remove any accessories.

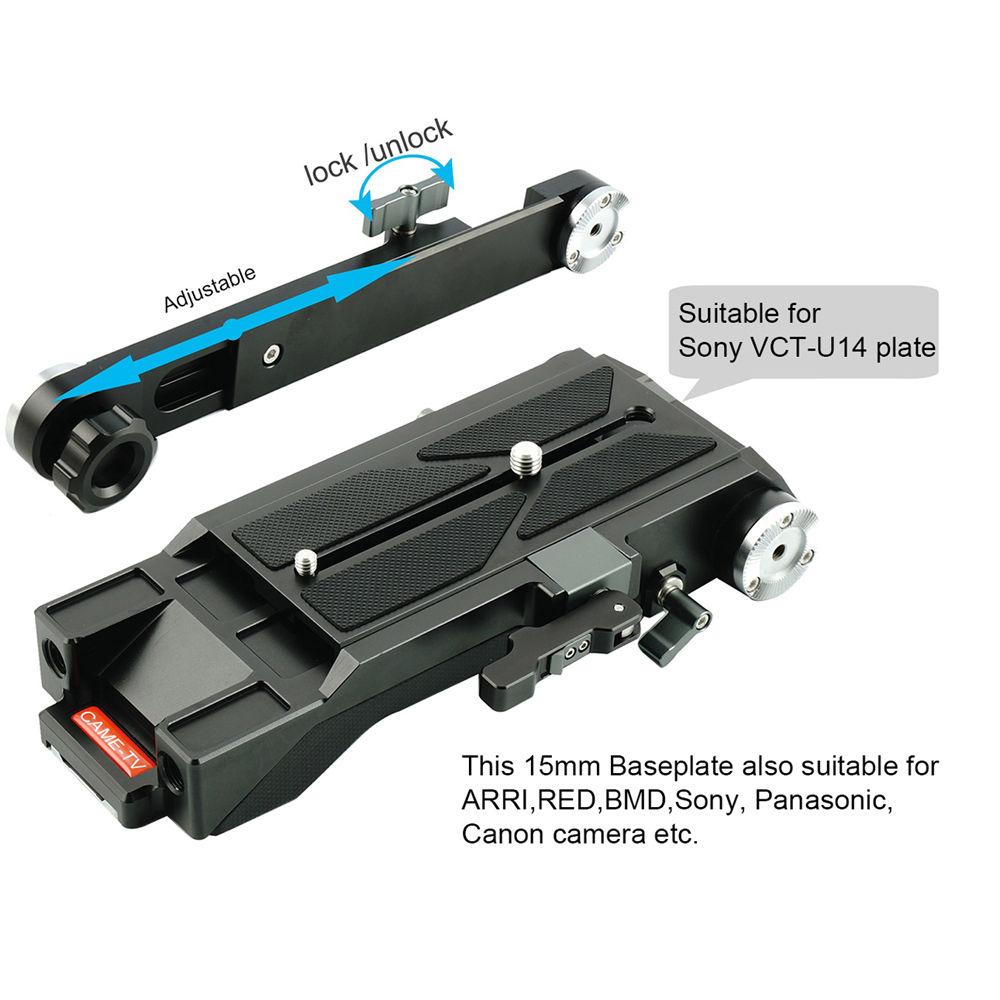

The baseplate also incorporates an LWS 15mm rod clamp in the front for the included 7.9"-long 15mm rods, and threaded holes for the included shorter 15mm threaded rods in the rear. The extension arm connects to the rosettes mounted on either side of the baseplate and allows you to connect a handgrip and position it for your comfort. The included top handle attaches to the top of your camera, providing a comfortable way to carry your camera when shooting low-angle shots or when just keeping it at the ready. - The sliding camera plate features approximately 4" of travel, which allows you to balance your camera on a tripod or adjust the position of the shoulder pad forward and back relative to the camera for your comfort.
- The camera plate features a slot for the included 1/4"-20 and 3/8"-16 captive camera tie-down screws. This slot allows you to adjust the position of your camera on the camera plate for balance and comfort.
- The rosettes built into the baseplate feature M6 threaded mounting holes and are ARRI compatible.
- The top handle attaches via a 1/4"-20 threaded mounting screw, proving a wide range of compatibility.
UPC: 614993189729 In the Box CAME-TV Shoulder Rig for Canon EOS C200 15mm Quick Release Baseplate Top Handle Extension Arm 2 x 15mm Rod (7.9") 2 x 15mm Rod (3.9") TRS Cable (Male and Female Ends) 3 x Allen Key 2 x Screw Stubby Screwdriver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Shoulder Rig for Canon EOS C200 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV C200-PK01 Specs | Mounting | Baseplate: VCT-14 Compatible
Camera Plate: 1/4"-20 and 3/8"-16 Tie-Down Screws
Rosettes: M6 Threaded Mounting Hole (ARRI Compatible)
Top Handle: 1/4"-20 Threaded Mounting Screw | | Rod Support | 15 mm LWS Rod Clamp
2 x Threaded 15 mm Rod Receivers | | Material of Construction | Magnesium Alloy, Copper, Stainless Steel, Rubber | | Weight | Baseplate: 33.9 oz / 960 g
Top Handle: 11.8 oz / 335 g
Extension Arm: 10.2 oz / 290 g | | | | Package Weight | 5.33 lb | | Box Dimensions (LxWxH) | 14.6 x 13.7 x 4.0" |
