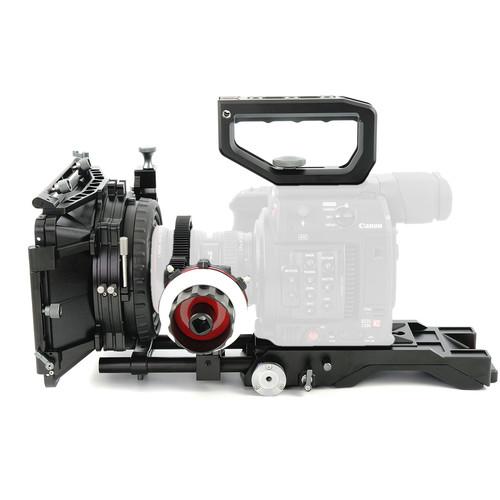

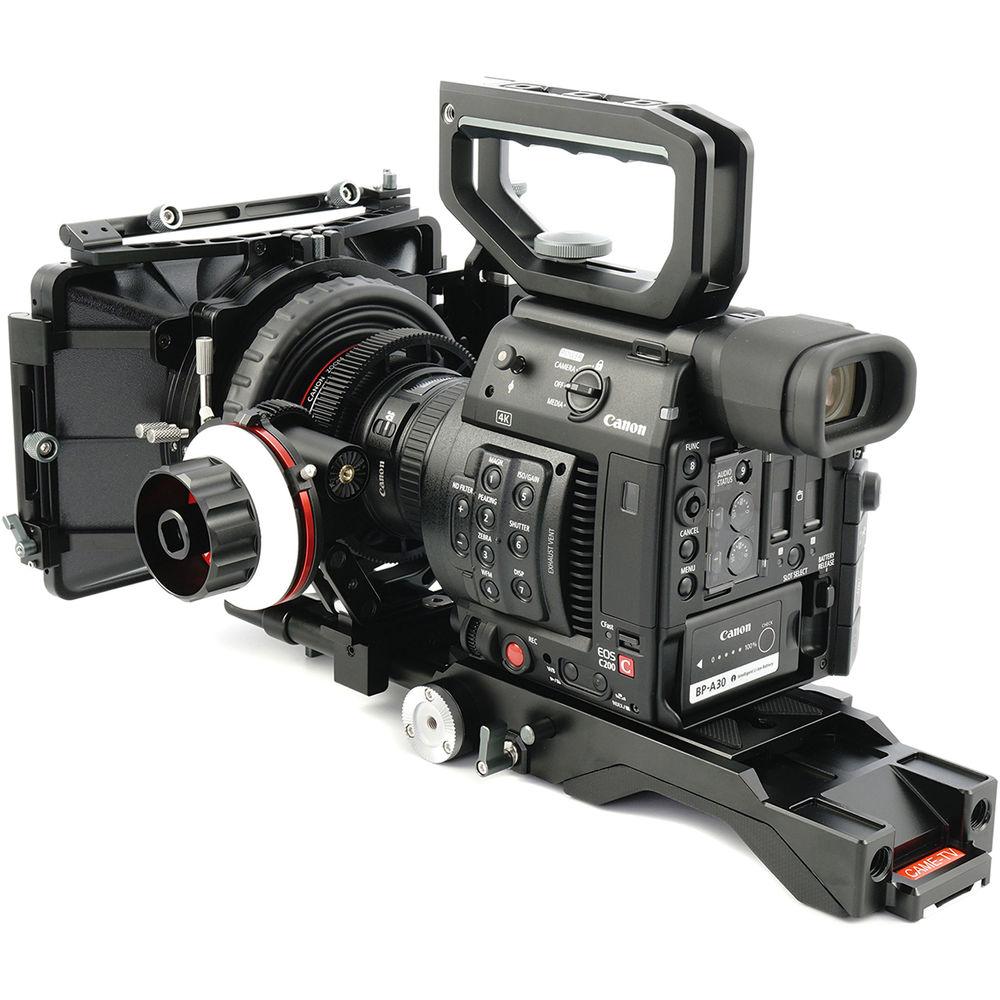

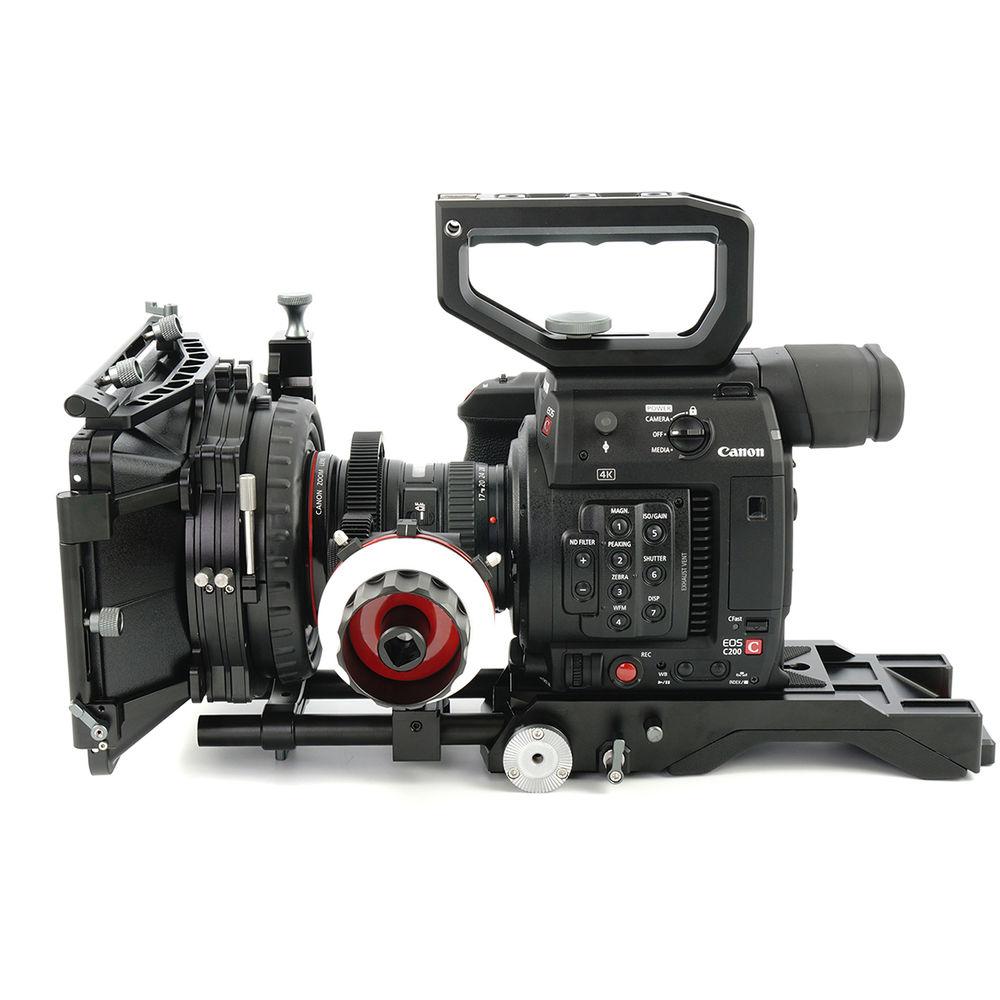

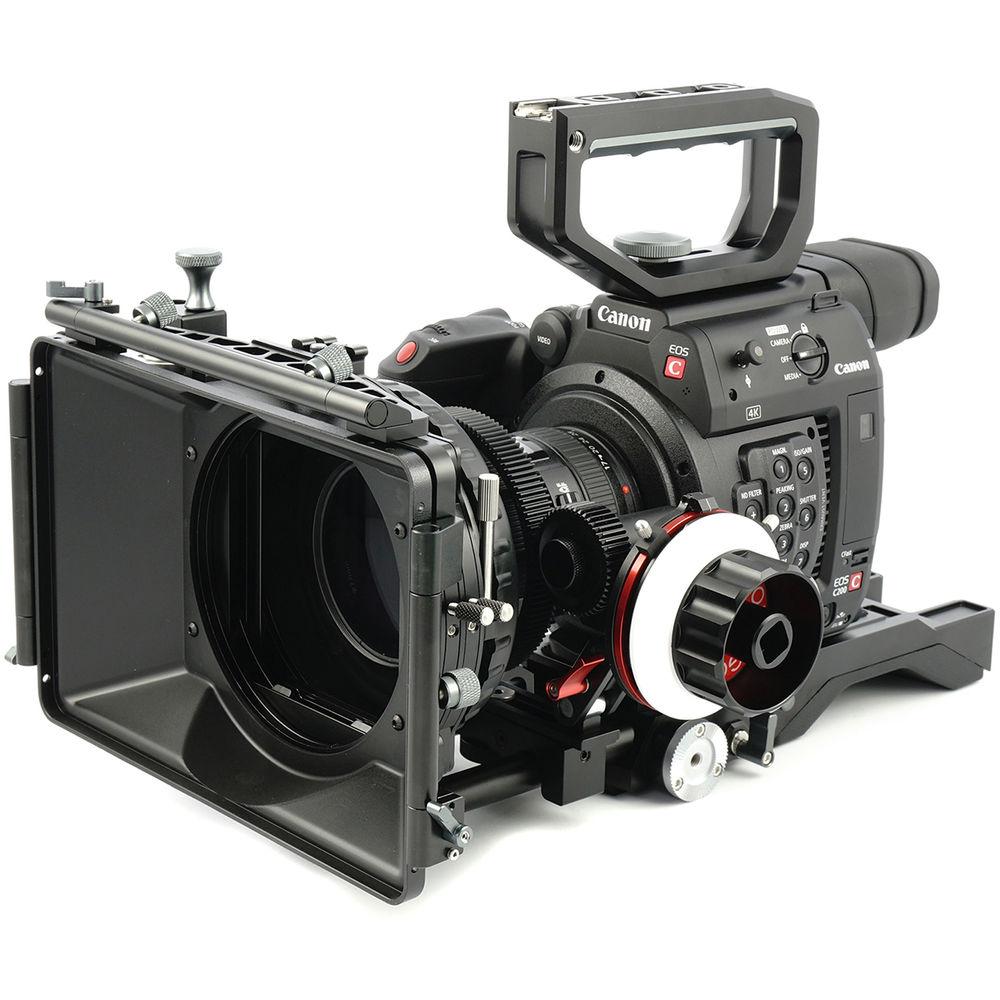

CAME-TV Shoulder Rig with Matte Box

User Manual for CAME-TV Shoulder Rig with Matte Box and Follow Focus for Canon EOS C200

• Product category: Camcorder Supports & Rigs CAME-TV
• Brand: CAME-TV
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CAME-TV Camcorder Supports & Rigs

Product description

• Shoulder Rig for Canon EOS C200 Built for the Canon C200 but compatible with ARRI, RED, Panasonic, Sony, Blackmagic Design, Canon, and other cinema cameras, the CAME-TV Shoulder Rig for Canon EOS C200 provides mounting and support flexibility to your camera system. The baseplate mounts onto a VCT-14 compatible plate, and it incorporates its own sliding camera plate that allows you to balance your camera on the tripod for optimal operation. The built-in shoulder pad allows you to go from tripod to shoulder mount without having to add or remove any accessories.

  The baseplate also incorporates an LWS 15mm rod clamp in the front for the included 7.9"-long 15mm rods, and threaded holes for the included shorter 15mm threaded rods in the rear. The extension arm connects to the rosettes mounted on either side of the baseplate and allows you to connect a handgrip and position it for your comfort. The included top handle attaches to the top of your camera, providing a comfortable way to carry your camera when shooting low-angle shots or when just keeping it at the ready.
  • The sliding camera plate features approximately 4" of travel, which allows you to balance your camera on a tripod or adjust the position of the shoulder pad forward and back relative to the camera for your comfort.
  • The camera plate features a slot for the included 1/4"-20 and 3/8"-16 captive camera tie-down screws. This slot allows you to adjust the position of your camera on the camera plate for balance and comfort.
  • The rosettes built into the baseplate feature M6 threaded mounting holes and are ARRI compatible.
  • The top handle attaches via a 1/4"-20 threaded mounting screw, proving a wide range of compatibility.
  UPC: 614993189729
• ABS 4 x 4" Matte Box with Top & Side Flags This ABS 4 x 4" Matte Box from CAME-TV fits the Sony Alpha a7S and the Canon EOS 7D, 5D Mark II, and 5D Mark III cameras. It mounts onto lenses up to 110mm in diameter and includes two 4 x 4" filter holders, as well as removable top and side flags that can be precisely set and locked to prevent stray light from hitting your lens and flaring your image. Height adjustability of up to ±0.79" ensures accurate alignment of the matte box to your camera lens.
• FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod The FF-01 Follow Focus from CAME-TV is a follow focus system with A/B hard stops for a 15mm rod system. The FF-01 is constructed of aluminum and has a bright white magnetic marking disk. It has a smooth, controlled operation; various clamp options; and four gear rings attachment sizes. UPC: 602766007479

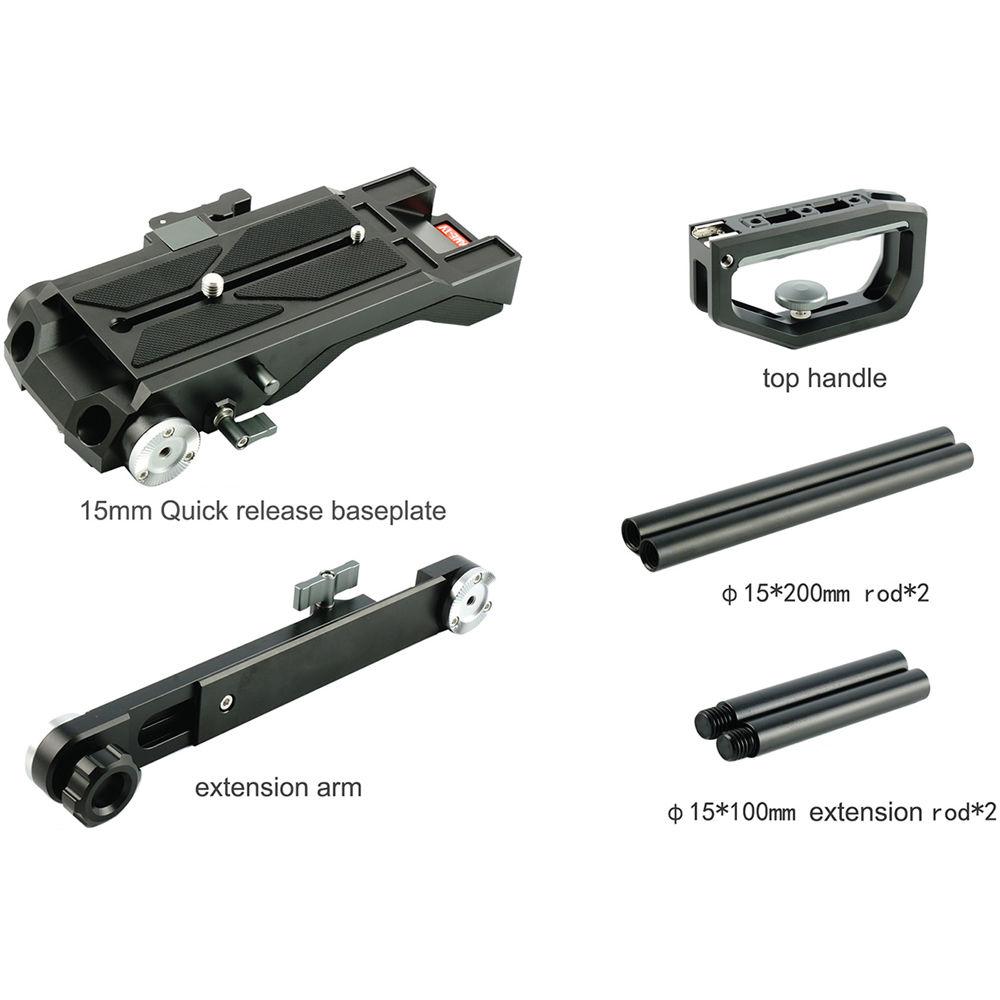

• 15mm Quick Release Baseplate

• Top Handle

• Extension Arm

• 2 x 15mm Rod (7.9")

• 2 x 15mm Rod (3.9")

• TRS Cable (Male and Female Ends)

• 3 x Allen Key

• 2 x Screw

• Stubby Screwdriver

• Limited 1-Year Warranty

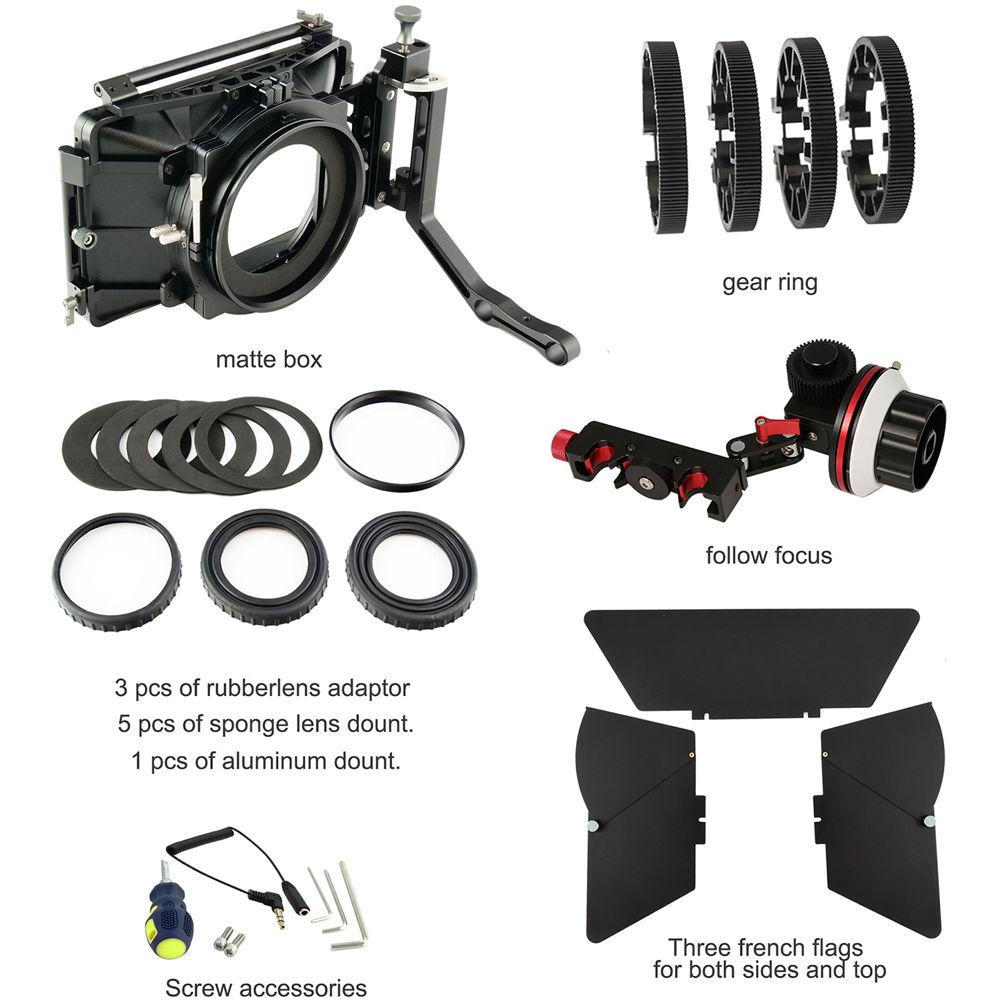

• Top Flag

• 2 x Side Flag

• 2 x 4 x 4" Filter Holder

• 3 x Rubber Lens Adapter

• 5 x Sponge Lens Donut

• Aluminum Donut

• Limited 1-Year Warranty

• 4 x Gear Rings

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shoulder Rig for Canon EOS C200

  Mounting	Baseplate: VCT-14 Compatible Camera Plate: 1/4"-20 and 3/8"-16 Tie-Down Screws Rosettes: M6 Threaded Mounting Hole (ARRI Compatible) Top Handle: 1/4"-20 Threaded Mounting Screw
  Rod Support	15 mm LWS Rod Clamp 2 x Threaded 15 mm Rod Receivers
  Material of Construction	Magnesium Alloy, Copper, Stainless Steel, Rubber
  Weight	Baseplate: 33.9 oz / 960 g Top Handle: 11.8 oz / 335 g Extension Arm: 10.2 oz / 290 g

  Box Dimensions (LxWxH)	14.6 x 13.7 x 4.0"

• ABS 4 x 4" Matte Box with Top & Side Flags

  Compatibility	Sony Alpha a7S Canon EOS 7D Canon EOS 5D Mark II Canon EOS 5D Mark III
  Material	ABS Plastic
  Height Adjustment	±0.79" / 2 cm
  Maximum Lens Diameter	110mm
  Filter	Holder: 4.00 x 4.00 x 0.12" / 10.16 x 10.16 x 0.30 cm
  Dimensions	9.80 x 7.00 x 2.75" / 25.0 x 18.0 x 7.0 cm
  Weight	Not Specified by Manufacturer

• FF-01 Follow Focus System with A/B Hard Stops for 15mm Rod

  Construction	Aluminum
  Backlash	< 0.5 mm
  Gear Pitch	0.8
  Gears	60 mm 70 mm 80 mm 90 mm
  Weight	1.8 lb (0.8 kg)

  Box Dimensions (LxWxH)	11.35 x 7.65 x 4.05"
