User Manual for CAME-TV Shoulder Rig with Matte Box and Follow Focus for Panasonic EVA1 Click to enlarge the picture
Contents of the user manual for the CAME-TV Shoulder Rig with Matte Box
- Product category: Camcorder Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Camcorder Supports & Rigs
 |
User manual for the CAME-TV Shoulder Rig with Matte Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

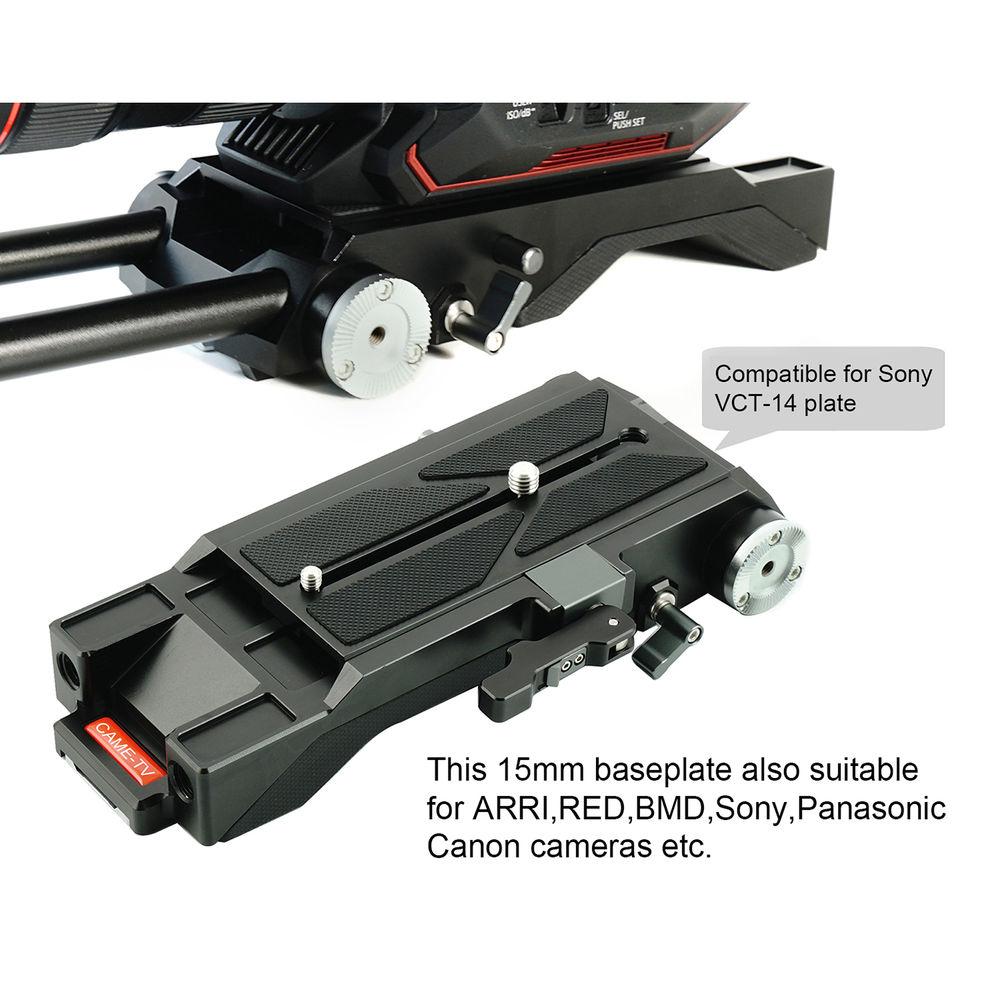

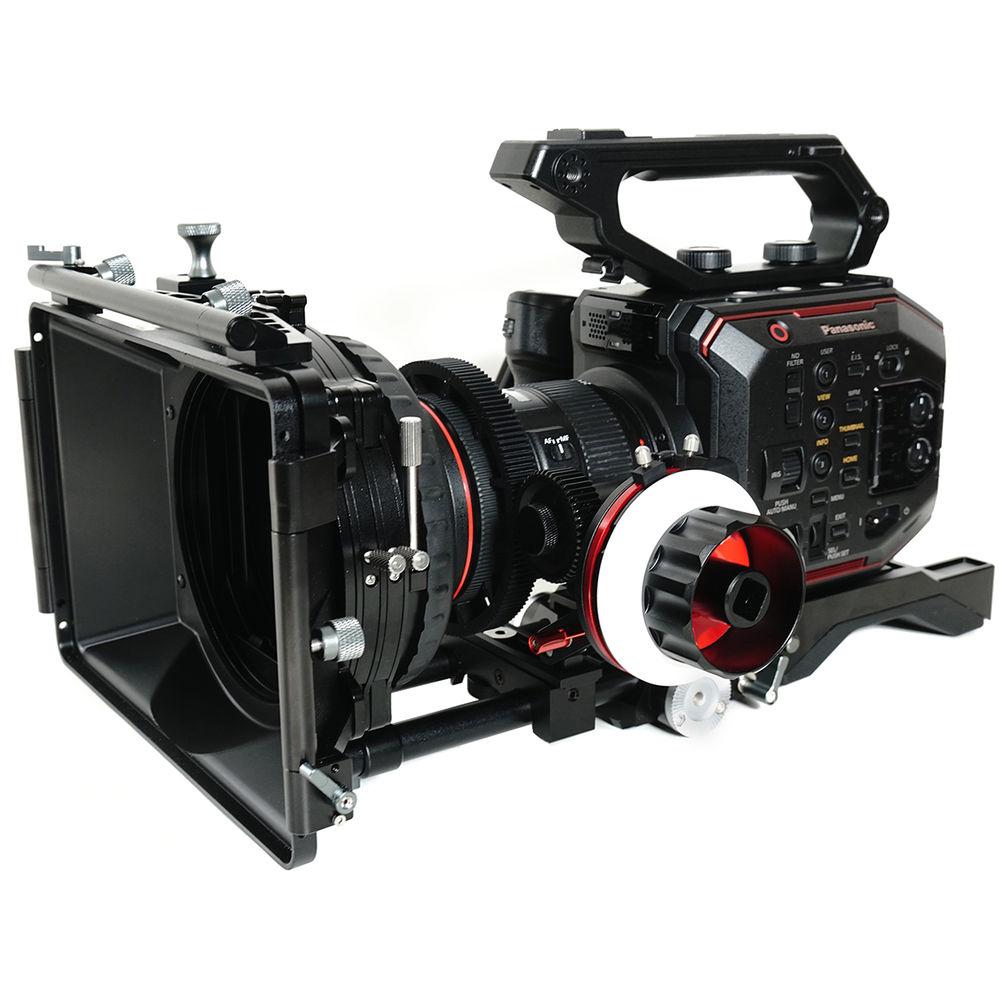

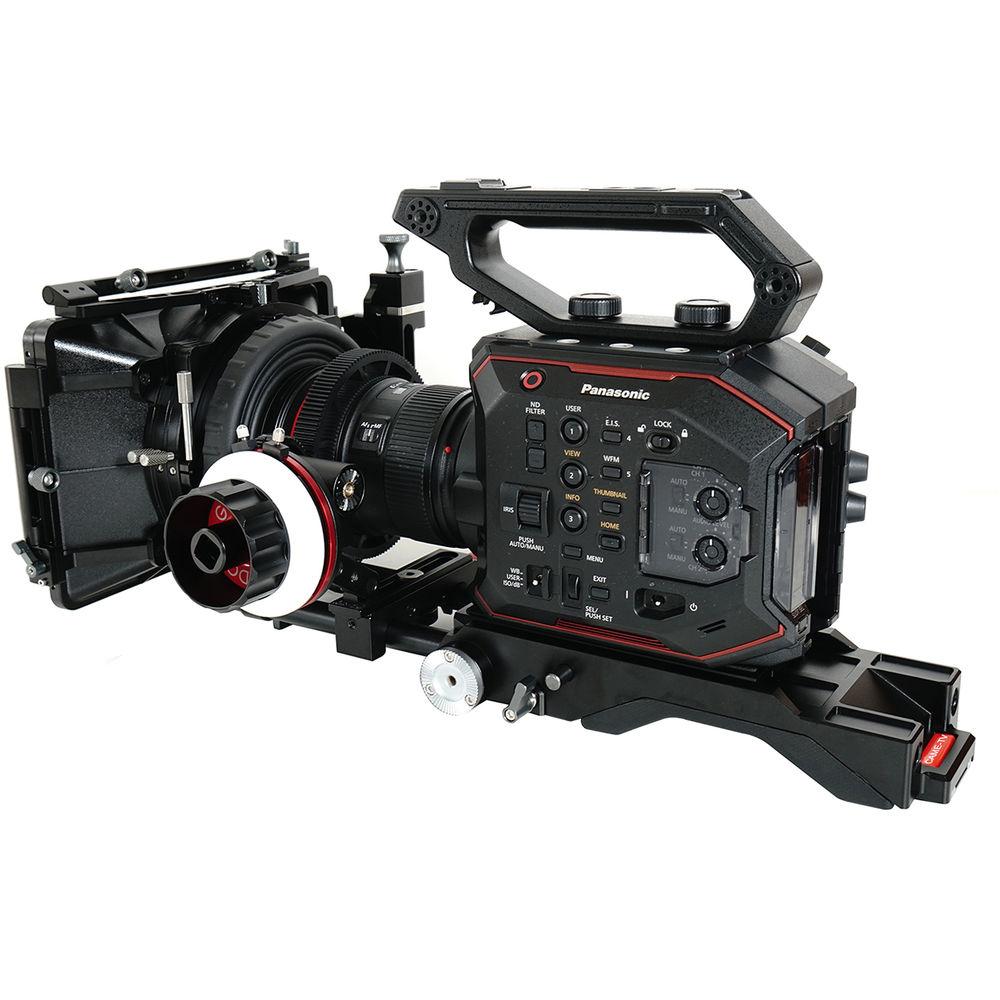

Product description The Shoulder Rig with Matte Box and Follow Focus from CAME-TV is designed for the Panasonic EVA1 and is constructed from sturdy magnalium. At the base of the rig is a quick release baseplate with 15mm rod ports, one rosette mount on each side, and an integrated shoulder pad. Two adjustable 7.8" 15mm rods with threaded ends run through the base, and it has a 3/8"-16 mounting thread on the bottom for tripod mounting. The camera plate includes 1/4"-20 and 3/8"-16 mounting screws.

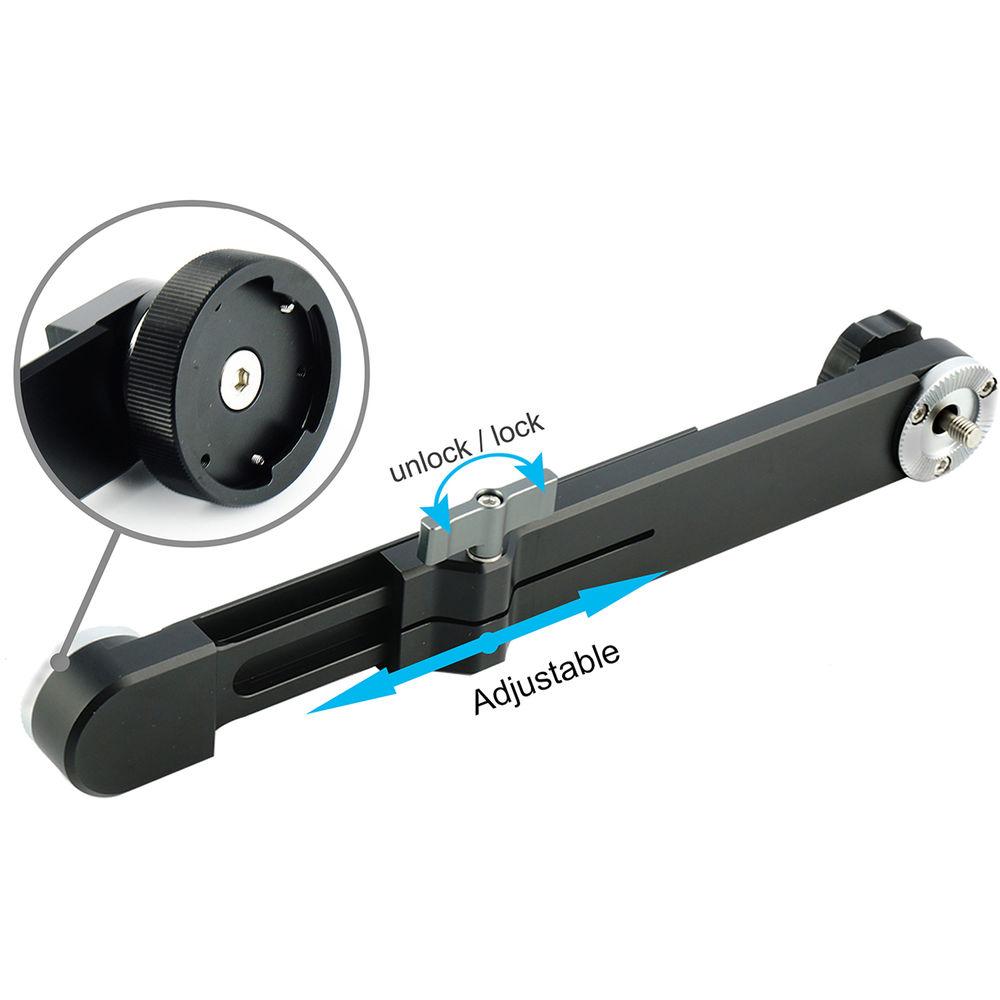

This shoulder rig further enhances your production by providing you with a follow focus system with multiple gear rings. The matte box has a 110mm opening and includes foam lens donuts and lens adapters to fit a variety of lenses, and it comes with two side flags and a top flag. Also included is an extension arm that allows you to attach a separately available handle or handgrip to your rig using one of the two rosette mounts.

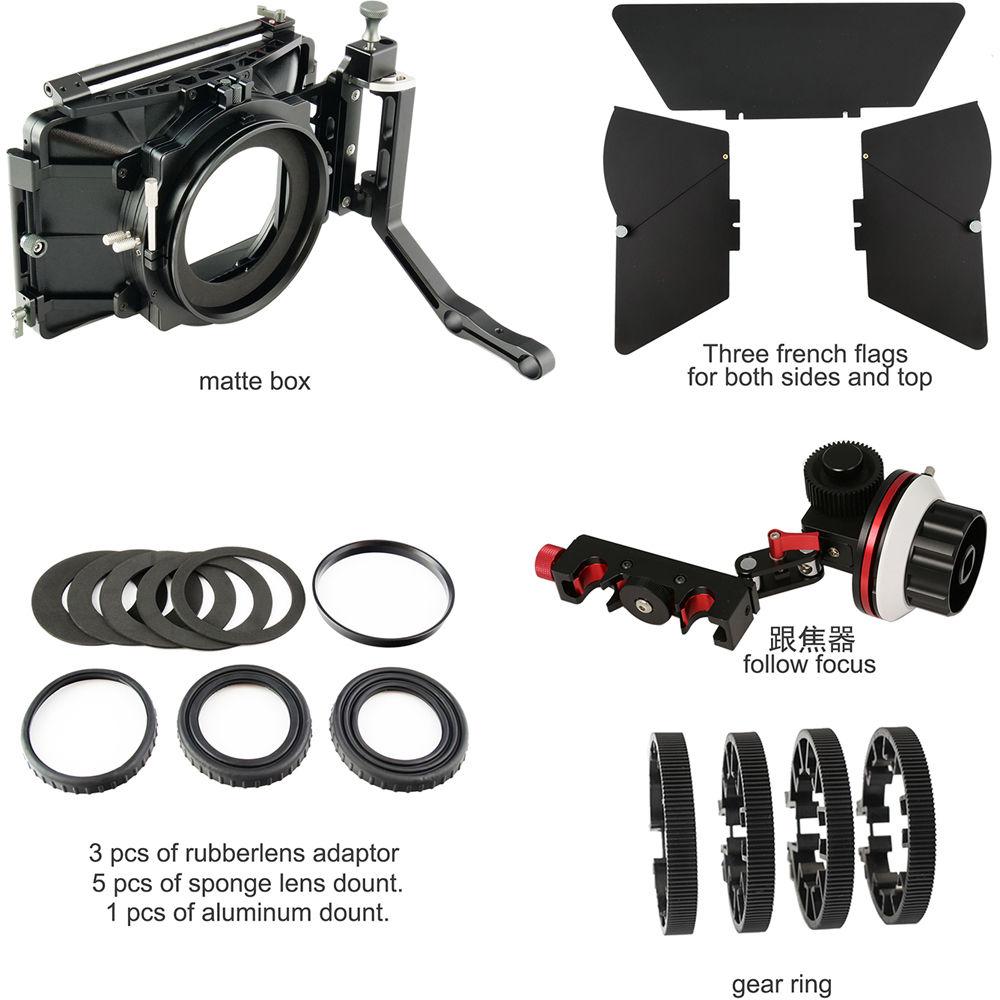

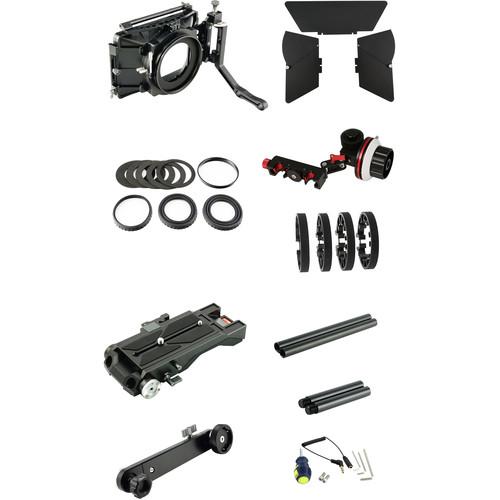

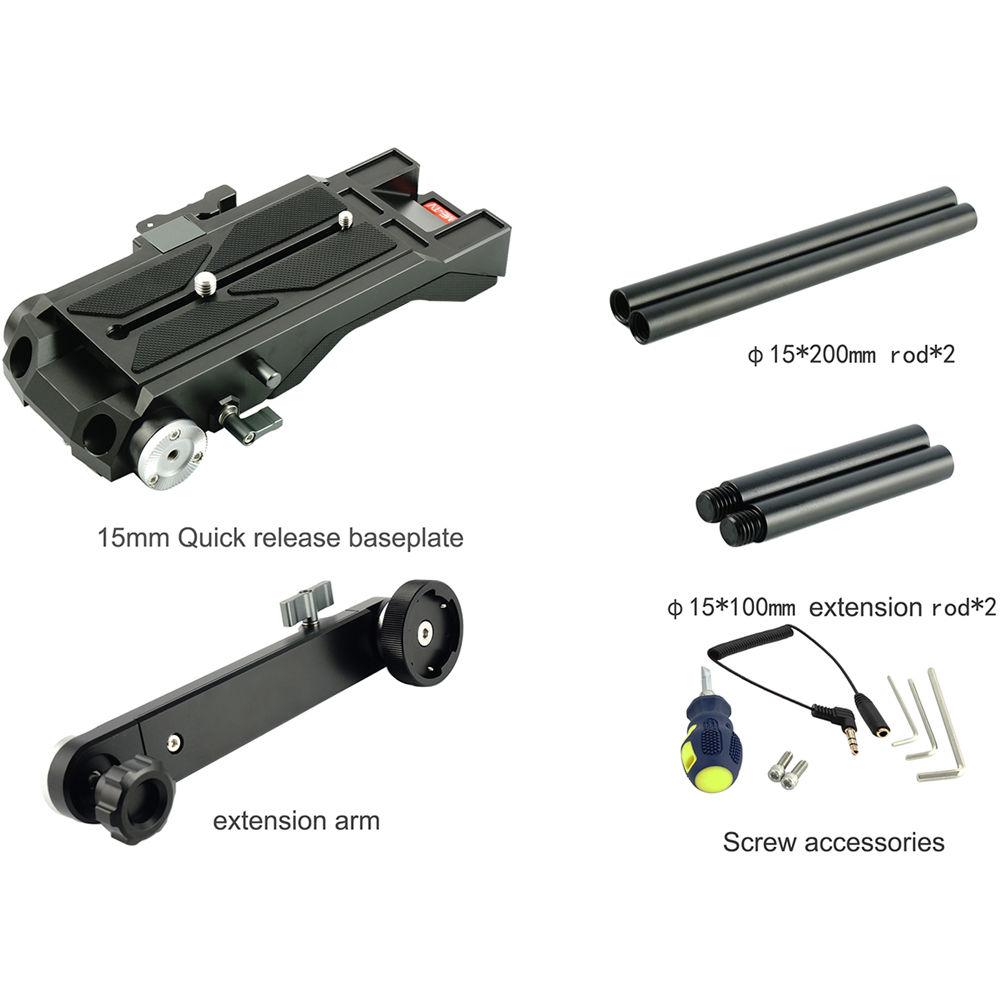

Two 4"-long 15mm threaded rod extensions are also included if you want to extend your rig for more accessories. A hardware kit is also included to assemble the rig. In the Box CAME-TV Shoulder Rig with Matte Box and Follow Focus for Panasonic EVA1 Matte Box 2 x Side Flag Top Flag Follow Focus 3 x Rubber Lens Adapter 2 x Sponge Lens Donut Aluminum Lens Donut 4 x Gear Ring Quick Release Baseplate 2 x 15mm Rod (7.8") 2 x 15mm Extension Rod (4") Extension Arm 3 x Allen Wrench 2 x Screw Screwdriver Headphone Extension Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Shoulder Rig with Matte Box and Follow Focus for Panasonic EVA1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV EVA1-KT03 Specs | Material of Construction | Magnalium | | Rod Compatibility | 15 mm | | Lens Opening | Matte Box: 4.3" / 110 mm | | Mounting Options | 1 x 3/8"-16 Thread
1 x V-Lock Mount | | Camera Mounting Screws | 1 x 3/8"-16
1 x 1/4"-20 | | Accessory Mount Type | 2 x Rosettes (for Extension Arms or Handgrips) | | Dimensions | Assembled: 21 x 15 x 11" / 53 x 38 x 27 cm | | Weight | 11 lb / 5 kg |
