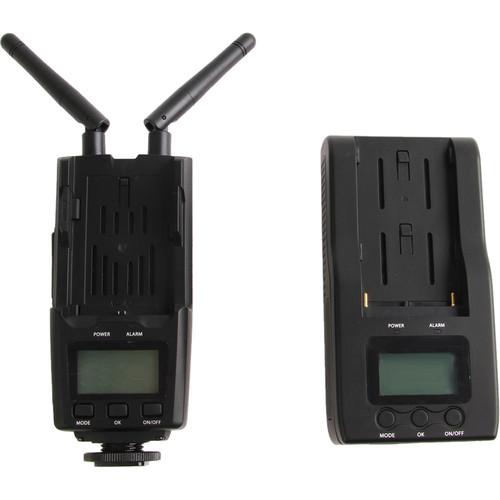

Product description The SP01 100m Wireless HD Video Transmitter and Receiver Set from CAME-TV allows you to connect your DSLR/DV camera to a recording device without the use of cable. It supports 1080p @ 60 Hz video display with low latency and offers an effective line-of-sight transmission up to 260 ft. - Wireless HD video transmission for DSLR/DV
- Supports 1080p @ 60 Hz video display with low latency
- Full hardware for plug-and-play, no software needed
- Up to 260' effective line-of-sight range
- Supports external Li-ion battery power for mobile convenience
- Supports hot shoe installation with1/4"-20 screw nut
- Supports audio input from external microphone
- High-quality LCD screen display signal and battery status of product

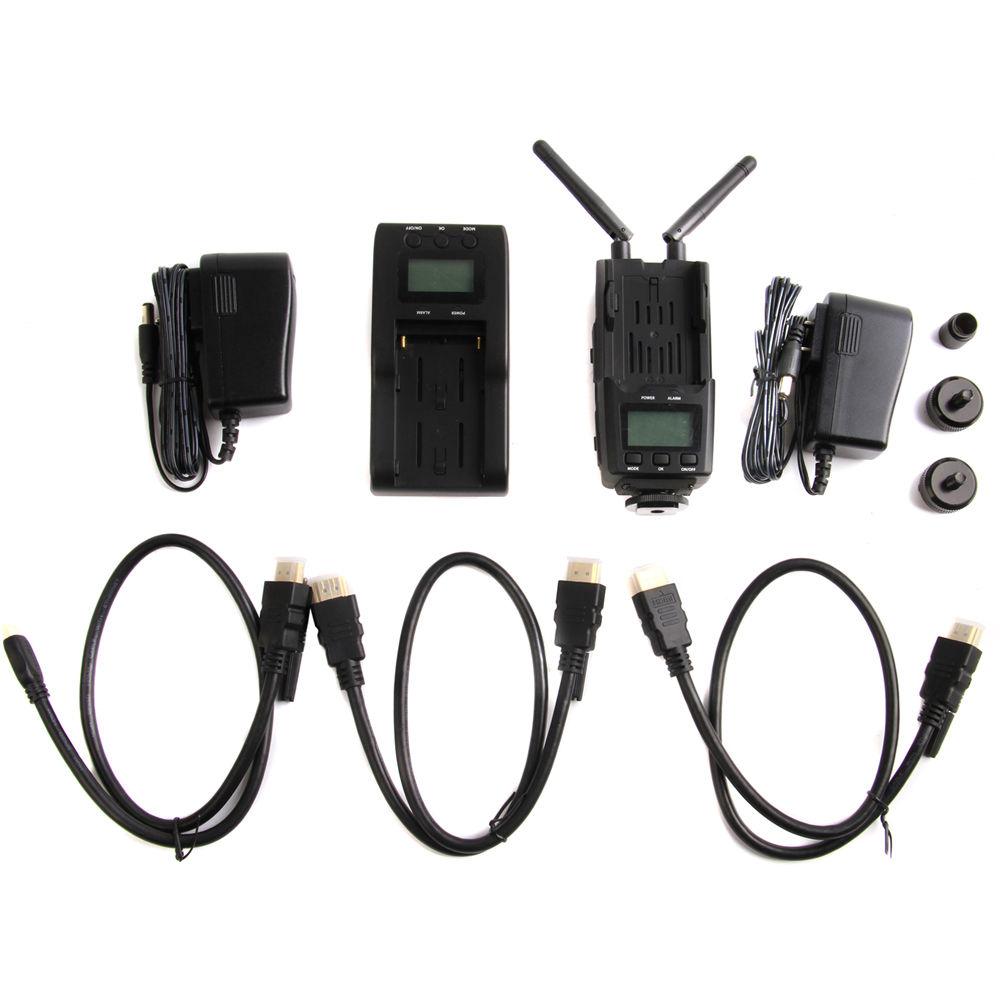

UPC: 602668720070 In the Box CAME-TV SP01 100m Wireless HD Video Transmitter & Receiver Set (260') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV SP01 100m Wireless HD Video Transmitter & Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV SP01 Specs | | | Transmission Frequency | 5 GHz | | Communication | Video: MIMO | | Modulation Mode | OFDM | | Frequency Stability | ±2 OPPM | | Bandwidth | 40 MHz | | Protocol | HDMI 1.3, HDCP 1.2 | | Receiving Sensitivity | ≤-70 dBm | | System Latency | ≤30 ms | | Antenna | 2 x External antenna | | Transmission Power | 14 dBm | | Transmission Distance | Up to 260' (80 m) line-of-sight | | Power Supply | 6 to 17 VDC
Li-ion battery (Canon LP-E6) | | Dimensions (W x D x H) | 5.7 x 2.0 x 1.8" (145 x 51 x 46 mm) | | | | Transmission Frequency | 5 GHz | | Communication | Video: MIMO | | Modulation Mode | OFDM | | Frequency Stability | ±2 OPPM | | Bandwidth | 40 MHz | | Protocol | HDMI 1.3, HDCP 1.2 | | Receiving Sensitivity | ≤-70 dBm | | System Latency | ≤30 ms | | Antenna | Built-in antenna | | Transmission Power | 14 dBm | | Transmission Distance | Up to 260' (80 m) line-of-sight | | Power Supply | 6 to 17 VDC
Li-ion battery (Sony NP-F570 / 750 / 950) | | Dimensions (W x D x H) | 4.6 x 2.4 x 1.8" (118 x 60 x 45 mm) | | | | Operating Temperature | Transmitter: 14 to 122°F (-10 to 50°C)
Receiver: 14 to 104°F (-10 to 40°C)
With Li-ion Battery: 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Operating Humidity | 15 to 85% RH | | | | Package Weight | 2.74 lb | | Box Dimensions (LxWxH) | 13.15 x 8.95 x 2.7" |
