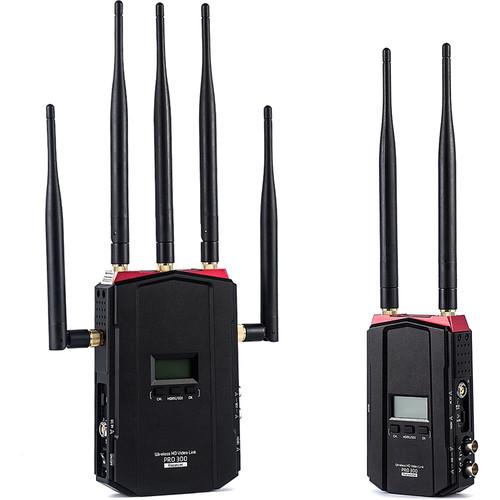

Product description The Came-TV SP03 Wireless HD Video Link System offers a transmission range of up to 984.2’ and supports 5 GHz ISM-band wireless HD video transmission. It also supports multiple channel-switching and a broadcast mode from 1 transmitter to multiple receivers. The system also supports plug-and-play functionality and offers AES128/256-bit encryption. - Supports 1080p/60 Hz resolution and HDMI/HD-SDI/3G-SDI 4:2:2
- HDMI 1.3 with EDID support
- Suitable for use in film production, live broadcasting, weddings, and conferences

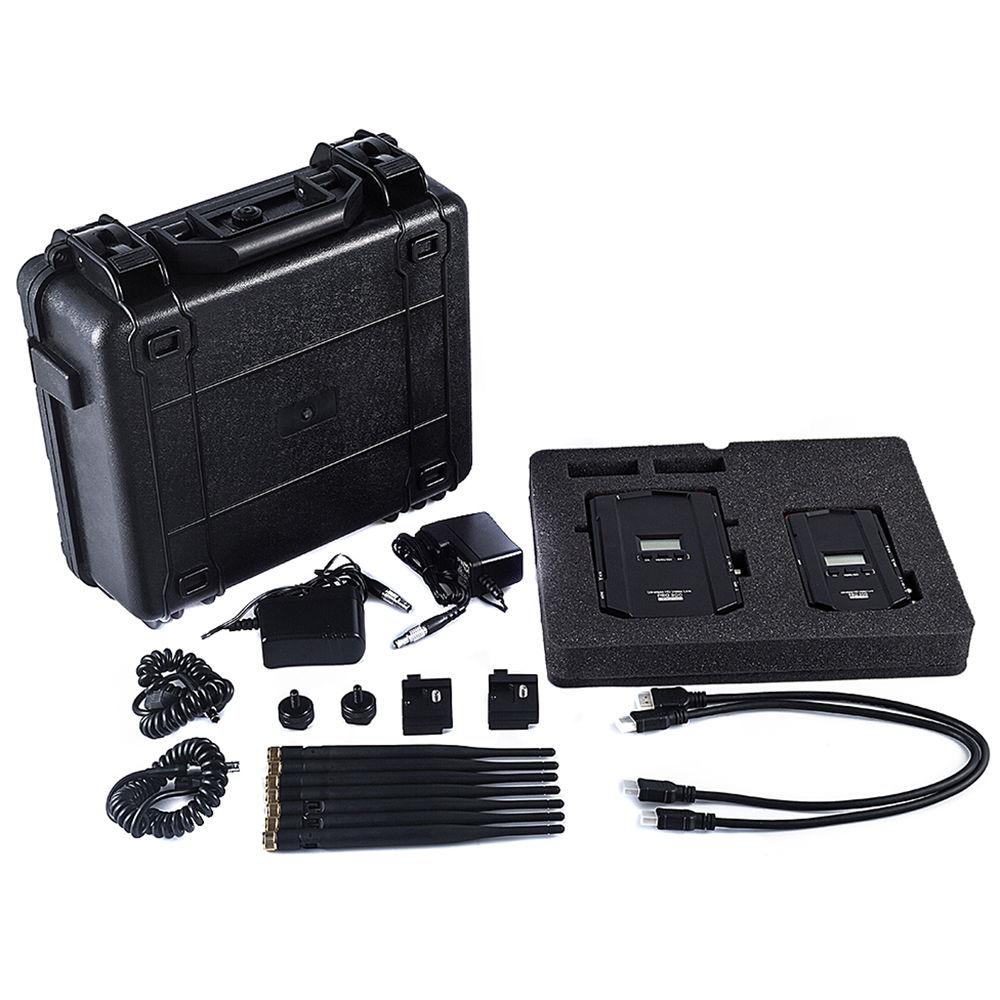

UPC: 602668720933 In the Box CAME-TV SP03 Wireless HD Video Link System Wireless HD Transmitter 2 x Antenna P-Tap to LEMO 2-Pin Power Cable 2 x Hot-Shoe Stand Wireless HD Receiver 5 x Antenna HDMI Cable DC Adapter (12V/2A LEMO 2-pin) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV SP03 Wireless HD Video Link System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV SP03 Specs | | | Frequency | 5.1 to 5.9 GHz | | Bandwidth | 40 MHz | | Supported Video Formats | 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60

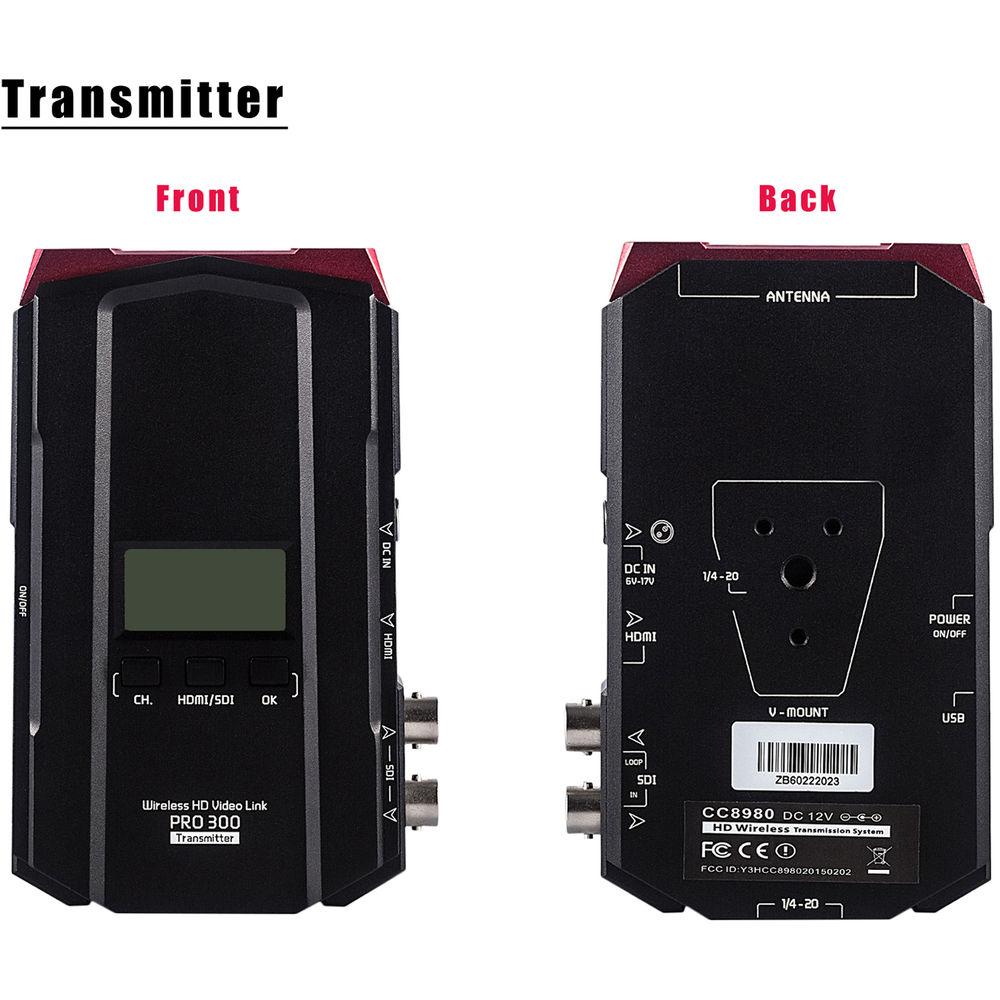

576p 576i 480p 480i | | Audio Formats Supported | PCM, DTS-HD, Dolby True HD | | Time Code | SMPTE-12M | | Transmission Range | 984.2' (300 m) line of sight | | | | Antenna | 2 x External antenna | | Transmission Power | 20 dBm | | Interface | HDMI input
SDI input
SDI loop output
Mini USB
LEMO Power IN

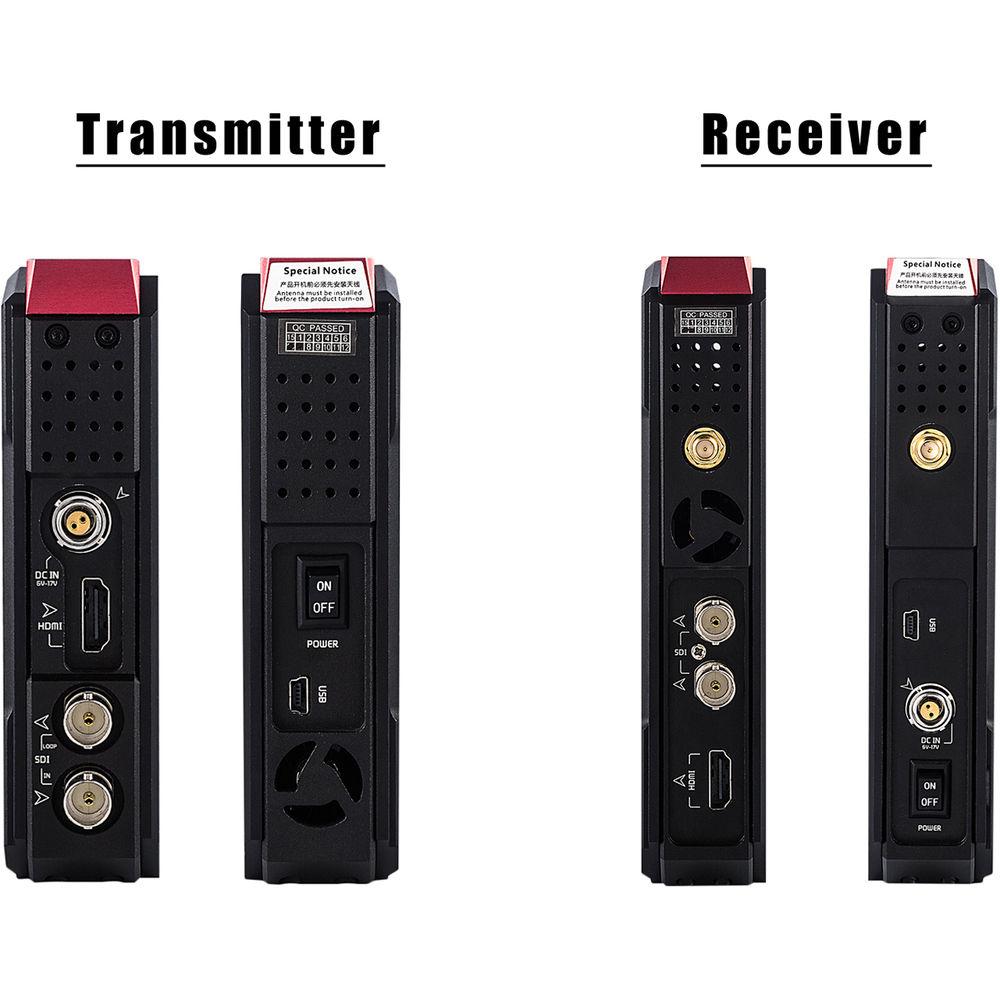

Antenna RPSMA Socket, Power ON/OFF | | Mounting | 1/4" hot-shoe connection | | LCD Display | Wireless Channel Info
SDI/HDMI input info
Signal status
Power info | | Working Voltage | 6 to 17 V | | Power Consumption | 7 to 8 W | | Temperature | Operating: 14 to 140°F (-10 to 60°C)

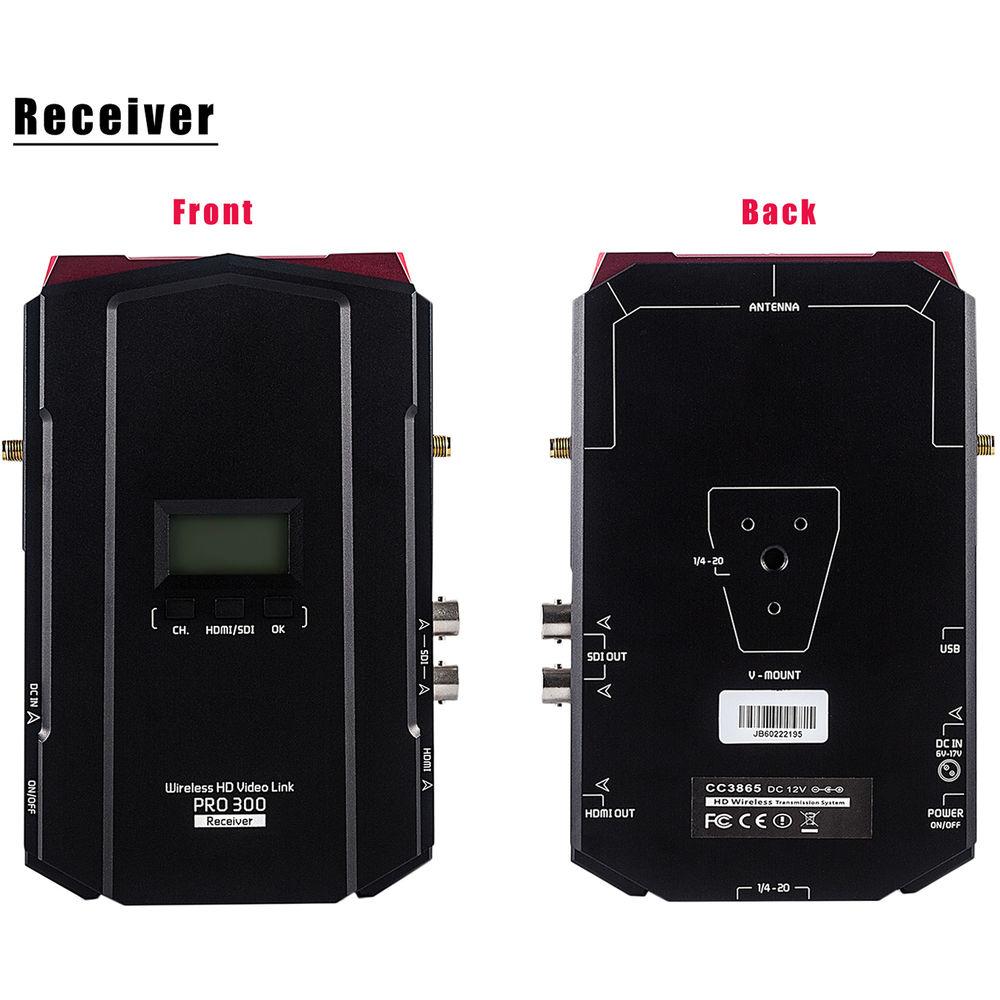

Storage: -40 to 176°F (-40 to 80°C) | | Dimensions | 4.7 x 3.1 x 1.3" (119 x 79 x 32 mm) | | Weight | Not specified by the manufacturer | | | | Antenna | 5 x Antenna | | Receiving Sensitivity | -70 dBm | | Interface | SDI dual output
HDMI output
Mini USB
LEMO power IN
Antenna RPSMA Socket, Power ON/OFF | | Mounting | 1/4" Hot-shoe connection | | LCD Display | Wireless channel info
SDI/HDMI input Info
Signal status
Power info | | Working Voltage | 6 to 17 V | | Temperature | Operating: 14 to 140°F (-10 to 60°C)
Storage: -40 to 176°F (-40 to 80°C | | Power Consumption | 7 to 8 W | | Dimensions | 6.1 x 4.4 x 1.3" (155 x 111 x 32 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 13.858 x 12.992 x 11.181" |
