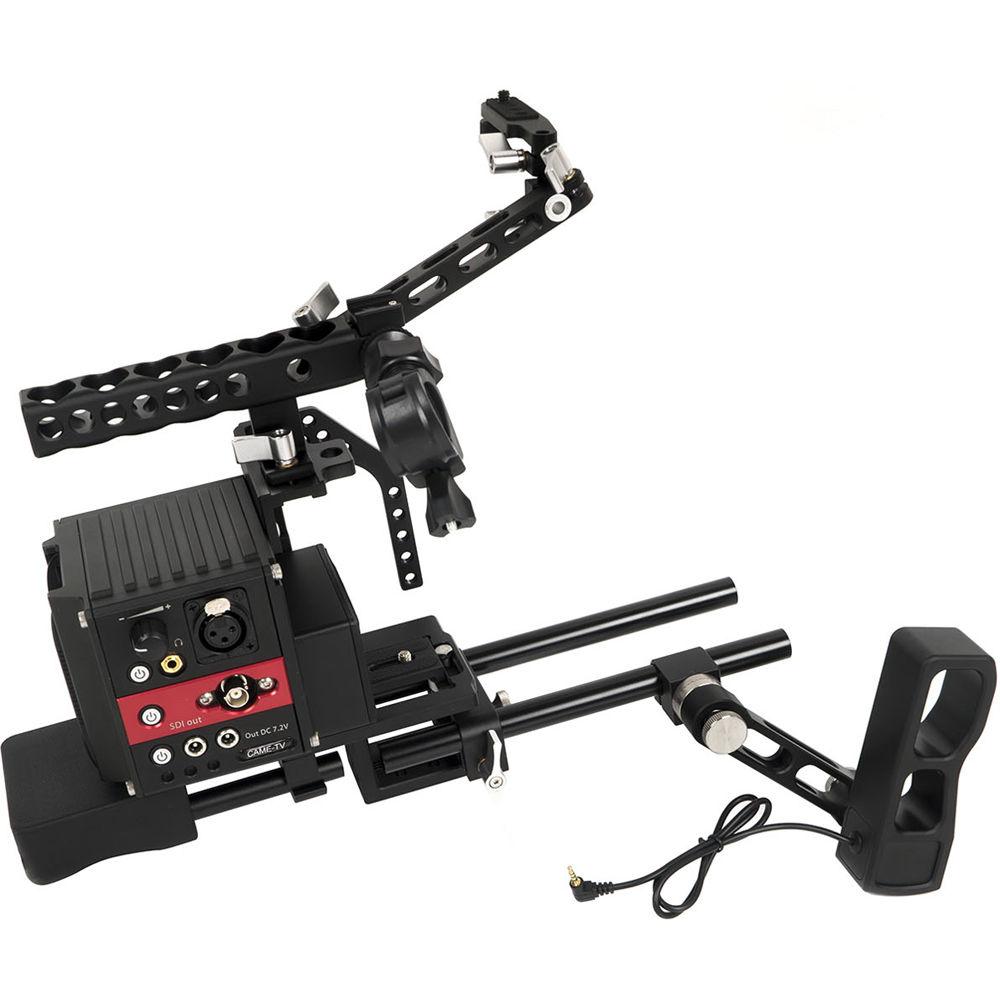

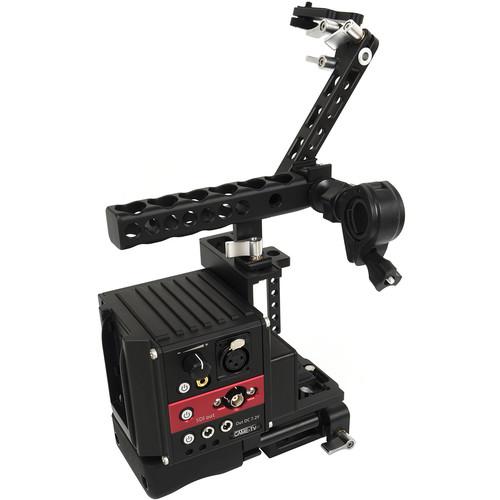

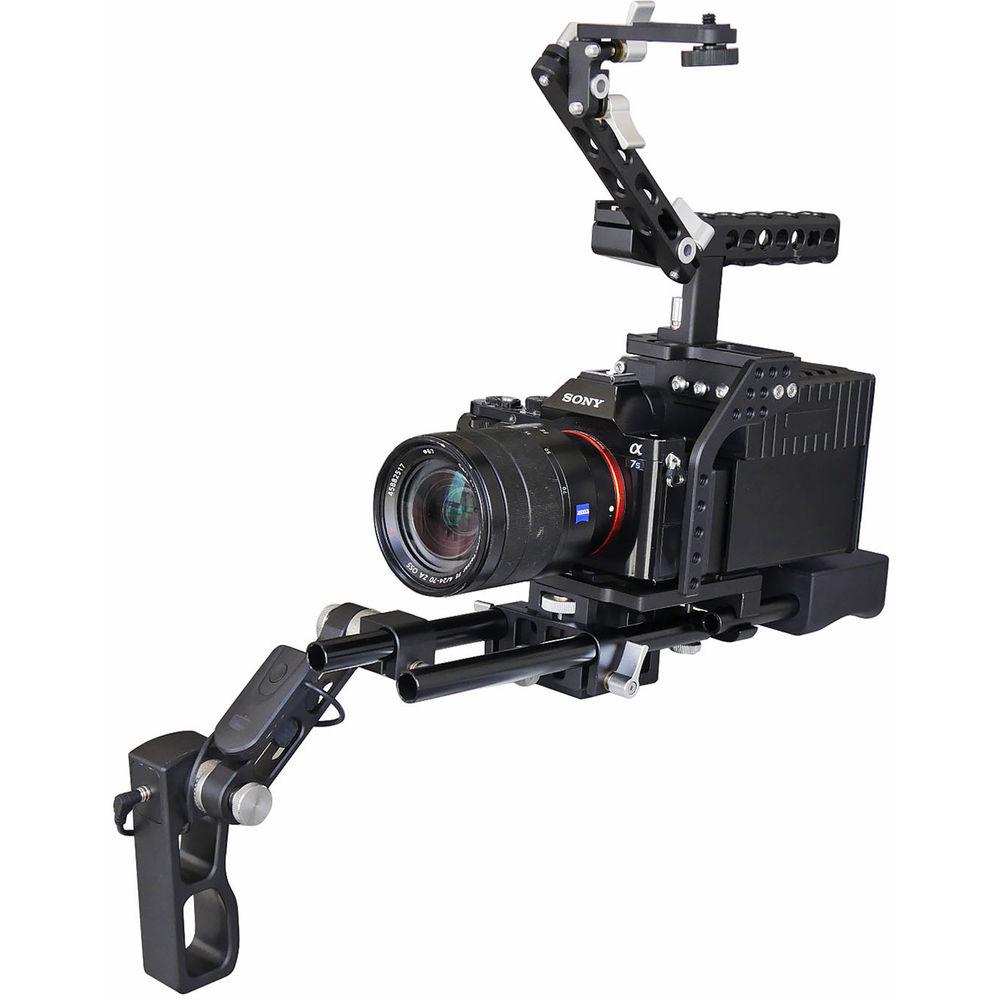

Product description The CAME-TV Terapin Rig for Sony a7R II, a7S II, and a7 II is built around a power breakout box with a variety of camera and accessory connectors. Use this shoulder-mounted rig to transform your a7R II, a7S II, or a7 II camera into an ergonomic ENG-style setup. The Terapin Rig is comprised of a baseplate with front 15mm and rear 11mm rods, a power distribution box, a start/stop trigger handle, a dummy battery, and a Sony L-series type battery plate.

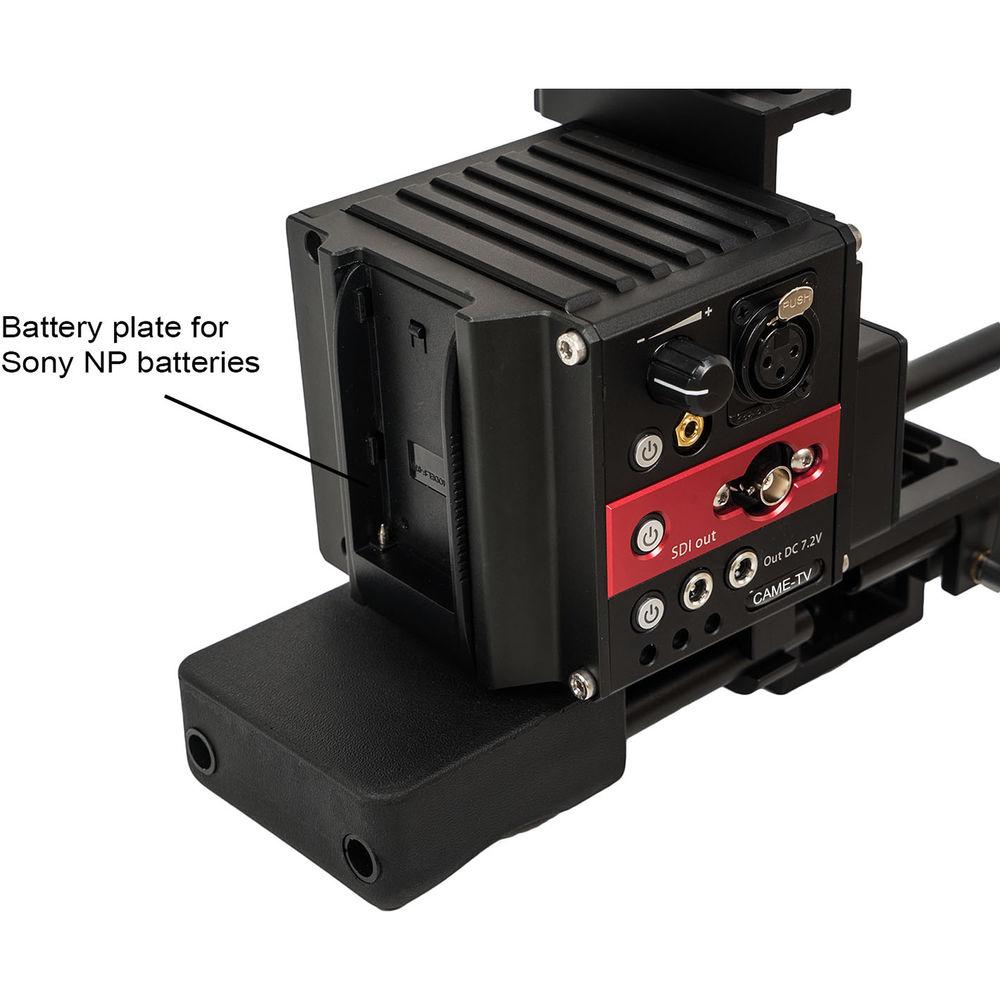

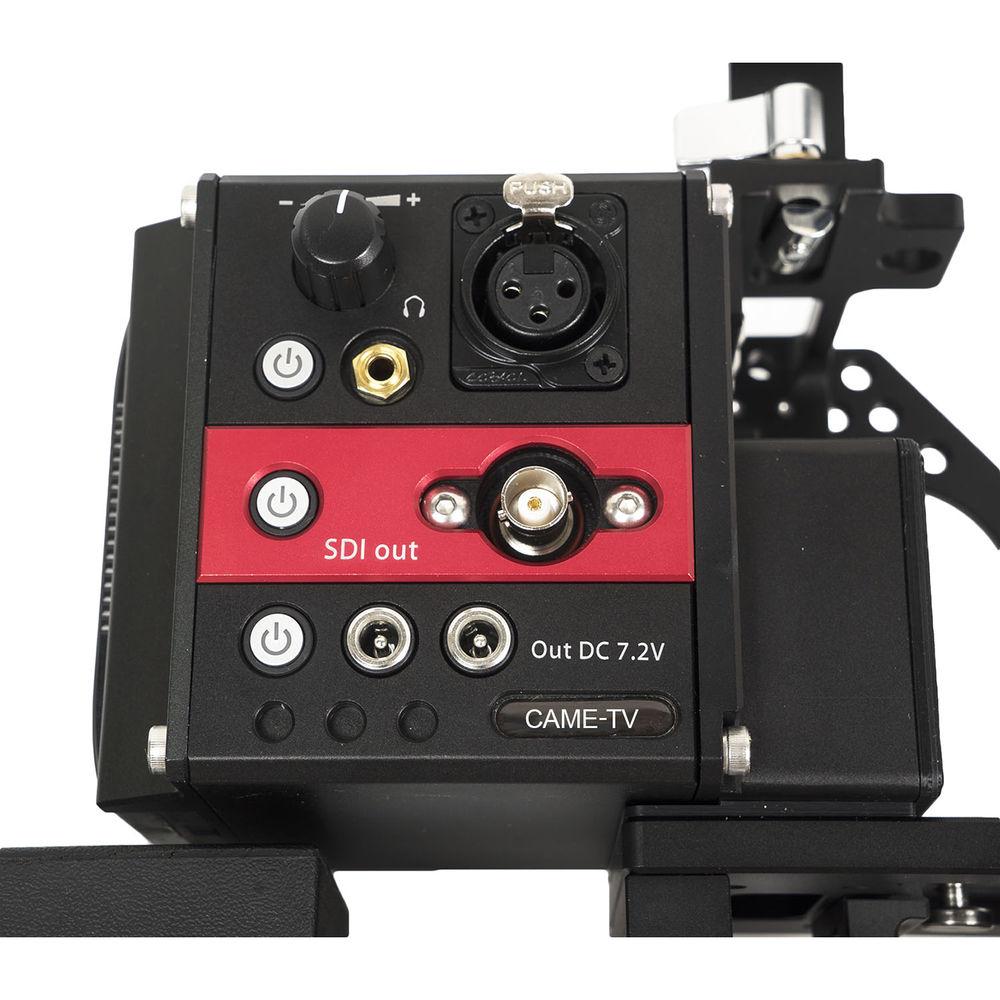

The versatile breakout box at the heart of this rig transfers your camera's power, video, and audio signals to a larger, more accessible interface. It draws power from a single Sony L-series type battery and distributes that power to multiple devices simultaneously. The side of breakout box sports an SDI BNC output and two 7.2V accessory ports. Audio features include one XLR audio input with 48V phantom power, a 3.5mm headphone jack with volume control knob, and a 3.5mm microphone jack. The camera connection side offers an additional 3.5mm headphone jack, 3.5mm microphone jack, 7.2V accessory port, and standard HDMI input.

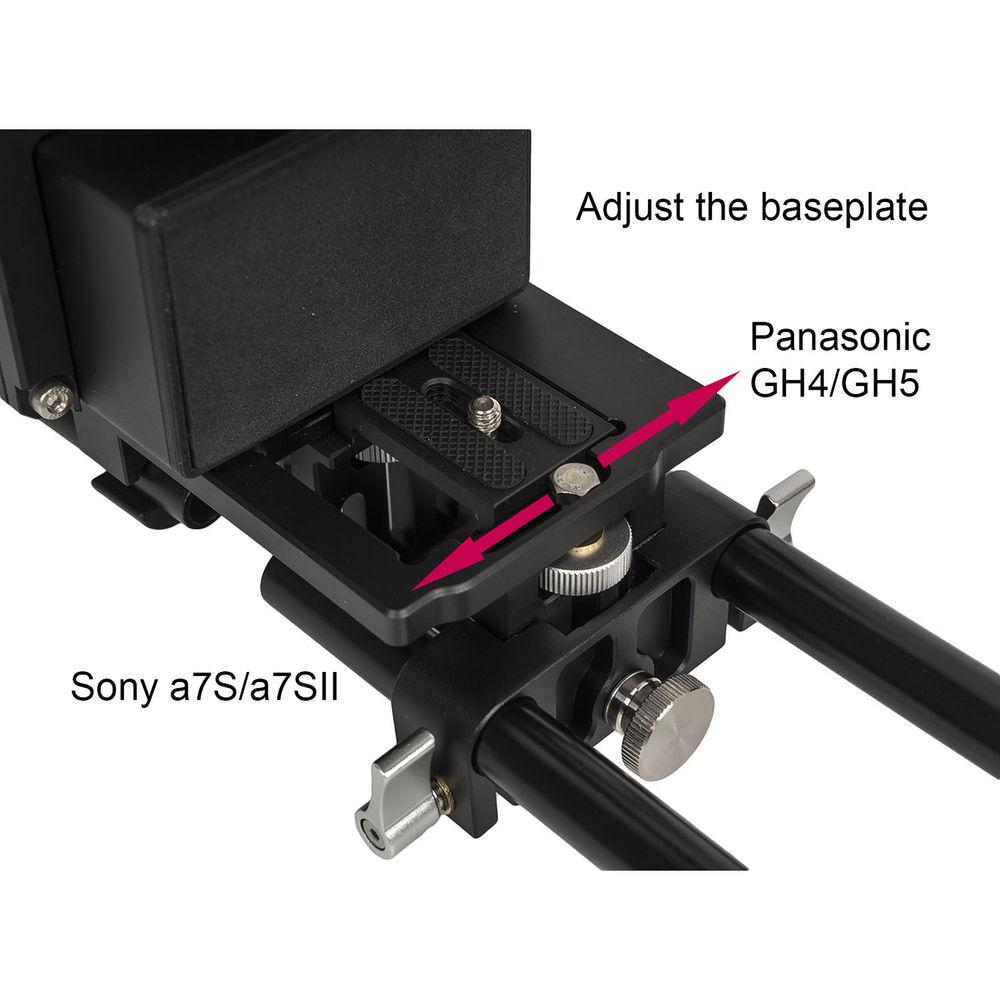

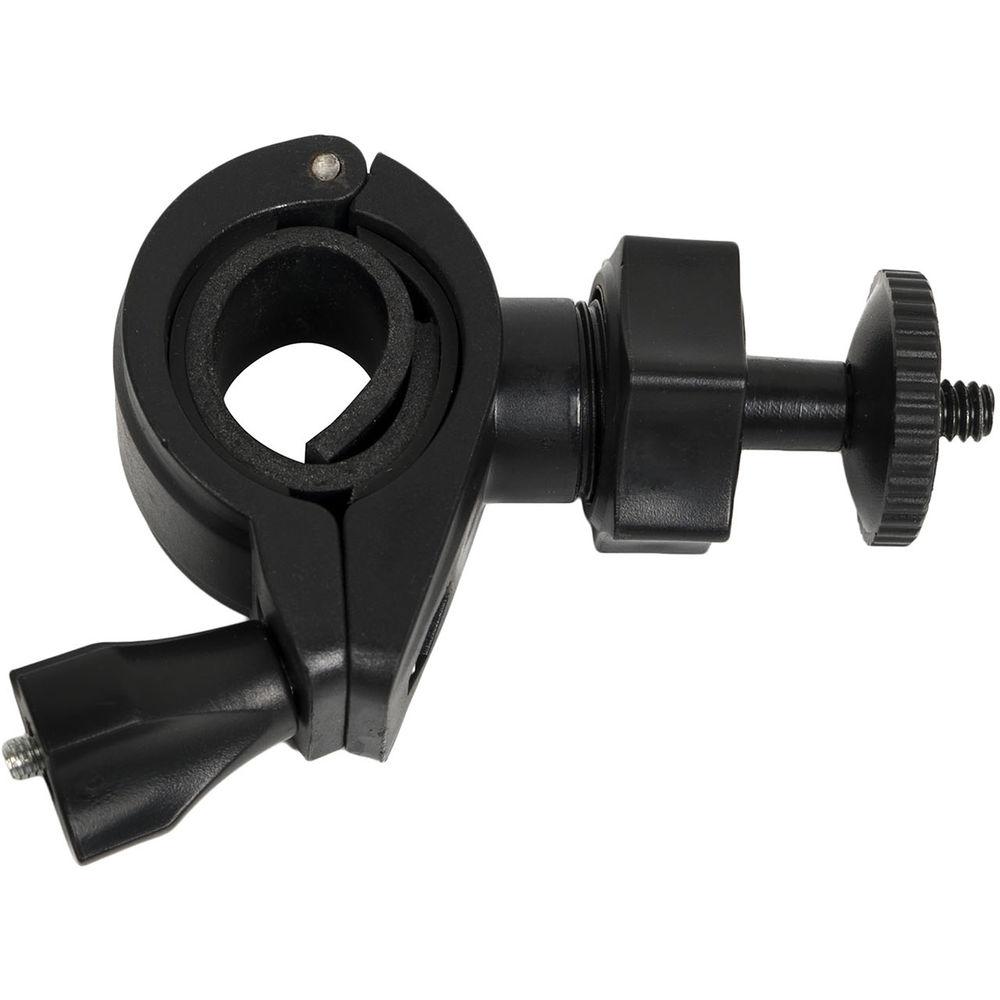

The LWS baseplate and rods support 15mm accessories, enabling you to easily build out your camera rig. The soft shoulder pad attaches to the 11mm rods mounted to the rear of the baseplate. Additional rig components include a microphone clamp, a right-angle HDMI adapter, two audio cables, a DC power cable, and an HDMI type A to type D (micro) cable. - The power distribution box uses a single L-series type battery to power your Sony a7R II, a7S II, or a7 II camera and several accessories
- Converts the Sony a7R II, a7S II, or a7 II HDMI video output to a more secure SDI BNC output suitable for distribution over extended distances

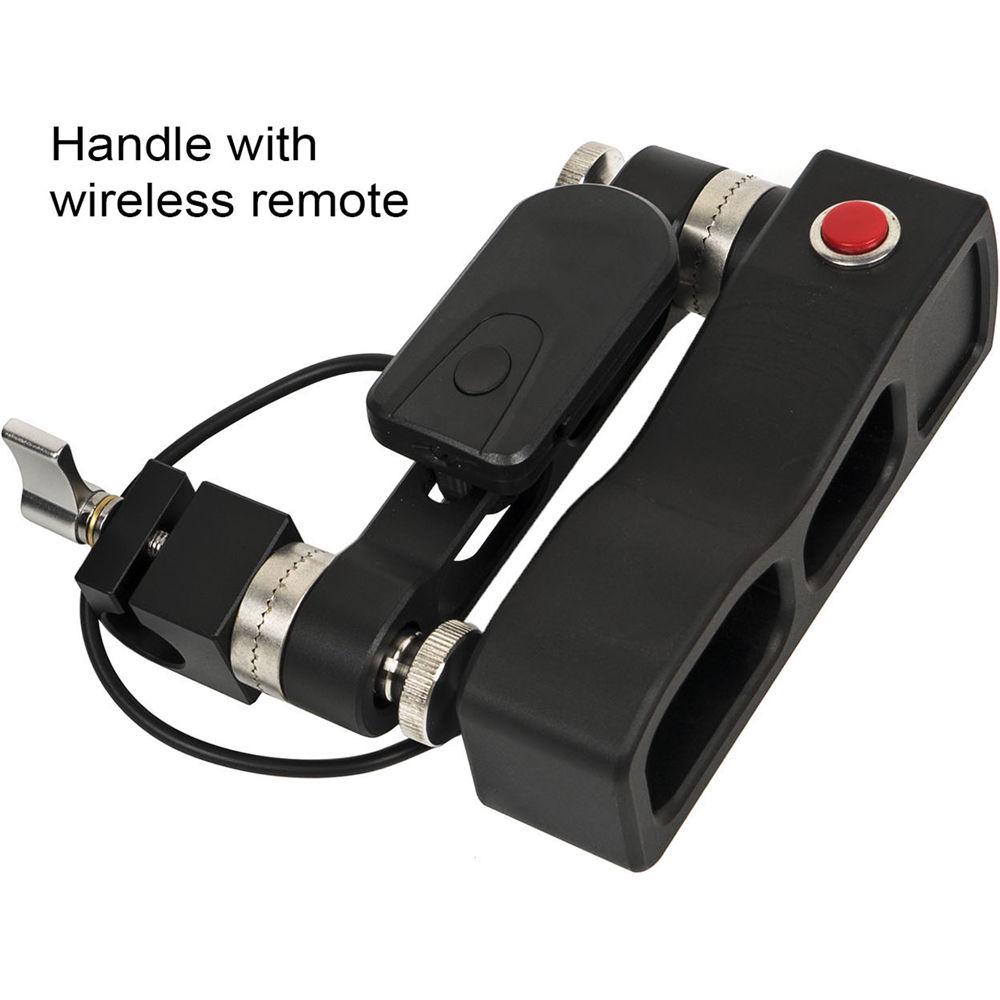

- The handgrip provides a start/stop recording trigger
- Enables mounting 15mm LWS rod-compatible accessories
- Use a pro-style microphone with the 48V phantom-powered XLR audio input
- A soft shoulder pad offers comfortable handheld operating

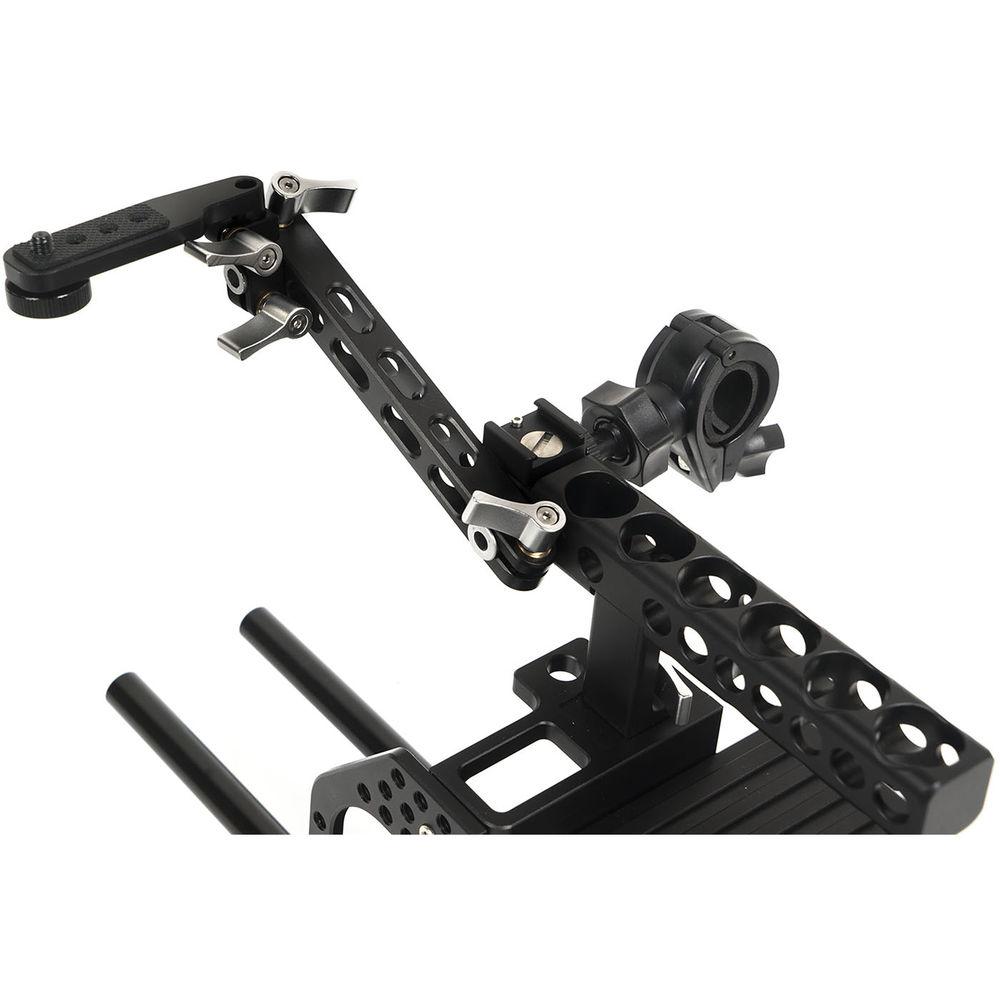

- Integrated cold shoe and threaded accessory mounts

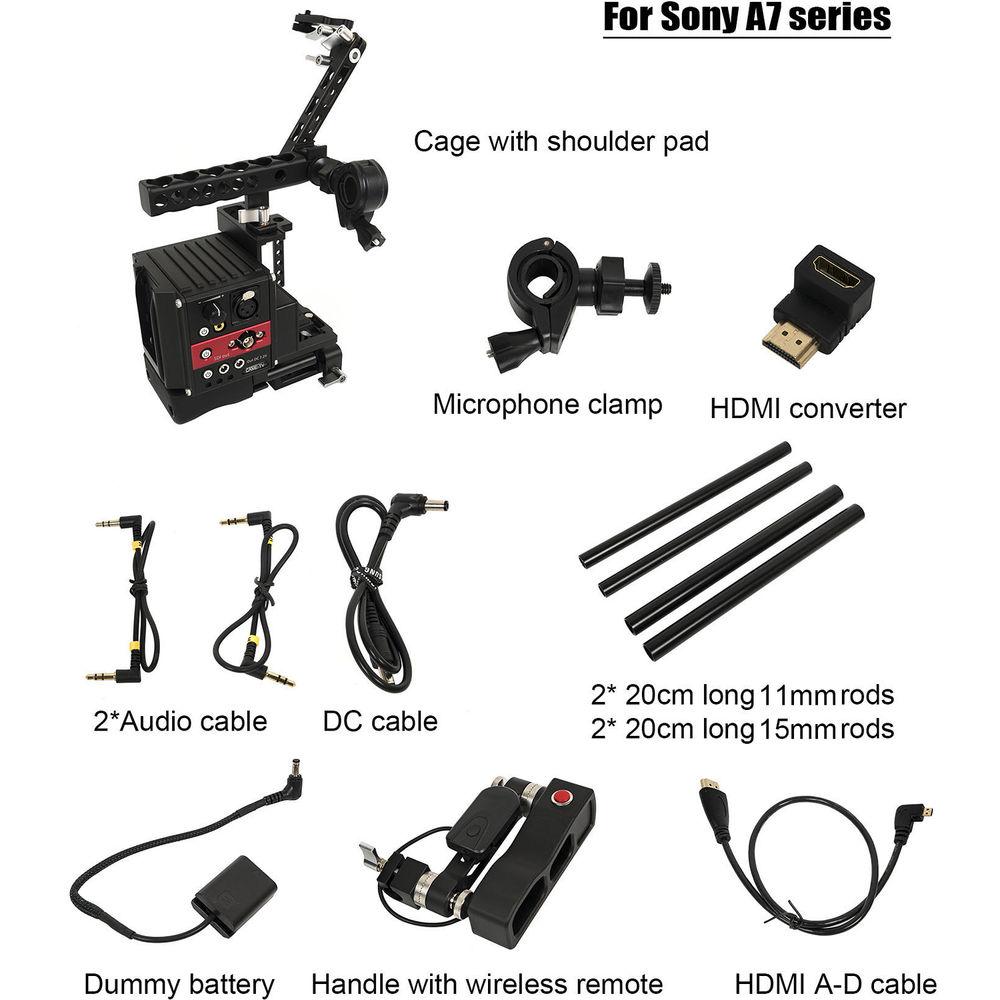

UPC: 614993189989 In the Box CAME-TV Terapin Rig for Sony a7R II, a7S II, and a7 II Cage with Shoulder Pad Top Handle Microphone Clamp 2 x 15mm Rod (7.9") 2 x 11mm Rod (7.9") HDMI Right-Angle Adapter HDMI Type A to HDMI Type D Cable 2 x Audio Cable DC Cable Dummy Battery for Sony a7S II/a7R II/a7 II Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Terapin Rig for Sony a7R II, a7S II, and a7 II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV Terapin Specs | Compatibility | Sony a7R II, a7S II, and a7 II | | Battery Plate | 1 x Sony L-Series | | Power | 3 x 7.2 VDC Barrel | | Video Input | 1 x HDMI | | Video Output | 1 x SDI BNC | | Audio Input | 1 x XLR, 48 V
1 x 3.5 mm Microphone | | Audio Output | 2 x 3.5 mm Headphone | | Dimensions | Not Supplied by Manufacturer | | Weight | Not Supplied by Manufacturer |
