User Manual for CAME-TV Terapin Rig with Follow Focus and Matte Box for Panasonic GH5 and GH4 Click to enlarge the picture
Contents of the user manual for the CAME-TV Terapin Rig with Follow Focus
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV Terapin Rig with Follow Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

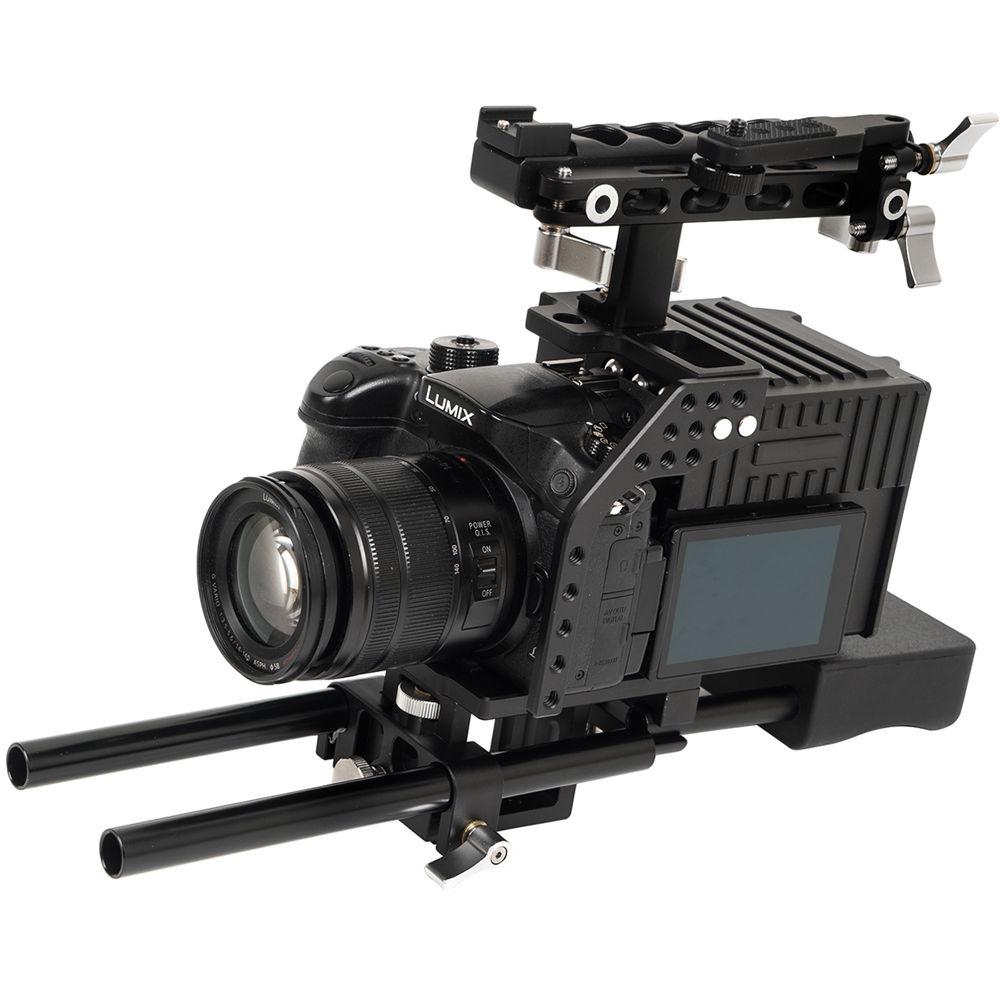

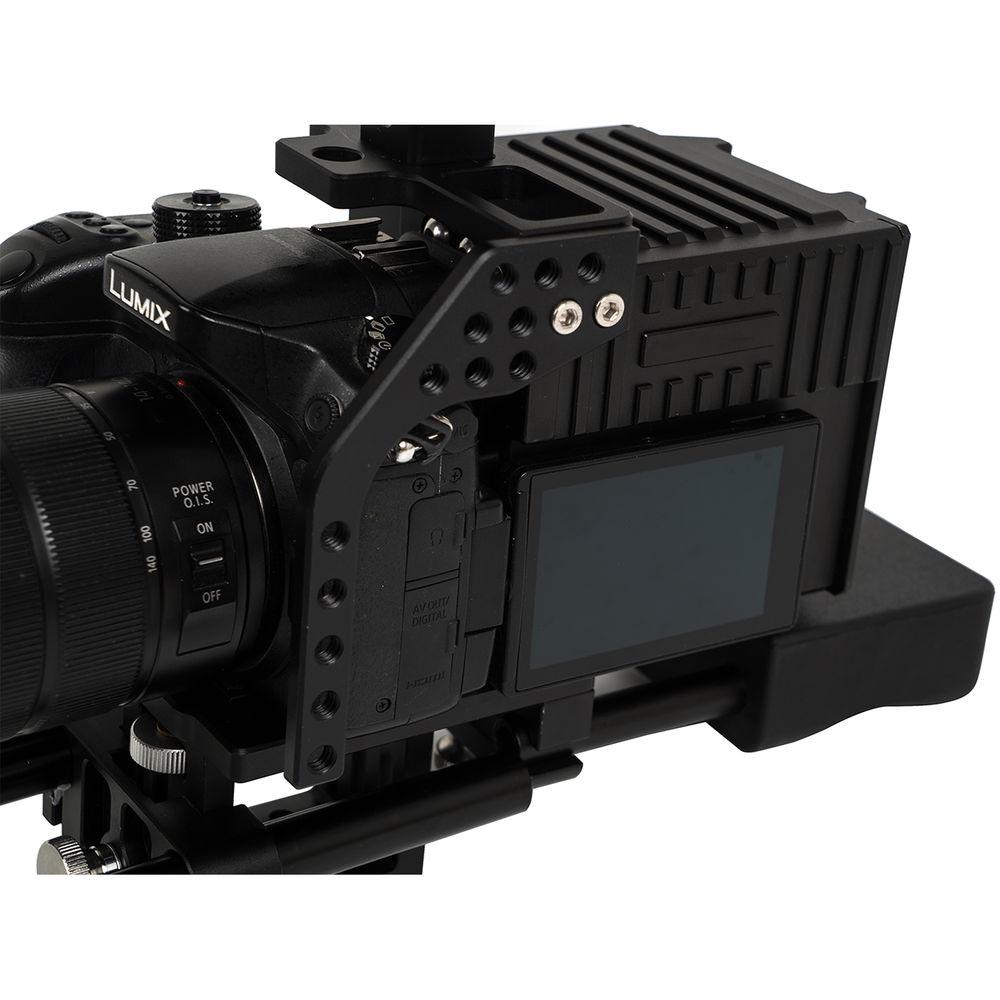

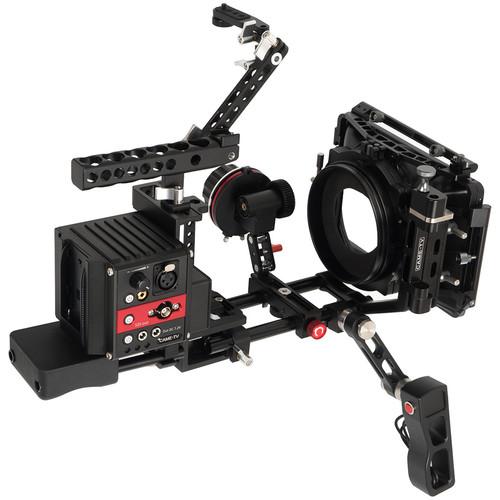

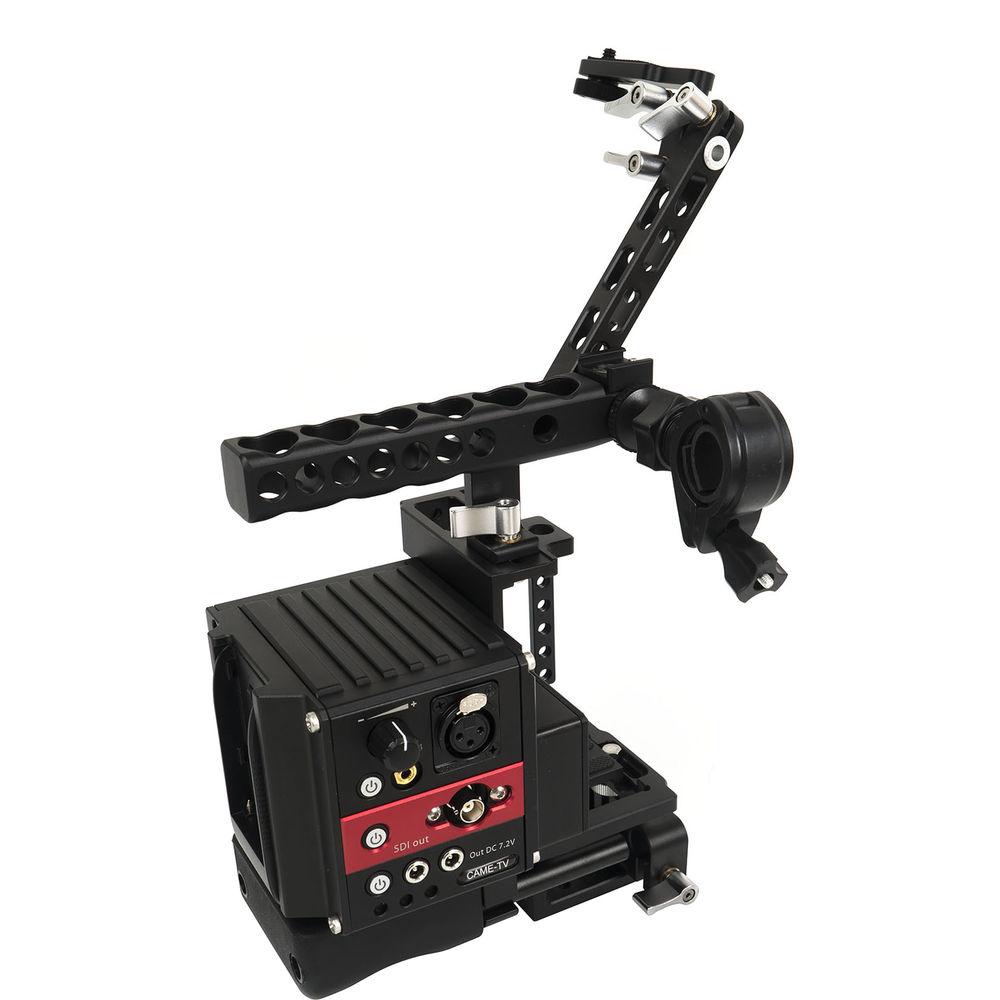

Product description The Terapin Rig with Follow Focus and Matte Box for Panasonic GH5 and GH4 from CAME-TV is a comprehensive camera support and power kit. Built around a power breakout box with a variety of camera and accessory connectors, this rig transforms your GH5/4 camera into a complete shoulder-mounted setup. This Terapin Rig is comprised of a baseplate with 15mm and 11mm rod pairs, a power distribution box, a single-side follow focus, a matte box with flags and donuts, a Start/Stop trigger handle, a dummy battery, and a Sony L-series type battery plate.The versatile breakout box at the heart of this rig transfers your camera's power, video, and audio signals to a larger, more accessible interface. It draws power from a single Sony L-series type battery and distributes that power to multiple devices simultaneously. The breakout box sports an SDI video output (BNC), two 7.2V accessory ports, and the battery plate. Audio features include one XLR audio input with 48V phantom power, and a 3.5mm headphone jack with a volume control knob.The LWS baseplate supports 15mm rod-based accessories, including the single-side follow focus and the swing-away matte box. The soft shoulder pad attaches to the 11mm rods mounted to the rear of the baseplate. Additional rig components include a microphone clamp, a right angle HDMI adapter, two audio cables, a DC power cable, an HDMI type A cable, and an HDMI type A to type D (micro) cable. - Features
-
- The power distribution box uses a single L-series type battery to power your HG5/4 camera and several accessories
- Single-side follow focus unit with four lens gear rings
- Swing-away matte box with top and side flags, three adapters, and one aluminum and five foam donuts
- Converts the GH5/4's HDMI video output to a more secure SDI (BNC) output suitable for distribution over extended distances
- The handgrip provides a start/stop recording trigger
- Enables the mounting of 15mm LWS rod-compatible accessories
- Use a pro-style microphone with the 48V phantom-powered XLR audio input
- A soft shoulder pad offers comfortable handheld operating
- Integrated cold shoe and threaded accessory mounts
UPC: 614993190022 In the Box CAME-TV Terapin Rig with Follow Focus and Matte Box for Panasonic GH5 and GH4 Cage with Shoulder Pad Matte Box 3 x Matte Box Flag 3 x Rubber Donut 5 x Foam Lens Donut Aluminum Lens Donut Follow Focus 4 x Gear Ring Microphone Clamp HDMI Right Angle Adapter 2 x Audio Cable DC Cable 2 x 15mm Rod (7.9") 2 x 11mm Rod (7.9") Dummy Battery Handle HDMI Type A Cable HDMI Type A to HDMI Type D Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Terapin Rig with Follow Focus and Matte Box for Panasonic GH5 and GH4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

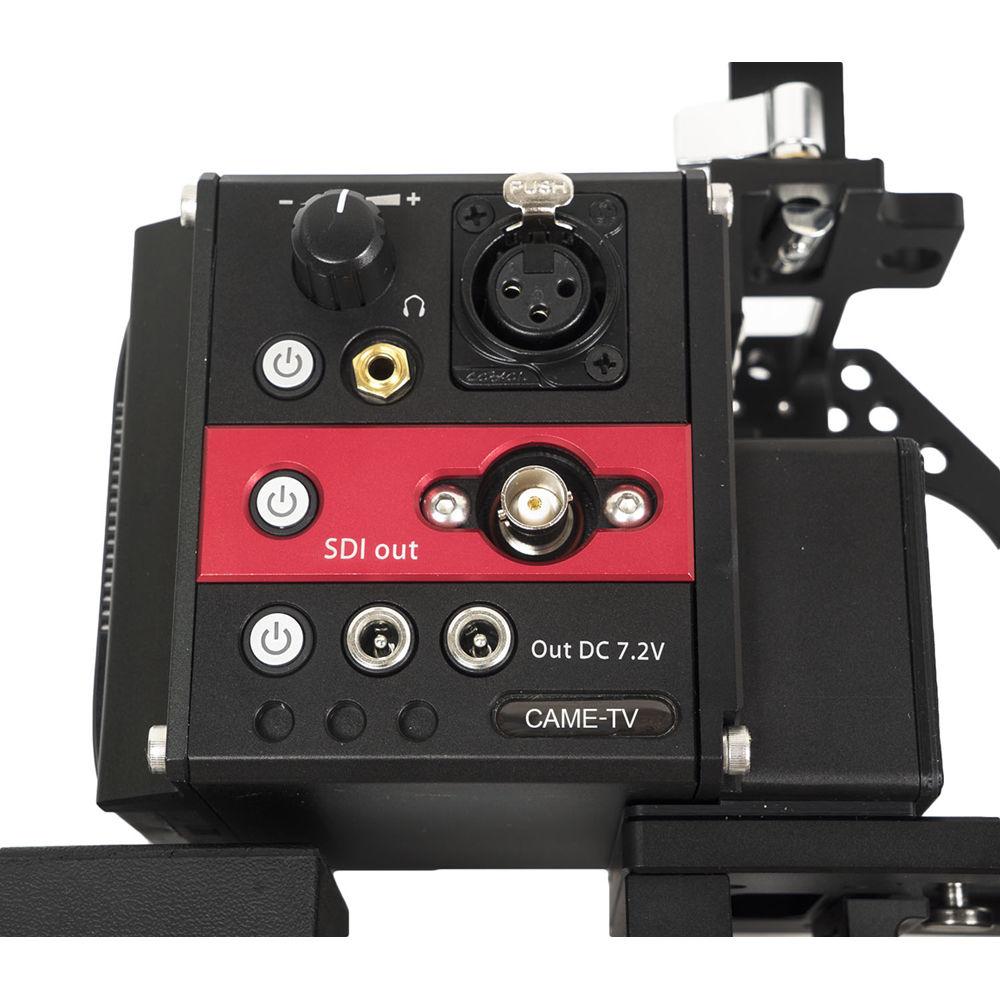

Technical parametersCAME-TV Terapin Specs | | | Battery Plate | 1 x Sony L-series type | | Connectors | DC Output: 2 x 7.2 V barrel
SDI Video Out: 1 x BNC
Audio In: 1 x XLR, 48 V
Headphone Out: 1 x 3.5 mm jack | | | | Package Weight | 13.015 lb | | Box Dimensions (LxWxH) | 20.9 x 15.3 x 10.5" |
