User Manual for CAME-TV Terapin Rig with Mattebox & Follow Focus for Sony a7RII, a7SII, a7II Click to enlarge the picture
Contents of the user manual for the CAME-TV Terapin Rig with Mattebox &
- Product category: DSLR Video Supports & Rigs CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV DSLR Video Supports & Rigs
 |
User manual for the CAME-TV Terapin Rig with Mattebox & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

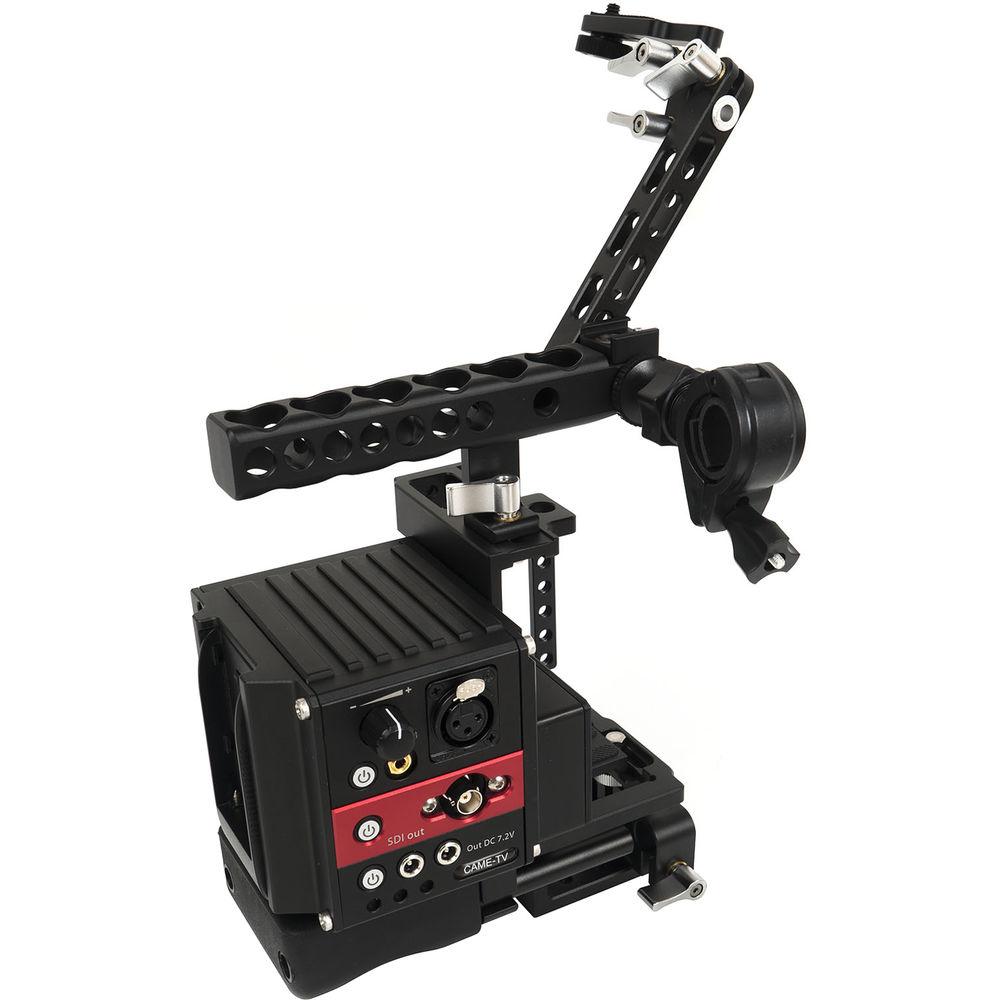

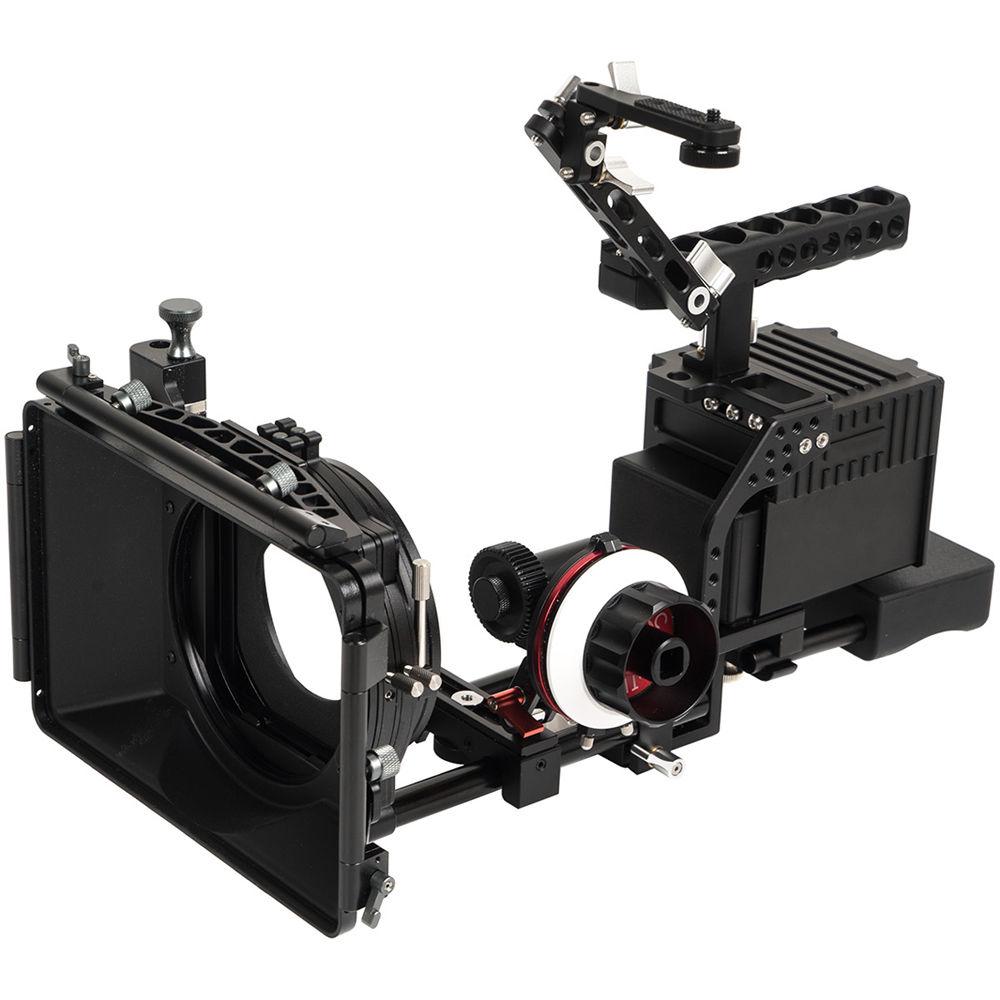

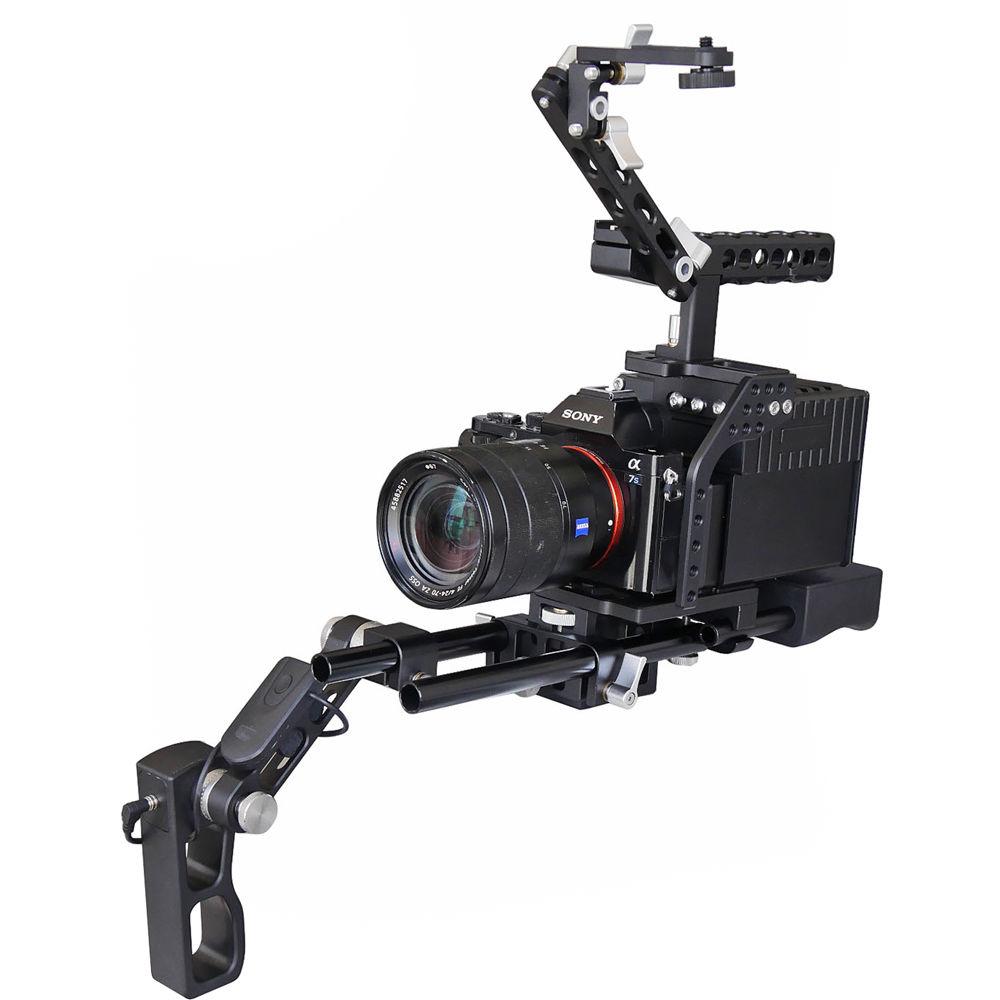

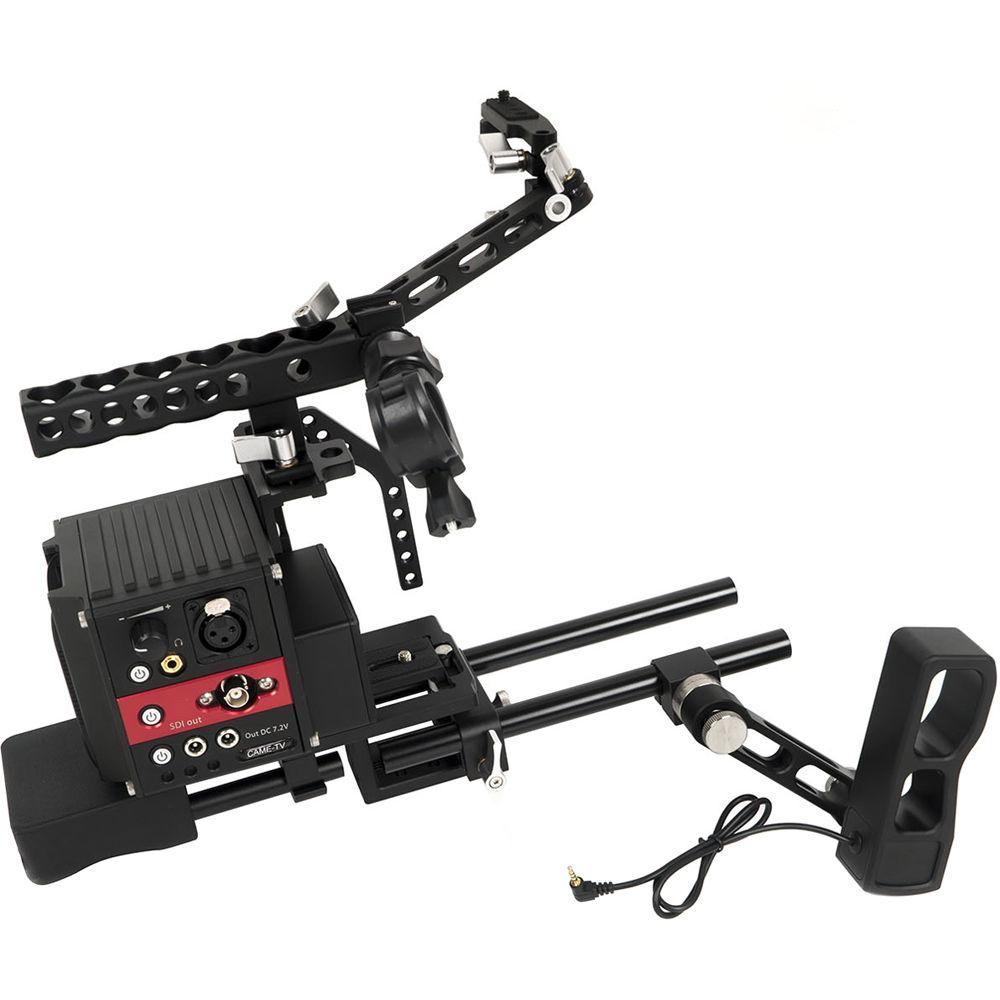

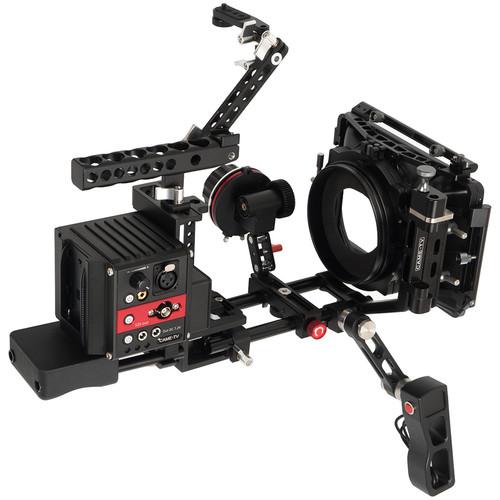

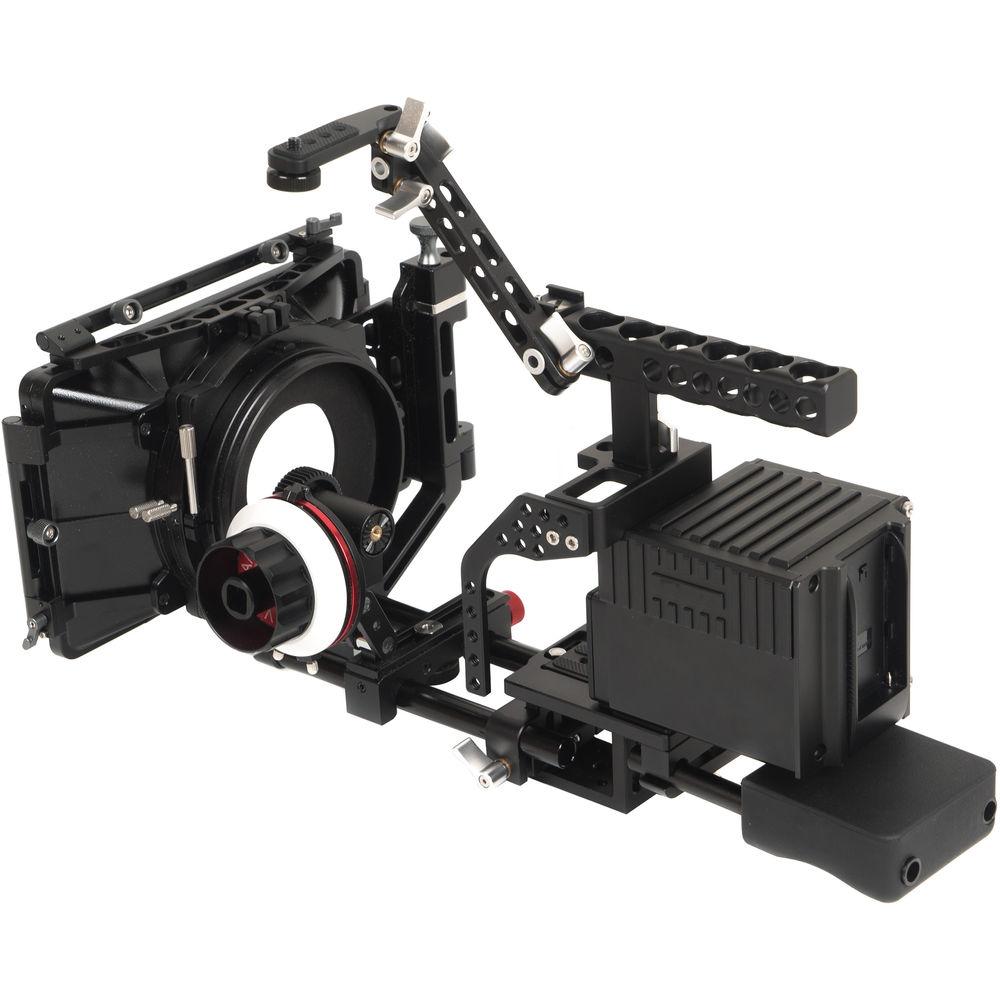

Product description The Terapin Rig for Sony a7RII, a7SII, and a7II from CAME-TV is built around a power breakout box with a variety of camera and accessory connectors. Use this shoulder-mounted rig to transform your a7RII, a7SII, or a7II camera into an ergonomic ENG-style setup. The Terapin Rig is comprised of a baseplate with front 15mm and rear 11mm rods, a power distribution box, a single-side follow focus, a matte box with flags and donuts, a start/stop trigger handle, a dummy battery, and a Sony L-series type battery plate.

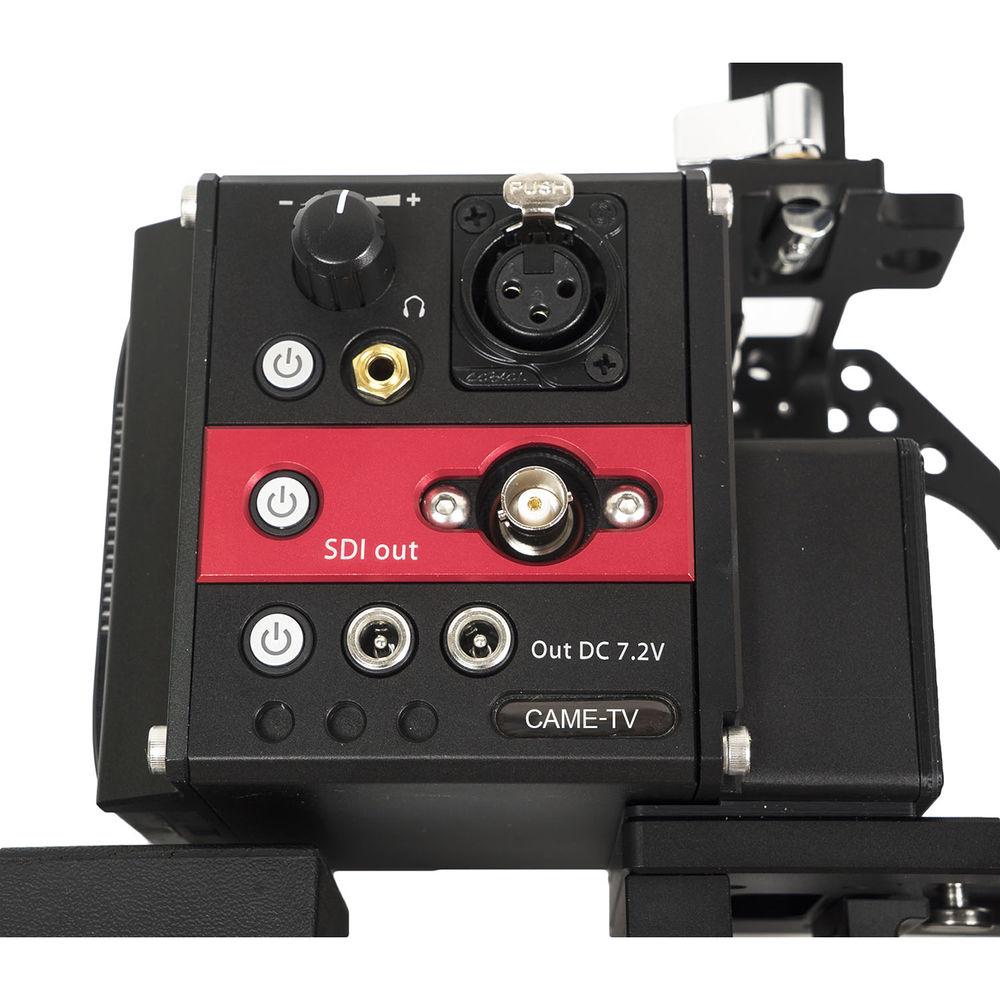

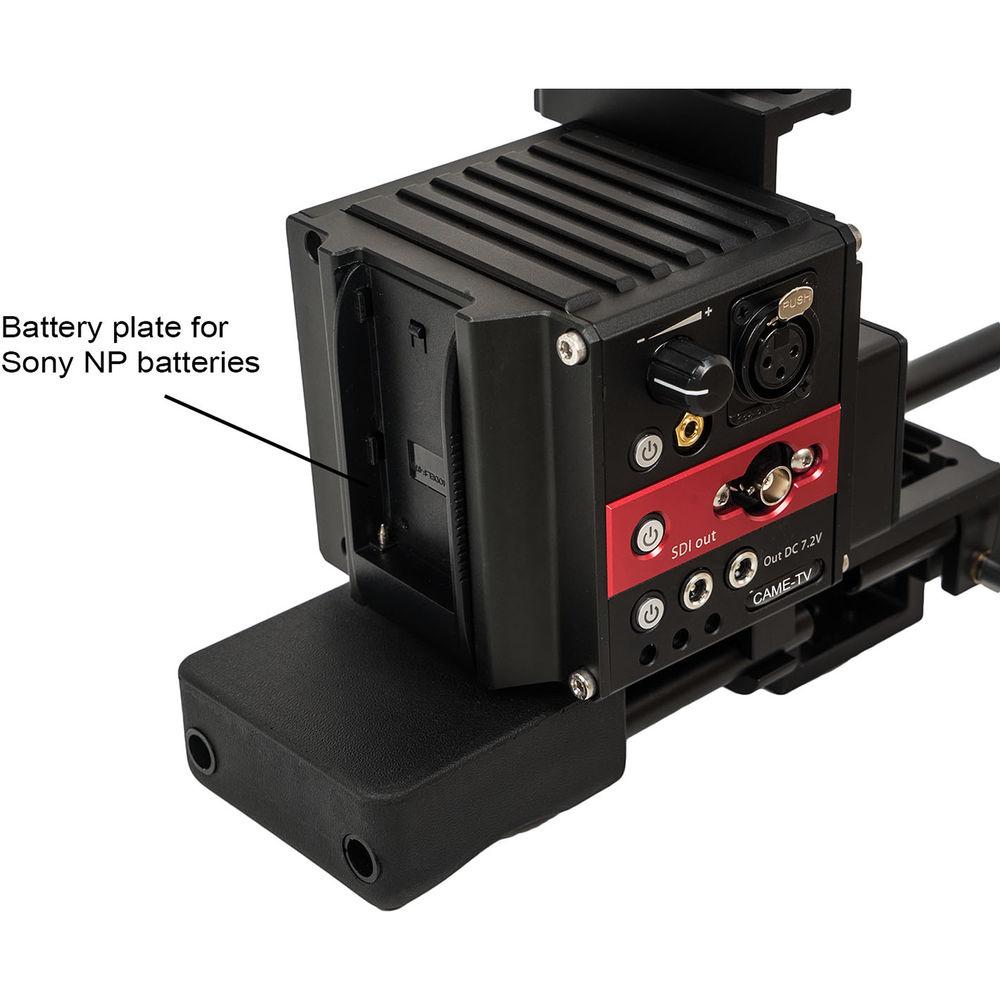

The versatile breakout box at the heart of this rig transfers your camera's power, video, and audio signals to a larger, more accessible interface. It draws power from a single Sony L-series type battery and distributes that power to multiple devices simultaneously. The side of breakout box sports an SDI BNC output, and two 7.2V accessory ports. Audio features include one XLR audio input with 48V phantom power, a 3.5mm headphone jack with volume control knob, and a 3.5mm microphone jack. On the camera connection side, there is an additional 3.5mm headphone jack, 3.5mm microphone jack, 7.2V accessory port, and standard HDMI input.

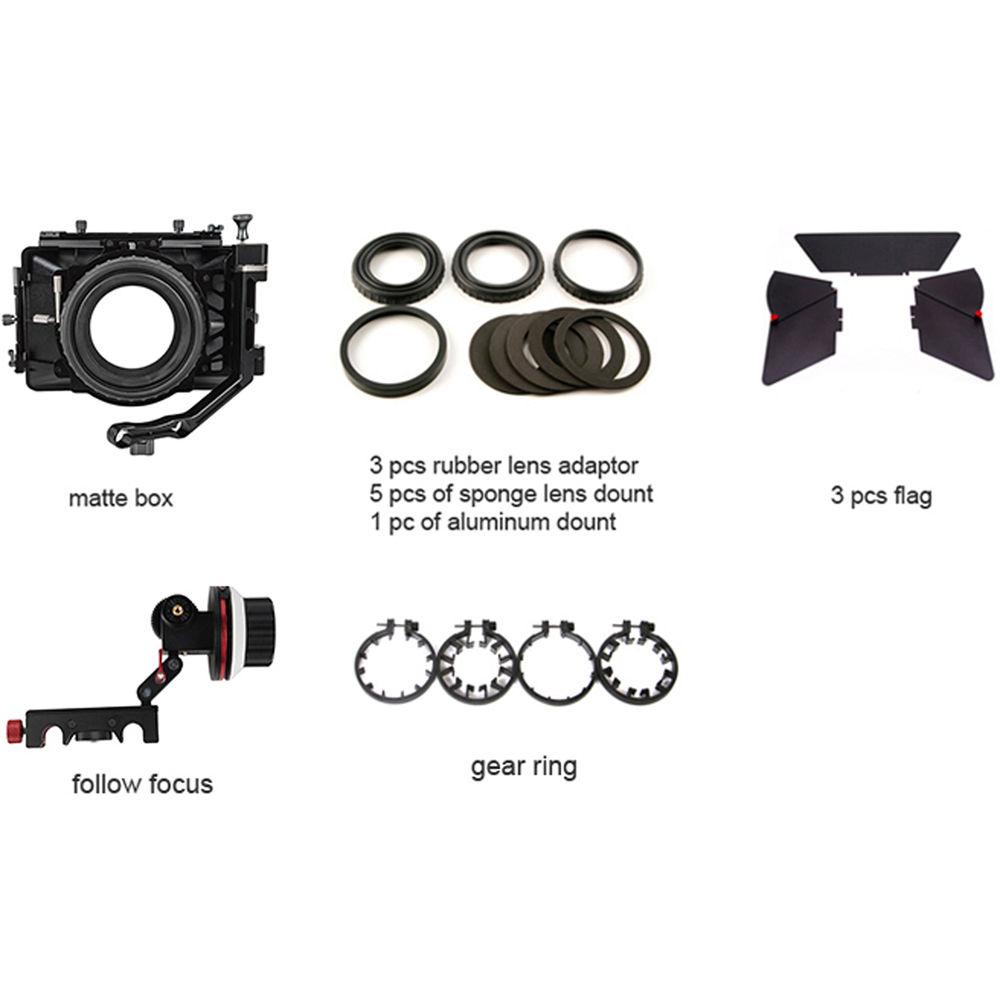

The LWS baseplate and rods support 15mm accessories, enabling you to easily build out your camera rig. The soft shoulder pad attaches to the 11mm rods mounted to the rear of the baseplate. Additional rig components include a microphone clamp, three matte box flags, three rubber donuts, five foam lens donuts, four gear rings, a right angle HDMI adapter, two audio cables, a DC power cable, and an HDMI type A to type D (micro) cable. - The power distribution box uses a single L-series type battery to power both your Sony a7RII, a7SII, or a7II camera, and several accessories
- Single-side follow focus unit with four lens gear rings
- Swing-away matte box with top and side flags, as well as three rubber, one aluminum, and five foam donuts
- Converts the Sony a7RII, a7SII, or a7II HDMI video output to a more secure SDI BNC output suitable for distribution over extended distances
- The handgrip provides a start/stop recording trigger
- Enables mounting 15mm LWS rod-compatible accessories
- Use a pro-style microphone with the 48V phantom-powered XLR audio input
- A soft shoulder pad offers comfortable handheld operating
- Integrated cold shoe and threaded accessory mounts

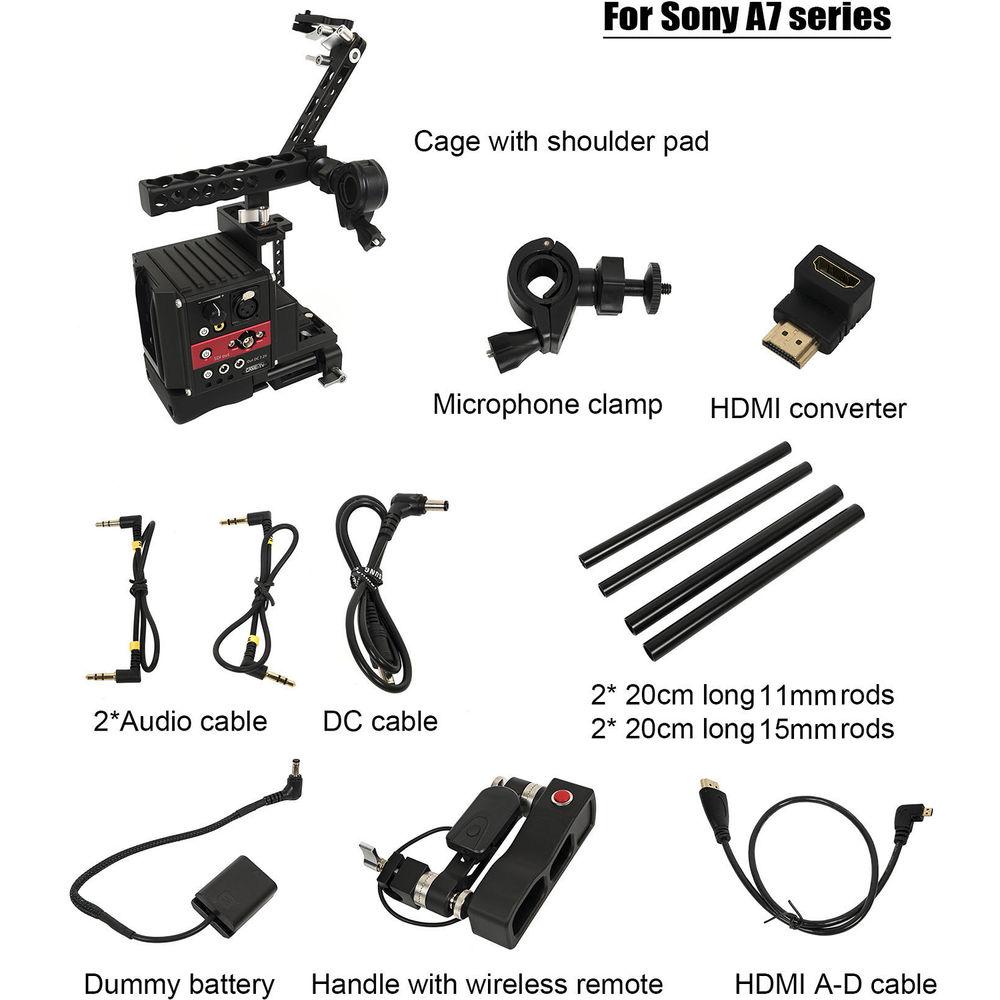

UPC: 614993190015 In the Box CAME-TV Terapin Rig with Mattebox & Follow Focus for Sony a7RII, a7SII, a7II Cage with Shoulder Pad Top Handle Matte Box Follow Focus Microphone Clamp 2 x 15mm Rod (7.9") 2 x 11mm Rod (7.9") HDMI Right Angle Adapter HDMI Type A to HDMI Type D Cable 3 x Matte Box Flag 3 x Rubber Donut 2 x Audio Cable 5 x Foam Lens Donut Aluminum Donut 4 x Gear Ring DC Cable Sony a7sII/a7RII/a7II Dummy Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV Terapin Rig with Mattebox & Follow Focus for Sony a7RII, a7SII, a7II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV Terapin Specs | Compatibility | Sony A7RII, A7SII, and A7II | | Battery Plate | 1 x Sony L-Series | | Power | 3 x 7.2 VDC Barrel | | Video Input | 1 x HDMI | | Video Output | 1 x BNC SDI | | Audio Input | 1 x XLR, 48 V
1 x 3.5 Microphone | | Audio Output | 2 x 3.5 mm Headphone | | Dimensions | Not Supplied by Manufacturer | | Weight | Not Supplied by Manufacturer | | | | Package Weight | 12.995 lb | | Box Dimensions (LxWxH) | 20.8 x 15.8 x 15.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
