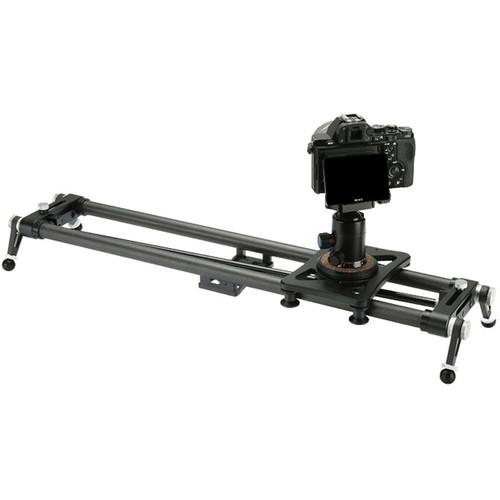

User Manual for CAME-TV TX01-100 Carbon Fiber Parallax Slider Click to enlarge the picture
Contents of the user manual for the CAME-TV TX01-100 Carbon Fiber Parallax Slider
- Product category: Camera Sliders CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV Camera Sliders
 |
User manual for the CAME-TV TX01-100 Carbon Fiber Parallax Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

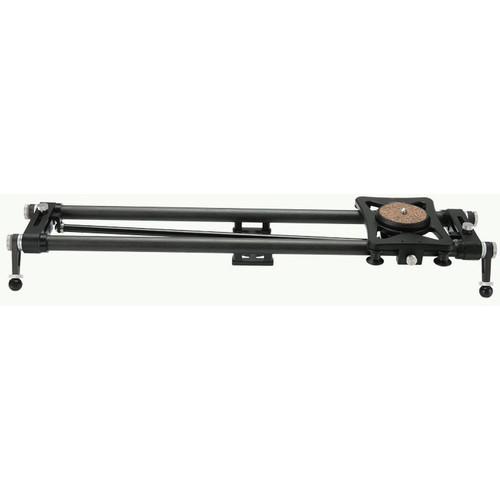

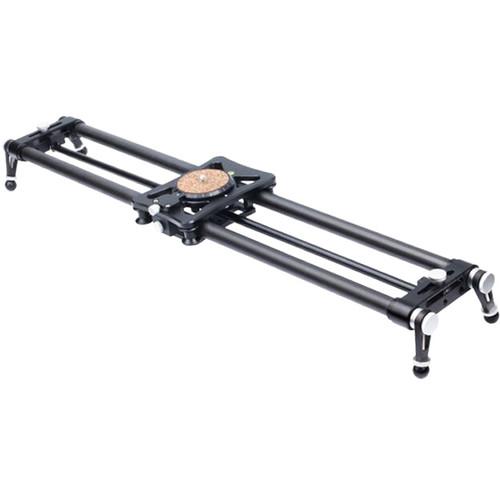

Product description With the TX01-100 Carbon Fiber Parallax Slider from CAME-TV, there's no need for a fluid head to pan; just attach your camera and it will pan as you slide. The slider belt and mounting platform are connected in a way that achieves this, and the panning angle is adjustable via a control on one of the end sides of the slider. And, whereas with a fluid head you control how steady the pan is, with the TX01-100 the set angle ensures consistent motion. Furthermore, the parallax factor of the slider allows you to track a subject in the center of your shot as you slide and pan. These two capabilities very highly enhance the production value of your shots. The full length of the slider is 39.4" and the payload is 22 lb.
The TX01-100 features lightweight carbon fiber rails, robust aluminum parts, and a ball bearing sliding system. It also has individually adjustable legs that allow you to compensate for uneven surfaces when you use the slider directly on the ground or other surfaces. There are both 1/4"-20 and 3/8"-16 threads on the bottom for mounting on a tripod. - Key Features
-
- Can be set to automatically pan as you slide
- Adjustable pan angle

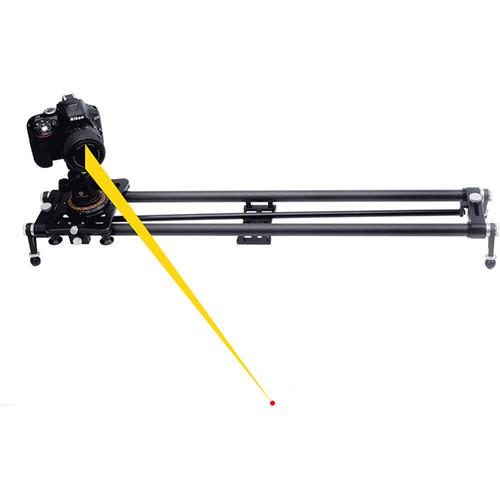

- Subject tracking: Keeps your subject in the center of your shot as you slide and pan
- 39.4" length
- 22 lb payload

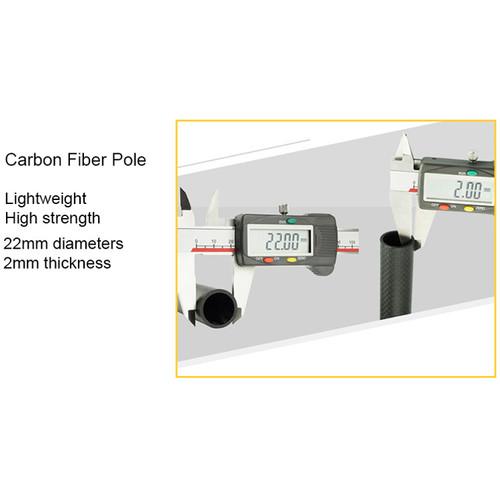

- Lightweight carbon fiber rails

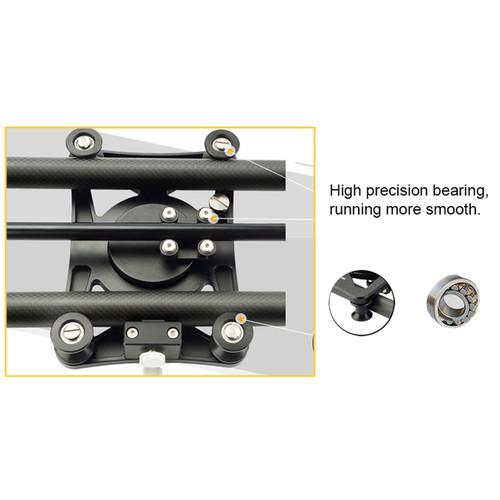

- Ball bearing sliding system
- Rosette-adjustable legs

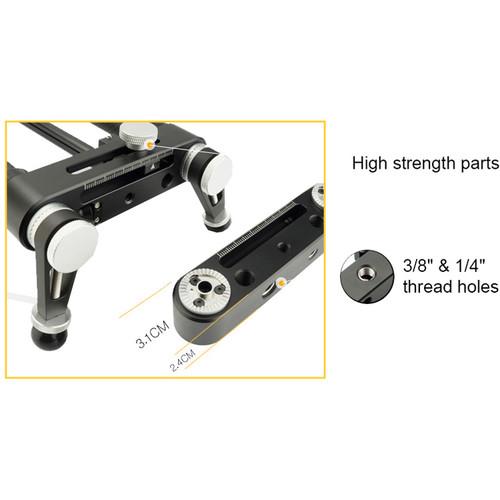

- 1/4"-20 and 3/8"-16 tripod mount threads

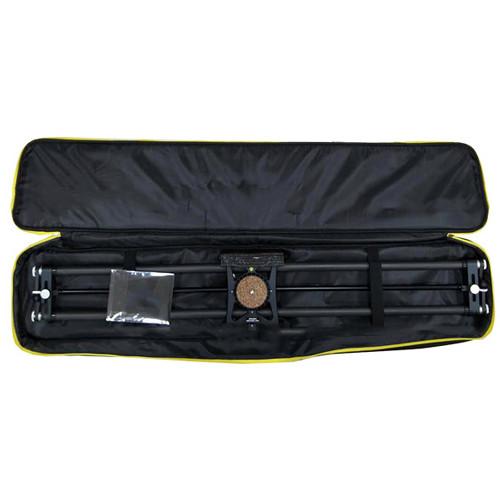

UPC: 614993190282 In the Box CAME-TV TX01-100 Carbon Fiber Parallax Slider (39.4") Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV TX01-100 Carbon Fiber Parallax Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV Parallax Specs | | | Load Capacity | 22 lb / 9.98 kg (Horizontal) | | Bubble Level | Yes | | | | Camera Mounting Screw | 1/4"-20 Male | | Tripod Mounting | 1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread | | | | Diameter | 0.87" / 22 mm | | Material | Carbon Fiber | | | | Quick Release Plate Type | No Quick Release | | | | Body Material | Aluminum | | Track Length | 39.4" / 100.08 cm | | Track Width | 6.4" / 16.26 cm | | Weight | 4 lb / 1.81 kg The weight provided by the manufacturer is approximately 4 lb. | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 42.75 x 8.75 x 4.0" |
