User Manual for CAME-TV V-Mount Battery Charger Kit with 2 x 95Wh Li-Ion Batteries Click to enlarge the picture
Contents of the user manual for the CAME-TV V-Mount Battery Charger Kit with
- Product category: On Camera Batteries CAME-TV
- Brand: CAME-TV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAME-TV On Camera Batteries
 |
User manual for the CAME-TV V-Mount Battery Charger Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAME-TV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAME-TV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAME-TV product will considerably shorten its lifespan!
|

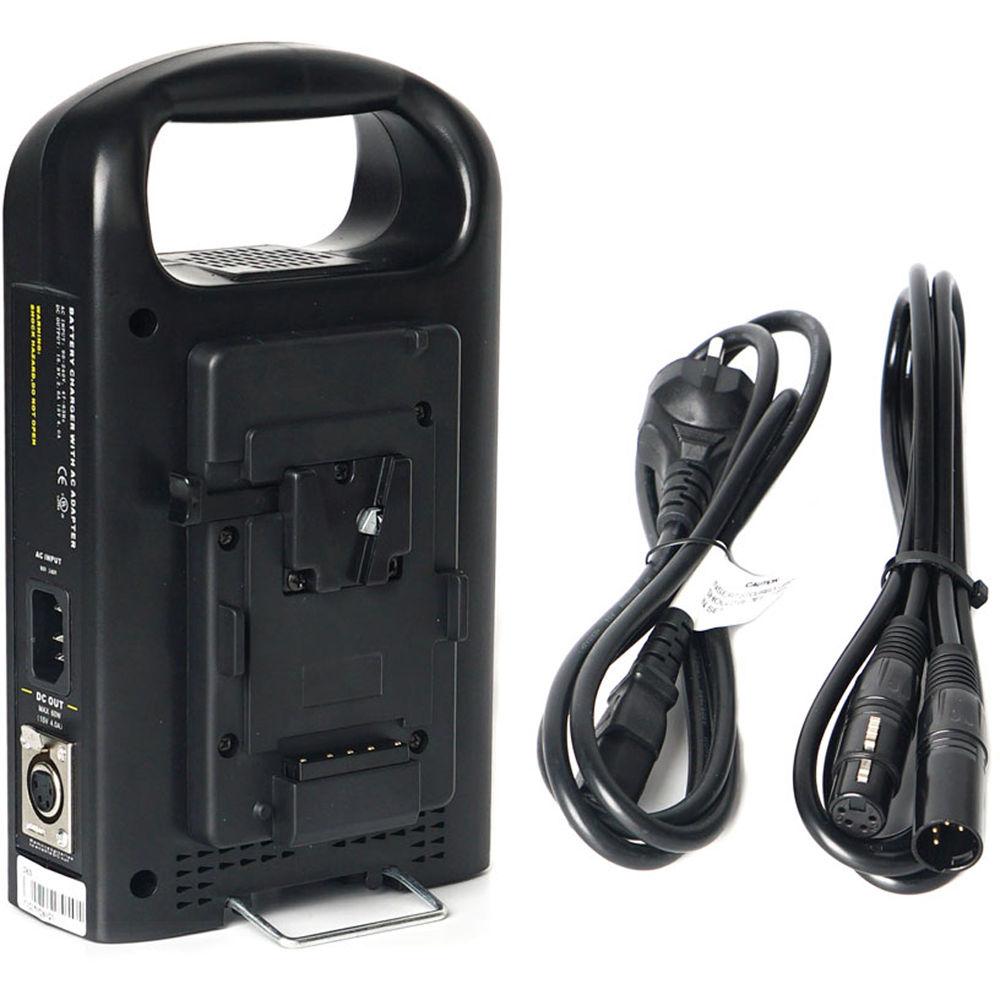

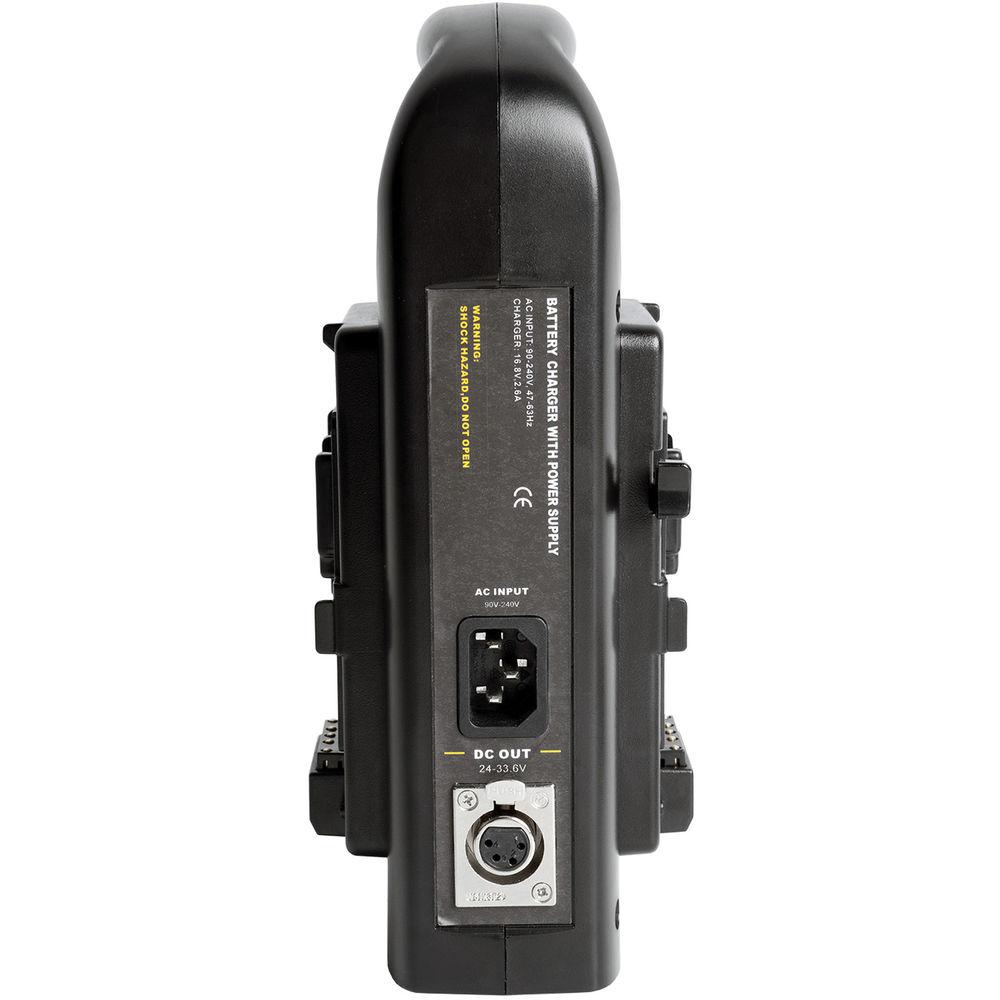

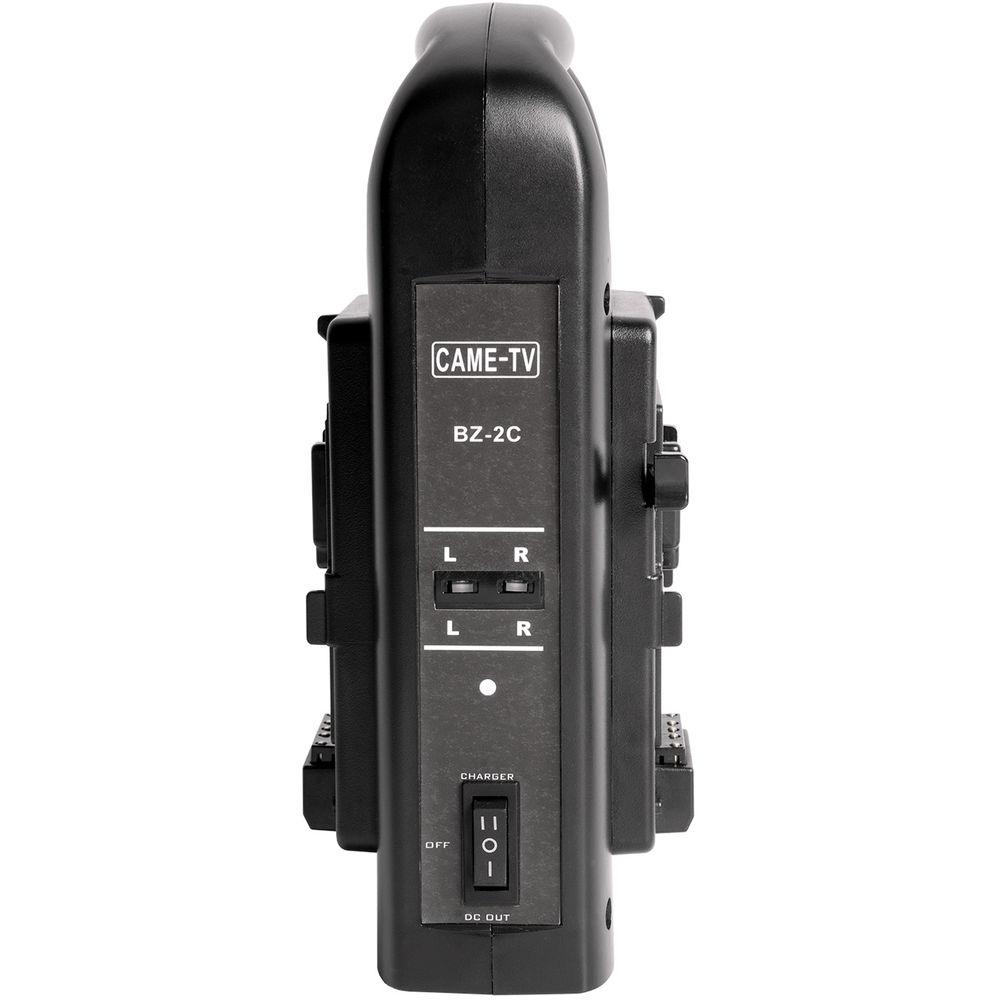

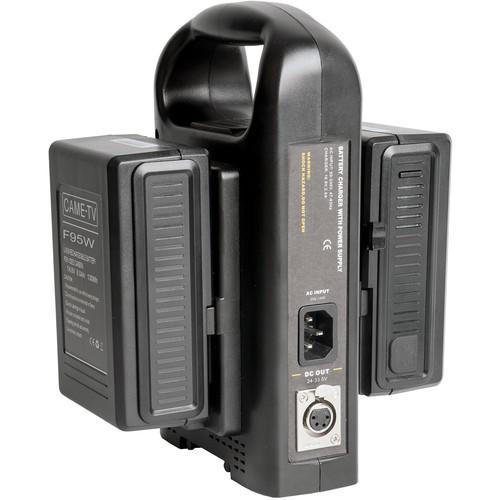

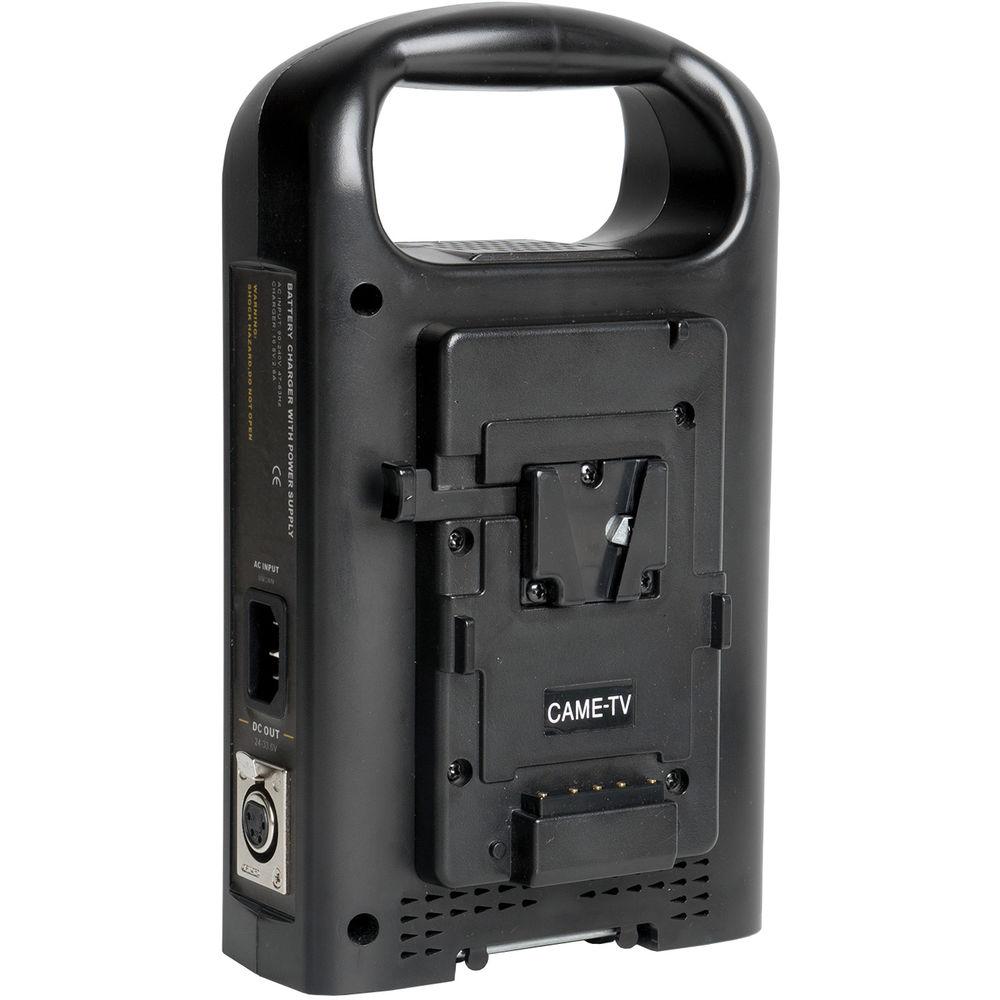

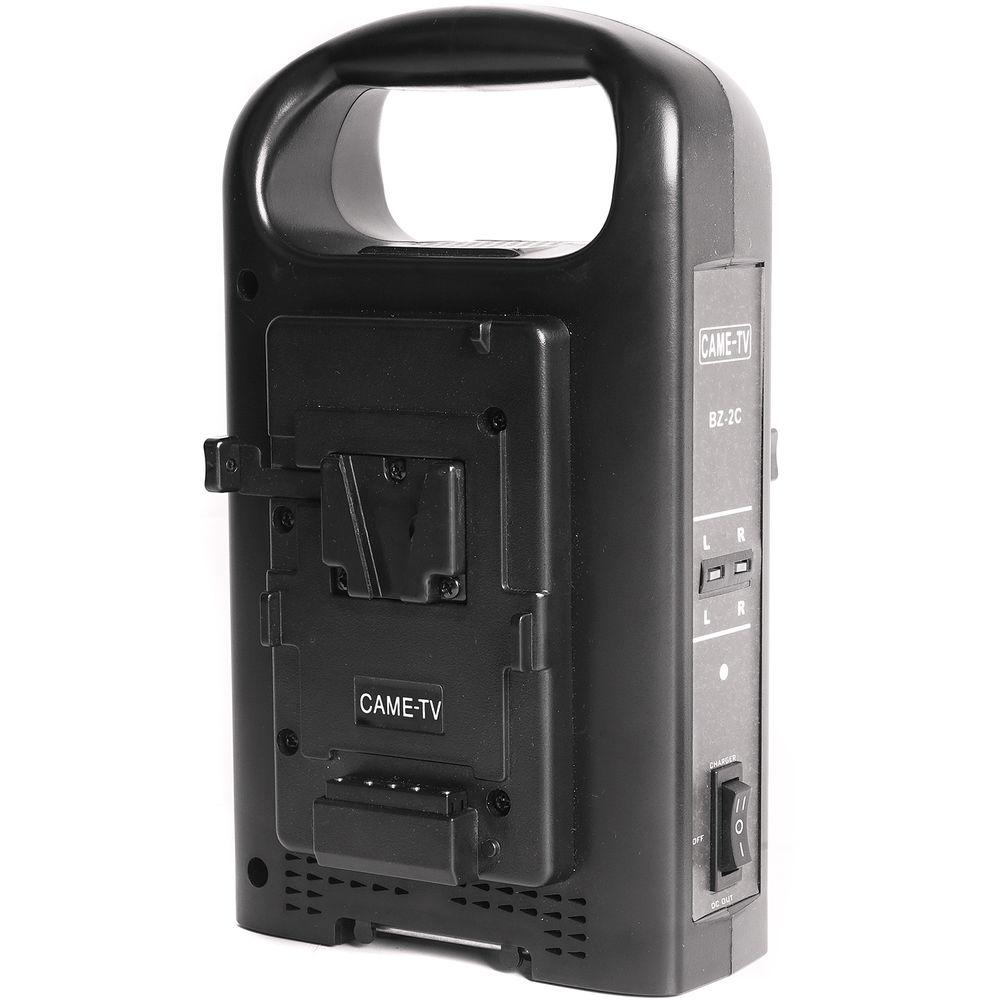

Product description This Came-TV V-Mount Battery Charger Kit with 2 x 95Wh Li-Ion Batteries provides you with a V-mount battery charger and two V-mount batteries. The charger is capable of simultaneously charging two batteries. You can also switch between charging batteries to using the charger as a 24 to 33 VDC power supply. The charger features an anti-slip bottom and extendable feet to improve its stability.
The batteries feature a V-mount connector and have a 6.6Ah capacity and a 95Wh rating. The battery's LED gauge provides a visible indication of battery power remaining, and the built-in D-Tap enables powering accessories directly from the battery and not through your camera's electronics. Each battery features built-in protection to help guard against problems caused by over and under voltage, as well as current and temperature fluctuations. Included with the kit is an AC power cord and a 4-pin XLR cord. - Dual V-Mount Battery Charger and Power Supply Designed for lithium-ion batteries, the Dual V-Mount Battery Charger and Power Supply from Came-TV can charge 2 batteries simultaneously for use in light fixtures that have plates to accept the V-mount format. UPC: 614993188609
- Compact 95Wh 14.8V V-Mount Battery This 95Wh V-Mount Battery from CAME-TV offers 14.8V power in a compact form. The battery has a 6.6Ah capacity and features a D-Tap port for powering accessories. A four-LED display on the battery's side provides a visual indicator of remaining power. Built-in safety limits protect the battery from over and under voltage, current, and temperature fluctuations.
- 14.8V lithium-ion battery
- V-Mount connector and D-Tap port
- Internal voltage, current, and temperature protection
In the Box Bundle Items Dual V-Mount Battery Charger and Power Supply 2 x Compact 95Wh 14.8V V-Mount Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV V-Mount Battery Charger Kit with 2 x 95Wh Li-Ion Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dual V-Mount Battery Charger and Power Supply
| | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz at 1.5 A | | Chemistry | Lithium-Ion | | Number of Battery Bays | 2 | | Output Voltage | 33.6 VDC | | | | Mount | V-Mount | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Dimensions | 9.45 x 5.5 x 2.4" / 240 x 140 x 60 mm | | Weight | 2.2 lb / 1 kg | | | | Box Dimensions (LxWxH) | 10.9 x 9.15 x 5.2" | - Compact 95Wh 14.8V V-Mount Battery
| Battery Chemistry | Lithium ion | | Mount Type | V-Mount | | Output Voltage | 14.8 V | | Capacity | 95 Wh, 6.6 Ah | | Operating Temperature & Humidity | -4 to 113°F / -20 to 45°C
<85% relative humidity | | Dimensions (WxDxH) | 3.3 x 2.2 x 5.5" / 8.5 x 5.5 x 14 cm | | Weight | 1.59 lb / 720 g |
