Product description The VM02 V-Mount Battery Plate from CAME-TV provides a convenient way of connecting a V-Mount battery to your camera. As long as you can get a pair of 15mm rods attached to your camera, you can secure this battery plate. If you've got a complete rig, then even better because the plate will also serve as a counterweight.

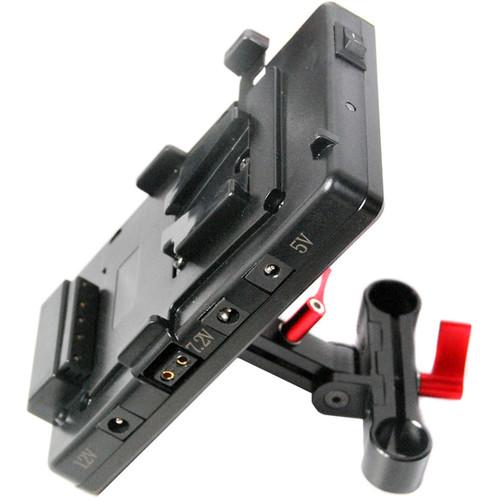

The VM02 features multiple connectors and includes matching cables for plugging in a camera and/or various other devices and drawing power from a battery (not included). There's a standard 12V barrel connector, 7.2V D-Tap connector, 7.2V barrel connector, and 5V barrel connector. All these ports can be used at the same time. Among the included matching cables is an LP-E6 dummy battery cable that can be used to power a wide variety of devices.

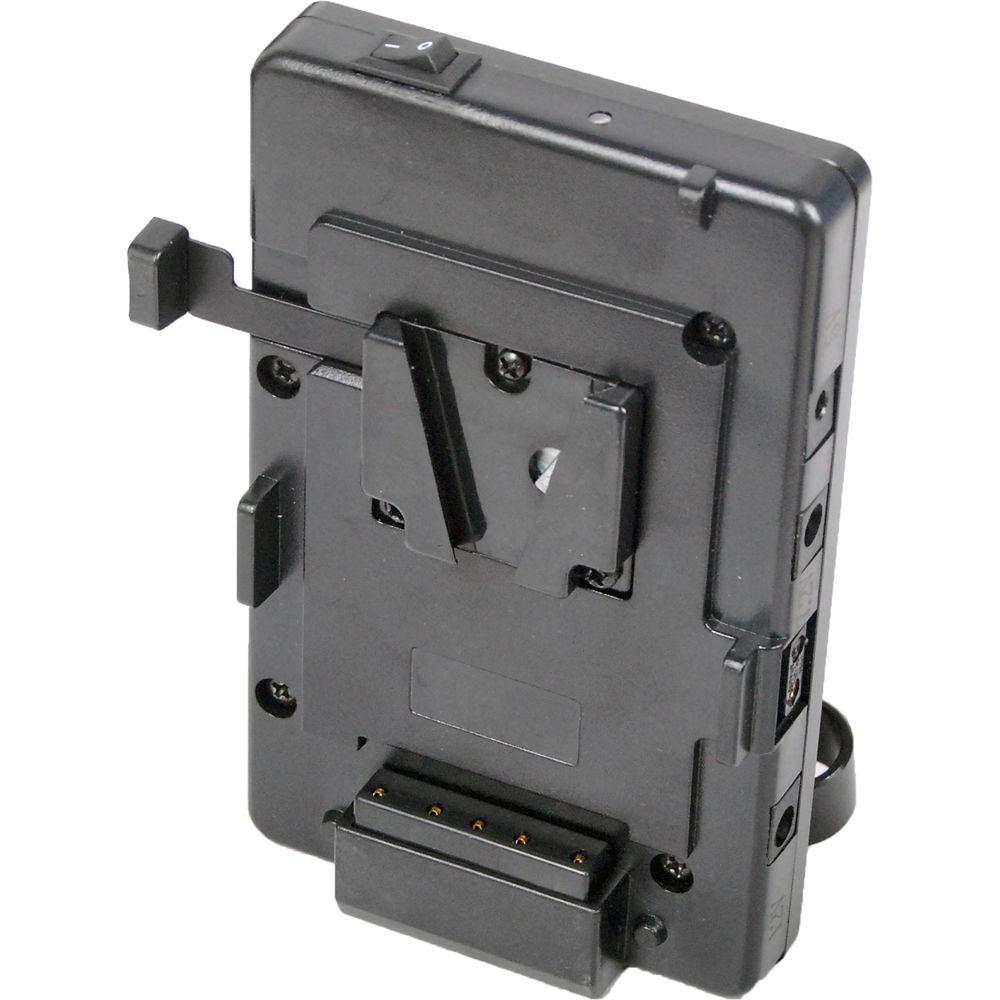

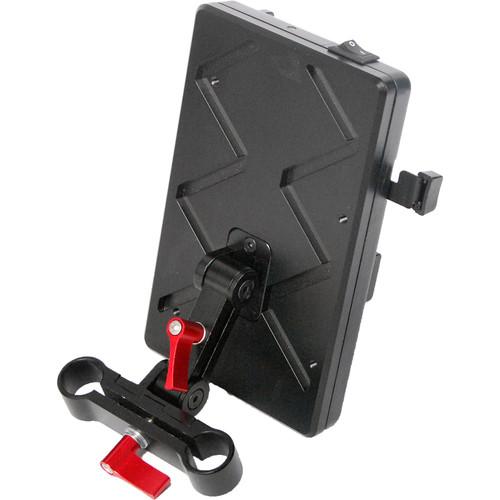

The VM02 attaches to standard 15mm LWS rods and can be adjusted vertically along an extension leg. The rod mount is made of aluminum while the plate itself is made of durable but lightweight plastic. When you attach a battery, it slides and snaps into place, and is released by a latch on the side. The VM02 also has a power switch that turns on an LED indicator that confirms that the battery is delivering power to the ports. - Key Features
-
- Connect a V-Mount battery to your camera / rig
- Vertically adjustable 15mm LWS rod mount
- 12V barrel connector
- 7.2V D-Tap connector
- 7.2V barrel connector
- 5V barrel connector

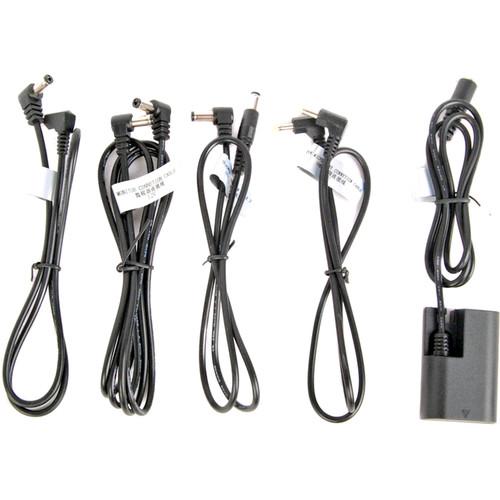

- Five connection cables supplied, including LP-E6 dummy battery cable
- All ports can be used at the same time
- Battery release latch
- Power switch and LED power indicator
- Also serves as a counterweight
UPC: 717080142772 In the Box CAME-TV VM02 V-Mount Battery Plate with Connection Cables 4 x Barrel-to-Barrel Connector Cables (Different Voltages) LP-E6 Dummy Battery Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAME-TV VM02 V-Mount Battery Plate with Connection Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAME-TV VM02 Specs | Connectors | 1 x 12 V barrel connector
1 x 7.2 V D-Tap connector
1 x 7.2 V barrel connector
1 x 5 V barrel connector | | Material of Construction | Aluminum rod mount
Durable plastic plate | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.425 x 7.953 x 3.543" |
