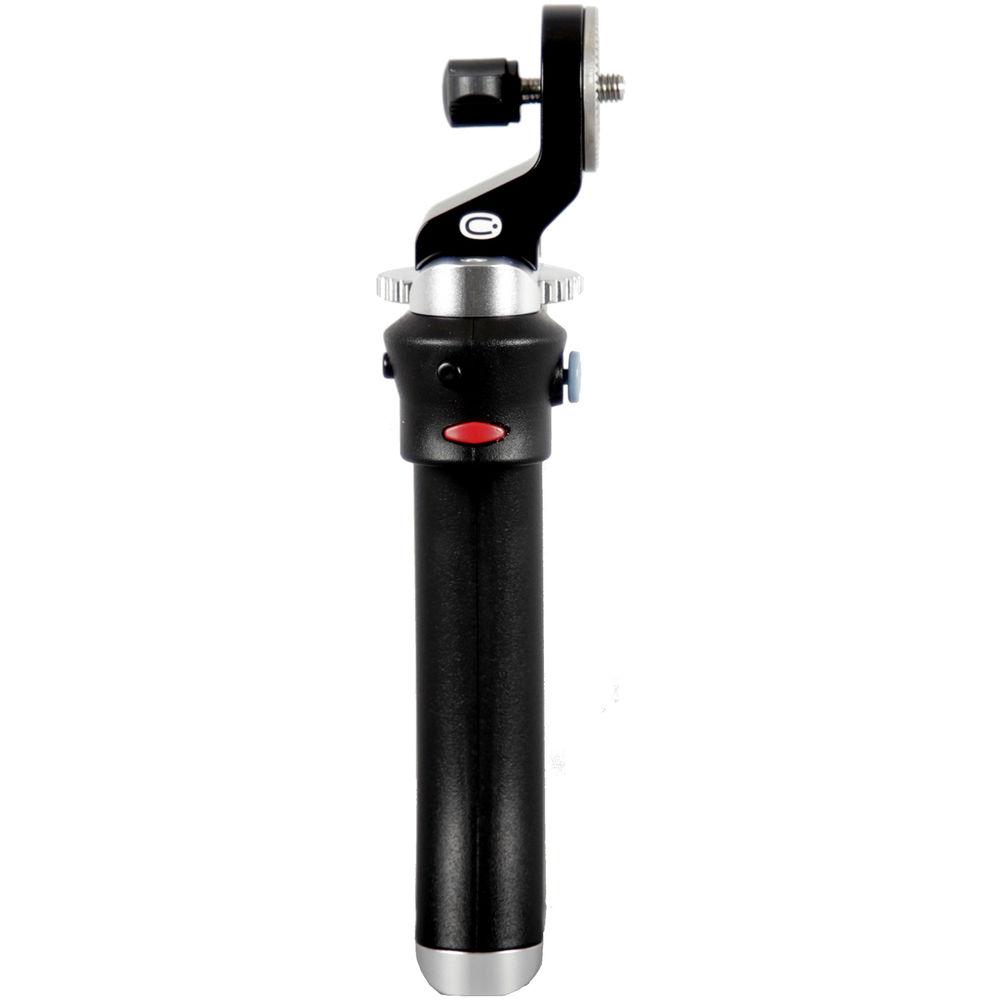

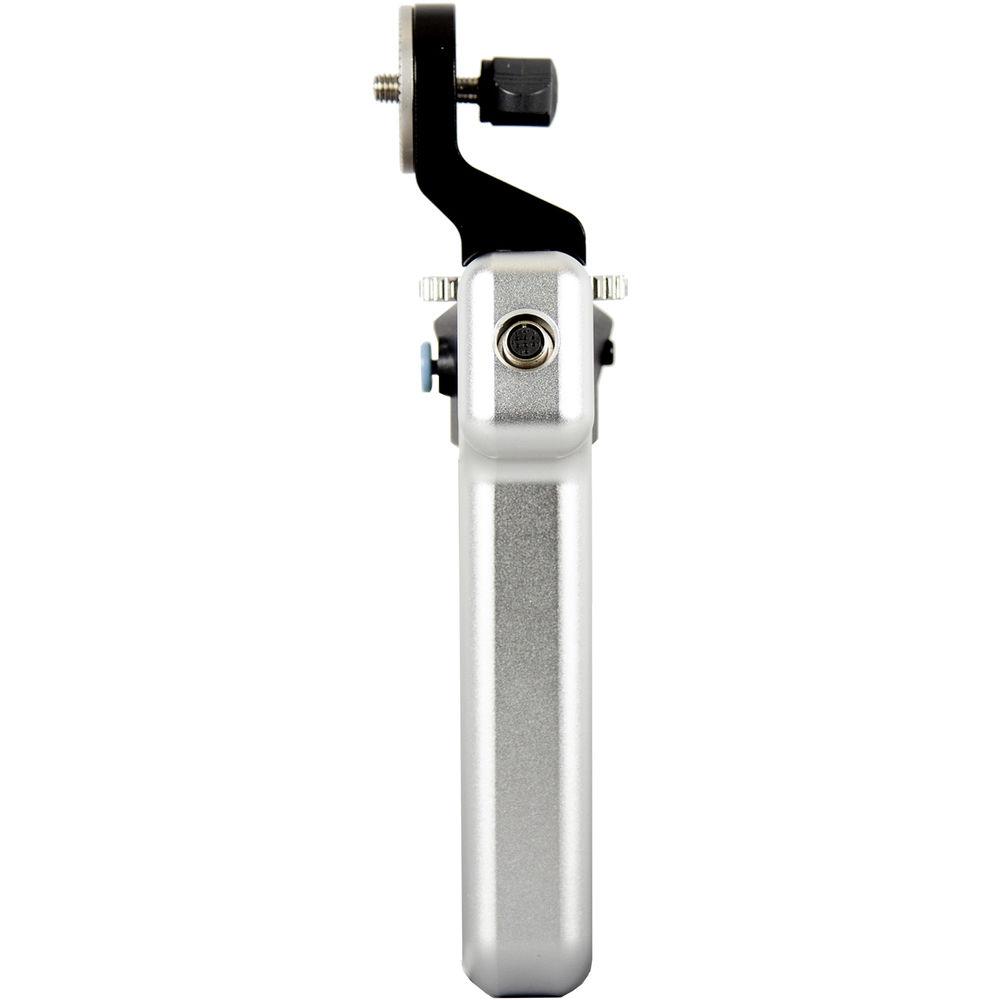

Product description If you're pining for the old days of center-mount Bolex-style handgrips but also want to live in the current, electronic scene, CAMEOGEAR created the CameoGrip Retro Handgrip to satisfy your needs. The retro look of the right-handed CameoGrip will pop when attached to your gear, but it also has a comfortable feel and is made of sturdy aluminum, stainless steel, and plastic.
Powered by your camera with a draw of 400mW, the CameoGrip provides electronic functions such as iris, focus, zoom, and run/stop to cameras that allow the function via a LANC port, or it provides focus, zoom, and run/stop to a Multi-Terminal port. It has an 8-pin Hirose connector for camera control, two programmable buttons for your choice of function, one button for run/stop, and a 2-axis joystick to control zoom, iris, or focus. A micro-USB port allows for firmware upgrades.
If you're not a Bolex-style user, a rosette adapter is included to mount the CameoGrip onto other gear such as a shoulder rig, tripod pan arm, or camera cage. An 8-pin Hirose to 2.5mm LANC cable is included, and an 8-pin Hirose to Multi-Terminal cable is available separately. See below for a list of cameras tested with the CameoGrip. - Camera Compatibility
- The CameoGrip is compatible with most cameras with LANC ports or Sony cameras with Multi-Terminal ports. Note that iris control is only available via LANC. Sony's Multi-Terminal interface doesn't currently support iris control.
Below are cameras successfully tested with the CameoGrip:
Sony FS5
Sony FS7
Sony Alpha series
Canon C100
Canon C100 MK II
Canon C200
Canon C300
Canon C300 MK II
Panasonic EVA-1 UPC: 811454030587 In the Box CAMEOGEAR CameoGrip Retro Handgrip with 20" LANC Cable Rosette Adapter LANC Cable (20") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAMEOGEAR CameoGrip Retro Handgrip with 20" LANC Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAMEOGEAR CameoGrip Specs | Material of Construction | Aluminum, stainless steel, plastic | | Configuration | Right-handed | | Input / Output Connectors | 8-pin Hirose (camera/lens control)
Micro-USB (firmware updates) | | Mounting | 1 x 3/8"-16
1 x 1/4"-20
1 x ARRI-style rosette | | Buttons and Controls | 2 x User buttons
1 x Trigger button
1 x 2-axis joystick | | Power Draw | 400 mW | | Dimensions | 5.8 x 1.6 x 3.4" / 14.7 x 4.1 x 8.6 cm | | Weight | Grip: 7 oz / 198 g
Rosette Adapter: 2.5 oz / 71 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.1 x 5.3 x 2.9" |
