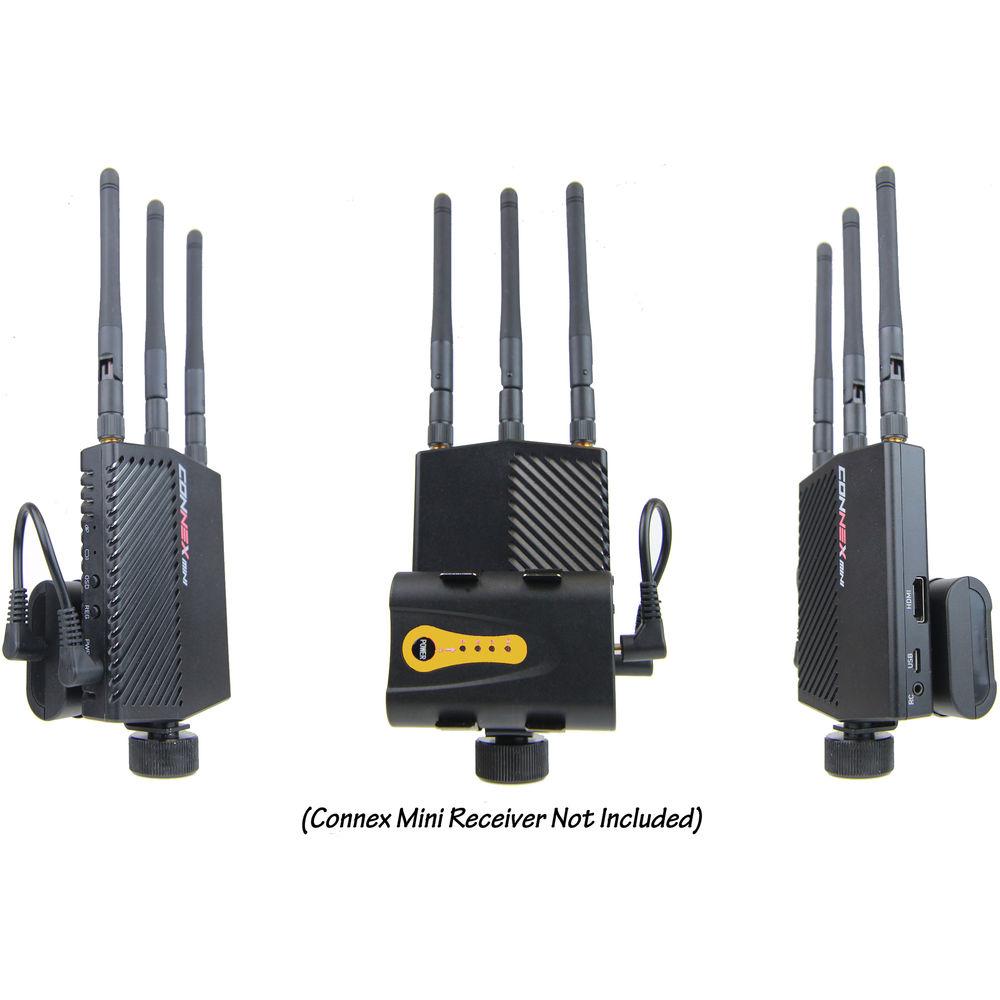

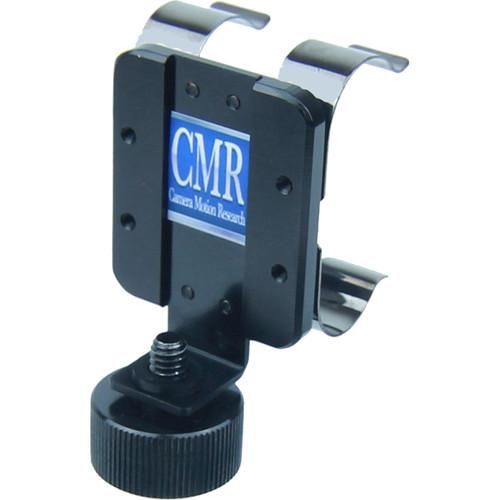

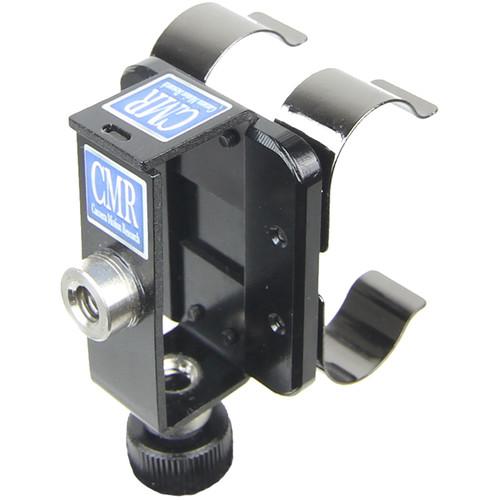

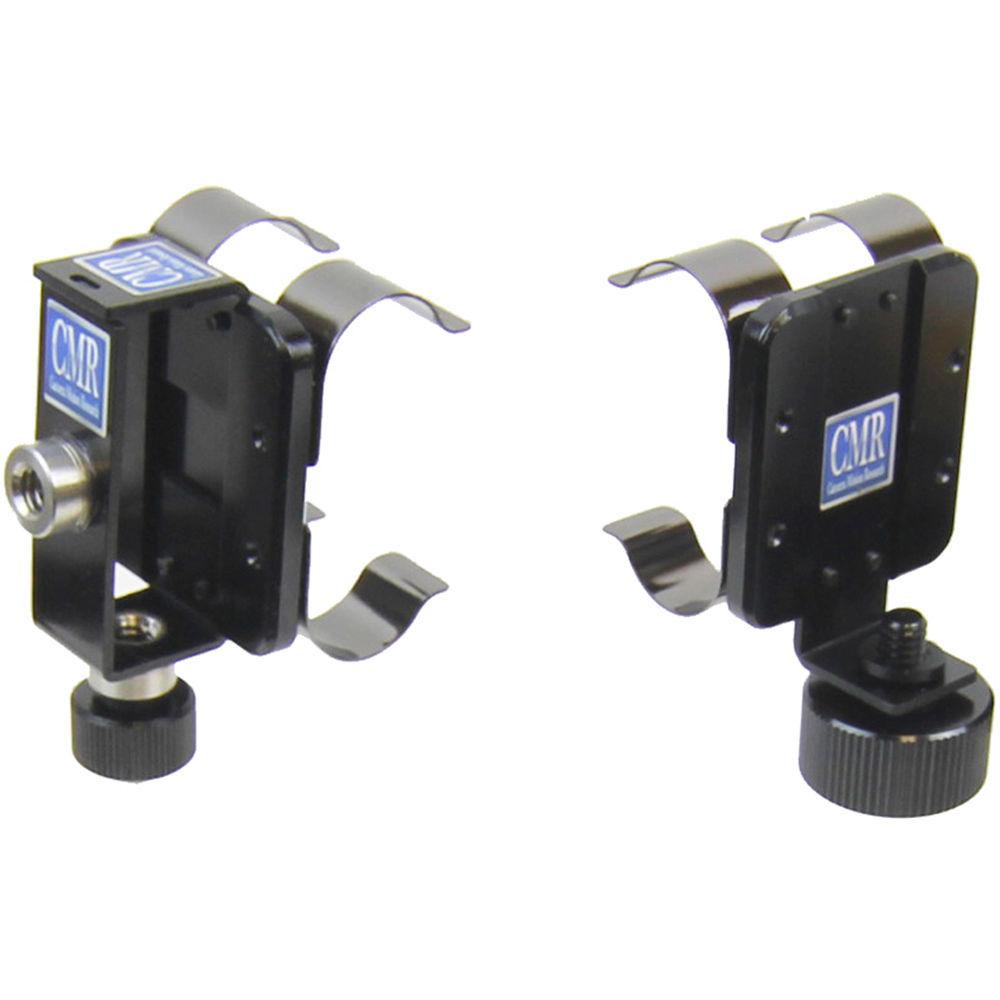

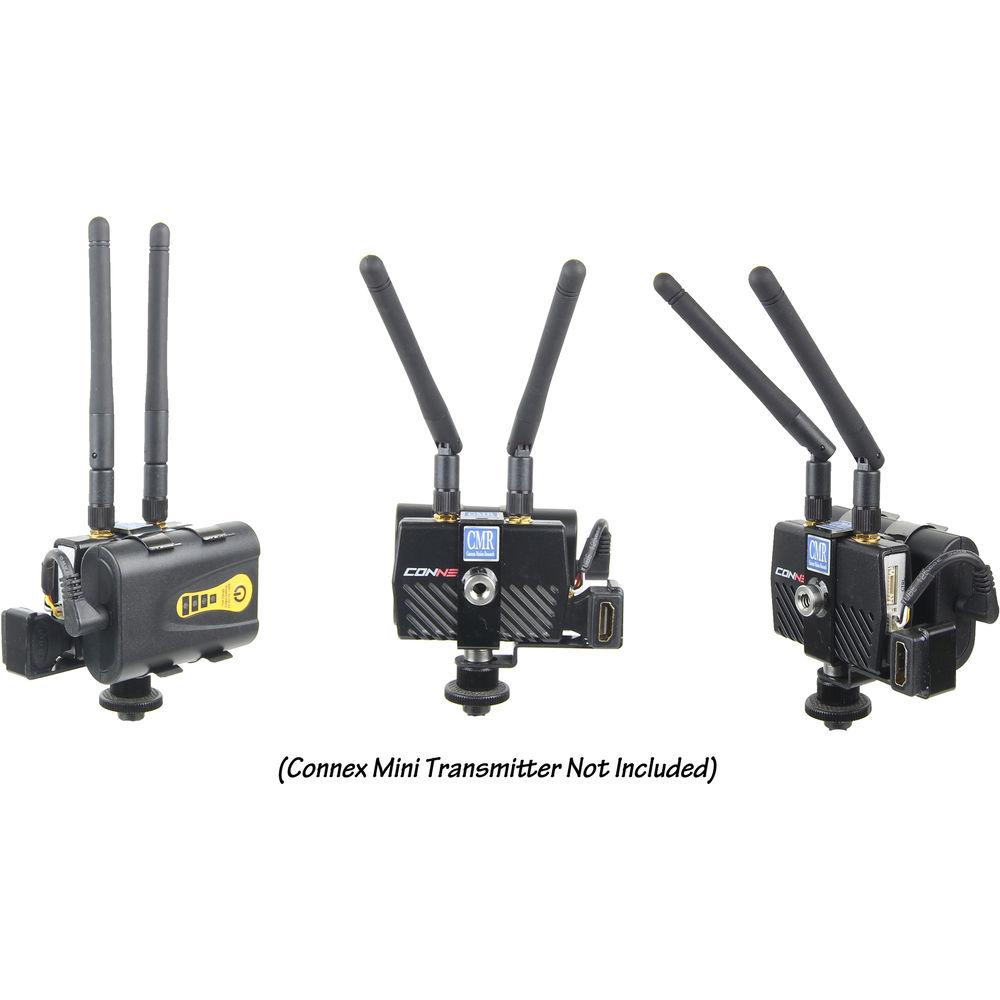

Product description Camera Motion Research's Accessory Pack for Connex Mini System supplies all the components needed to use the Connex Mini HD wireless system with your camcorder or DSLR. The kit features transmitter and receiver cages/supports with removable battery spring clips, two rod antennas (to replace the transmitter's original strip antennas), and a standard-size HDMI adapter for a more secure connection to the transmitter's micro-HDMI port.

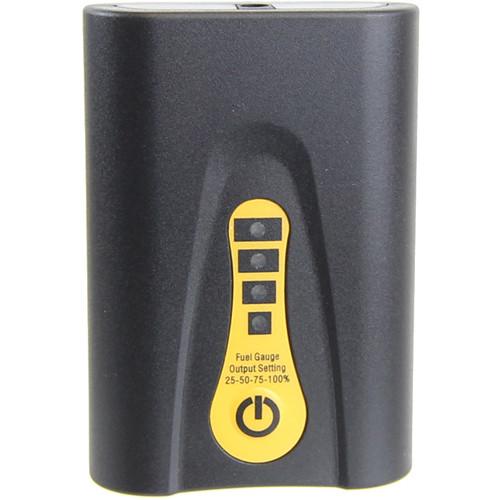

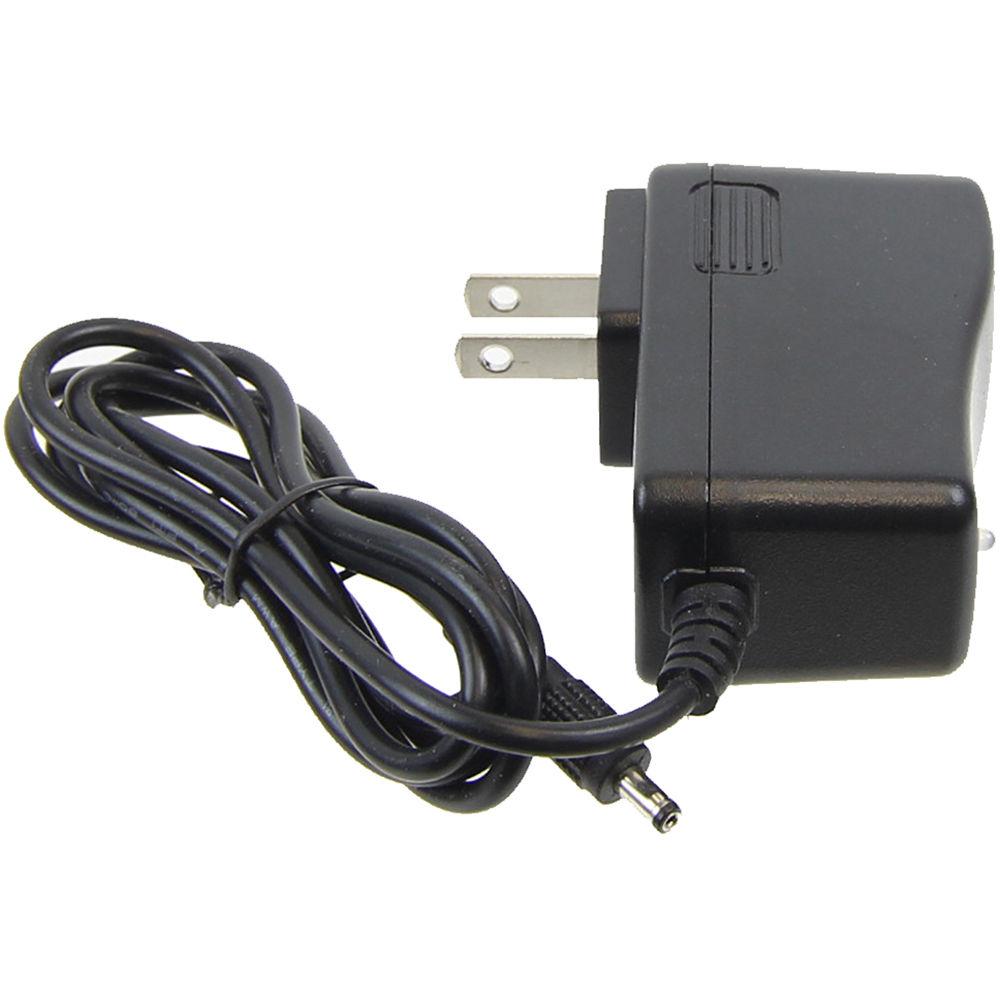

The two included 8.4V lithium-ion batteries feature on/off buttons which can be used to conserve power, and four-bar gauges to display remaining power. The battery clips can be detached from the cages when powering the units via external power (such as D-Tap cables). An HDMI Type-A cable, transmitter and receiver power cables, an AC battery charger, a cold shoe adapter, and mounting screws flesh out this kit. Note: Connex Mini transmitter and receiver are not included. - Aluminum transmitter and receiver cages/supports with removable spring clip battery mounts
- The 8.4V, 25Wh lithium-ion, 3400mAh batteries offer on/off buttons for controlling the transmitter/receiver
- Standard-size HDMI adapter provides a more secure connection to the transmitter's micro-HDMI port
- Rod antennas offer an alternative to the strip antennas included with the transmitter

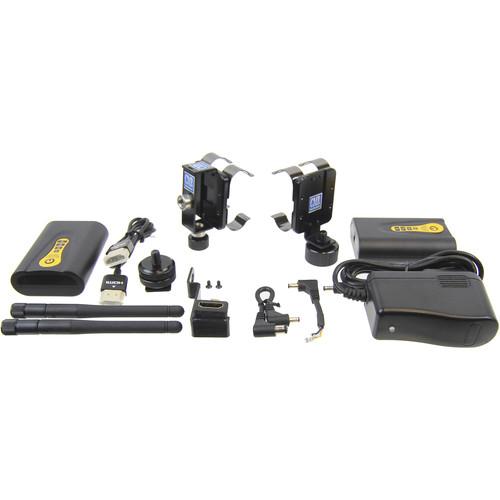

UPC: 635833330101 In the Box Camera Motion Research Accessory Pack for Connex Mini System Transmitter Cage with Battery Clip Receiver Support with Battery Clip 2 x 8.4V Lithium-Ion Battery for Connex Mini vuafbrtbucazbaxuuf Lithium-Ion Battery Charger for Connex Mini 2 x Rod Antennas Transmitter Power Cable Receiver Power Cable Micro-HDMI to HDMI Adapter HDMI Type-A Cable (18") Cold Shoe Adapter Hardware and Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camera Motion Research Accessory Pack for Connex Mini System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamera Motion Research AP10M Specs | Material of Construction | Anodized aluminum, stainless steel, chrome-plated steel | | Battery Chemistry | Lithium-ion | | Battery Capacity | 3400 mAh | | Average Runtime | Transmitter: 5.5 hours
Receiver: 5 hours | | Typical Charging Time | 3.5 hours | | Charger AC Input | 100–240 VAC, 50/60 Hz | | Cable Length | HDMI Type-A: 18" (45.7 cm) | | Dimensions (HxWxD) | Battery: 2.8 x 1.9 x 0.9" (7.1 x 4.8 x 2.2 cm) | | Weight | Transmitter Cage: 4.2 oz (119 g)
Receiver Battery Support: 1.7 oz (48 g)
Battery: 3.9 oz (110 g)
Charger: 3.2 oz (91 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 12.7 x 4.3 x 3.3" |
