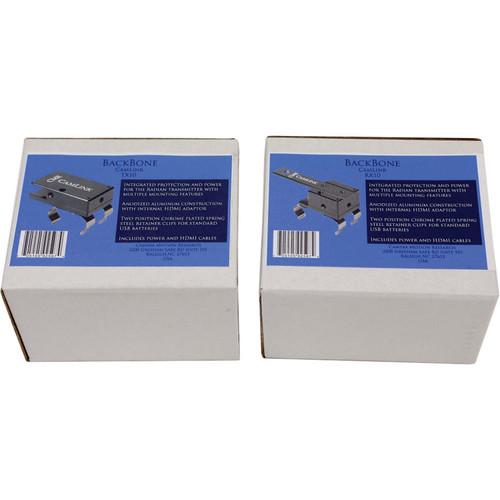

User Manual for Camera Motion Research Radian TX RX Backbone with Battery Clips Click to enlarge the picture
Contents of the user manual for the Camera Motion Research Radian TX RX
- Product category: Wireless Transmission Camera Motion Research
- Brand: Camera Motion Research
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camera Motion Research Wireless Transmission
|
User manual for the Camera Motion Research Radian TX RX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camera Motion Research product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camera Motion Research user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camera Motion Research product will considerably shorten its lifespan!
|
Product description The Camera Motion Research Radian TX/RX Backbone with Battery Clips is used to provide mounting options, and supply power to available Radian transmitters and receivers. The Backbones provide a way to mount your transmitter/receiver and mount a USB style batter to provide power to your devices. - Radian TX Backbone with Battery Clips The Camera Motion Research Radian TX Backbone with Battery Clips is used to provide mounting options, and supply power to available Radian transmitters. The Backbone is made from milled, anodized aluminum, with chrome plated spring steel battery clips that allow you to use available USB batteries.
The TX Backbone has three orthogonal 1/4"-20 threaded mounting holes, and includes a hot shoe mount, and a thumb stud with locking nuts for mounting to available monitor yokes or other rigs. The included accessory block provides a 1/4 " through hole for mounting. TX Backbones include a USB power cable, and thin HDMI cable UPC: 794504800913 - Radian RX Backbone with Battery Clips The Camera Motion Research Radian RX Backbone with Battery Clips is used to provide mounting options, and supply power to available Radian receivers. The Backbone is made from anodized aluminum, with chrome plated spring steel battery clips that allow you to use available USB batteries.
The Backbones are made from milled, anodized aluminum, and battery clips are made from chrome plated spring steel. The RX Backbone has three orthogonal 1/4"-20 threaded mounting holes, and includes a thumb studs with locking nut accessories for mounting to an available monitor yokes or other rigs. The included accessory block provides a 1/4 " through hole for mounting. RX Backbones include a USB power cable, and thin HDMI cable UPC: 794504800814 In the Box Bundle Items Radian TX Backbone with Battery Clips wqyewbedxrzwazvstvyazvzbfaruxwrvcrbv - Backbone Accessory Mounting Block
- Set Washers and Spare Screws
- USB to 3.5 mm Barrel Cable for Receiver Power
- HDMI to mini HDMI Cable (12")
Radian RX Backbone with Battery Clips - Backbone Accessory Mounting Block
- Set Washers and Spare Screws
- USB to 3.5 mm Barrel Cable for Receiver Power
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camera Motion Research Radian TX RX Backbone with Battery Clips in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Radian TX Backbone with Battery Clips
| Material of Construction | Anodized aluminum
Chrome plated spring steel | | Mounting Holes | 3 x 1/4"-20 | | Battery Size | Holds Battery Approx. 2.7 x 1.2" (68.6 x 30.5 mm) | | Dimensions | 2.7 x 1.8 x 1.5" (68.6 x 45.7 x 38.1 mm) | | Weight | 3.8 oz (107.7 g) | | | | Box Dimensions (LxWxH) | 4.8 x 4.0 x 3.2" | - Radian RX Backbone with Battery Clips
| Material of Construction | Anodized aluminum
Chrome plated spring steel | | Mounting Holes | 3 x 1/4"-20 | | Battery Size | Approx. 2.7 x 1.2" (68.6 x 30.5 mm) | | Dimensions | 4 x 1.8 x 1.5" (101.6 x 45.7 x 38.1 mm) | | Weight | 4.7 oz (133.2 g) | | | | Box Dimensions (LxWxH) | 4.9 x 4.2 x 3.1" |
