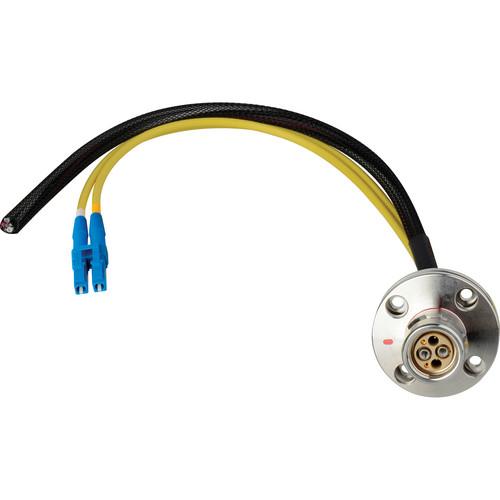

Product description The Camplex 6" LEMO FXW to Duplex LC Fiber & Blunt Lead Power Breakout Cable is a certified UPC multistage machine polished cable exceeding SMPTE specifications. It is an internal distribution breakout cable for panel mounting in blank panels or as a replacement in hybrid devices. This pre-terminated SMPTE hybrid breakout cable features LEMO 3K.93C connectors feeding out to both Duplex LC optical connectors and a blunt copper lead for wiring the power connector of choice. It is suitable for use in SMPTE rack panels, splice trays, adapters, and wall boxes.
Assembled with premium flexible US SMPTE standard studio broadcast cable, this composite cable integrates the power line for TV camera, control line, and optical fiber for video and audio transmission. The cable is standardized by SMPTE for HDTV broadcast camera use. It consists of 2 single-mode optical fibers, and four 20 AWG and two 24 AWG tinned copper conductors cabled around a steel strength element, with an overall tinned copper braid. This general purpose cable is used for studios, patching, and light to medium field use. A flexible PVC blend jacket allows for ease of use within the studio. - Assembled with premium SMPTE cable and LEMO and Senko connectors
- Terminations by LEMO trained technicians
- Electrical assemblies 100% tested for continuity and short circuits
- Fiber optic assemblies 100% tested for attenuation and back reflection
- SMPTE 311M and 304M compliant
- Stainless steel assemblies
- 19.4 Mb/s to 3 Gb/s transport speed
- Machine polished fiber contacts
- Low insertion and return loss
In the Box Camplex 6" LEMO FXW to Duplex LC Fiber & Blunt Lead Power Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex 6" LEMO FXW to Duplex LC Fiber & Blunt Lead Power Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-FXWBP4LC-06IN Specs | | | Connector 1 | FXW | | Connector 2 | LC | | Coupling Type | LEMO (SMPTE) | | Cable Length | 6' / 1.8 m |
