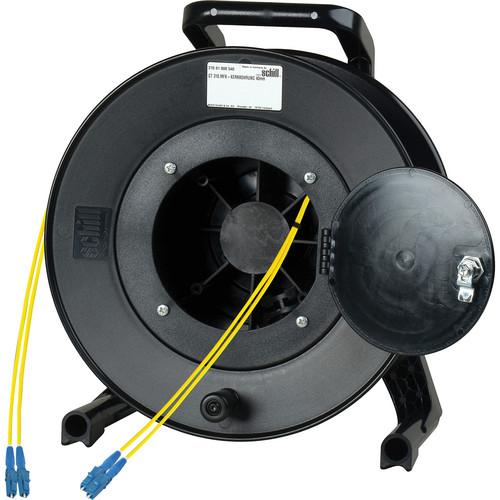

User Manual for Camplex Duplex LC Single-Mode Fiber Optic Tactical Snake Reel Click to enlarge the picture
Contents of the user manual for the Camplex Duplex LC Single-Mode Fiber Optic
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex Duplex LC Single-Mode Fiber Optic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description The Camplex Duplex LC Single-Mode Fiber Optic Tactical Snake Reel comes in a 1000' reel, and is a ruggedized multichannel fiber optic cable designed for multiple field production deployments in outside broadcast, rental houses, and more. It is a highly flexible, tight-buffered tactical cable with internal aramid strength members for crush resistance in high-traffic areas (if handled properly), with a polyurethane outer sheath designed to withstand crushing by both military tanks and broadcast vehicles. All assemblies are multi-stage machine polished and tested for <0.55 dB RL, with test results for each channel supplied with the cable.
This fiber optic tactical snake cable includes the Schill cable reel with connector protection cavity and hinged latching door. The Schill reel has been carefully selected to ensure the proper support and critical bend radius required by fiber optic cables. Note: It is recommended that tactical fiber optic cables over 25' be stored on a cable reel. - Built with OCC multichannel tactical cable and heavy-duty connectors with dust caps
- Individual channels ruggedized with Techflex protection and 24" fanout
- Compact, round cable design for ease of transportation and deployment
- Designed for use in adverse environments where reduced size and weight are important
- Helically stranded cable core for flexibility, deployment survivability, and mechanical protection of the optical fibers
- Cable has been tested and is suitable for use in military data communications applications
- Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
- Suitable for outside broadcast, industrial, mining, and petrochemical environments (chemical-resistant)
- Crush-resistant and resilient, with a thick layer of aramid strength members
- Polyurethane-jacketed for abrasion, cut, and chemical resistance
- Meets MIL-PRF-85045 specifications
In the Box Camplex Duplex LC Single-Mode Fiber Optic Tactical Snake Reel (1000') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex Duplex LC Single-Mode Fiber Optic Tactical Snake Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-TR02LC-1000 Specs | | | Connector 1 | 2 x LC | | Connector 2 | 2 x LC | | Cable Length | 1000' / 304.8 m | | | | Package Weight | 26.05 lb | | Box Dimensions (LxWxH) | 19.7 x 15.6 x 9.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
