User Manual for Camplex FCS015A-FR Hybrid Fiber Optic Receptacle Breakout Cable SMPTE ARIB with ST Female Connector Click to enlarge the picture
Contents of the user manual for the Camplex FCS015A-FR Hybrid Fiber Optic Receptacle
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex FCS015A-FR Hybrid Fiber Optic Receptacle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|

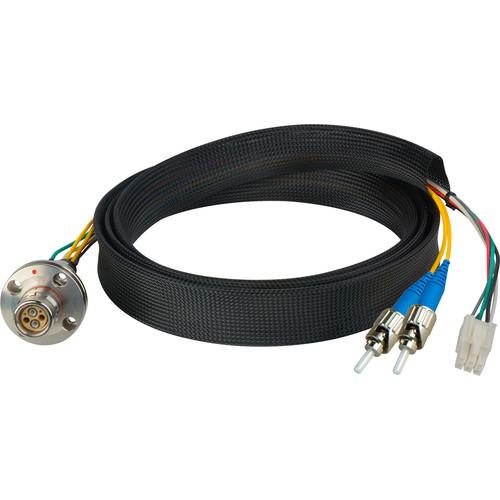

Product description The 1’ FCS015A-FR Hybrid Fiber Optic Receptacle Breakout Cable SMPTE/ARIB with 1 Connector from Camplex is used for panel mounting in blank panels or as a replacement in hybrid devices. This SMPTE hybrid breakout cable features a Canare FC-Series connector at one end and duplex ST female and copper leads terminated with a 6-pin AMP power connector at the other end. The cable integrates the power line for a TV camera, control line, and optical fiber for video and audio transmission. It adheres to SMPTE standards for HDTV broadcast camera use and is suitable for use in SMPTE rack panels, splice trays, adapters, and wall boxes. It is assembled with Canare SMPTE standard studio broadcast cable. The cable consists of two single-mode optical fibers and four 20 AWG and two 24 AWG tinned copper conductors cabled around a steel strength element, with an overall tinned copper braid. This general purpose cable is used for studios, patching, and light to medium field use. A flexible PVC blend jacket allows for ease of use within the studio. - Assembled with SMPTE cable & Canare and Senko connectors
- Electrical assemblies tested for continuity and shorts
- Fiber optic assemblies tested for attenuation and back reflection
- SMPTE 311M and 304M compliant
- 19.4 Mb/s to 3 Gb/s transfer speed
- Machine-polished fiber contact
- Low insertion and return loss
In the Box Camplex FCS015A-FR Hybrid Fiber Optic Receptacle Breakout Cable SMPTE/ARIB with ST Female Connector (1') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex FCS015A-FR Hybrid Fiber Optic Receptacle Breakout Cable SMPTE ARIB with ST Female Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-FCS01A-FR-ST Specs | | | Connector 1 | FC | | Connector 2 | ST Female
6-Pin AMP | | Cable Length | 1' / 0.3 m |
