Product description Provided by third party: The FiberGig Series is designed to send Broadcast 3G-SDI & Gigabit Ethernet signals over long distance transmission fiber optic cable at sports venues, concerts and other live broadcast events. Systems support cable runs up to 12 miles utilizing Camplex tactical fiber or opticalCON runs.

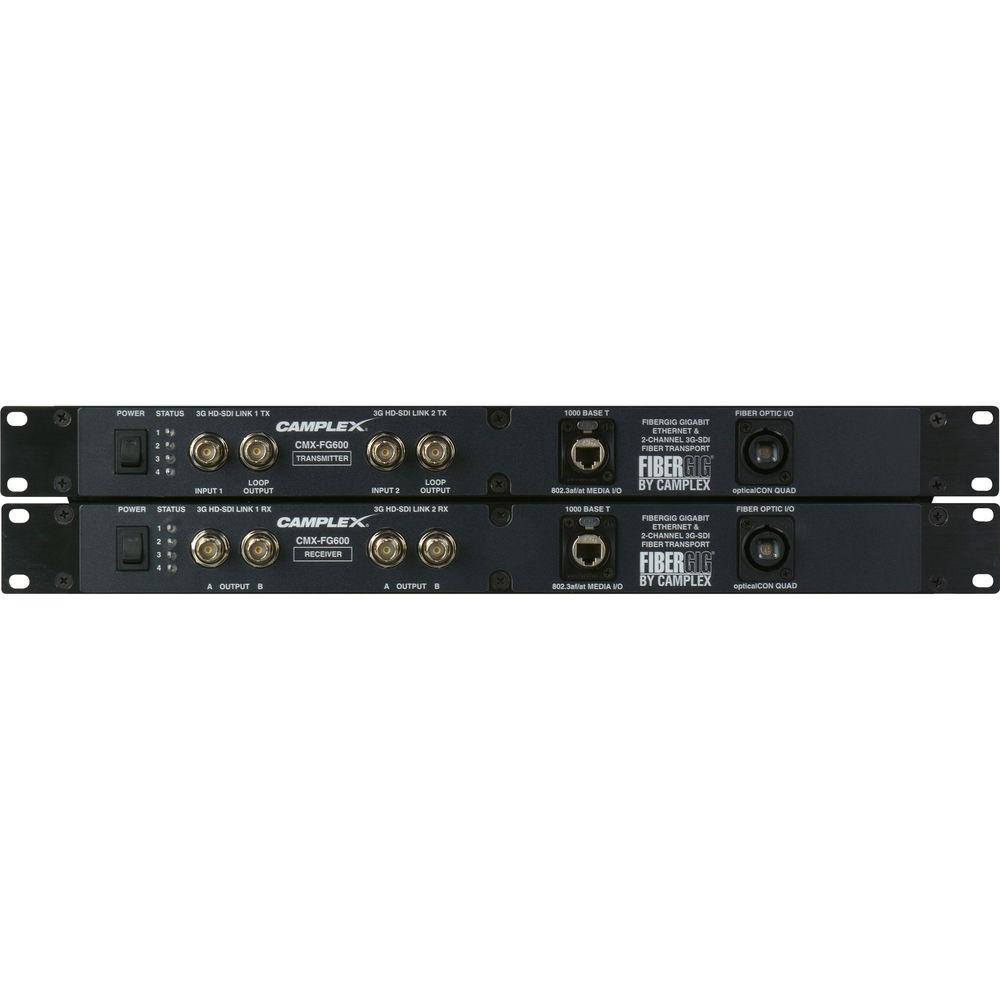

The Camplex FiberGig CMX-FG600 sends 2-channels of 3G-SDI video alongside bidirectional Ethernet via fiber transport over a singlemode fiber optic cable. The 3G-SDI portion of the system features looping outputs with each input for local monitoring or recording at each end. Automatic equalizing and re-clocking ensure a crisp, clean signals.
The Ethernet Channel in the FG600 is bidirectional and supports DANTE IP audio networking signals making it ideal for live sound venues or anywhere audio needs to be transported on an IP network. It fully supports the 802.3af/at protocol, is housed in a rugged rackmount enclosure and sends signals over opticalCON fiber cable runs.
The transport system is engineered for long haul extensions up to 12 miles. A single IEC AC power cord powers each TX and RX unit which reduces the number of cables.
- Key Features
-
- 2 Channels 3GSDI and 1 Channel [RJ45 Port] GigE
- Ethernet spec meets DANTE requirements 802.3at/af
- Gigabit Ethernet features up to 1000BaseT to 1000Base-LX10 GbE fiber support
- RJ45 to Fiber Ethernet Converter Port
- Up to 30 watts of power PoE Ethernet port
- Convenient single rack unit enclosure with front panel connections
- Standard IEC 110/240vac 50/60Hz power inlet on back panel
- Singlemode fiber connection
- Automatic cable equalization and re-clocking
- Extends transmission capability up to 12 miles (20km)
- Lightweight, yet rugged, aluminum cabinet
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex FiberGig 2-Channel 3G-SDI & GbE Fiber Transport System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex CMX-FG600 Specs | | | Type | 3G-SDI fiber optic distribution system | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | | | Kit Content | (1) x transmitter unit
(1) x receiver unit | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 20.7 x 12.9 x 6.2" |
