User Manual for Camplex HDMI to Fiber Optic Extender Click to enlarge the picture
Contents of the user manual for the Camplex HDMI to Fiber Optic Extender
- Product category: Video Extenders & Repeaters Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Video Extenders & Repeaters
|
User manual for the Camplex HDMI to Fiber Optic Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|

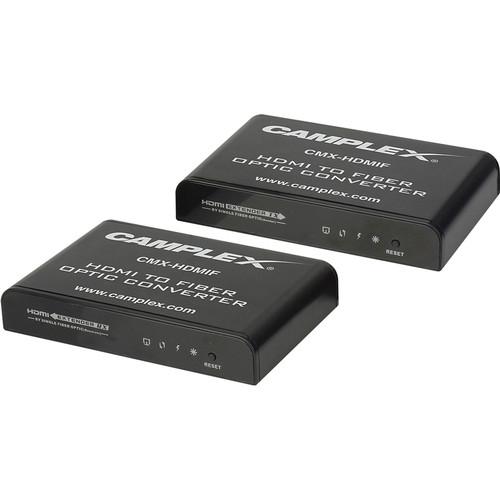

Product description The Camplex HDMI to Fiber Optic Extender is a transmitter/receiver set that extends an HDMI signal for up to 12 miles over singlemode optical fiber. It's HDCP compliant and supports HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1200. It features ST fiber connectors and requires single strand ST to ST cables, sold separately. Optional IR control is supported across the entire fiber run. - Features
-
- Extends an HDMI signal 12 miles over singlemode optical fiber
- Supports resolutions up to 1080p and 1920 x 1200
- ST fiber connectors
- HDCP compliant
- Supports optional IR control
In the Box Camplex HDMI to Fiber Optic Extender Transmitter Receiver 2 x Power Supply 2 x IR Control Cable User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex HDMI to Fiber Optic Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex CMX-HDMIF Specs | HDMI Input Resolutions Supported | 1080p @ 50/60 Hz
1080i @ 50/60 Hz
720p @ 50/60 Hz
576p @ 50 Hz
576i @ 50 Hz
480p @ 60 Hz
480i @ 60 Hz | | HDMI Output Resolutions Supported | 1080p @ 50/60 Hz
720p @ 50/60 Hz
576p @ 50 Hz
480p @ 60 Hz | | Computer Resolutions Supported | Up to 1920 x 1200 (WUXGA) @ 60 Hz | | Input / Output | Tx: 1x HDMI Type A input, 1x Fiber ST output
Rx: 1x Fiber ST input, 1x HDMI Type A output | | Fiber Center Wavelength | 1310 nm | | Fiber Type | Singlemode, 0 - 12 miles (0 - 20 km) | | Fiber Linked Circuit Loss | < 14 dB | | Fiber Output Power | > -11 dBm | | Fiber Receiver Sensitivity | < -32 dBm | | Infrared Remote Control Support | 38 kHz | | TMDS Bandwidth | 10.2 Gbps | | DDC Signal Voltage | 5 Vp-p (TTL) | | Power Adapter | DC5 V/2 A | | Power Consumption | 5 W | | Dimensions | Each Tx/Rx unit: 5 x 3.4 x 0.9" (13 x 8.6 x 2.3 cm) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.8 x 6.0 x 3.2" |
