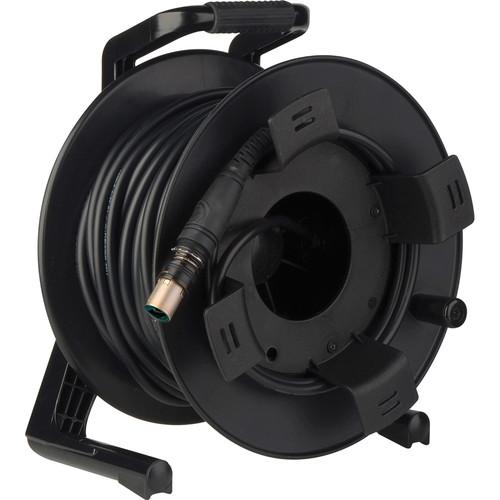

User Manual for Camplex HF-TROC2SX OpticalCON DUO SM XTREME Fiber TAC Tactical Cable Reel Click to enlarge the picture
Contents of the user manual for the Camplex HF-TROC2SX OpticalCON DUO SM XTREME
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex HF-TROC2SX OpticalCON DUO SM XTREME contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description Provided by third party: 2-Channel Singlemode opticalCON DUO X-TREME Fiber only (no power conductors) features a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket. The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
- Key Features
-
- Extremely strong, rugged, survivable tight-buffered cables for severe environments
- These cables are flame retardant and watertight and therefore suitable for indoor and outdoor use
- Helically stranded cable core for flexibility and outstanding mechanical protection for the fibers
- Core-bonded Polyurethane inner and outer jacket providing simple installation
- Glass-rovings between inner and outer jacket for improved mechanical strength
- Predicted lifetime > 30 years
- OpticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
- OpticalCON multimode fiber cables offer laser and bend optimized OM3 fibers
- Offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Accommodates standard optical LC-Duplex connectors
- Reliable Push-Pull locking mechanism
- Dust and water resistant according to IP65 in mated condition
- Easy to clean, no special tools required
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex HF-TROC2SX OpticalCON DUO SM XTREME Fiber TAC Tactical Cable Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-TROC2SX-0100 Specs | | | Network Cable Type | Network cable - OM3 | | Technology | Fiber optic | | Type of Fiber Optics | Singlemode | | Jacket Material | Polyurethane | | Fiber Qty | 2 | | Features | Indoor, outdoor, tight buffered, flame retardant, water-resistant, dustproof connector, rodent-resistant, double jacketed, cut-resistant | | Length | 30.5 m | | Color | Black | | | | CONNECTOR | opticalCON DUO - plug | | Connector (Second End) | opticalCON DUO - plug |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
