User Manual for Camplex LEMO FUW M to PUW F Indoor Studio SMPTE Fiber Camera Cable Click to enlarge the picture
Contents of the user manual for the Camplex LEMO FUW M to PUW
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex LEMO FUW M to PUW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|

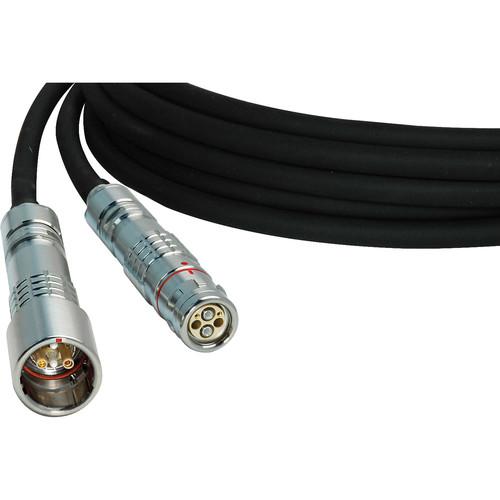

Product description Provided by third party: Featuring ultra-precision LEMO certified machine polished fiber contacts for the most demanding applications for high-speed uncompressed HD video transmissions over long distances. All assemblies multi-stage machine polished and tested for <.55db RL with test results (diagnostics) supplied with each cable. Meets or exceeds SMPTE 304M/311M standards. Built in-house by LEMO trained technicians at state-of-the-art fiber shop with full repair services available.
Assembled with premium Belden super flexible US SMPTE standard studio broadcast cable. This composite cable integrates power line for TV camera, control line, and optical fiber for video and audio transmission. The cable is standardized by SMPTE for HDTV Broadcast camera use. Cables consists of two single-mode optical fibers, four 20 AWG and two 24 AWG tinned copper conductors cabled around a steel strength element, with an overall tinned copper braid. This general purpose cable is used for studios, patching and light to medium field use. A flexible PVC blend jacket allows for ease of use within the studio.
- Key Features
-
- Assembled with Premium Belden 96040 flexible studio SMPTE cable & LEMO connectors
- Industry standard cables
- Terminations by LEMO certified technicians
- Electrical assemblies 100% tested for continuity and shorts
- Fiber optic assemblies 100% tested for attenuation and back reflection
- SMPTE 311M and 304M compliant
- Stainless steel assemblies
- Rubber dust caps
- 19.4 Mbps to 3 Gbps transport
- Machine polished fiber contacts
- Low insertion and return loss
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex LEMO FUW M to PUW F Indoor Studio SMPTE Fiber Camera Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-FUWPUW-S-0003 Specs | | | Cable Type | Video / audio cable (optical) - indoor | | American Wire Gauge (AWG) | 20/24 | | Jacket Material | PVC | | Shielding Material | Tinned copper braid | | Compliant Standards | SMPTE 304M/311M | | Length | 3 ft | | Recommended Use | Camera | | Features | Tinned copper conductors, single mode, push-pul connector, rubber dust caps | | | | CONNECTOR | Lemo FUW - male | | Connector (Second End) | Lemo PUW - female |
