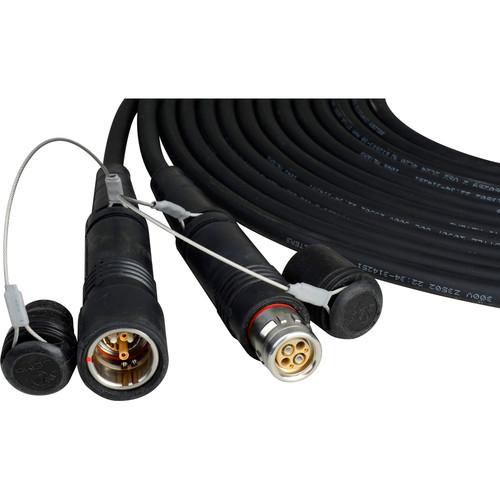

User Manual for Camplex Lemo FUW Male to Lemo PUW Female Outside Broadcast Fiber Camera Cable Click to enlarge the picture
Contents of the user manual for the Camplex Lemo FUW Male to Lemo
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex Lemo FUW Male to Lemo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description The 150' Lemo FUW Male to Lemo PUW Female Outside Broadcast Fiber Camera Cable from Camplex features ultra-precision LEMO certified machine polished fiber contacts for the most demanding applications for high-speed uncompressed HD video transmissions over long distances. All assemblies are multi-stage machine polished and tested for <0.55 dB RL with test results (diagnostics) supplied with each cable. This cable meets SMPTE 304M/311M standards. The fiber camera cable is built by LEMO trained technicians.It is assembled with premium Furukawa US Standard SMPTE harsh environment outside broadcast cable. AWM style & recognized by UL, this composite cable integrates the power line for TV camera, control line, and optical fiber for video and audio transmission. This cable is standardized by SMPTE for HDTV broadcast camera use. - Assembled with premium Furukawa Harsh Environment Outside Broadcast SMPTE cable & LEMO connectors
- Terminations by LEMO certified technicians
- Electrical assemblies 100% tested for continuity and short circuits
- Fiber optic assemblies 100% tested for attenuation and back reflection
- SMPTE 311M and 304M compliant
- 19.4 Mb/s to 3 Gb/s transport rate
- Machine polished fiber contacts
- Low insertion and return loss
In the Box Camplex Lemo FUW Male to Lemo PUW Female Outside Broadcast Fiber Camera Cable (150') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex Lemo FUW Male to Lemo PUW Female Outside Broadcast Fiber Camera Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-FUWPUW-M-0150 Specs | | | Connector 1 | FUW Male | | Connector 2 | PUW Female | | Coupling Type | LEMO (SMPTE) | | Cable Length | 150' / 45.7 m |
