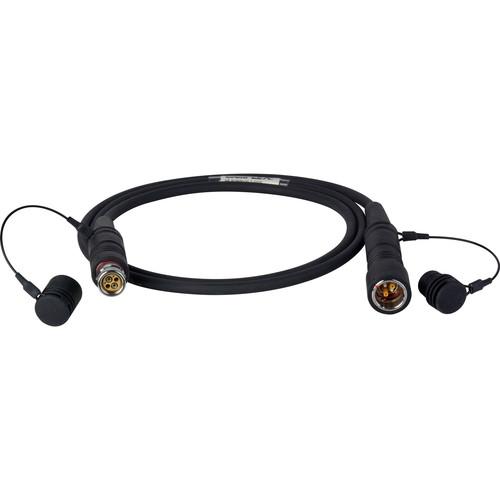

User Manual for Camplex LEMO FUW-PUW 7.8mm Bend Insensitive SMPTE 311 Fiber Cable Click to enlarge the picture
Contents of the user manual for the Camplex LEMO FUW-PUW 7.8mm Bend Insensitive
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex LEMO FUW-PUW 7.8mm Bend Insensitive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description Provided by third party: Ideal for portable deployments for truck and camera connections when facing weight and space constrictions, the Camplex HF-FUWPUW-7 Mini SMPTE cable assemblies with Gepco HDC720HD 7.8mm cable and LEMO FUW-PUW connectors are smaller and lighter than traditional 9.2 mm steel strength member cables. The steel is replaced by a Kevlar strength member that has the same pull strength of steel, but is lighter and more flexible which means they lay flat and are easier to deploy and reel back on the drum. Kevlar expands and contracts at the same rate as the glass members during temperature extremes, keeping the elements in the cable aligned reducing migration. The power conductors consist of two 16 AWG conductors so you can still achieve the same distance a regular SMPTE 311 cable performs to.
The Gepco cable also features bend insensitive fiber to reduce optical loss when bending and handling making them ideal for use behind racks and in trucks where space is extremely limited. The master jacket of the cable is heat resistant polyurethane, which is tougher than PVC for rugged outdoor use. LEMO certified machine polished fiber contacts are fully protected with Camplex over boots and caps for the most demanding applications for high-speed uncompressed HD video transmissions over long distances.
- Key Features
-
- Extremely durable and lightweight
- 7.8 mm diameter allows for 16% more cable per reel
- Glossy cable finish reduces pickup of dirt and debris
- Highly flexible with bend-insensitive optical fibers
- Kevlar strength member with same pull strength as steel
- Large gauge copper conductors for camera power
- Heat-resistant, heavy duty polyurethane jacket
- Low insertion and return loss
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex LEMO FUW-PUW 7.8mm Bend Insensitive SMPTE 311 Fiber Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-FUWPUW-7-0250 Specs | | | Cable Type | Video / audio cable (optical) - outdoor | | American Wire Gauge (AWG) | 16/24 | | Wires per Cable | 4 wires | | Jacket Material | Polyurethane | | Shielding Material | Foil | | Length | 250 ft | | Recommended Use | Camera | | Features | Stranded conductor, copper conductors, heat resistant, Kevlar strength member | | Color | Black | | | | CONNECTOR | Lemo FUW - male | | Connector (Second End) | Lemo PUW - female | | | | Included Accessories | Dust covers |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
