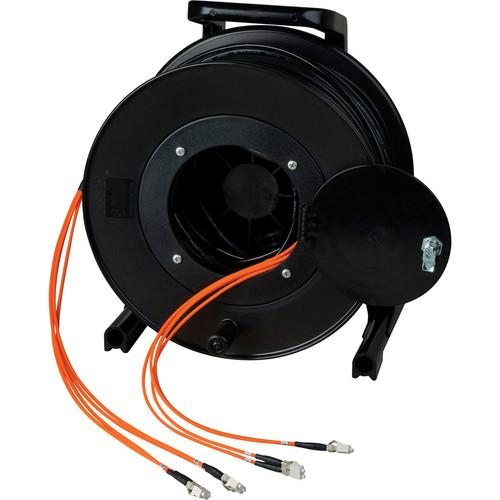

Product description The 1250' OM1 4-Ch Multimode Tactical Fiber LC Snake Cable Reel from Camplex features a tight-buffered, round cable with 36" orange fanouts, LC connectors, and a Schill fiber optic reel. The cable is designed for broadcast and audio deployments in indoor and extreme terrain outdoor settings. It is multi-stage machine polished and tested for < -55 dB return loss. Diagnostics documentation is supplied for each channel. The reel features a connector protection cavity, a hinged latching door, and it fully supports the required bend radius.The cable features a polyurethane outer sheath, thick layer of aramid strength members, helically stranded core for flexibility and survivability, and mechanical optical fiber protection. It is built to withstand chemicals, cuts, abrasions, and crushing by vehicles as heavy as military tanks. It can be used directly on the ground in harsh terrain, such as mining environments. - Tight-Buffered Round Fiber Optic Cable
-
- Designed for indoor/outdoor broadcast and audio applications
- Withstands cuts, abrasions, and crushing by tanks/vehicles
- Can be used directly on extremely harsh terrain
- Chemical resistant and suitable for petrochemical environments
- 62.5-micron fiber
- 36" orange fanouts
- Multi-stage machine polished
- Tested for < -55 dB return loss
- Polyurethane outer sheath
- Thick layer of aramid strength members
- Helically stranded core for flexibility and survivability
- Mechanical optical fiber protection
- Exceeds MIL-PRF-85045 specifications
- Schill Fiber Optic Cable Reel
-
- Connector protection cavity
- Hinged latching door
- Carefully selected to support required bend radius
In the Box Camplex OM1 4-Ch Multimode Tactical Fiber LC Snake Cable Reel (1250') Diagnostics Documentation Dust Cap Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex OM1 4-Ch Multimode Tactical Fiber LC Snake Cable Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-TR04LCM1-1250 Specs | | | Connector 1 | 4 x LC | | Connector 2 | 4 x LC | | Cable Length | 1250' / 381 m | | Fiber Type | Multimode | | Core Size | 62.5
