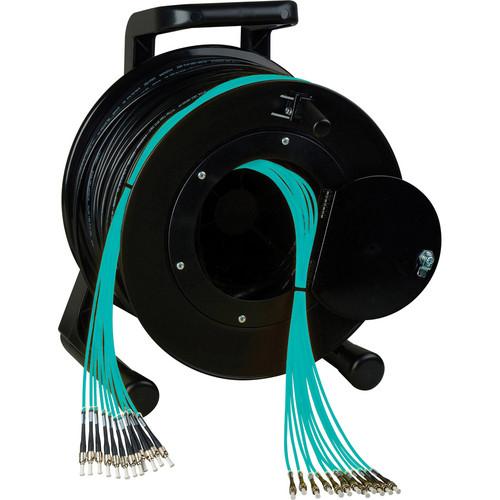

User Manual for Camplex OM3 8-Ch Multimode Tactical Fiber LC Snake Cable Reel Click to enlarge the picture
Contents of the user manual for the Camplex OM3 8-Ch Multimode Tactical Fiber
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex OM3 8-Ch Multimode Tactical Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description The 500' OM3 8-Ch Multimode Tactical Fiber LC Snake Cable Reel from Camplex features a tight-buffered, round cable with 36" aqua fanouts, LC connectors, and a Schill fiber optic reel. The cable is designed for broadcast and audio deployments in indoor and extreme terrain outdoor settings. It is multi-stage machine polished and tested for < -55 dB return loss. Diagnostics documentation is supplied for each channel. The reel features a connector protection cavity, a hinged latching door, and it fully supports the required bend radius.The cable features a polyurethane outer sheath, thick layer of aramid strength members, helically stranded core for flexibility and survivability, and mechanical optical fiber protection. It is built to withstand chemicals, cuts, abrasions, and crushing by vehicles as heavy as military tanks. It can be used directly on the ground in harsh terrain, such as mining environments. - Tight-Buffered Round Fiber Optic Cable
-
- Designed for indoor/outdoor broadcast and audio applications
- Withstands cuts, abrasions, and crushing by tanks/vehicles
- Can be used directly on extremely harsh terrain
- Chemical resistant and suitable for petrochemical environments
- 50-micron fiber
- 36" aqua fanouts
- Multi-stage machine polished
- Tested for < -55 dB return loss
- Polyurethane outer sheath
- Thick layer of aramid strength members
- Helically stranded core for flexibility and survivability
- Mechanical optical fiber protection
- Exceeds MIL-PRF-85045 specifications
- Schill Fiber Optic Cable Reel
-
- Connector protection cavity
- Hinged latching door
- Carefully selected to support required bend radius
In the Box Camplex OM3 8-Ch Multimode Tactical Fiber LC Snake Cable Reel (500') Diagnostics Documentation Dust Cap Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex OM3 8-Ch Multimode Tactical Fiber LC Snake Cable Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-TR08LCM3-0500 Specs | Connector 1 | 8 x LC | Connector 2 | 8 x LC | Cable Length | 500' / 152.4 m | Fiber Type | Multimode | Core Size | 50
