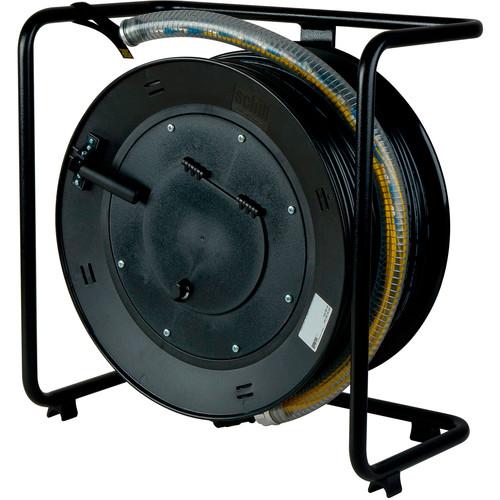

User Manual for Camplex ProTac Series 4-Channel Single Mode Fiber Optic Tactical Snake on Reel with ST Connector Click to enlarge the picture
Contents of the user manual for the Camplex ProTac Series 4-Channel Single Mode
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex ProTac Series 4-Channel Single Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description The 1000' ProTac Series 4-Channel Single Mode Fiber Optic Tactical Snake on Reel from Camplex features a translucent, crush-resistant, reusable protective tube. Fan-outs are safely housed in the ProTac cover and the cover has a convenient pulling eye. Designed for maximum protection, the ProTac fiber deployment reel system is IP68 rated with the pulling sock installed. The pulling eye and tactical sleeve protect fibers and connectors by transferring the tensile or pulling force to the cable structure. This highly flexible tight-buffered tactical cable features internal aramid strength members for crush resistance in high traffic areas and a polyurethane outer sheath designed to withstand crushing by vehicles as heavy as a military tank. Features - Individual channels are ruggedized with Techflex protection & 24" fanout
- Tested in military data communications applications worldwide
- Compact, round cable design for ease of transportation and deployment
- Designed for use in adverse environments where reduced size and weight are important
- Helically stranded cable core for flexibility, deployment survivability, and mechanical protection for the optical fibers
- Crush-resistant and resilient with a thick layer of aramid strength members
- Polyurethane jacketed for abrasion, cut and chemical resistance
- Light weight metal body construction
- Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
- Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
- Meets & exceeds MIL-PRF-85045 specifications
Applications In the Box Camplex ProTac Series 4-Channel Single Mode Fiber Optic Tactical Snake on Reel with ST Connector (1000') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex ProTac Series 4-Channel Single Mode Fiber Optic Tactical Snake on Reel with ST Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-TRP04ST-1000 Specs | | | Connector 1 | 4 x ST | | Connector 2 | 4 x ST | | Cable Length | 1000' / 304.8 m | | Return Loss | > -55 dB | | | | Package Weight | 30.95 lb | | Box Dimensions (LxWxH) | 19.6 x 15.4 x 13.1" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
