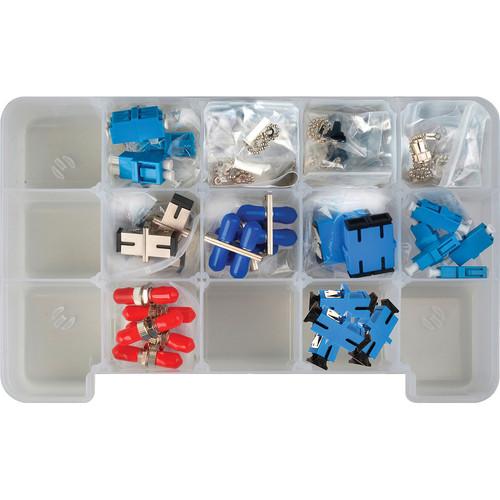

Product description The Camplex Singlemode Fiber Adapter Kit includes an assortment of singlemode fiber adapters in a neatly compartmentalized plastic storage box. - Singlemode Duplex LC to LC Fiber Optic Coupler Adapter with Flange (Zirconia Sleeve) The Camplex Singlemode Duplex LC to LC Fiber Optic Coupler Adapter with Flange features a zirconia sleeve and provides a link between fiber networking devices. This coupler allows for connecting of similar connector types for types for high speed networks. Single mode fiber optical products are used for long-distance signal transmission.
- Protective rubber sleeve over each connector
UPC: 091324212859 - Singlemode Simplex LC to LC Fiber Optic Coupler Adapter Camplex Singlemode Simplex LC to LC Fiber Optic Coupler Adapter is designed for mounting in panels with rectangular cutouts. Features precision mating for singlemode applications.
- Singlemode Duplex SC to SC Fiber Optic Coupler Adapter (Flangeless) The flangeless Camplex Singlemode Duplex SC to SC Fiber Optic Coupler Adapter transmits information at high bandwidths and over long distances while successfully maintaining the integrity of a reliable signal. This coupler allows you to connect optic fibers with SC connectors together. The SC features a push-on/pull-off mechanism, making it simple and convenient for the consumer's use. You will find satisfaction and peace of mind with the performance of the duplex multimode SC to SC coupler.
- Singlemode Simplex SC to SC Fiber Adapter with Zirconia Sleeve and Metal Flange Camplex Singlemode Simplex SC to SC Fiber Adapter with Zirconia Sleeve and Metal Flange is designed for mounting in standard rectangular cut out style panels. The sleeve will meet your specific design requirements and this adapter can be used with PC or UPC style fiber connectors.
- SC to SC Fiber Adapter Simplex Singlemode The Camplex SC to SC Fiber Adapter Simplex Singlemode is an SC to SC coupler compatible with PC and UPC style fiber connectors. It allows mounting standard rectangular cutout style panels. It features a Zirconia alignment sleeve and plastic flange.
- Singlemode Duplex ST to ST Fiber Optic Coupler with Zirconia Sleeve and Zinc Alloy Body Camplex Singlemode Duplex ST to ST Fiber Optic Coupler with Zirconia Sleeve and Zinc Alloy Body provides the link between fiber networking devices. This coupler allows for connecting of similar connector types for long-distance networks at high speeds. Single mode fiber optical products are used for long-distance signal transmission. This coupler is designed for mounting in panels with rectangular cut outs, features a sleeve to meet your specific design requirements, and can be used with PC or UPC style fiber connectors.
- Protective rubber sleeve on each individual fiber optic socket
- Singlemode Simplex ST to ST Fiber Adapter with Sleeve and Metal Thread The Camplex Singlemode Simplex ST to ST Fiber Adapter with Sleeve and Metal Thread provides a link between fiber networking devices. This coupler allows for connecting of similar connector types for long-distance networks at high speeds.
- Metal Dust Cap with Chain for LC Fiber Connector Camplex Metal Dust Cap with Chain for for LC Fiber Connector Fiber Connector is precision machined for a dust-free secure fit.
- Attached chain keeps dust cap handy and prevents misplacement
- Metal Dust Cap with Chain for SC Fiber Connector Camplex Metal Dust Cap with Chain for for SC Fiber Connector Fiber Connector is precision machined for a dust-free secure fit.
- Attached chain keeps dust cap handy and prevents misplacement
- Metal Dust Cap with Chain for ST Fiber Connector Camplex Metal Dust Cap with Chain for for ST Fiber Connector Fiber Connector is precision machined for a dust-free secure fit.
- Attached chain keeps dust cap handy and prevents misplacement
In the Box Bundle Items 3 x Singlemode Duplex LC to LC Fiber Optic Coupler Adapter with Flange (Zirconia Sleeve) wfbuayscvzytvysqzvfvrafzyfdc 5 x Singlemode Simplex LC to LC Fiber Optic Coupler Adapter 3 x Singlemode Duplex SC to SC Fiber Optic Coupler Adapter (Flangeless) wfbuayscvzytvysqzvfvrafzyfdc 5 x Singlemode Simplex SC to SC Fiber Adapter with Zirconia Sleeve and Metal Flange 5 x SC to SC Fiber Adapter Simplex Singlemode 3 x Singlemode Duplex ST to ST Fiber Optic Coupler with Zirconia Sleeve and Zinc Alloy Body 5 x Singlemode Simplex ST to ST Fiber Adapter with Sleeve and Metal Thread 5 x Metal Dust Cap with Chain for LC Fiber Connector 5 x Metal Dust Cap with Chain for SC Fiber Connector 5 x Metal Dust Cap with Chain for ST Fiber Connector wfbuayscvzytvysqzvfvrafzyfdc
Also Includes - T-909 Plastic Storage Box
- 1-Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex Singlemode Fiber Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Singlemode Duplex LC to LC Fiber Optic Coupler Adapter with Flange (Zirconia Sleeve)
| | | Box Dimensions (LxWxH) | 1.2 x 0.6 x 0.6" | - Singlemode Simplex LC to LC Fiber Optic Coupler Adapter
| | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 0.5" | - Singlemode Duplex SC to SC Fiber Optic Coupler Adapter (Flangeless)
| | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 0.1" | - Singlemode Simplex SC to SC Fiber Adapter with Zirconia Sleeve and Metal Flange
- SC to SC Fiber Adapter Simplex Singlemode
| | | Box Dimensions (LxWxH) | 3.5 x 2.0 x 0.7" | - Singlemode Duplex ST to ST Fiber Optic Coupler with Zirconia Sleeve and Zinc Alloy Body
| | | Box Dimensions (LxWxH) | 3.0 x 2.0 x 0.1" | - Singlemode Simplex ST to ST Fiber Adapter with Sleeve and Metal Thread
| | | Box Dimensions (LxWxH) | 1.5 x 0.45 x 0.05" | - Metal Dust Cap with Chain for LC Fiber Connector
| | | Box Dimensions (LxWxH) | 1.2 x 0.3 x 0.3" | - Metal Dust Cap with Chain for SC Fiber Connector
| | | Box Dimensions (LxWxH) | 1.0 x 0.6 x 0.6" | - Metal Dust Cap with Chain for ST Fiber Connector
| | | Box Dimensions (LxWxH) | 0.75 x 0.5 x 0.25" |
